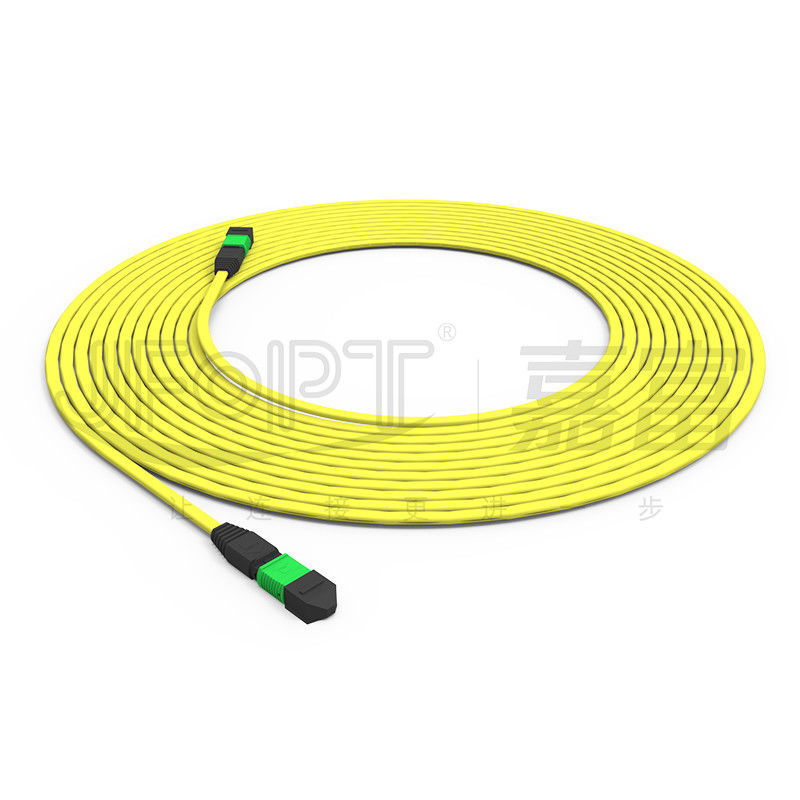

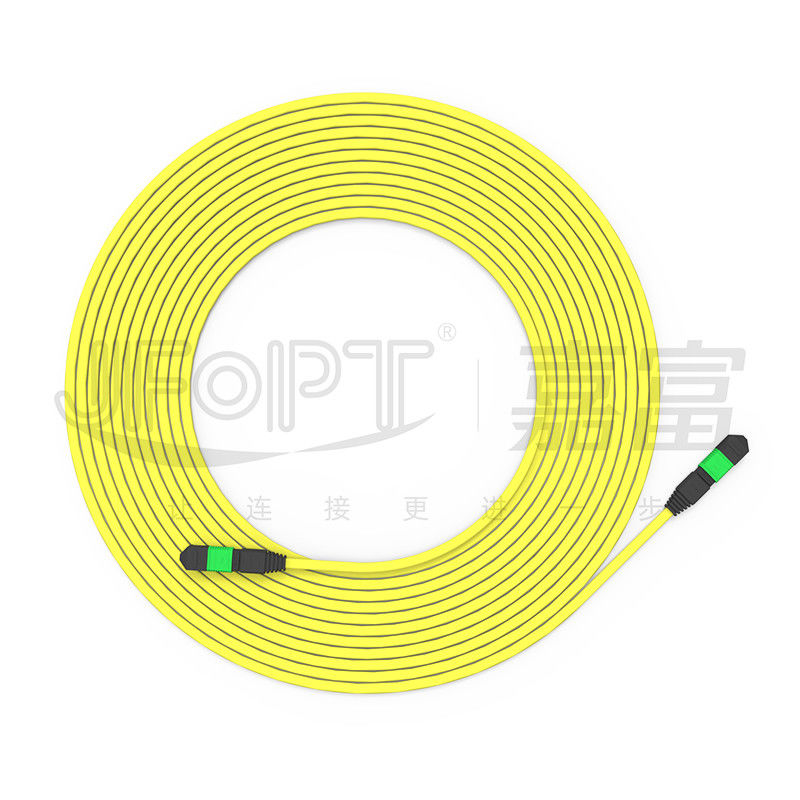

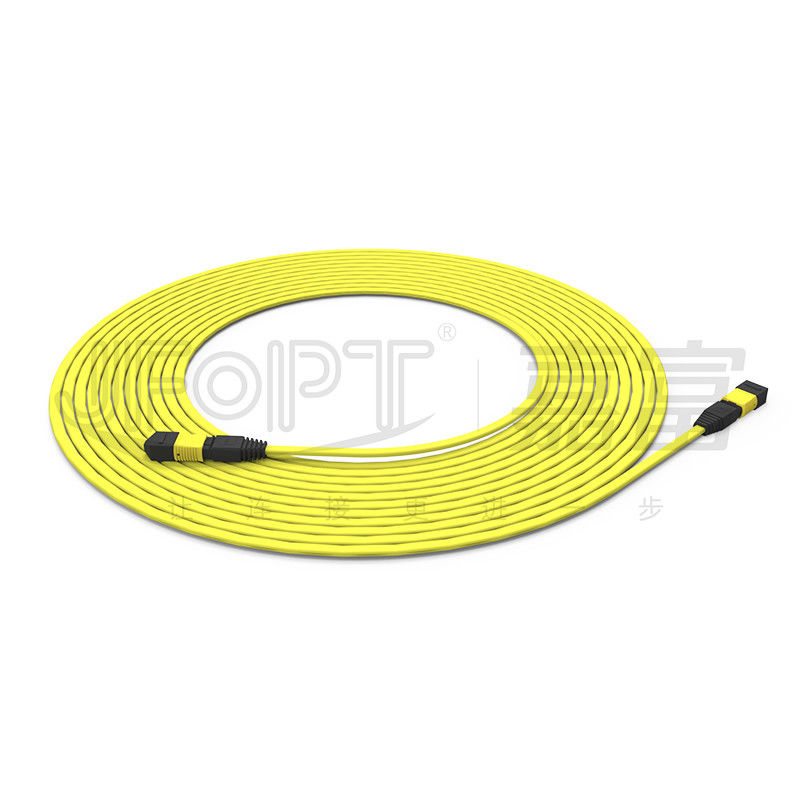

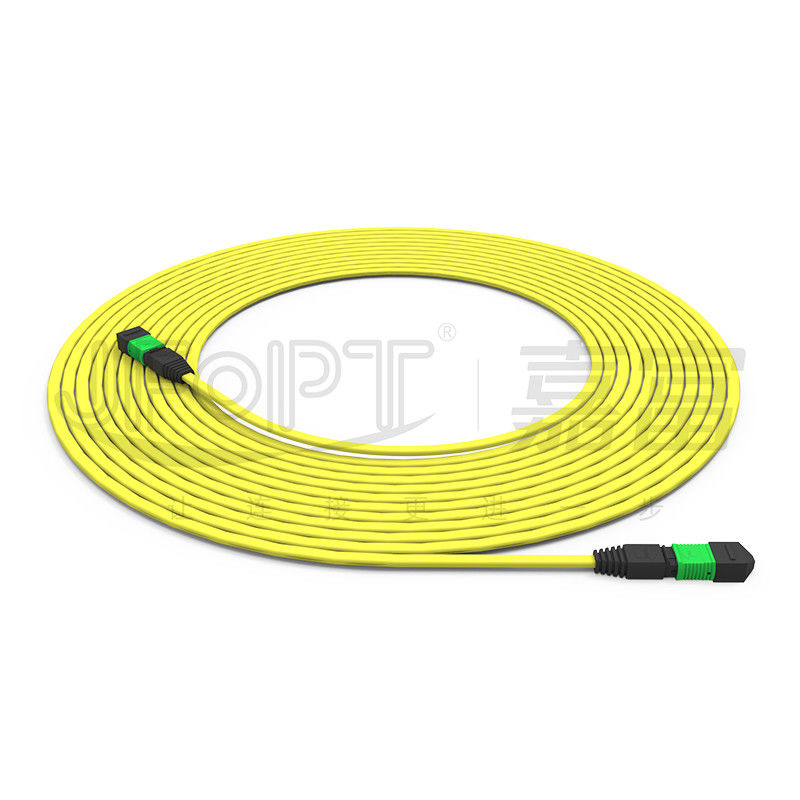

12-Core MPO To MPO Patch Cord Cable Terminated OS2 2.5*5.0mm LSZH

① Optional ribbon/bundle structure

② Optional sheath materials LSZH/PVC/TPU

③Optional flame-retardant ratings OFN/OFNR/OFNP

④YOFC bend-insensitive optical fibers for reliable and stable transmission

④100% passes 3D interference testing, insertion loss testing, and end-face inspection to ensure quality

-

-

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male/Female

Male: with Pin, Female: without Pin

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A

Item

Parameter

Fiber Type

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5

Fiber Count

24

48

72

96

144

288

Unit Count

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

24 cores / unit

Central Strength Member

/

/

FRP

Sub-Cable Unit Outer Diameter

3.0mm

Sub-Cable Unit Jacket Material

PVC / LSZH

Sub-Cable Unit Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Sub-Cable Unit Strength Member

Aramid yarn

Outer Jacket Diameter

9.5mm

9.5mm

11.5mm

13.5mm

17.0mm

Outer Jacket Material

PVC / LSZH

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-Term)

300N

200N

400N

800N

1600N

Tensile Strength (Short-Term)

600N

400N

1000N

1500N

3000N

Crush Resistance (Long-Term)

300N/10cm

Crush Resistance (Short-Term)

1000N/10cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

OFN / OFNR / OFNP

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

Violet

-

Reference color number PANTONE 7641C

Type

Specification

Applicable cable


Drawings

Round boot

3.0 boot length 33mm

3.0/3.2

3.0 boot length 17mm

3.0/3.2

4.0 boot length 33mm

3.8/4.0

Square boot

2.0 boot length 25mm

2.0

3.0 boot length 25mm

3.0/3.2

4.0 boot length 17mm

3.8/4.0

Ribbon Cable boot

2.5*5.0 boot length 22mm

2.5*5.0

Bare Ribbon fiber boot

Bare Ribbon fiber boot length 19mm

Bare Ribbon Fiber

Pull tab

Universal for all boots

Universal

Thickened anti-static bag

Thickened carton
