24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF

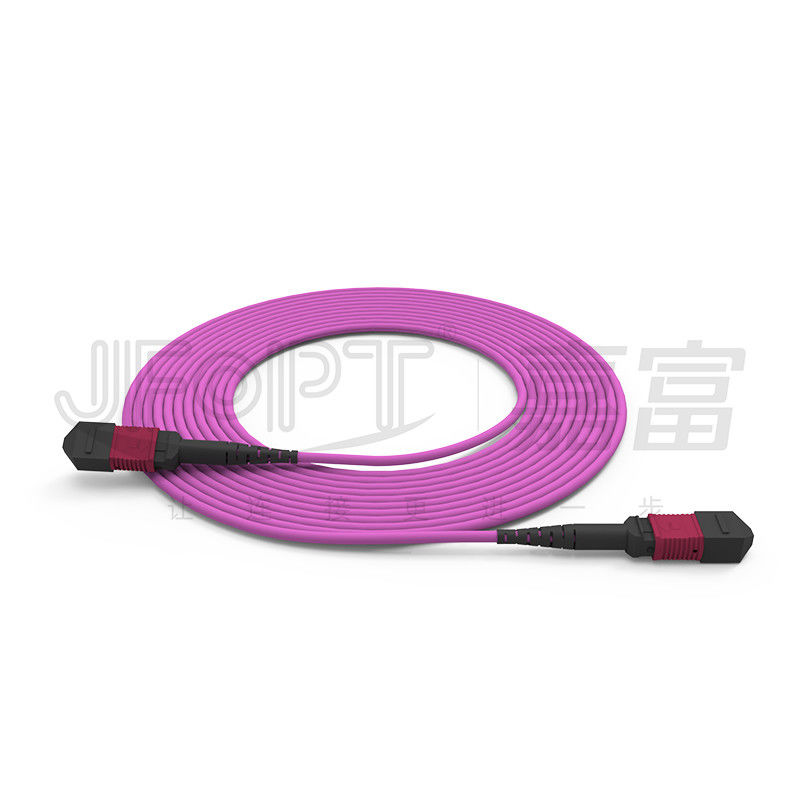

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF

Low Loss OM3 MPO Trunk Cable

Backbone MPO Jumper

24-core Backbone MPO Jumper

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

24C MPO Trunk Cable MM LL OM3/OM4/OM5 BIMMF

Contact Us

Request A Quote
Product Details
Connector:
MPO-MPO
Number Of Cores:
24 Cores
Loss:
Low Loss
Fiber Type:
OM3/OM4/OM5 BIMMF
Insertion Loss:
IL≤0.35dB
Connector Type:
Male/Female
Polarity:
A Polarity/B Polarity
Cable Material:
LSZH/PVC/TPU
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quoted based on product length / model / and loss parameters
Delivery Time
1-5 days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

 24-core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF



JFOPT specializes in manufacturing low-loss MPO backbone jumpers with various core counts of 8/12/16/24/32, suitable for various high-density cabling environments. Optical fiber includes single-mode G657A1/G657A2 and multimode OM3/OM4/OM5, all are from famous brands YOFC bend-insensitive optical fibers for stable data transmission. High-precision MPO connectors and low-loss MT ferrules result in minimal insertion loss. JFOPT possesses multiple professional MPO testing devices, and all products pass rigorous testing, complying with IEC standards to ensure product quality. MPO jumpers are packaged in thickened anti-static bags and sturdy outer boxes, providing multiple protections against damage, static electricity, dust, and moisture while maintaining a clean and aesthetic appearance.



♦ Features



①Stable transmission using bend-insensitive optical fibers

②Single-mode or multimode fiber options available

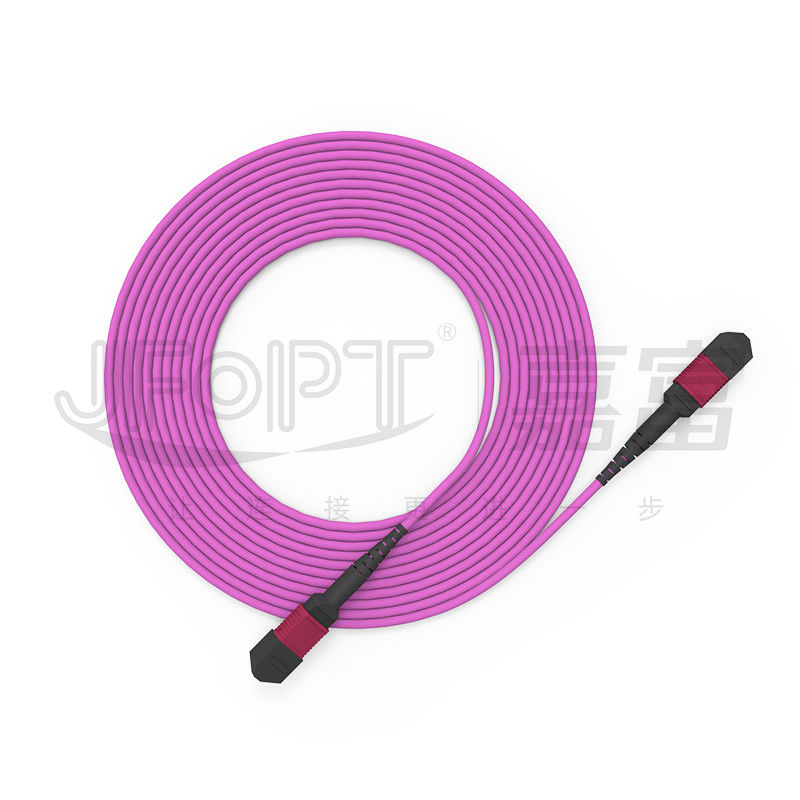

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 0

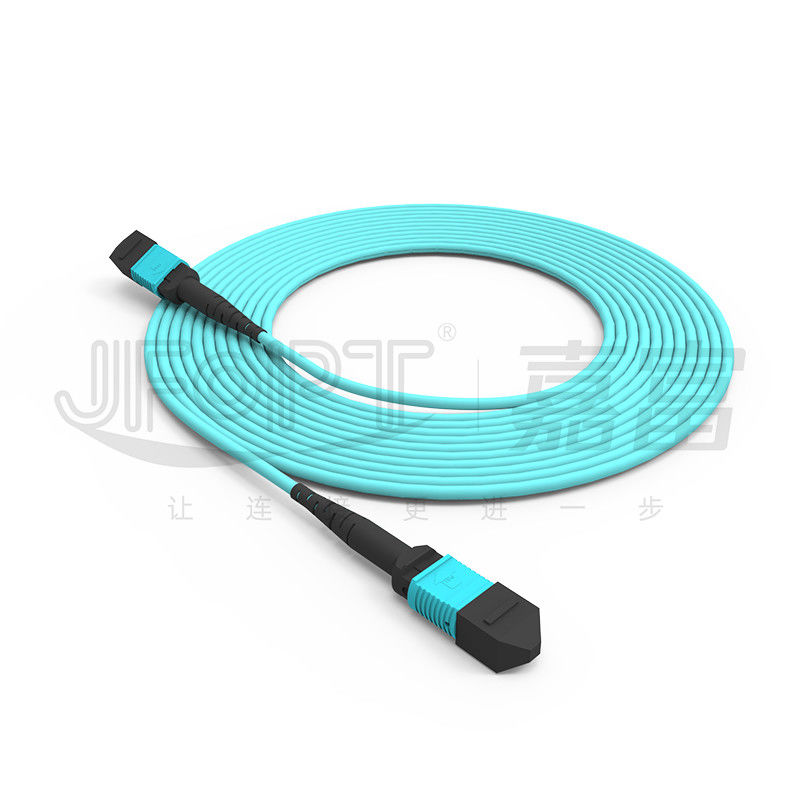

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 1

③Utilizes low-loss MT ferrules

④Equipped with high-precision MPO connectors

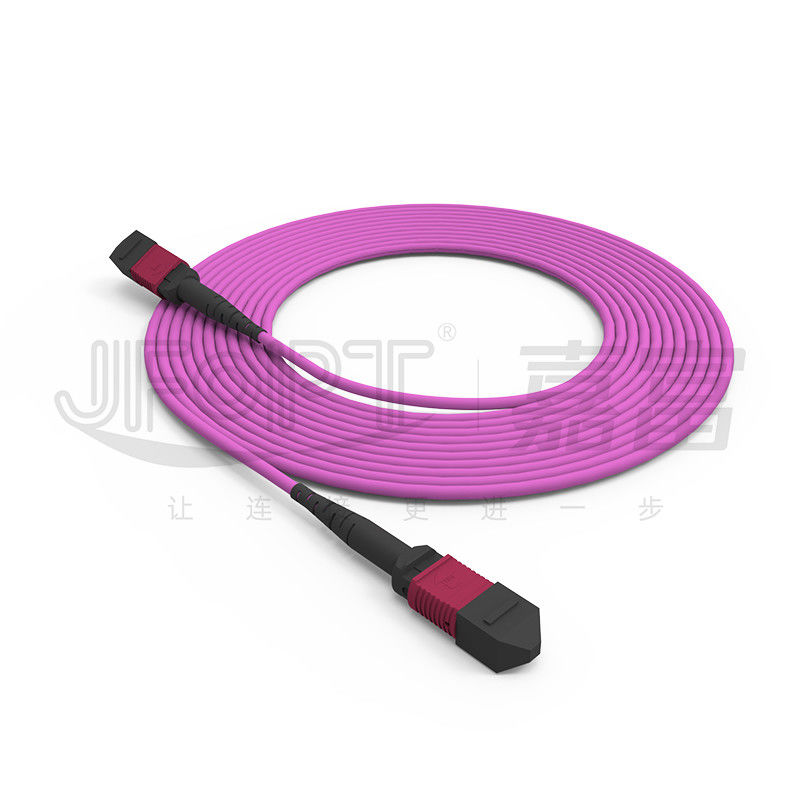

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 2

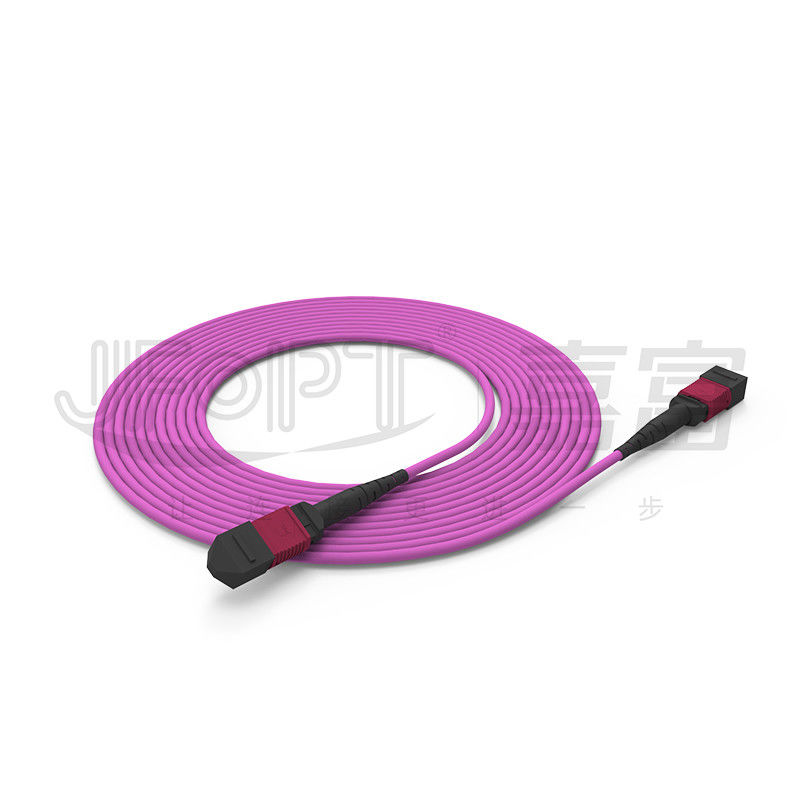

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 3

⑤Various core counts of 8/12/16/24/32 available



24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 4





♦ Applications

1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male/Female

Male: with Pin, Female: without Pin



♦ 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ Optical Cable Parameters

Item

Parameter

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

Optional 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Strength (Long-term)

100N/cm

Crush Strength (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP



Item

Parameter

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

2~12

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

2.5x5.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

100N

Tensile Strength (Short-term)

200N

Crush Strength (Long-term)

200N/cm

Crush Strength (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

50mm

Minimum Bending Radius (Static)

30mm

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP



Connector Housing Color Options

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 5

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 6

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 7

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 8

Violet

-

Reference color number PANTONE 7641C

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 9



♦ Boot Options

MPO boot

Type

Specification

Applicable cable


Drawings

Round boot

3.0 boot length 33mm

3.0/3.2

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 10

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 11

3.0 boot length 17mm

3.0/3.2

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 12

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 13

4.0 boot length 33mm

3.8/4.0

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 14

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 15

Square boot

2.0 boot length 25mm

3.0/3.2

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 16

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 17

3.0 boot length 25mm

3.0/3.2

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 16

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 17

4.0 boot length 17mm

3.8/4.0

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 20

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 21

Ribbon Cable boot

2.5*5.0 boot length 22mm

2.5*5.0

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 22

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 23

Bare Ribbon fiber boot

Bare Ribbon fiber boot length 19mm

Bare Ribbon Fiber

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 24

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 25

Pull tab

Universal for all boots

Universal

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 26

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 27



♦ Polarity Selection

12F Patch Cord

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 28



♦ Product Packaging

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 29

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 30

Thickened anti-static bag

Thickened carton



 Factory Strength

Expertise:


With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers.

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 31

Manufacturing Capability:


JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands.

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 32

Quality Control:


JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality.

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 33

Standardization:


JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products.

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 34

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers.

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 35

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

24-Core MPO Backbone Jumper Multimode Low Loss OM3/OM4/OM5 BIMMF 36



♦ Frequent Q&A

1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.



2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.



3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.



4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
