24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper

24-core MPO Patch Cord

Single-mode MPO Trunk Cable

G657A2 Backbone Jumper MPO Patch Cord

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO-MPO Male 24C SM G657A1/G657A2

Contact Us

Request A Quote
Product Details
Connector:
MPO-MPO
Connector Type:
Male
Fiber Type:
G657A1/G657A2
Number Of Cores:
24 Cores
Loss:
Standard Loss/Low Loss
Operating Wavelength:
1310/1550nm
Jacket Material:
LSZH/PVC/TPU
Length:
Customizable
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quoted based on product length / model / and loss parameters
Delivery Time
1-5 days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

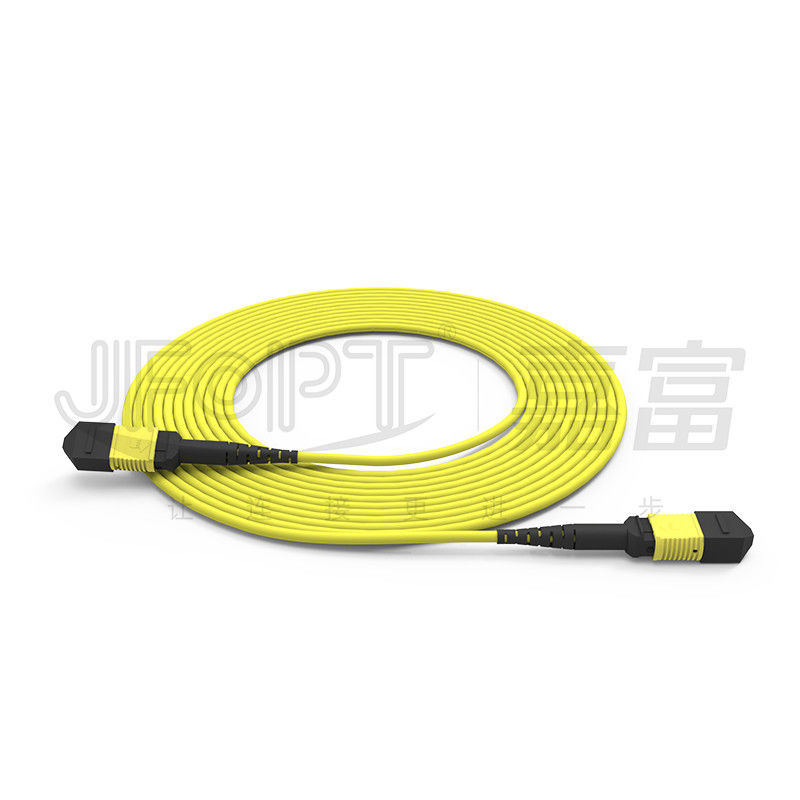

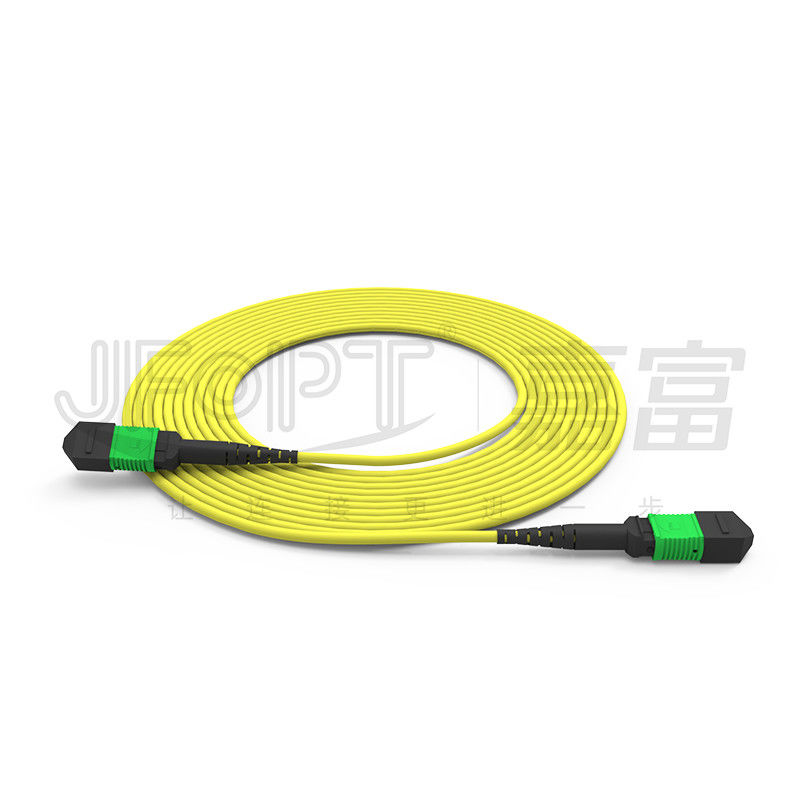

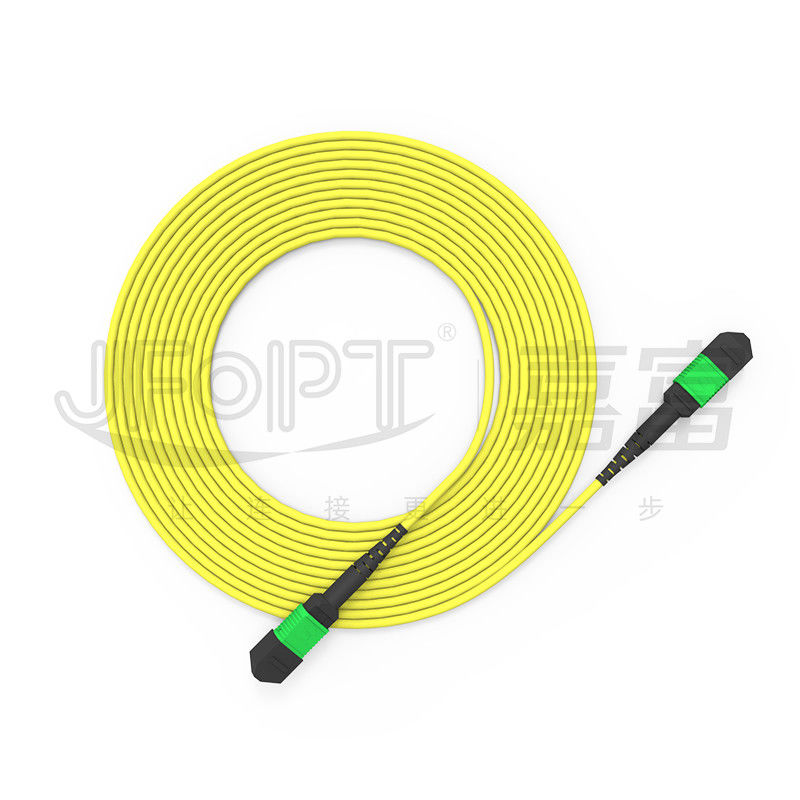

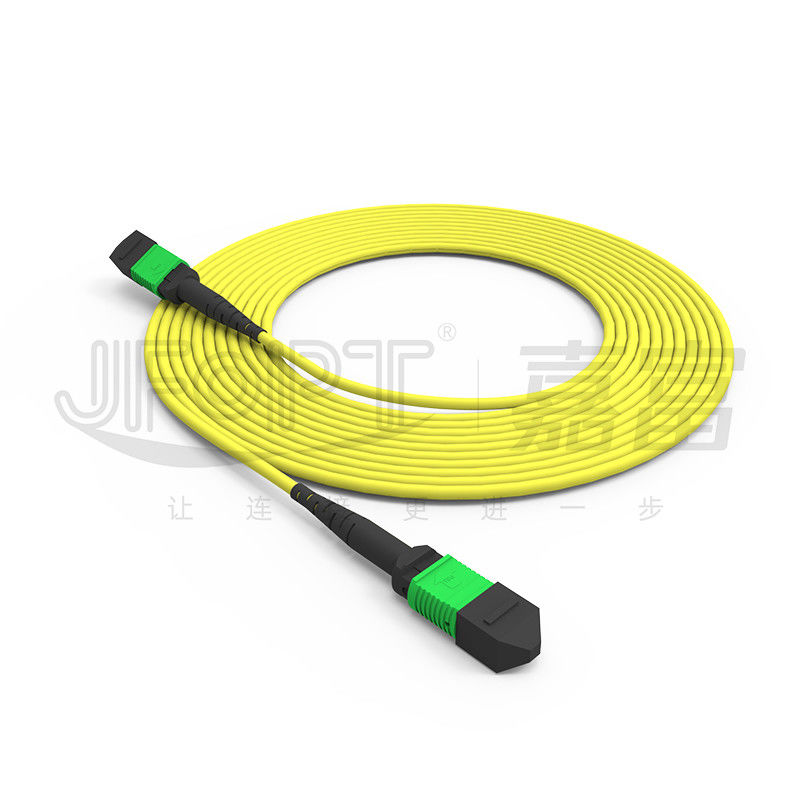

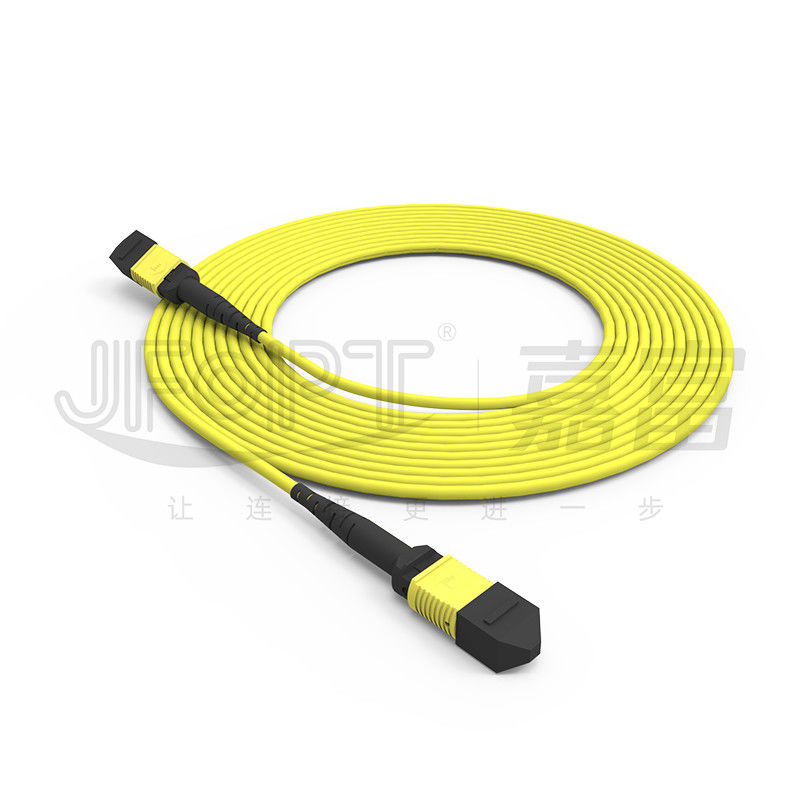

 MPO-MPO Male 24-core Single-mode G657A1/G657A2 Backbone Jumper



JFOPT's MPO-MPO backbone jumpers feature high-precision connectors, low-loss MT ferrules and high-precision pins. The pins align precisely with the pinholes, resulting in minimal connector insertion loss. In high-density cabling environments, MPO backbone jumpers effectively save space and reduce on-site construction time, simplifying complex cabling challenges.
We offer customizable non-breakout and breakout cable structures to meet customer on-site cabling requirements. Connector types, core counts, male/female connectors, polarity, branching methods, fiber optic types, lengths, and more can be selected and customized. Additionally, we provide various cable structure types, including non-armored, single armored, double armored, double-sheathed, and more, based on customer usage environments, catering to a wide range of environmental needs.



♦ Features



①Various cable structure types available, including non-armored, single-armored, double-armored, double-sheathed, and more

②High-precision pins, ensuring precise alignment with pinholes

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 0

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 1

③Low-loss MT ferrules, resulting in minimal insertion loss

④Jumper structure can be customized based on customer cabling requirements

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 2

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 3

⑤Various core counts of 8/12/16/24/32 cores are available for selection

-

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 4

-



♦ Applications

1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male/Female

Male: with Pin, Female: without Pin



♦ 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ Optical Cable Parameters

Item

Parameter

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

Optional 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Strength (Long-term)

100N/cm

Crush Strength (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP



Item

Parameter

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

2~12

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

2.5x5.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

100N

Tensile Strength (Short-term)

200N

Crush Strength (Long-term)

200N/cm

Crush Strength (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

50mm

Minimum Bending Radius (Static)

30mm

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP



Connector Housing Color Options

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 5

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 6

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 7

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 8

Violet

-

Reference color number PANTONE 7641C

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 9



♦ Boot Options

MPO boot

Type

Specification

Applicable cable


Drawings

Round boot

3.0 boot length 33mm

3.0/3.2

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 10

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 11

3.0 boot length 17mm

3.0/3.2

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 12

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 13

4.0 boot length 33mm

3.8/4.0

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 14

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 15

Square boot

2.0 boot length 25mm

3.0/3.2

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 16

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 17

3.0 boot length 25mm

3.0/3.2

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 16

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 17

4.0 boot length 17mm

3.8/4.0

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 20

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 21

Ribbon Cable boot

2.5*5.0 boot length 22mm

2.5*5.0

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 22

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 23

Bare Ribbon fiber boot

Bare Ribbon fiber boot length 19mm

Bare Ribbon Fiber

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 24

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 25

Pull tab

Universal for all boots

Universal

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 26

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 27



♦ Polarity Selection

12F Patch Cord

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 28



♦ Product Packaging

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 29

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 30

Thickened anti-static bag

Thickened carton



 Factory Strength

Expertise:


With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers.

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 31

Manufacturing Capability:


JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands.

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 32

Quality Control:


JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality.

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 33

Standardization:


JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products.

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 34

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers.

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 35

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

24-Core Single-Mode MPO Trunk Cable G657A1/G657A2 Backbone Jumper 36



♦ Frequent Q&A



1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.



2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.



3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.



4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
