Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE / UL / ROHS / REACH , Company: ISO9001 / ISO14001
Model Number:
SC/FC/ST SM/MM 2.0&3.0 chain dust cap
Contact Us

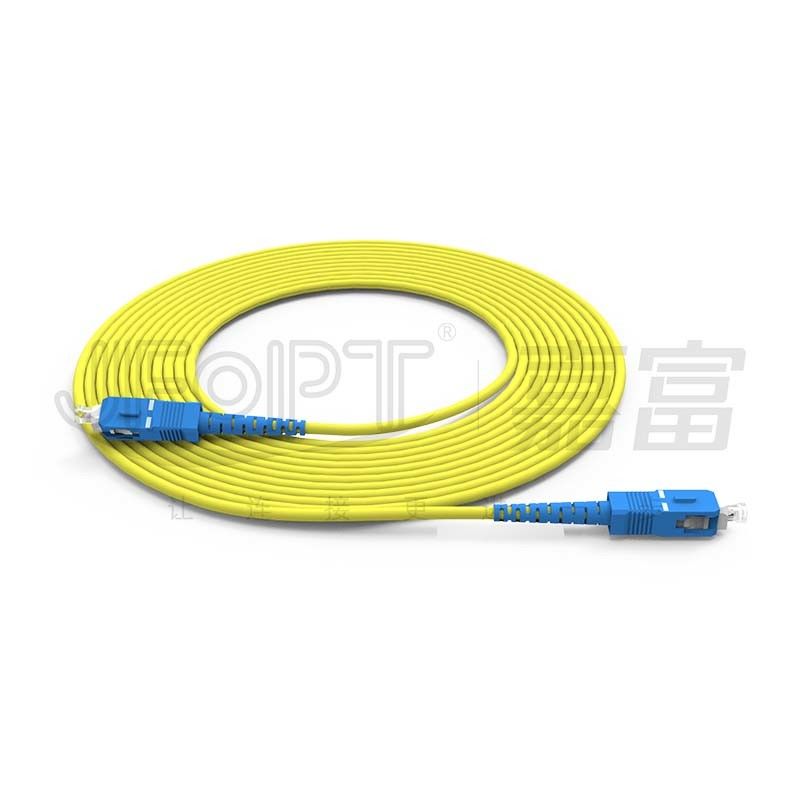

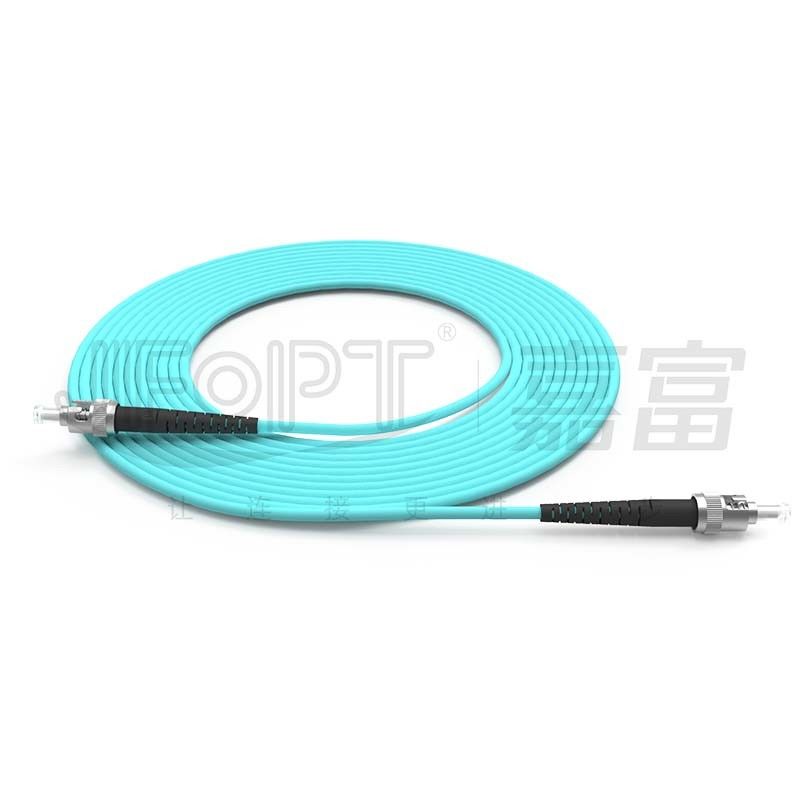

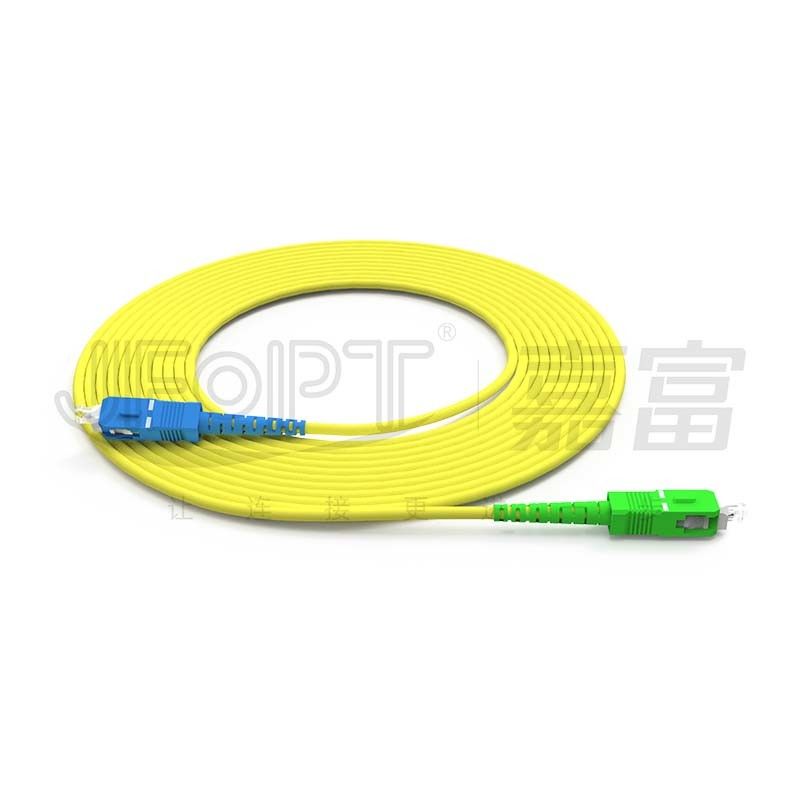

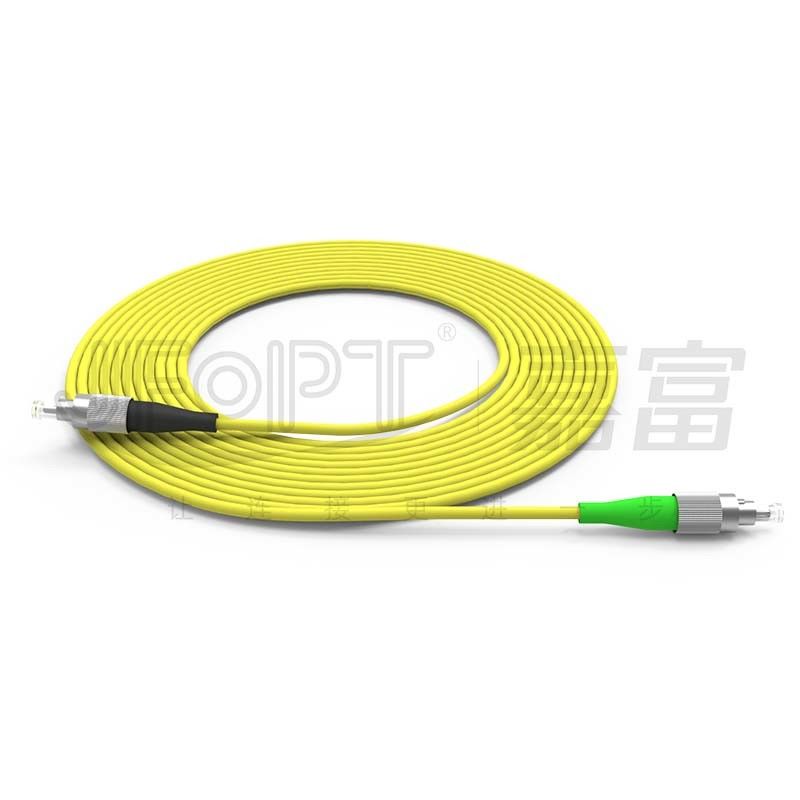

SC/FC/ST Single-mode/Multimode 2.0/3.0mm Patch Cord with Anti-drop Dust Cap
This patch cord is equipped with a specially designed dust cap, ensuring a stable connection for an extended period, without concerns of detachment. JFOPT's SC/FC/ST patch cord with anti-drop duct cap will provide your optical communication project with a reliable connection solution, ensuring outstanding performance and durability. Additionally, JFOPT offers comprehensive pre-sales and after-sales services and technical support to ensure your satisfaction.
♦ Features
|
① Anti-drop dust cap |
②Grade A ceramic ferrules for minimal attenuation |
||||
|
|
|
||||
|
③Customizable cable and connector colors, marker rings, heat shrink tubing, and other special requirements |
④Single-core/multi-core branching patch cord structure options |
||||
|
|
|
||||
|
⑤ 100% factory testing |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Technical Parameters
|
Connector Characteristics |
Connector Type |
SC/FC/ST |
|||
|
End - face Type |
Single - mode : UPC / APC ; Multimode : UPC |
||||
|
Insert Type |
Grade A Zirconia Ceramic Ferrule |
||||
|
Connector Color |
Blue / Green / Beige / Aqua / Violet |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single - mode : UPC≥50dB ; APC≥60dB ; Multimode : ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
|
Cable Characteristics |
Fiber Type |
OS2 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Core Count |
Simplex/Duplex |
||||
|
Outer Diameter |
0.9/2.0/3.0mm |
||||
|
Jacket Material |
PVC / LSZH or customized |
||||
|
Cable Color |
Yellow / Orange / Aqua / Violet / Lime Green / Custom |
||||
|
Fire Rating |
Optional OFN / OFNR / OFNP |
||||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
|
Storage Temperature |
-40~80℃ |
||||
♦ 3D Geometry Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC / FC / ST |
LC |
SC / FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Expertise: With a focus on fiber optic patch cord production for over 20 years, JFOPT has professional manufacturing techniques to produce high-quality and high-performance fiber optic patch cords. |
|
||||
|
Manufacturing Capacity: JFOPT has five production lines and equipment, enabling fast and efficient production of a large quantity of fiber optic patch cords to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures throughout the raw materials and every stage of the production process. We conduct professional quality testing and monitoring, including insertion loss testing and end-face inspection, to ensure product quality. |
|
||||
|
Standards Compliance: JFOPT can customize and strictly adhere to fiber optic patch cord production standards according to customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber optic patch cords. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What are the key considerations for customizing standard fiber optic patch cords?
Length of the patch cord / Cable material selection / Fiber type and core count / Duplex polarity / Color preferences / Labeling requirements.
2.How do we ensure stable parameters for our standard fiber optic patch cords?
100% insertion loss testing and end-face inspection for all patch cords , Multiple inspections and tests to ensure consistent quality.
3.What other advantageous products do we offer besides standard patch cords?
Adapter patch cords for various connector types such as LC, SC, FC, ST, E2000 , MPO adapter patch cords for converting to conventional connectors (e.g., LC) , Outdoor waterproof fiber optic cables and patch cords , Customized fiber optic connectors for various non-standard and special applications.
4.What is our delivery lead time?
For standard products, our delivery lead time can be controlled within 2 working days, ensuring prompt shipment to meet your requirements.
