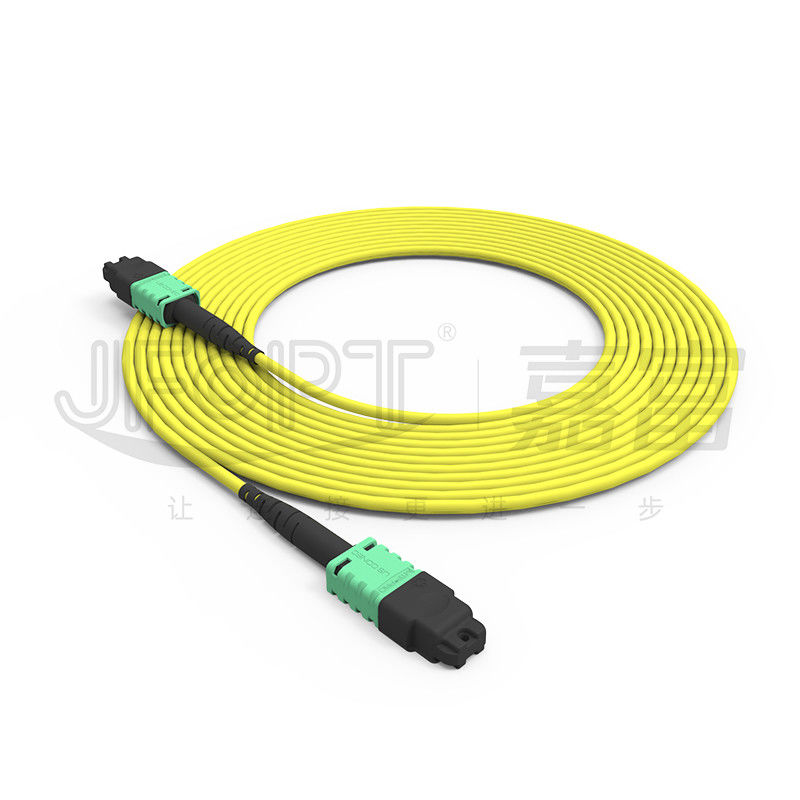

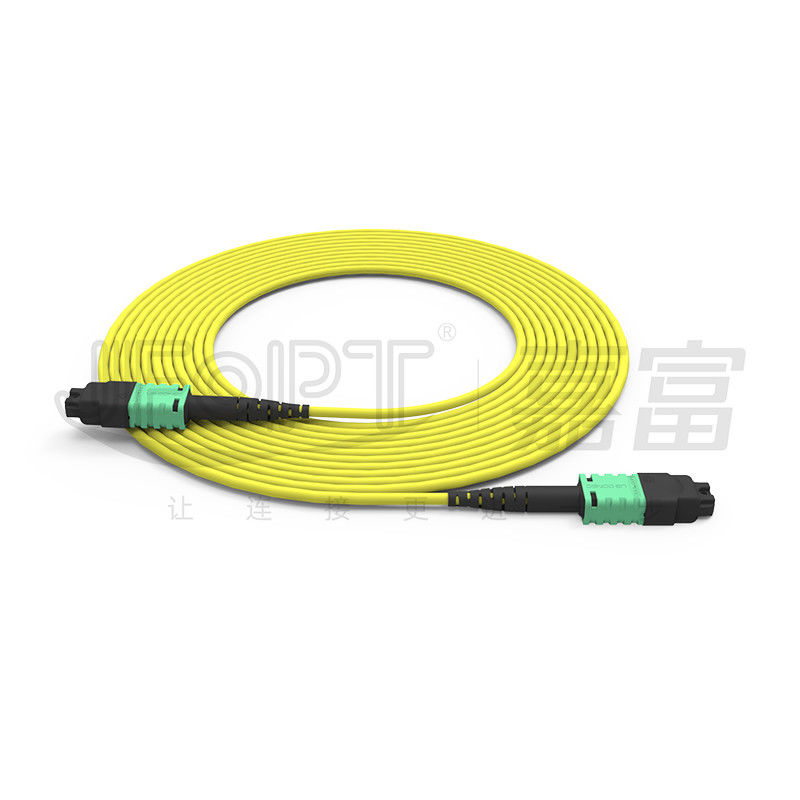

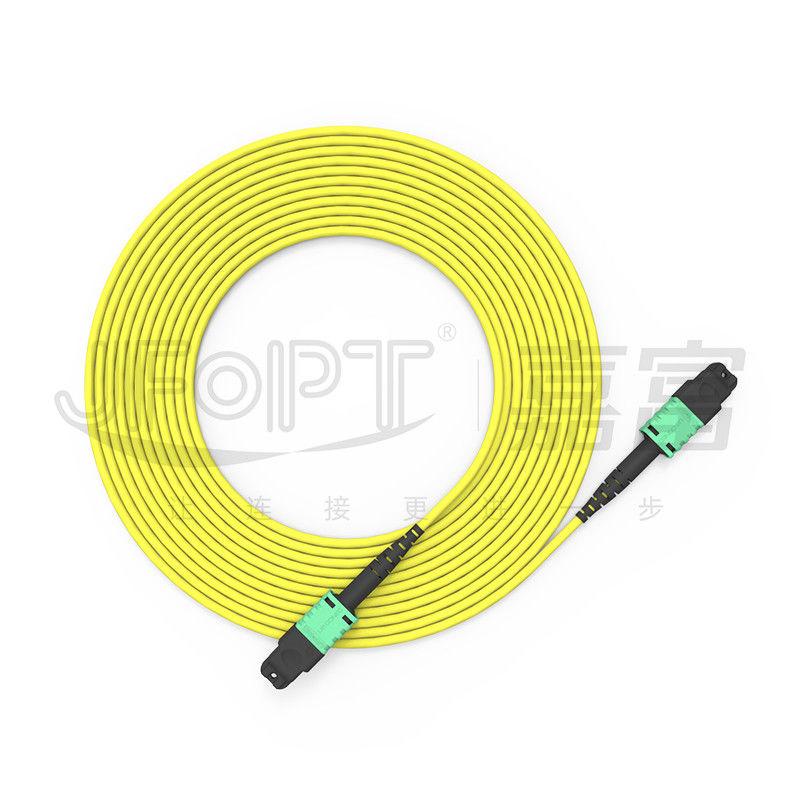

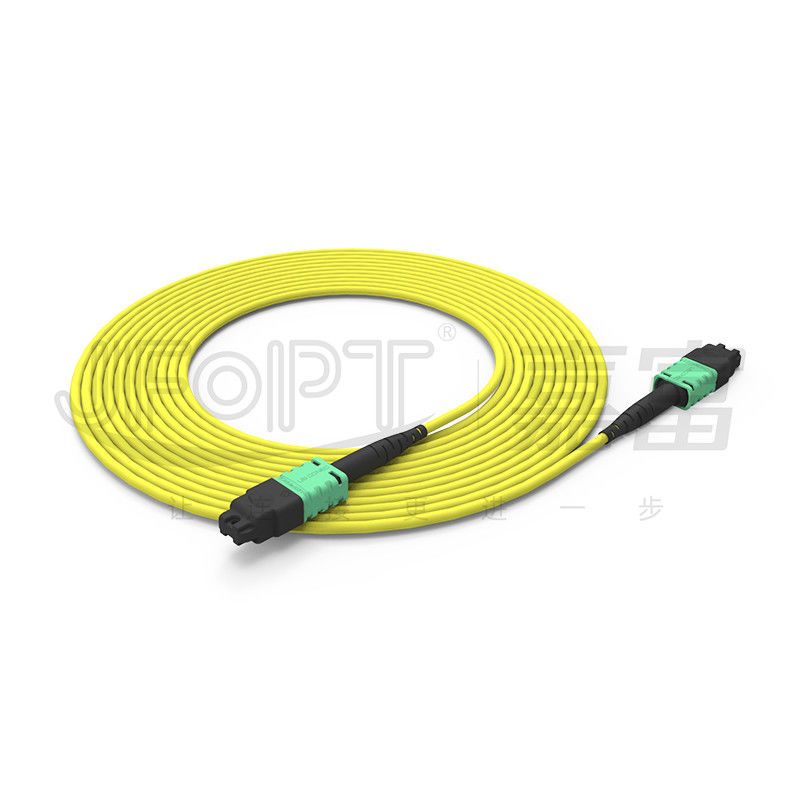

MTP PRO 12-Core Single-Mode/Multi-Mode 3.0mm OFN/OFNR/OFNP A/B Polarity Conversion Patch Cord
JFOPT currently offers MTP Pro patch cords. In addition to the advantages of the original MTP patch cords, MTP PRO connectors allow for polarity conversion and pin configuration without the need to remove the connector boot on-site. This can be accomplished with a simple step and polarity can be identified through different colored keys, enhancing the fault tolerance of patch cord configurations. All materials comply with international environmental standards such as RoHS and REACH, and various fire ratings like OFN, OFNR, and OFNP can be customized.
♦ Features
|
①MTP PRO connectors allow for easy on-site polarity change |
②Push-pull boot design facilitates high-density insertions and removals |
||||
|
|
|
||||
|
③Convenient and flexible to use, reducing operational risks |
④Customizable in terms of color and length |
||||
|
|
|
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Housing Color Selection
|
MTP PRO Connector |
||||
|
SM |
Green |
|
||
|
Reference color number PANTONE 346C |
||||
|
|
||||
|
MM |

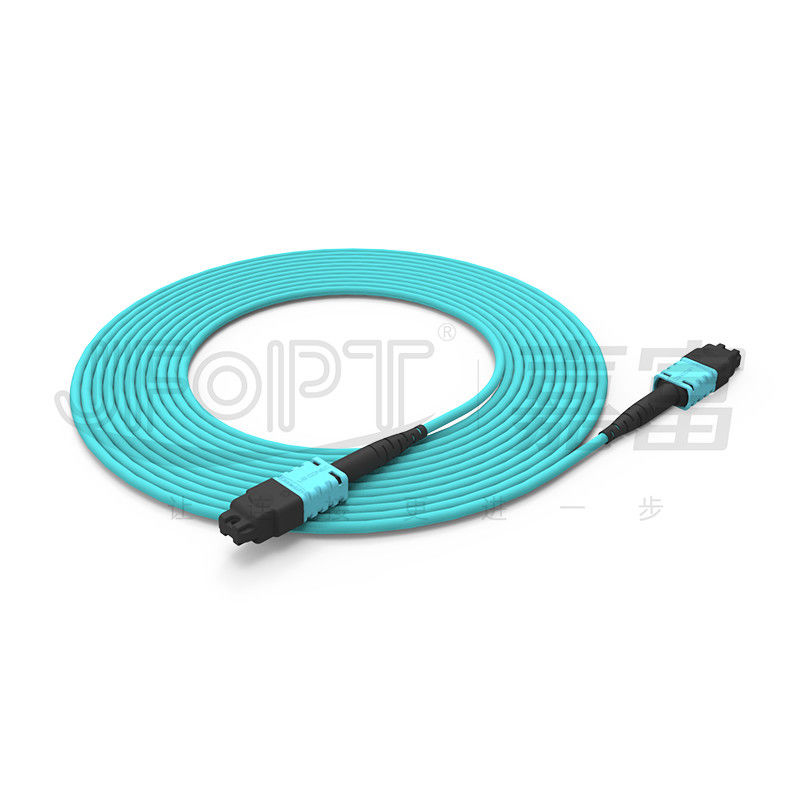

Aqua |

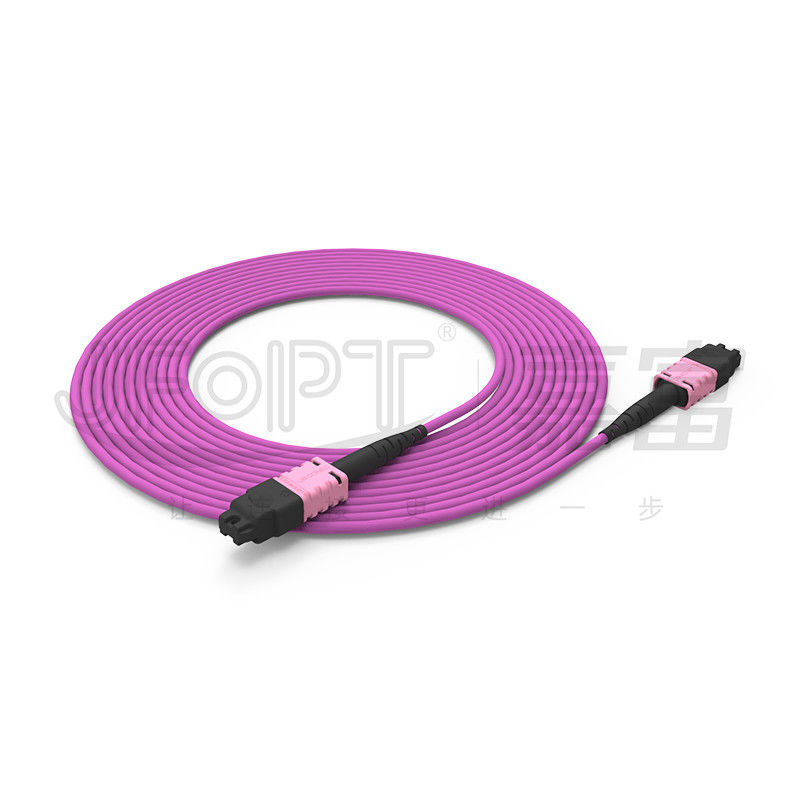

Heather Violet |
||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|

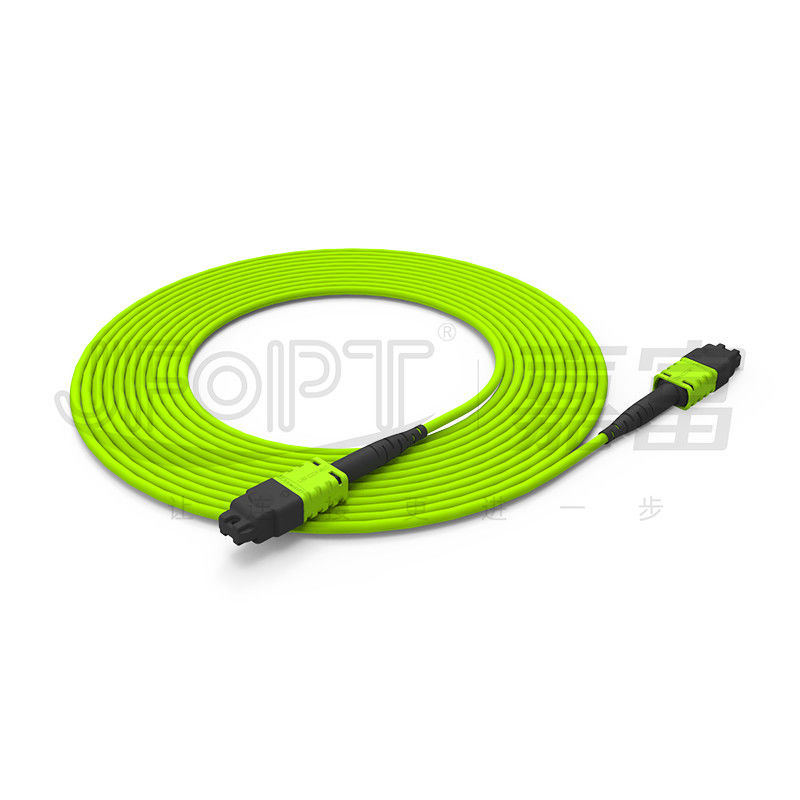

Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Connector Boot Selection
|
Boot Type |
Specification |
Cable Type |
Physical Picture |
Drawing |
|
Round boot |
2.0mm round cable 33.2mm |
2.0 |
|
|
|
2.5mm/3.0mm |
2.5/3.0 |
|
|
|
|
3.0mm |
3.0 |
|
|
|
|
3.0 round elastic boot 33.6mm |
3.0 |
|
|
|
|
3.6 round boot 33.2mm |
3.6 |
|
|
|
|
3.6 round boot 16mm |
3.6 |
|
|
|
|
3.6 round elastic boot 33.6mm |
3.6 |
|
|
|
|
4.0/4.5 round boot 33.2mm |
4.0/4.5 |
|
|
|
|
5.0mm/5.5mm |
5.0/5.5 |
|
|
|
|
3.0mm |
3.0 |
|
|
|
|
Ribbon Fiber Bare Boot |
No boot |
Bare ribbon fiber |
|
- |
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
