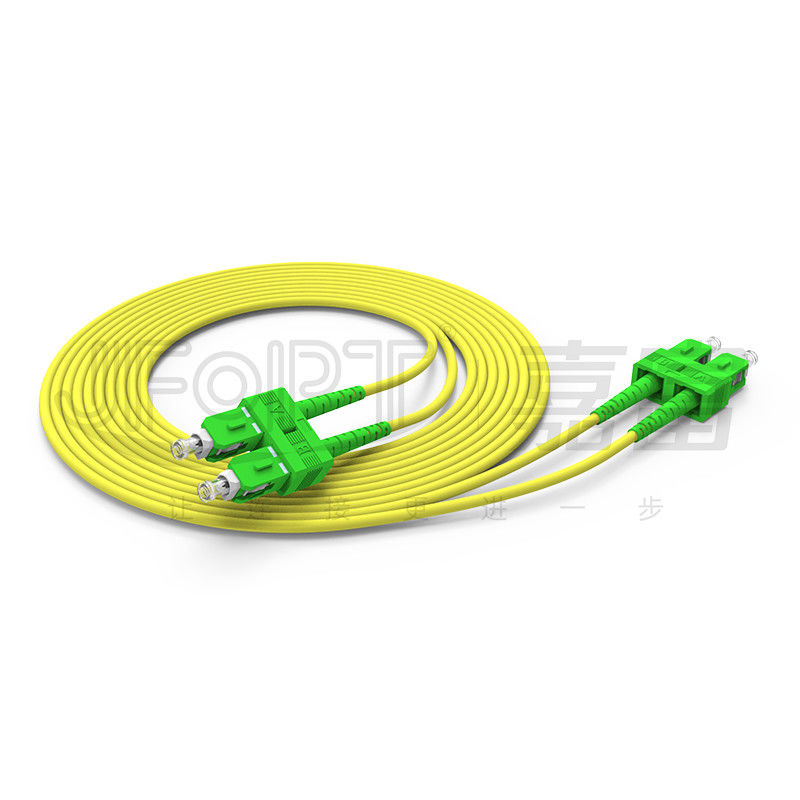

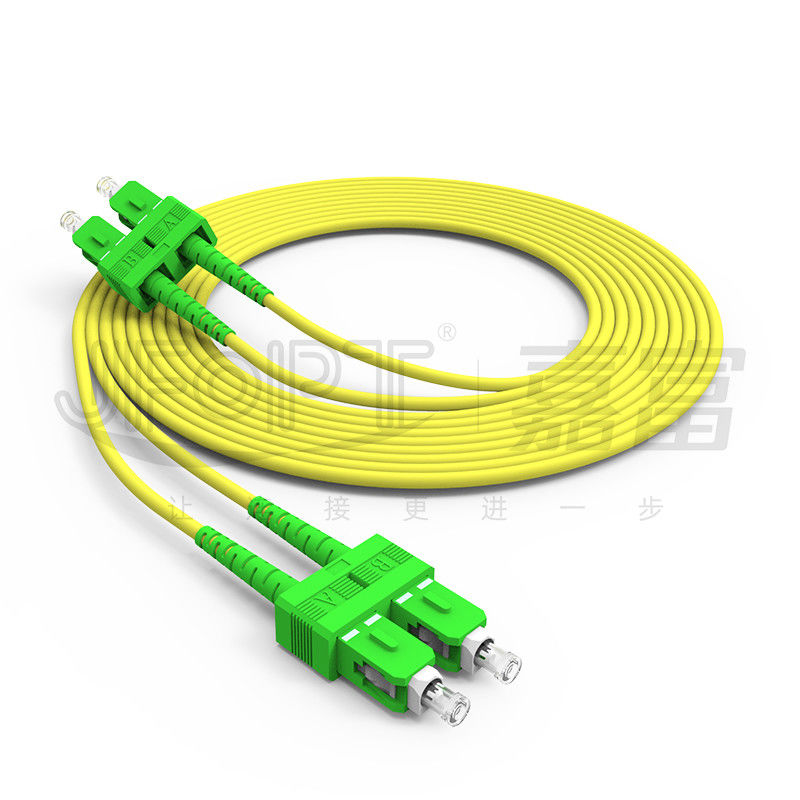

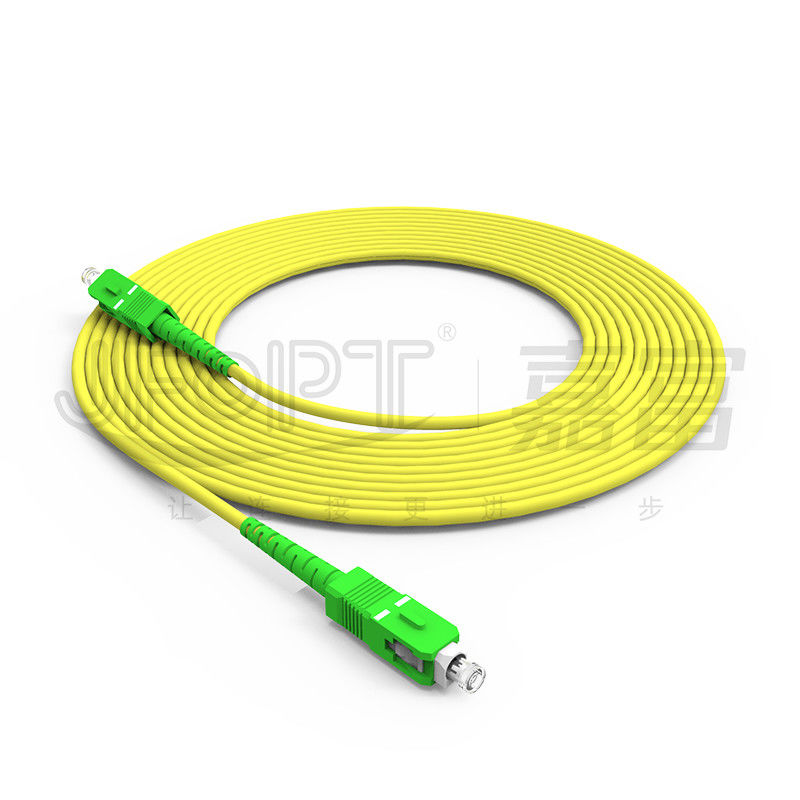

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH

Duplex LSZH Fiber Optic Patch Cord

2.0mm Fiber Optic Patch Cord

SC/APC Fiber Optic Patch Cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

SC/APC-SC/APC SX/DX G652D 2.0/3.0 LSZH

Contact Us

Request A Quote
Product Details
Connector Type:
SC/APC
Quality Grade:
Telecom-grade
Optical Cable Outer Diameter Options:
2.0/3.0mm
Length:
1M/2M/3M/Customizable
Cable Color Options:
Customizable
Number Of Cores:
Single-core/Dual-core
Outer Sheath Material:
LSZH
Operating Temperature:
-20~70°C
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quoted based on product length, model, and loss parameters
Delivery Time
1-5 days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
20,000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

 Telecom-grade Green Connector SC/APC-SC/APC Single-mode G652D Simplex/Duplex 2.0/3.0mm LSZH



JFOPT's SC/APC patch cords are produced using new PEI material and feature A-grade ceramic ferrules, making them convenient for fusion splicing with minimal optical loss. The use of high-density loose tube components and long tail lengths ensures versatility in various environments without causing damage to the SC/APC patch cords. The high standard of manufacturing technology guarantees a flawless surface without scratches or defects, allowing for long-term use with confidence in performance and stability.



♦ Features

Telecom-grade patch cord, durable and long-lasting

100% 3D tested to ensure transmission performance

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 0

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 1

Various styles of boot options available to meet different user preferences

Preferred LSZH outer sheath for safety, high-temperature resistance, and strong resistance to pulling and dragging

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 2

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 3



Applications

1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



Technical Performance

Connector Characteristics

Connector Type

SC

PolisingType

Single - mode : UPC / APC ; Multimode : UPC

Ferrule Material

Grade A Zirconia Ceramic Ferrule

Connector Housing Color

Blue / Green / Beige / Aqua / Violet

Insertion Loss

≤0.3dB/≤0.2dB/≤0.15dB

Return Loss

Single - mode : UPC≥50dB ; APC≥60dB ; Multimode : ≥25dB

Repeatability

≤0.2dB

Interchangeability

≤0.2dB

Fiber Type

OS2 / OM1 / OM2 / OM3 / OM4 / OM5

Cable Characteristics

Fiber Count

Simplex/Duplex

Outer Diameter

0.9/2.0/3.0mm

Jacket Material

PVC / LSZH or customized

Cable Color

Yellow / Orange / Aqua / Violet / Lime Green / Custom

Fire Rating

Optional OFN / OFNR / OFNP

Temperature Characteristics

Operating Temperature

-20~70℃

Storage Temperature

-40~80℃



♦ Options of Simplex Patch Cord

Cable Diameter

Boot Type


Drawing

0.9mm
Simplex

Standard Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 4

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 5

2.0mm
Simplex

Standard Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 6

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 7

2.0mm
Simplex

Short BOOT1

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 8

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 9

3.0mm
Simplex

Standard Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 10

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 11

3.0mm
Simplex

Short BOOT1

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 12

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 13

2.0/3.0mm
Simplex

45°Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 14

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 15

2.0/3.0mm
Simplex

90°Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 16

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 17

3.0*2.0mm
Drop cable
Simplex

Standard Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 18

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 19



♦ Options of Duplex Patch Cord

Cable diameter

Boot type


Drawing

2.0mm

Standard boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 20

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 21

2.0mm

Short Boot1

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 22

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 23

3.0mm

Standard boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 24

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 25

3.0mm

Short Boot1

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 26

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 27

2.0/3.0mm

45°Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 28

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 29

2.0/3.0mm

90°Boot

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 30

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 31



♦ Connector Housing Color Options

SC Connector

Multimode

Beige

Aqua

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 32

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 33

Heather Violet

-

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 34

-



♦ Duplex Polarity Selection

TYPE A-B(Straight)

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 35

TYPE A-A(Crossing)

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 36



♦ Product Packaging

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 37

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 38

Thickened ziplock bag

Thickened carton



Factory Strength

Specialization:


JFOPT has been focusing on fiber optic patch cord production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber optic patch cords.

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 39

Manufacturing Capacity:


With 5 production lines and equipment, JFOPT can rapidly and efficiently produce a large quantity of fiber optic patch cords to meet customer demands.

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 40

Quality Control:


JFOPT implements strict quality control throughout the entire process, from raw material procurement to production, with professional quality inspection and monitoring, including insertion loss testing and end-face inspection to ensure product quality.

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 41

Standardization:


JFOPT can customize and strictly adhere to fiber optic patch cord production standards based on customer requirements, ensuring consistency and performance stability of the products.

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 42

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team that continuously develops advanced and high-performance fiber optic patch cords.

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 43

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

Telecom Grade Green Connector SC/APC-SC/APC Fiber Optic Patch Cord G652D Simplex / Duplex LSZH 44



♦ Frequent Q&A

1.What factors should be considered when customizing standard fiber optic patch cords?
Customization requirements for fiber optic patch cords may include length, cable material, fiber type and count, duplex polarity, color, labeling, and other specifications.



2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT ensures the stability of our standard fiber optic patch cords by subjecting them to 100% insertion loss testing and end-face inspection. Multiple inspections are conducted to ensure consistent and stable product quality.



3.What other advantageous products do we offer besides SC patch cords?
In addition to SC patch cords, we also produce FC, ST, LC, and other standard patch cords. We offer various connector adapter patch cords, MPO adapters for standard connectors (such as LC), outdoor waterproof fiber optic cables and patch cords, as well as custom-made fiber optic connectors for special applications.



4.What is our delivery lead time?
For standard products, we can guarantee a delivery lead time of 2 working days, ensuring prompt shipment of your orders.
