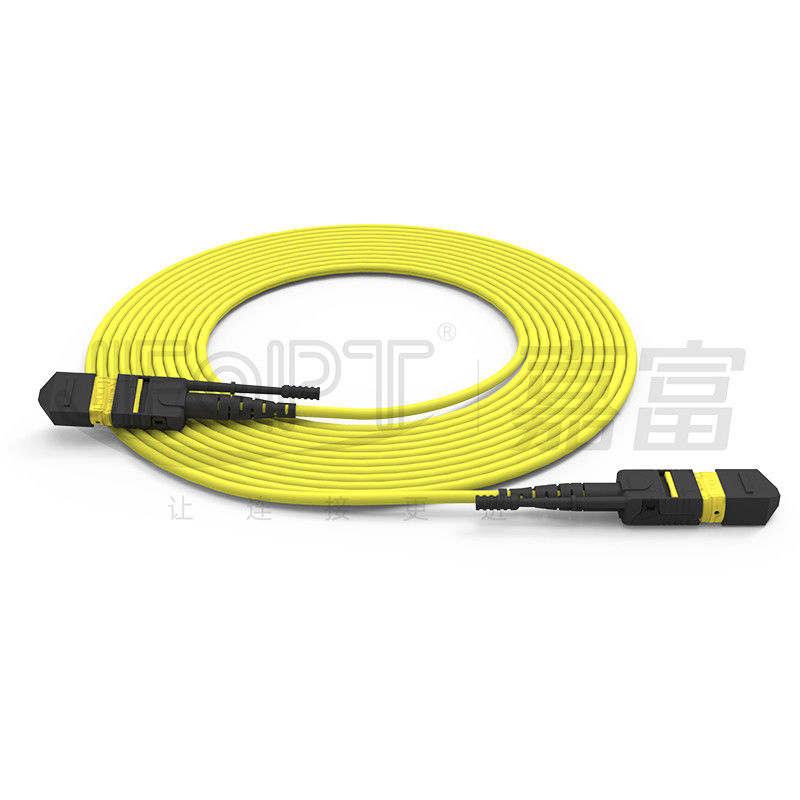

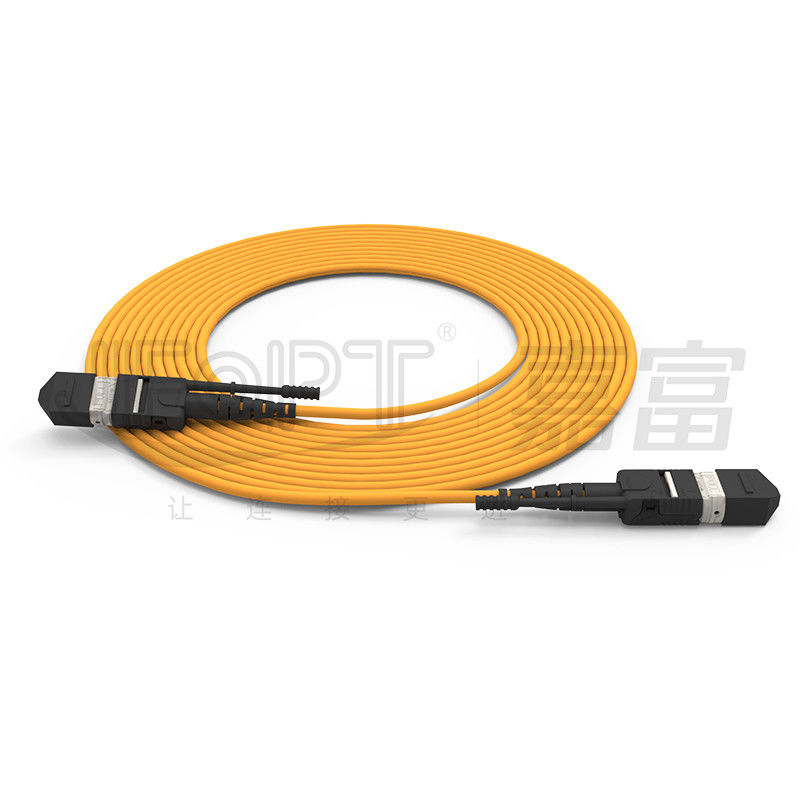

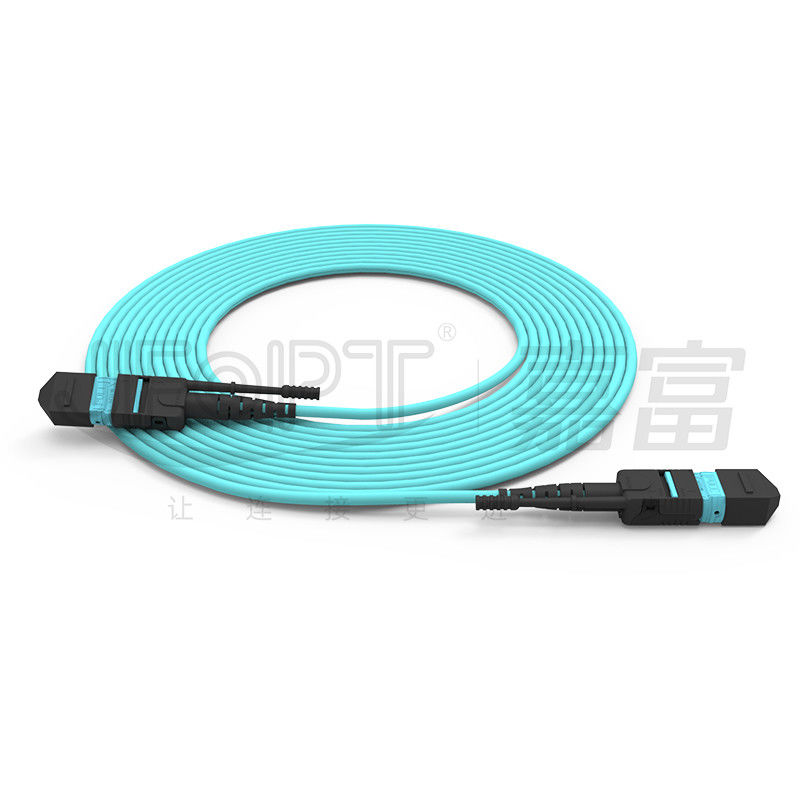

High-density MTP single-mode/multimode 24-core push-pull rod fiber optic cable
JFOPT's high-density MTP patch cords are processed using a complete set of imported Usconec components and connector cores. The produced MTP connectors undergo 100% testing according to IEC standards in a 3D environment, ensuring high-quality standards. The connector boot of this patch cord is designed with a push-pull rod, making it easy to disassemble. Additionally, the patch cord is manufactured using new environmentally friendly materials and high-standard technology, enabling high-speed and stable transmission. It effectively addresses issues such as high attenuation, connection drops, or latency during use.
♦ Features
|
① We use bend-resistant optical fibers to ensure low-loss, high reliability data transmission |
② MTP connectors are from USConec, ensuring excellent stability |
||||
|
|
|
||||
|
③There are various options for cable and connector colors, making it easier for customers to differentiate during installation |
④We are the manufacturer, providing fast delivery times |
||||
|
|
|
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 cores |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
2.5x5.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
100N |
|||
|
Tensile Strength (Short-term) |
200N |
|||
|
Crush Resistance (Long-term) |
200N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
50mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Connector Boot Selection
|
MTP boot type |
||||
|
Type |
Specification |
Applicable cable OD |
Picture |
Drawings |
|
Round boot |
2.0 boot L=33.2mm |
2.0 |
|
|
|
3.0 boot L=33.2mm |
2.5/3.0 |
|
|
|
|
3.0 boot L=16mm |
3.0 |
|
|
|
|
3.0 bendable boot L= 33.6mm |
3.0 |
|
|
|
|
3.6 boot L=33.2mm |
3.6 |
|
|
|
|
3.6 boot L= 16mm |
3.6 |
|
|
|
|
3.6 bendable boot L= 33.6mm |
3.6 |
|
|
|
|
4.5 boot L=33.2mm |
4.0/4.5 |
|
|
|
|
5.5 boot L= 33.2mm |
5.0/5.5 |
|
|
|
|
Ribbon Cable boot |
3.0*6.0 boot L=33.2mm |
3.0*6.0 |
|
|
|
2.5*5.0 boot L= 21.3mm |
2.5*5.0 |
|
|
|
|
Bare ribbon fiber boot |
Bare ribbon fiber boot L=19mm |
Bare Ribbon Fiber |
|
|
|
Push-pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
