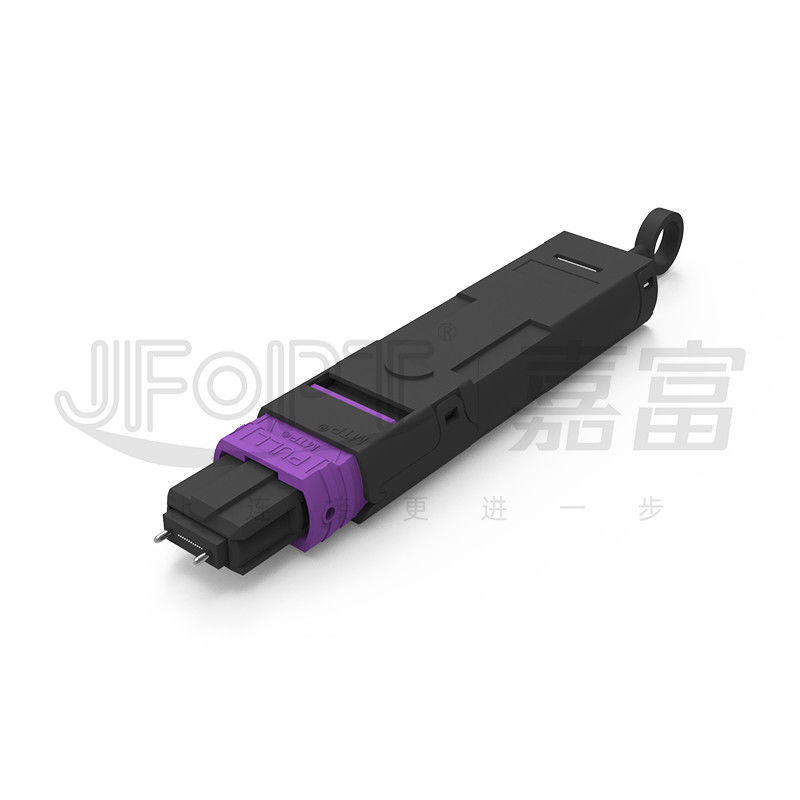

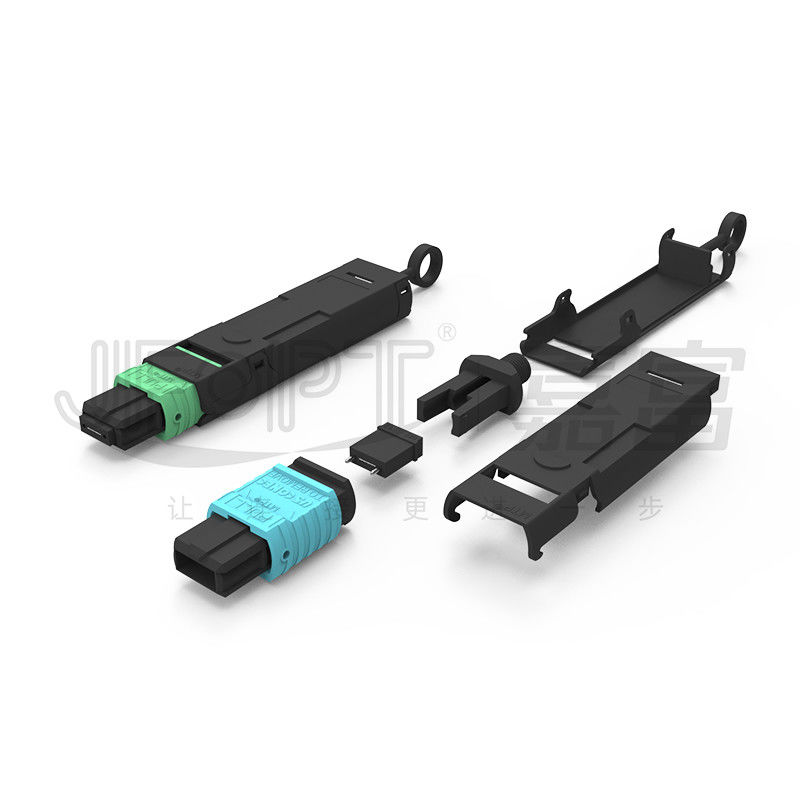

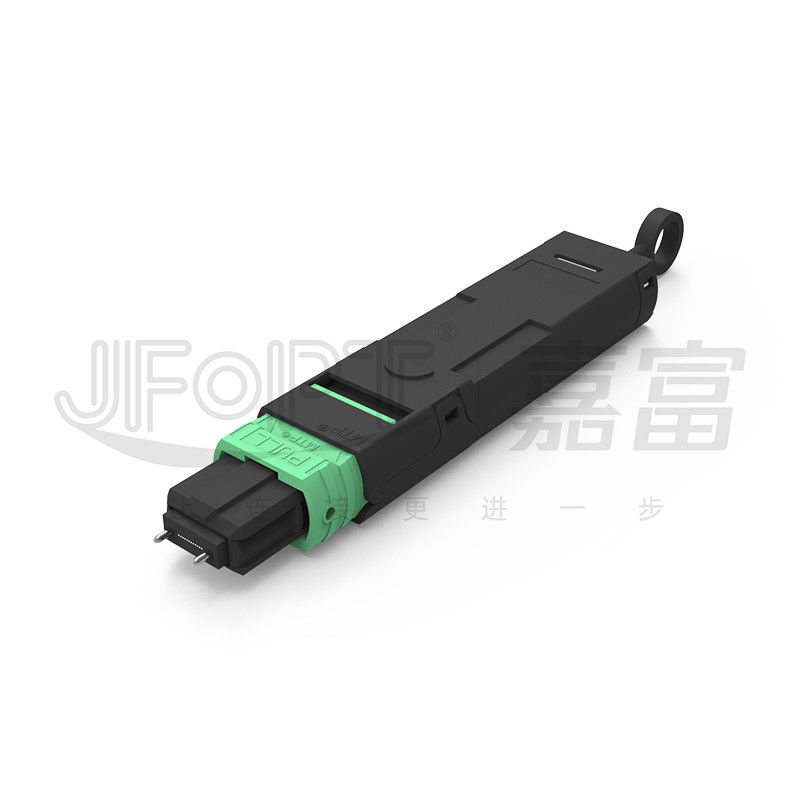

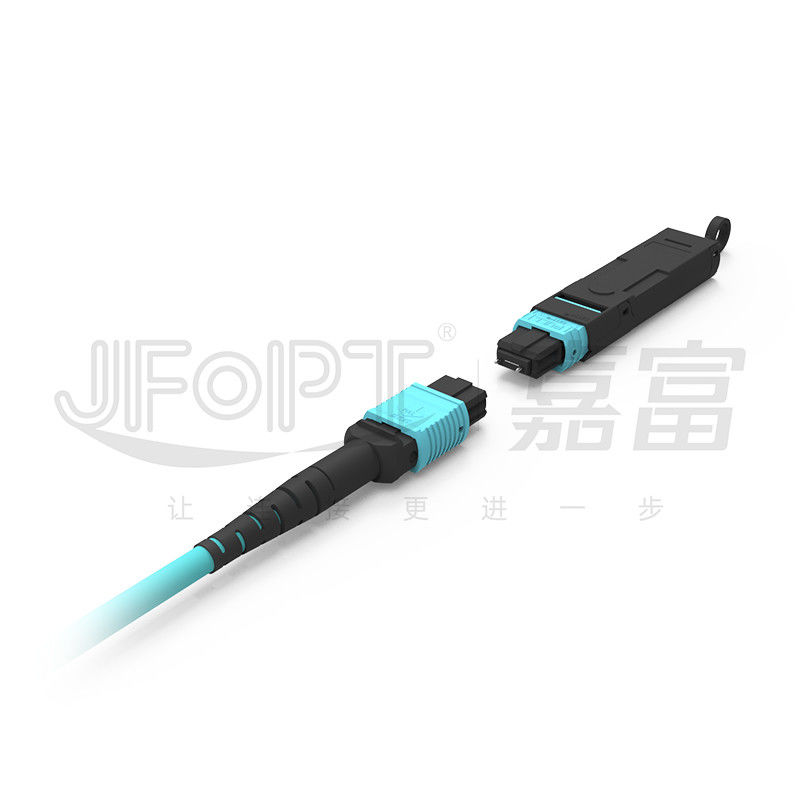

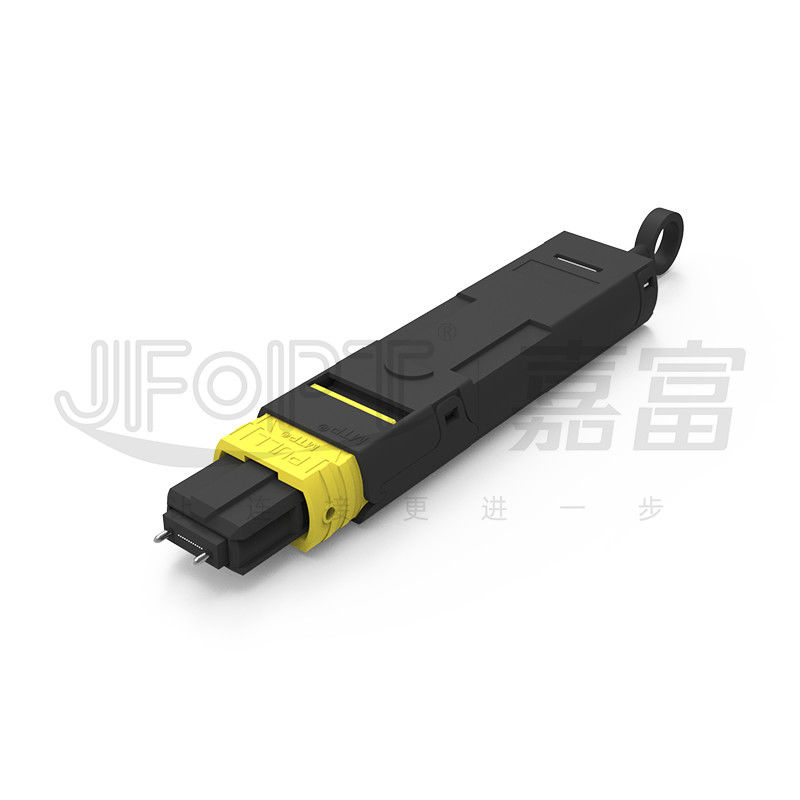

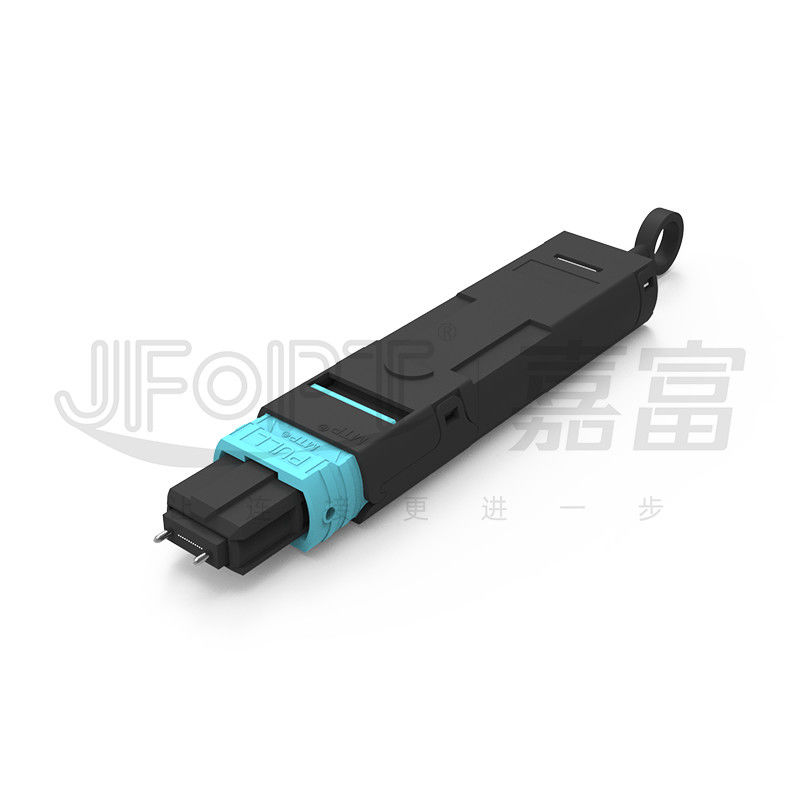

MTP 8-core/12-core/24-core Optical Module Test Loopback
JFOPT's MTP Fiber Loopback is widely used in 40/100G network communication testing environments. It is utilized to test signal feedback in system or network systems, enabling the identification of various potential anomalies through the feedback signal. This facilitates effective testing of the network. JFOPT employs standard MTP connectors and high-quality ferrules to ensure the accuracy of fiber alignment. Additionally, it is compatible with MTP adapters from other brands, offering versatility in its usage.
♦ Product Features
|
①Compatible with adapters from other brands for better compatibility |
②Each loopback is equipped with a dust cap to effectively prevent dust |
||||
|
|
|
||||
|
③The fiber is protected by a robust outer casing to prevent bending and crushing |
④Exquisite workmanship, undergoes factory testing to ensure flawless and undamaged products |
||||
|
|
|
||||
♦ Applications
1.Optical system debugging
2.Fiber fault troubleshooting
3.High-density data centers
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ MT Ferrule Options
|
Fiber Mode |
Performance |
Fiber count |
||
|
SM |
Standard SM |
4 channels(12 fibers) |
||
|
6 channels(12 fibers) |
||||
|
8 channels(16 fibers) |
||||
|
12 channels(24 fibers) |
||||
|
SM MT |
4 channels(12 fibers) |
|||
|
6 channels(12 fibers) |
||||
|
12 channels(24 fibers) |
||||
|
MM |
Standard SM |
4 channels(12 fibers) |
||
|
6 channels(12 fibers) |
||||
|
8 channels(16 fibers) |
||||
|
12 channels(24 fibers) |
||||
|
MM MT |
4 channels(12 fibers) |
|||
|
6 channels(12 fibers) |
||||
|
8 channels(16 fibers) |
||||
|
12 channels(24 fibers) |
||||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference Color: PANTONE 346C |
Reference Color: PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference Color: PANTONE 7534U |
Reference Color: PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference Color: PANTONE 310C |
Reference Color: PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference Color: PANTONE 2587C |
Reference Color: PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference Color: PANTONE 375C |
||||
|
|
||||
♦ Polarity Selection
|
24F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Reinforced packaging |
♦ Factory Strength
|
Specialization: With over 10 years of focus on MTP jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MTP jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MTP production lines and equipment to produce a large quantity of MTP jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/IL&RL testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MTP jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MTP jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
