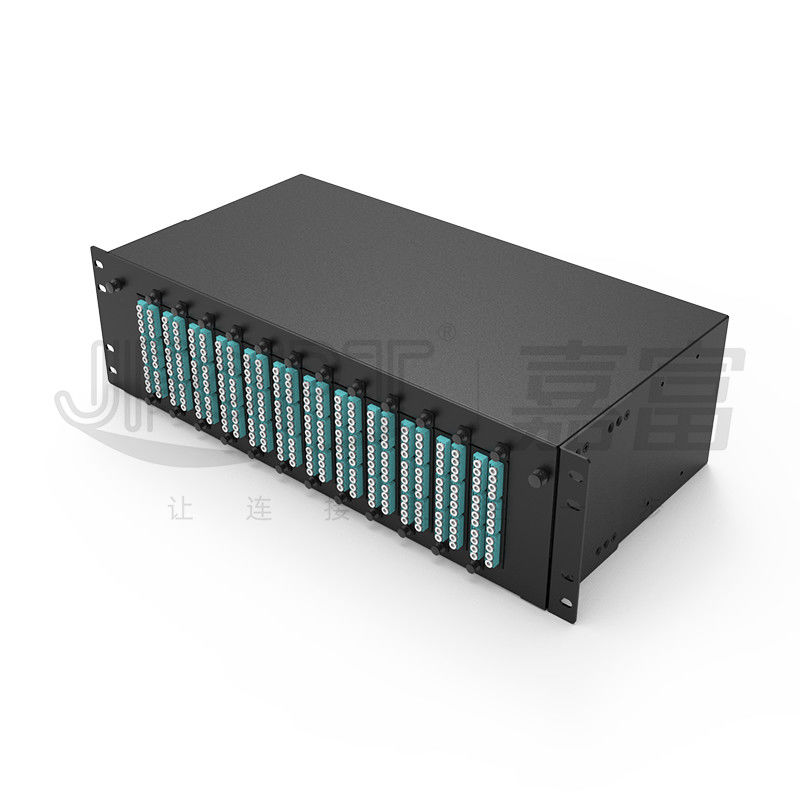

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box

MPO Pull-Out Patch Panel

19 Inch MPO Patch Panel

OM3 MPO Fiber Patch Panel

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

3U 288C MPO Patch Panel MPO-24LC OM3/4

Contact Us

Request A Quote
Product Details
Size:
3U 19 Inches
Enclosure Structure:
Pull-out Design
Number Of Cores:
288 Cores
Cable Type:
Multi-mode
Module Boxes:
12 Units Of 24-core MPO Module Boxes
LC Adapters:
Quad
Material:
Cold-rolled Steel Plate
Enclosure Depth:
330mm
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Price negotiable
Delivery Time
1-5 Days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
MPO: 3000 ends per day Distribution box: 2-day delivery for available stock / 1-week delivery for bulk production
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

40/100G 3U 19-inch 288-Core MPO Pull-out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box

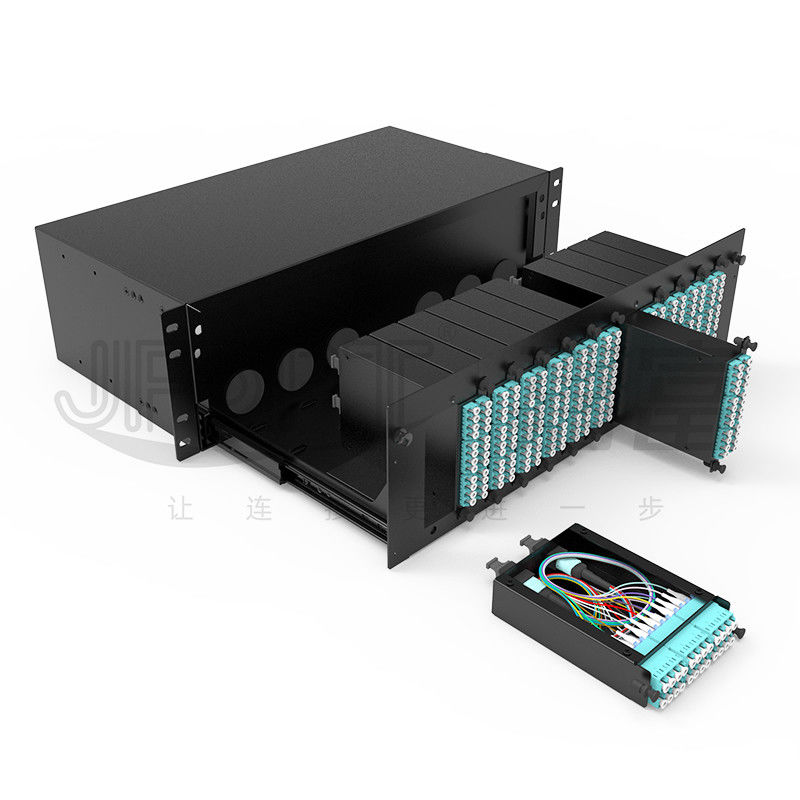

JFOPT's pull-out MPO patch panel features a modular design with pull-out guide rails for easy construction and operation. The enclosure accommodates 12 module boxes, each containing 24 cores, allowing for quick and easy replacement of cabling. The rear of the enclosure is equipped with multiple large-diameter cable entry ports, facilitating the insertion and securing of various types of optical cables. Additionally, an optional extended tail plate is available for better cable management and fixation.



♦ Product Features

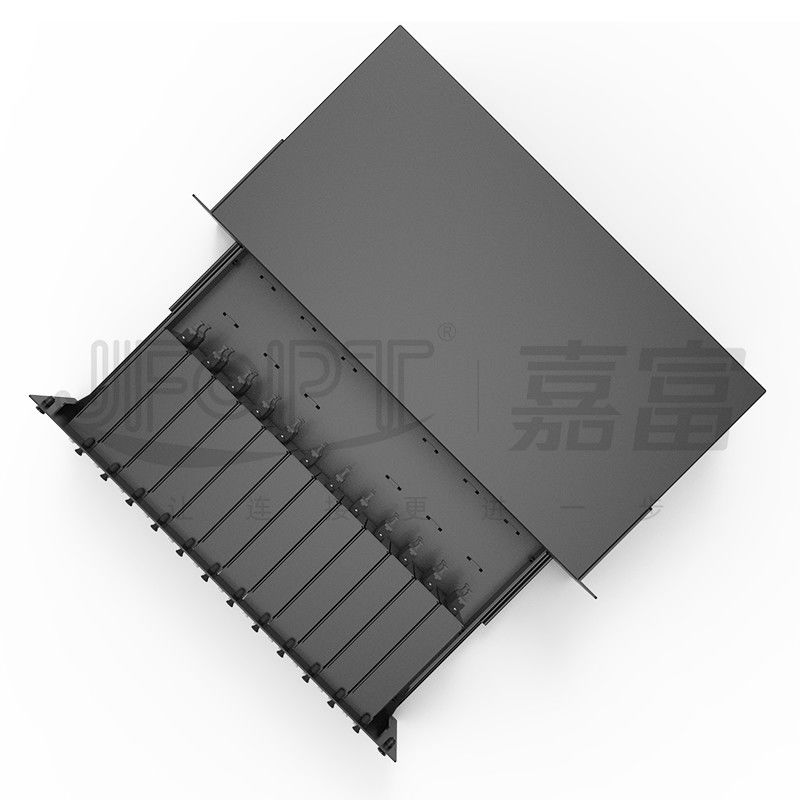

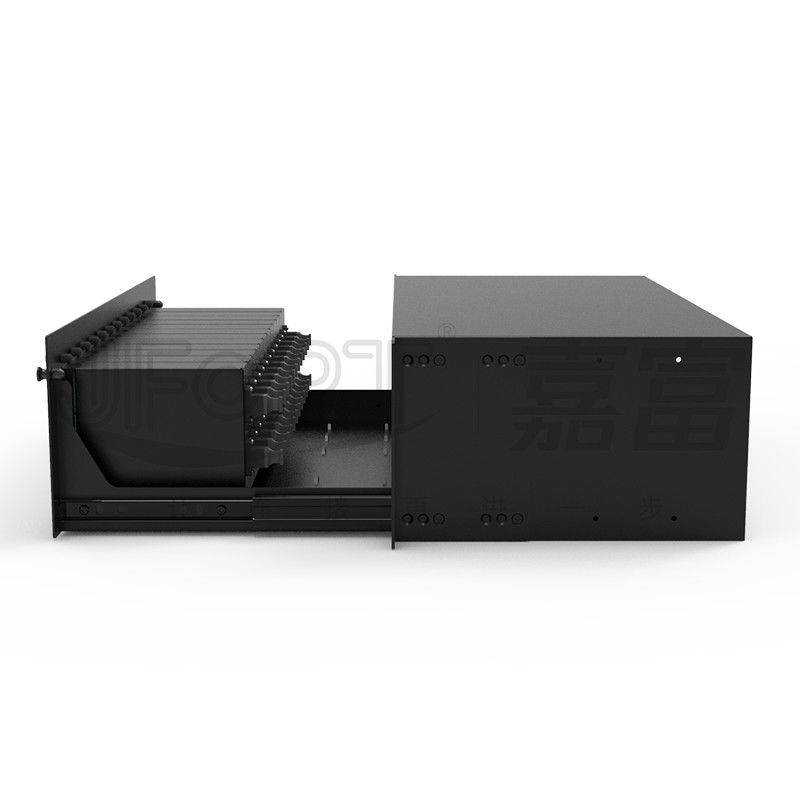

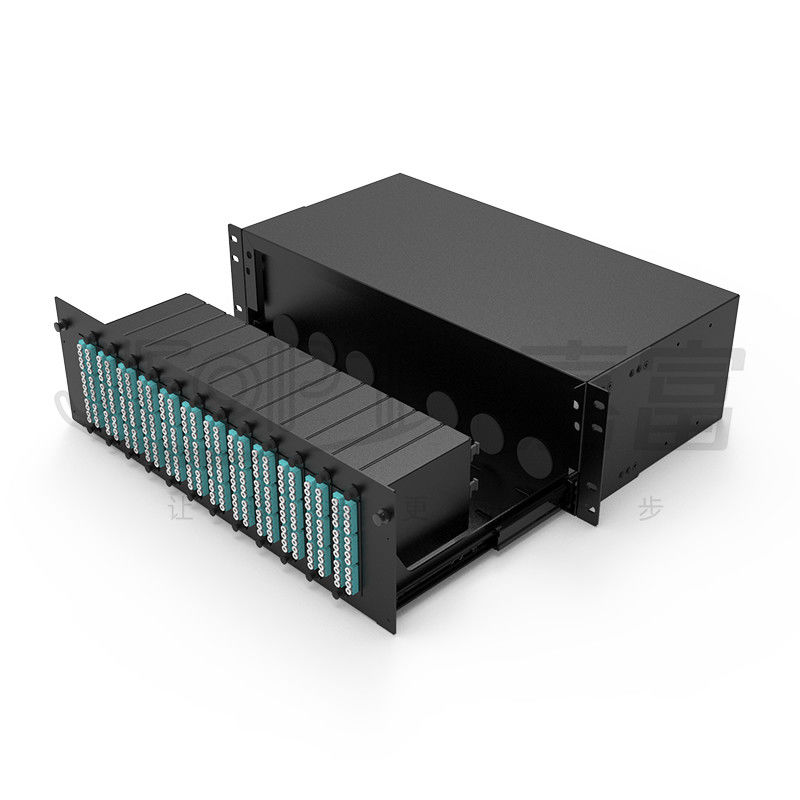

Equipped with custom 3-section ball-bearing slides, allowing smooth tray extraction

Formed with high-quality cold-rolled steel plate for pressure resistance and impact durability

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 0

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 1

Adjustable mounting ears to meet practical wiring requirements

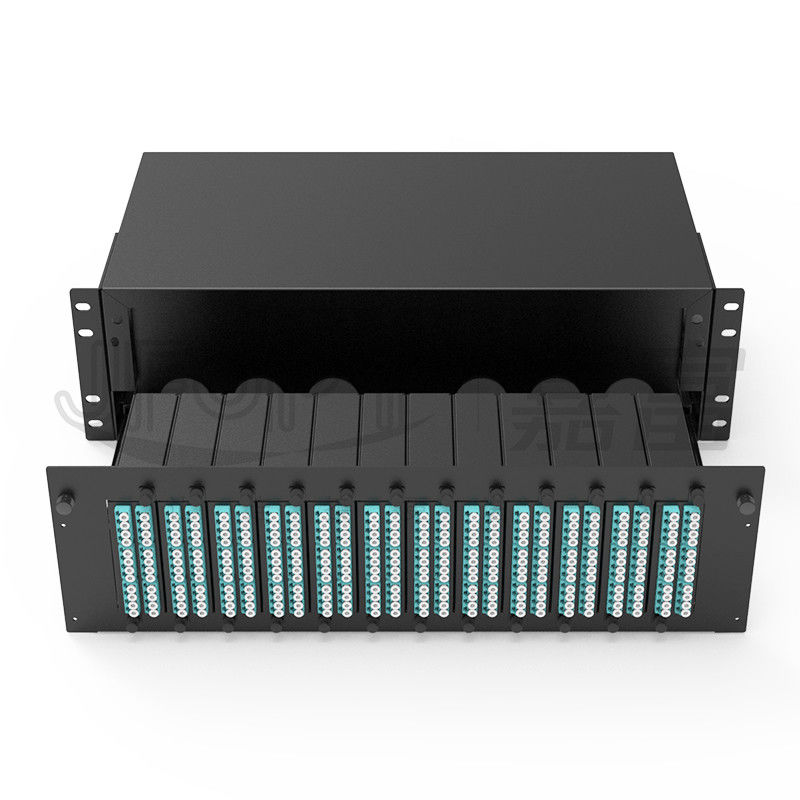

Configured with 12 standardized 24-core module boxes, making cable replacement more convenient and efficient

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 2

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 3



♦ Applications

1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ Cassette Dimension

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 4

Patch Panel dimension

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 5

Accessory

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 6

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 7

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 8

3*100mm zip ties

* 8 pieces

Self-adhesive cable management rings * 8 pieces

Rack mounting brackets and screws * 4 sets



♦ Product Packaging

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 9

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 10

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 11

Patch panel each corner protected by foam tape and wrapped with bubble tape

Inner carton box

Multiple inner boxes are packed into the outer box and sealed
Outer carton box has corner protector



 Factory Strength

Specialization:


JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment.

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 12

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, precision metal stamping, and precision CNC bending equipment for manufacturing.

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 13

Quality Control:


JFOPT implements strict quality control measures, including dedicated quality inspection processes for sheet metal material procurement, stamping, bending, and painting production processes.

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 14

Standardization:


JFOPT can customize and strictly adhere to production standards for fiber distribution boxes based on customer requirements, ensuring product consistency and performance stability.

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 15

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes.

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 16

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

40/100G 3U 19-Inch 288-Core MPO Pull-Out Patch Panel MPO/PC-LC/UPC MM OM3/OM4 24-Core Module Box 17



♦ Frequent Q&A

1.What factors should be considered when purchasing a distribution box?
First, it should meet the requirements of the wiring construction and pay attention to the thickness of the sheet metal and structural strength to ensure a visually appealing and undamaged product. Usually, you can contact us for customized production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.



2.Can our distribution box be compatible with MPO cassettes from other manufacturers?
Compatibility depends on having the same installation dimensions. If the dimensions are not the same, they cannot be used together.



3.Can our distribution box be paired with jumper cables?
We can provide jumpers and pigtails according to your different needs to meet various wiring requirements.



4.What is our delivery lead time?
For standard products, it is within 2 working days, and for customized products, it is within 15 working days.
