Product Description

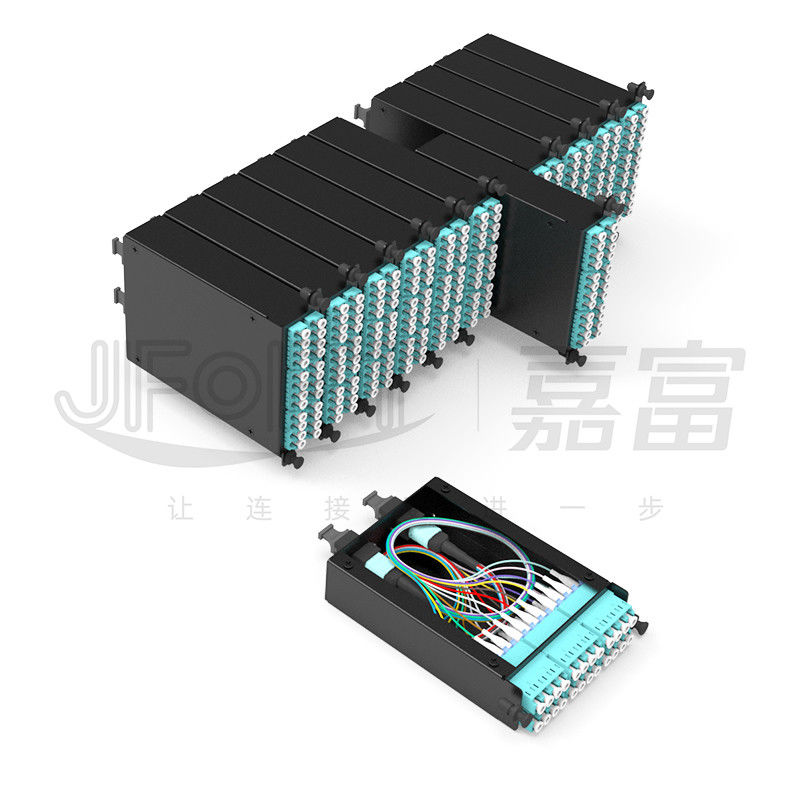

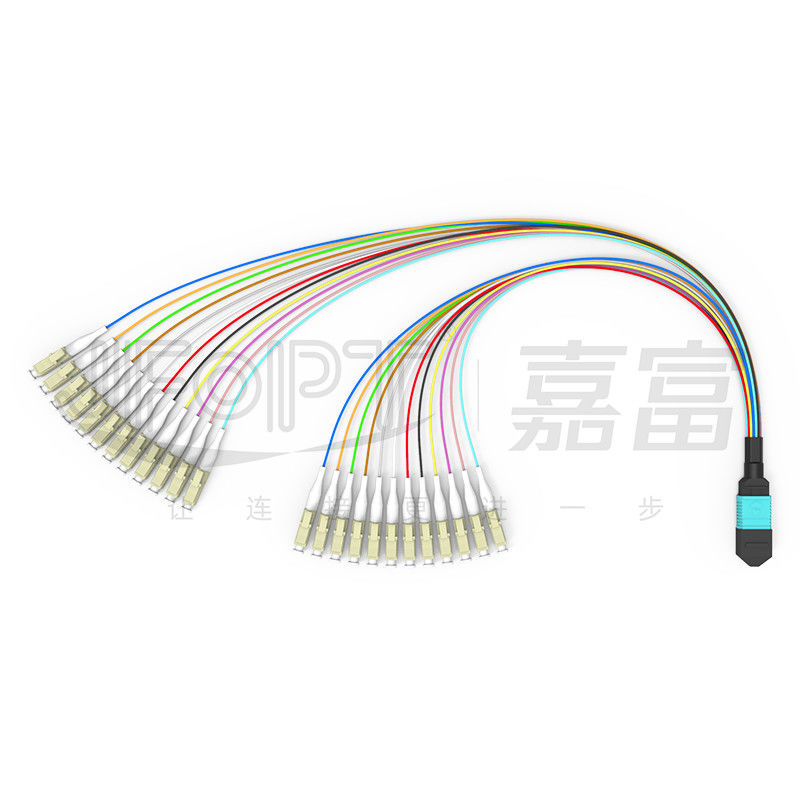

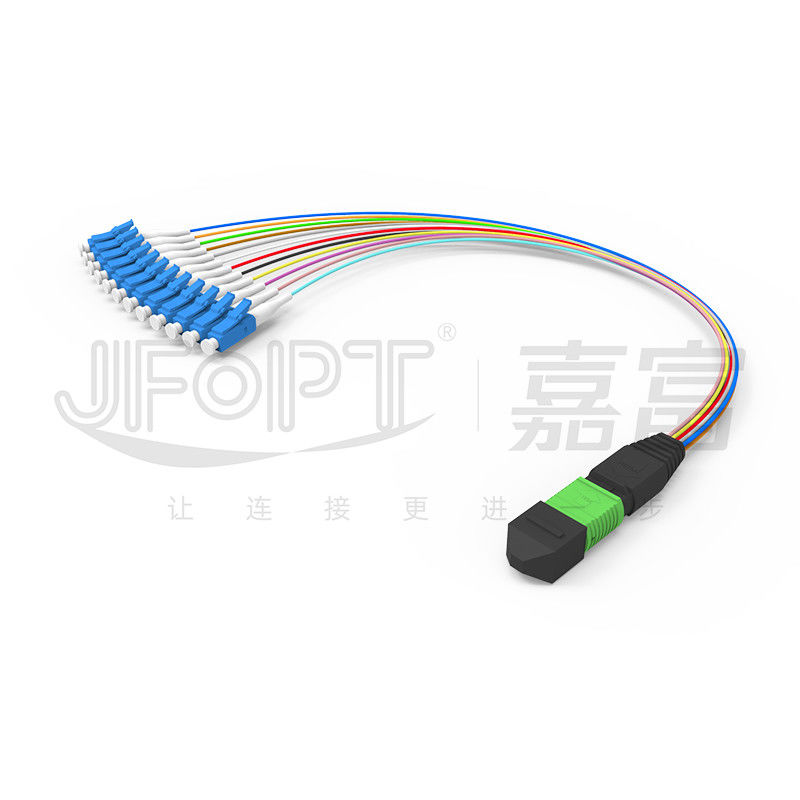

MPO-LC Single-mode/Multi-mode 12/24-Core 0.9mm MPO Patch Panel Module Box with Jumpers



JFOPT's MPO-LC module box jumper is made of new raw materials. In order to ensure that it can be used inside a small module box, a 0.9mm optical cable is used. This optical cable has an outer sheath added to the optical fiber to protect the optical cable. It also saves wiring area and is very suitable for use in patch panel module boxes. In addition, MPO and LC connectors are made of brand new original parts, which are high temperature resistant and not easily deformed, and are suitable for multiple plugging and unplugging in the module box and use.



♦ Features

①0.9mm cable, durable and saves wiring space
②The LC end adopts Class A ceramic ferrule, which ensures stable interchangeability between data
Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 0
Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 1
③The connectors are equipped with dust-proof covers to prevent dust and protect the ferrules
④Can be matched with other brands of MPO adapters, and can also be connected with MTP products
Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 2
Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 3



♦ Applications

1.Data center cabling
2.40G/100G optical communication systems
3.Fiber optic communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



♦ MPO/MTP Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

MTP Connector

SM Standard

0.25dB

0.5dB

APC≥60dB
PC≥50dB

SM Low Loss

0.12dB

0.25dB

MM Standard

0.2dB

0.45dB

PC≥25dB

MM Low Loss

0.12dB

0.25dB

Male/Female

Male: with Pin, Female: without Pin



SC/LC/FC/ST Connector Parameters

Connector Type

Insertion Loss

Return Loss

SC/LC/FC/ST
Connector

SM

≤0.3dB

APC≥60dB
UPC≥50dB

MM

≤0.3dB

UPC≥25dB



♦ MPO/MTP 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ SC/LC/FC/ST 3D Geometric Parameters (Optional)

Items

UPC

APC

SC/FC/ST

LC

SC/FC

LC

SM

MM

SM

MM

SM

SM

Radius of curvature (mm)

10-25

7-25

5-12

Apex offset (μm)

≤50

≤30

Fiber Depressed (nm)

±100

Angle deviation (°)

0

8±0.3

Bond angle deviation (°)

0

±0.5

Fiber diameter (μm)

123-135



♦ Connector Housing Color Selection

MPO connector

Single mode

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 4

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 5

Multimode

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 6

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 7

Violet

-

Reference color number PANTONE 7641C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 8



MTP connector

Single mode

Green

Yellow

Reference color number PANTONE 346C

Reference color number PANTONE 106C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 9

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 10

Multimode

Beige

Black

Reference color number PANTONE 7534U

Reference color number PANTONE Black 6C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 11

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 12

Aqua

Heather Violet

Reference color number PANTONE 310C

Reference color number PANTONE 1905C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 13

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 14

Munsell Violet

Magenta

Reference color number PANTONE 2587C

Reference color number PANTONE 208C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 15

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 16

Lime Green

-

Reference color number PANTONE 375C

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 17



LC connector

Single mode

Blue

Green

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 18

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 19

Multimode

Beige

Aqua

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 20

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 21

Heather Violet

Lime Green

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 22

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 23



♦ Optical Cable Parameters

Project

Parameters

Fiber Type

Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5

Fiber Count

Optional : 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional : LSZH / PVC / TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Custom

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Resistance (Long-term)

100N/cm

Crush Resistance (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional : OFN / OFNR / OFNP



♦ LC Connector Options

Duplex product selection

Cable diameter

Boot type


Drawing

2.0mm
Duplex

Standard

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 24

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 25

3.0mm
Duplex

Standard

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 26

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 27



Single product selection

Cable diameter

Boot type


Drawing

0.9mm
Simplex

Standard

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 28

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 29

2.0mm
Simplex

Standard

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 30

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 31

3.0mm
Simplex

Standard

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 32

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 33



Branching Options

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 34

Main Cable Stripping Structure

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 35

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 36

Fanout with equal length

Fanout with unequal length

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 37

Branching of direct 0.9mm subunit

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 38

Branching of direct 2.0/3.0mm subunit



♦ Polarity Selection

MPO/MTP

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 39

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 40



LC

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 41

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 42



♦ Product Packaging

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 43

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 44

Thickened anti-static bag

Thickened carton



♦ Factory Strength

Specialization​:


With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests.

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 45

Manufacturing Capability:


JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery.

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 46

Quality Control:


JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance.

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 47

Standardization:


JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements.

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 48

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands.

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 49

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

Singlemode / Multimode 12/24-Core 0.9mm MPO Patch Panel Module Box With Jumpers 50
