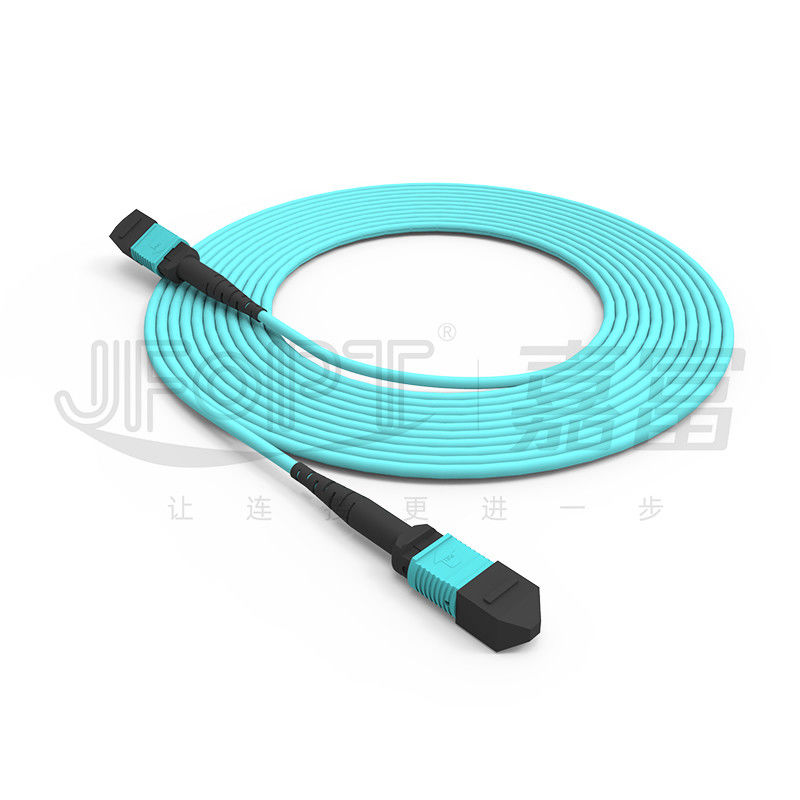

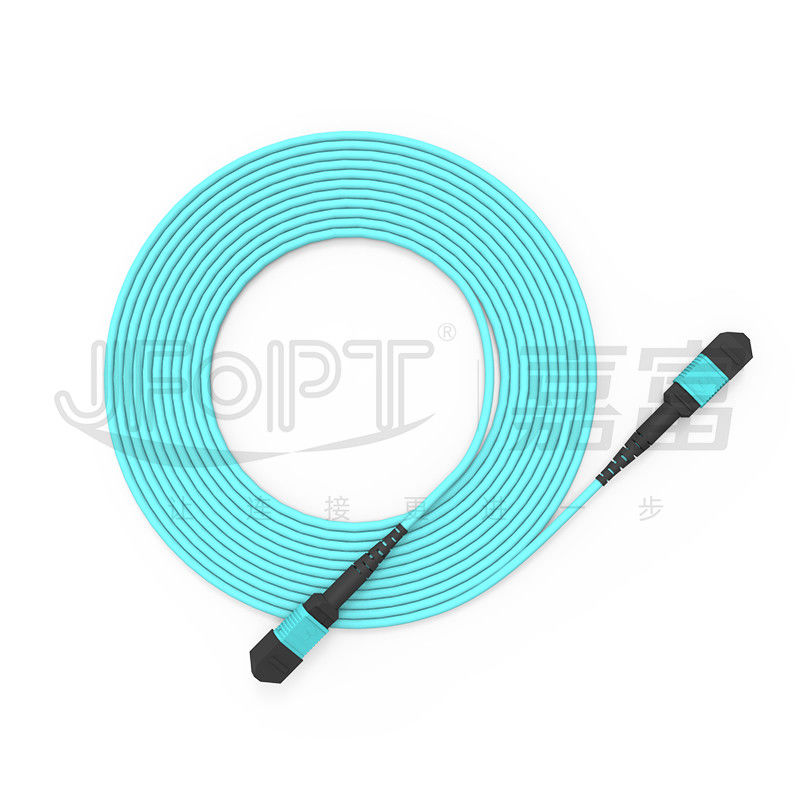

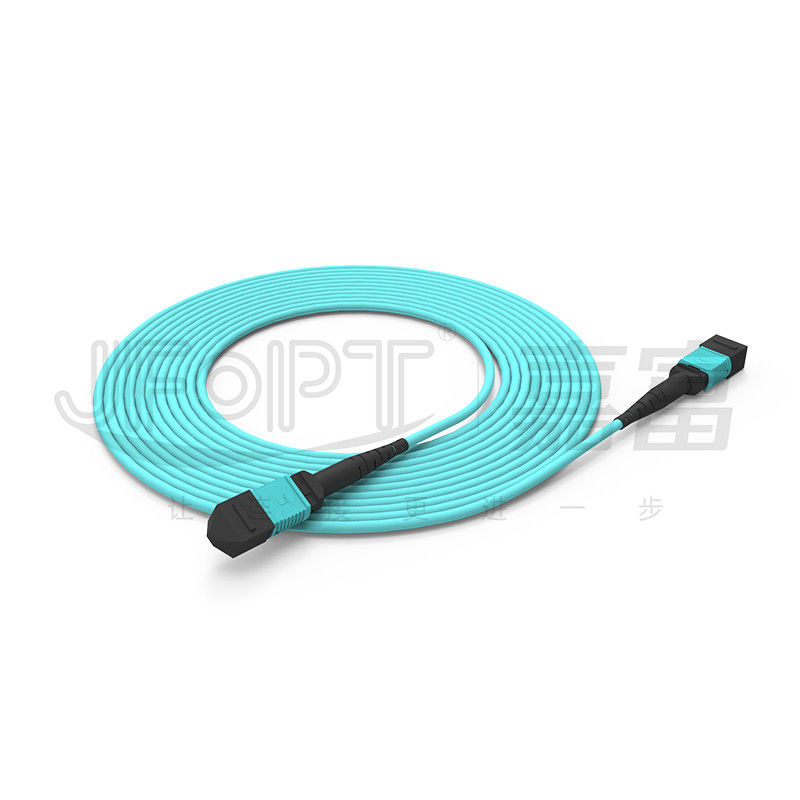

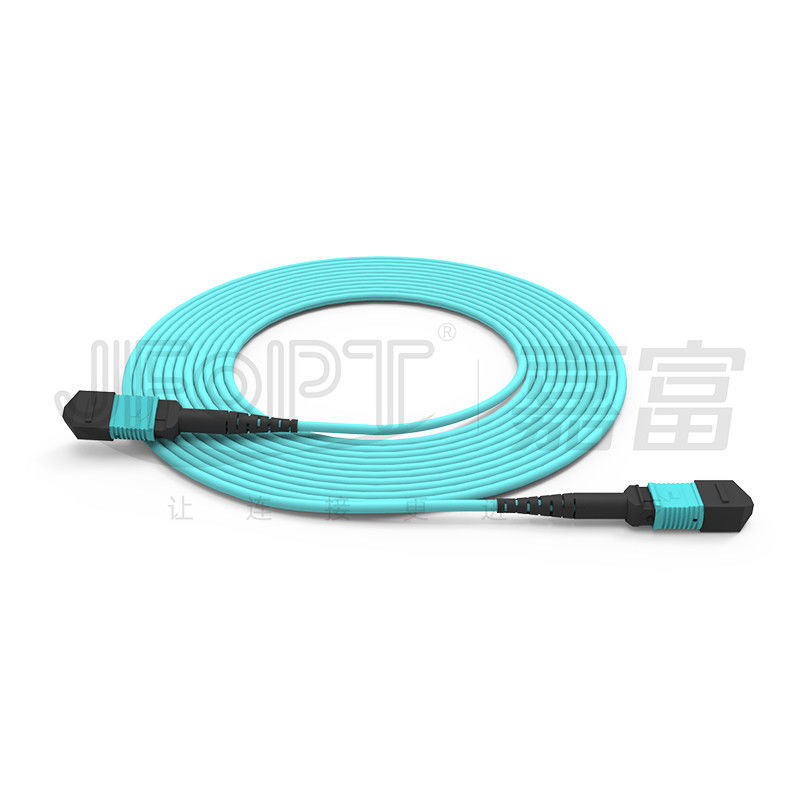

12 - core MPO trunk cable multimode 50/125 3.0mm LSZH aqua B polarity
MPO-MPO trunk cable is a high-density fiber optic jumper cable. Its MT ferrule is made of resin, with excellent stability and reliability, ensuring over 500 matings. JFOPT MPO trunk cables are made with high-quality optical cables, offering low insertion loss transmission performance. Thanks to their superior aramid and cable jacket materials, they also have better tensile strength and temperature stability. The trunk cables undergo multiple rigorous quality testing processes to ensure they meet the highest quality standards. We provide customized services with various lengths and cable types to meet your specific needs. Additionally, we offer comprehensive pre-sales and after-sales services and technical support to ensure your satisfaction.
♦ Features
|
① 12-fiber connection |
② Made with bend-insensitive OM3 fiber to improve transmission stability |
||||
|
|
|
||||
|
③ High-quality and low-loss MT multi-core ferrule |
④100% terminated and tested to ensure transmission performance |
||||
|
|
|
||||
|
⑤ Suitable for high-density wiring |
⑥ Faster installation, reducing operational time |
||||
|
|
|
||||
♦ Applications
1.Data center cabling
2.40G/100G optical communication systems, QSFP optical modules
3.Fiber optic communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO/MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters (Optional)
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Color Options
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
|
MTP connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
Multimode |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
Optional 8/12/16/24 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
3.0mm |
|||
|
Outer sheath color |
Custom made |
|||
|
Max. Tensile Strength (long term) |
80N |
|||
|
Max. Tensile Strength (short term) |
150N |
|||
|
Max. crush resistance (long term) |
100N/cm |
|||
|
Max. crush resistance (short term) |
500N/cm |
|||
|
Minimum bending radius (dynamic) |
20D |
|||
|
Minimum bending radius (static) |
10D |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
Flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
|
Square boot |
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
|
MTP boot type |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
2.0 boot length 33.2mm |
2.0 |
|
|
|
3.0 boot length 33.2mm |
2.5/3.0 |
|
|
|
|
3.0 boot length 16mm |
3.0 |
|
|
|
|
3.0 bendable boot length 33.6mm |
3.0 |
|
|
|
|
3.6 boot length 33.2mm |
3.6 |
|
|
|
|
3.6 boot length 16mm |
3.6 |
|
|
|
|
3.6 bendable boot length 33.6mm |
3.6 |
|
|
|
|
4.5 boot length 33.2mm |
4.0/4.5 |
|
|
|
|
5.5 boot length 33.2mm |
5.0/5.5 |
|
|
|
|
Cable boot |
3.0*6.0 boot length 33.2mm |
3.0*6.0 |
|
|
|
2.5*5.0 boot length 21.3mm |
2.5*5.0 |
|
|
|
|
Bare ribbon fiber boot |
Bare ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Push tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
||||
|
24F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has focused on the production of MPO jumpers for more than 10 years. With professional technology and a full set of first-class brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality, high-performance MPO jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 MPO production lines, allowing the rapid and efficient production of a large quantity of MPO trunk cables to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control at every step, from raw material to the production. We conduct professional quality inspections and monitoring, including 100% 3D interferometer testing, insertion loss testing, and end-face inspection, to ensure product quality. |
|
||||
|
Setting standards: JFOPT can formulate and strictly implement MPO jumper production standards according to user needs to ensure product consistency and performance stability. |
|
||||
|
Technological innovation: JFOPT focuses on technological innovation and has a professional R&D team to continuously develop MPO jumpers with more advanced functions and higher performance. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be paid attention to when customizing MPO jumpers?
MPO jumper length/cable material/fiber type and number of cores/connector male/female/insert loss standard/color/label and other customized requirements.
2.How does our MPO jumper ensure stable parameters?
JFOPT's MPO jumper 100% passed the 3D interference test and 100% passed the insertion return loss test to ensure stable parameters.
3.Our lead time?
We can produce 30000+ MPO connectors per month, which can fully guarantee your fast shipment.
4.What other MPO derivative products do we do?
We can also produce MPO related products such as MPO circuit breaker/MPO attenuator/MPO male-to-female transition connector/MT jumper wire.
