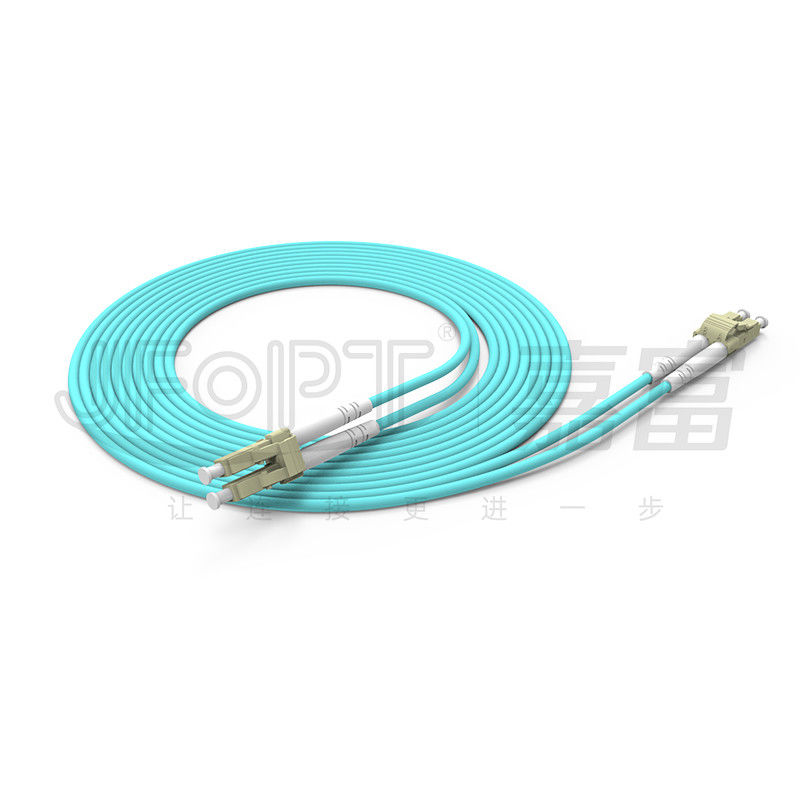

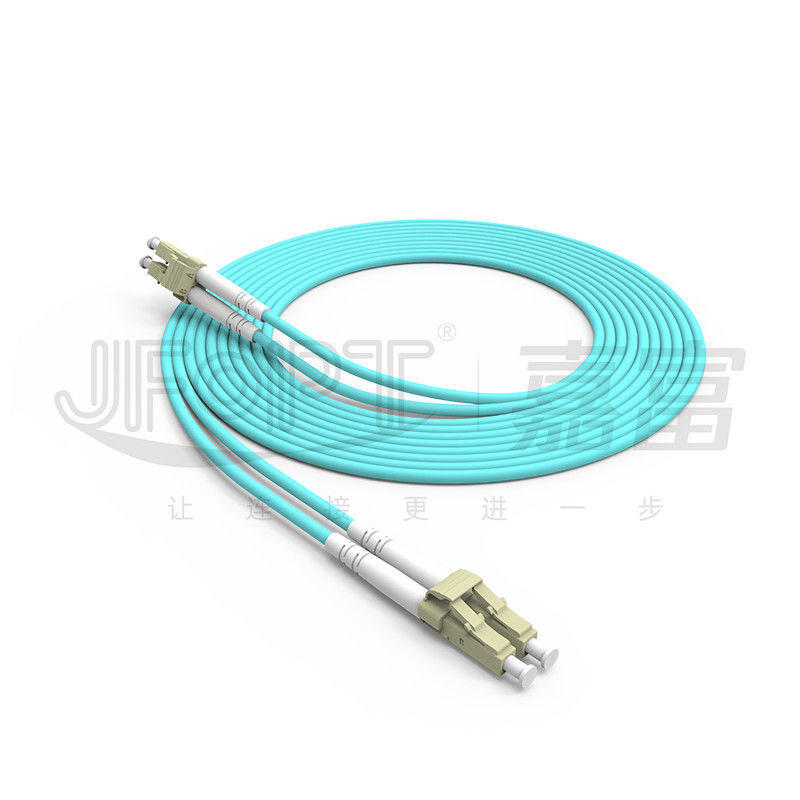

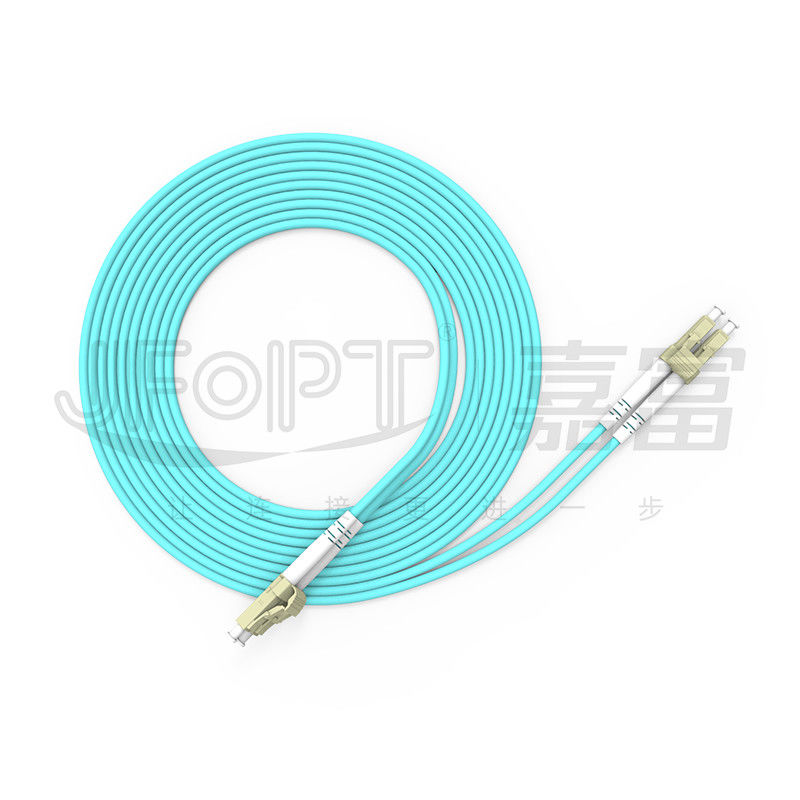

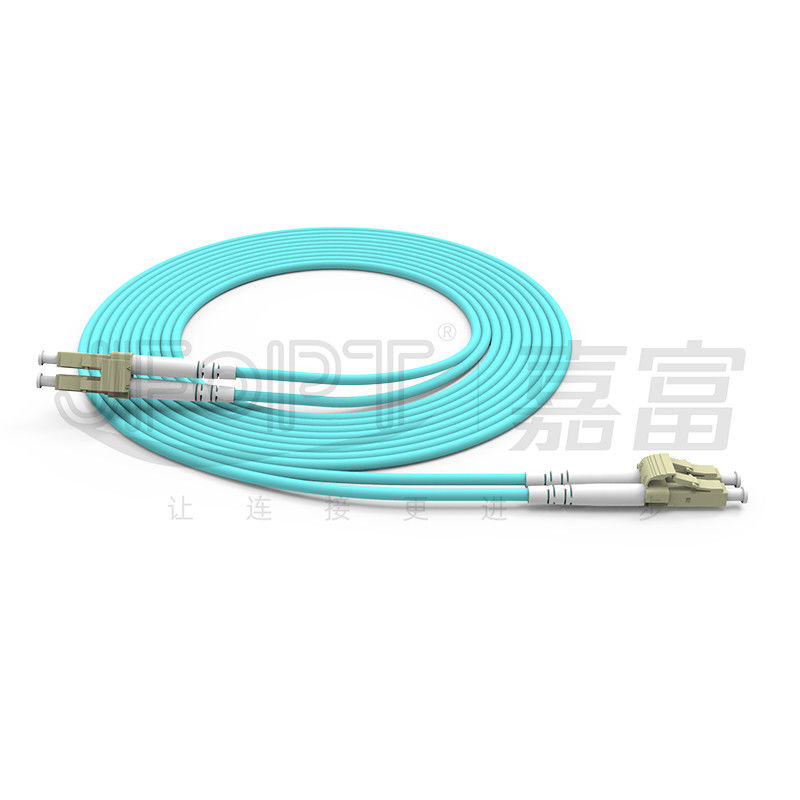

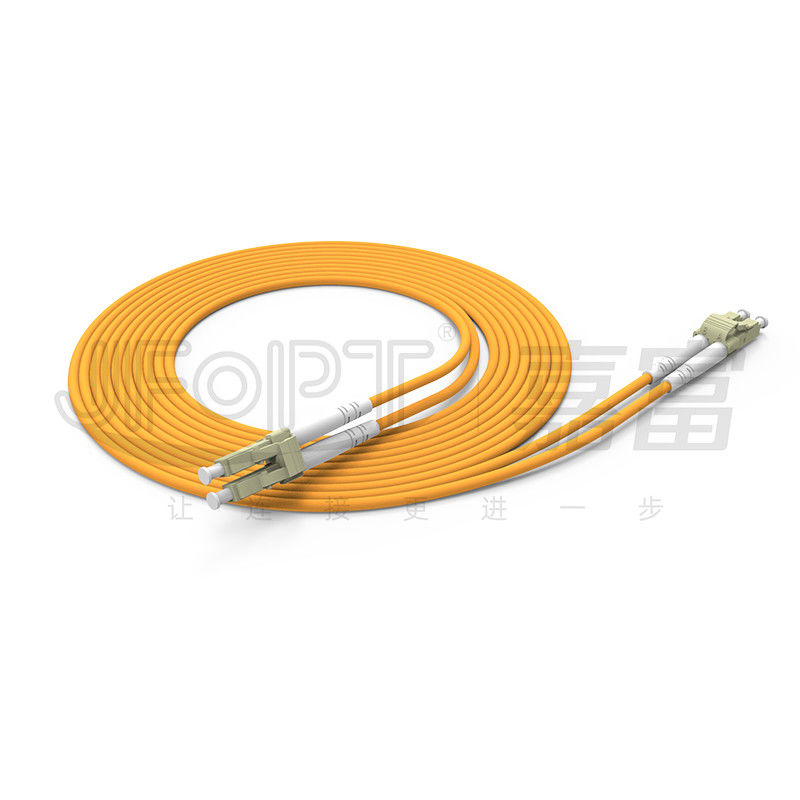

LC - LC Duplex Fiber Optic Patch Cord Multimode 50/125 3.0mm LSZH Aqua
Our LC fiber patch cords are manufactured with high-quality materials by advanced technology. They feature high performance (low insertion loss, high return loss), high interchangeability (compatible with almost all LC interfaces in the market, ensuring high consistency even with different adapters), and compact design (for high-density spaces). JFOPT offers various options such as uniboot, polarity changeable, push-pull type LC connectors, suitable for high density rack-mounted racks, reducing space occupation and improving reliability and usability. JFOPT can also provide the LC patch cord with higher return loss, or 3D test. JFOPT insists on the PEI materials with high rebound resilience and anti-aging properties. The patch cords have passed multiple international certifications.
♦ Features
|
① Duplex |
②Made with bend-insensitive OM3 fiber to improve transmission stability |
||||
|
|
|
||||
|
③ Equipped with CCTC high-quality,low-loss ceramic ferrules and YOFC/Corning fiber |
④100% terminated and tested in factory to ensure transmission performance |
||||
|
|
|
||||
|
⑤Special requirements such as optical cable and connector color, marking ring/heat shrinkable tube can be customized |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access network
2.Fiber optic data transmission
3.Optical fiber communication system, cable television network, telecommunication network
4.Local area networks (lans), wide area networks (wans), fttx
5.Test equipment, fiber optic sensors
♦ SC/LC/FC/ST Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Color Options
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
2 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
3.0mm |
|||
|
Outer sheath color |
Customizable |
|||
|
Max. Tensile Strength (long term) |
160N |
|||
|
Max. Tensile Strength (short term) |
300N |
|||
|
Max. crush resistance (long term) |
200N/cm |
|||
|
Max. crush resistance (short term) |
1000N/cm |
|||
|
Minimum bending radius (dynamic) |
50mm |
|||
|
Minimum bending radius (static) |
30mm |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Options
|
Duplex |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawings |
||
|
2.0mm |
Standard boot |
|
|
||
|
2.0mm |
Short boot 1 |
|
|
||
|
2.0mm |
Short boot 2 |
|
|
||
|
3.0mm |
Standard boot |
|
|
||
|
3.0mm |
Short boot 1 |
|
|
||
|
3.0mm |
Standard UNIBOOT |
|
|
||
|
2.0/3.0mm |
45° boot |
|
|
||
|
2.0/3.0mm |
90° boot |
|
|
||
|
Duplex |
With any boot |
|
|
||
|
Simplex |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawings |
||
|
0.9mm |
Standard boot |
|
|
||
|
2.0mm |
Standard boot |
|
|
||
|
2.0mm |
Short boot 1 |
|
|
||
|
2.0mm |
Short boot 2 |
|
|
||
|
3.0mm |
Standard boot |
|
|
||
|
3.0mm |
Short boot 1 |
|
|
||
|
2.0/3.0mm |
45° boot |
|
|
||
|
2.0/3.0mm |
90° boot |
|
|
||
♦ Duplex Polarity Selection
|
TYPE A-B(Straight) |
|
|
|
TYPE A-A(Crossing) |
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has been focusing on the production of optical fiber jumpers for more than 20 years. With professional production technology, it can produce high-quality and high-performance optical fiber jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines, enabling efficient production of large quantities of fiber patch cords to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control, including quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Setting Standards: JFOPT can formulate and strictly implement the production standards of optical fiber jumpers according to user needs to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team to continuously develop fiber optic jumpers with more advanced functions and higher performance. |
|
||||
|
Service and technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1. What issues should be paid attention to when customizing conventional optical fiber jumpers?
Customization requirements for fiber patch cords include length, cable material, fiber type and count, duplex polarity, color, and labeling.
2.How does our conventional fiber optic jumper ensure stable parameters?
100% of JFOPT's conventional optical fiber patch cords have passed the insertion return loss test and end-face inspection, and multiple inspections can ensure stable quality.
3.Our lead time?
For regular products, our lead time can be controlled within 2 working days, which can fully guarantee your fast shipment.
