PLC Fiber Optic Splitter ABS Box Type Plastic Box Enclosure Splitting 2-64 Channels
PLC Fiber Splitter is a quartz-based integrated waveguide optical power distribution device, specifically designed for splitting optical signals in passive optical networks (PON) to connect central office terminal equipment and distribute optical information to multiple outputs. JFOPT's PLC splitter features small size, compact structure, low insertion loss, uniform power distribution, and good environmental adaptability. The ABS box type splitter is easy to install and has strong protection, making it widely used in the optical fiber termination box and distribution box of the ODN networks.
♦ Features
|
①Enclosed in a high-quality ABS engineering plastic box for excellent protection and stable transmission |
②Uniform power splitting to distribute signals evenly to users |
||||
|
|
|
||||
|
③Compact structure and small size, suitable for installation in various existing distribution boxes |
④ Single splitter can have multiple split channels, supporting more than 64 channels |
||||
|
|
|
||||
♦ Applications
1.ODN networks
2.Fiber to the Home (FTTH)
3.Optical communication systems
4.Fiber optic testing equipment
♦ Technical Performance
|
Item |
Parameter |
||||||
|
Specification |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Working Wavelength |
1260nm～1650nm |
||||||
|
Test Wavelength |
1310nm,1550nm |
||||||
|
Insertion Loss(Grade P standard) |
≤3.8dB |
≤7.2dB |
≤10.3dB |
≤13.5dB |
≤16.7dB |
≤20.4dB |
|
|
Uniformity |
≤0.6dB |
≤0.8dB |
≤1.0dB |
≤1.3dB |
≤1.6dB |
≤2.0dB |
|
|
Polarization Dependent Loss |
≤0.25dB |
≤0.25dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.35dB |
|
|
Return Loss |
UPC≥50dB,APC≥60dB |
||||||
|
Directivity |
≥55dB |
||||||
|
Operating temperature |
-40℃～85℃ |
||||||
|
Storage temperature |
-40℃～85℃ |
||||||
|
Note: |
|||||||

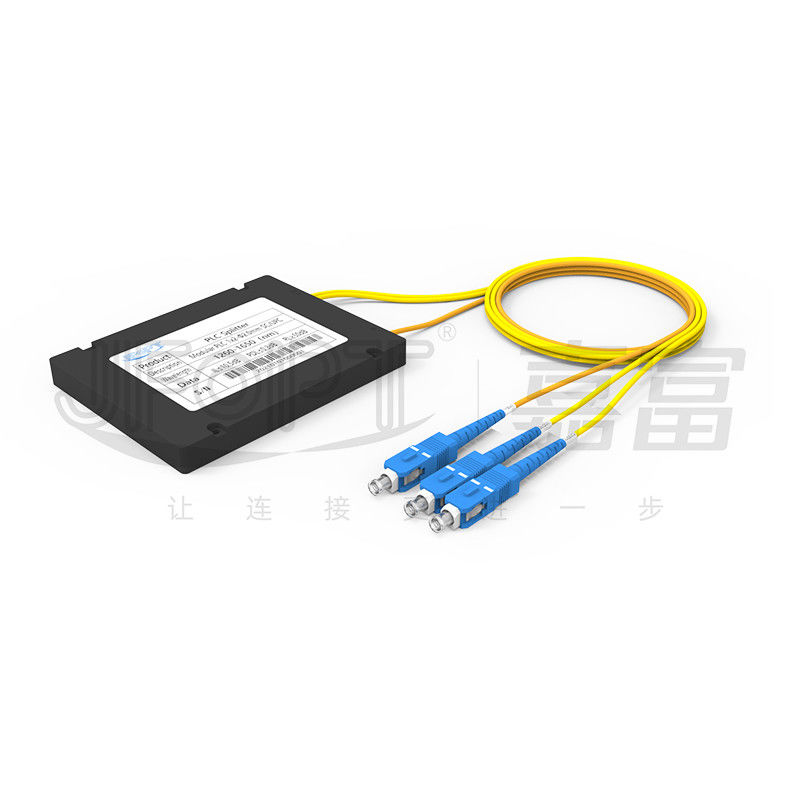

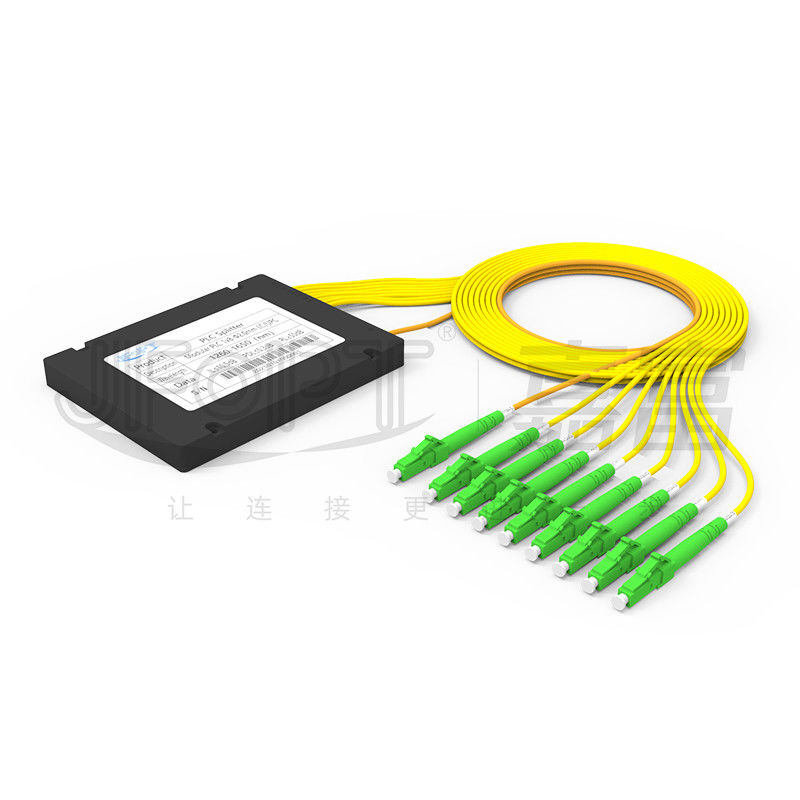

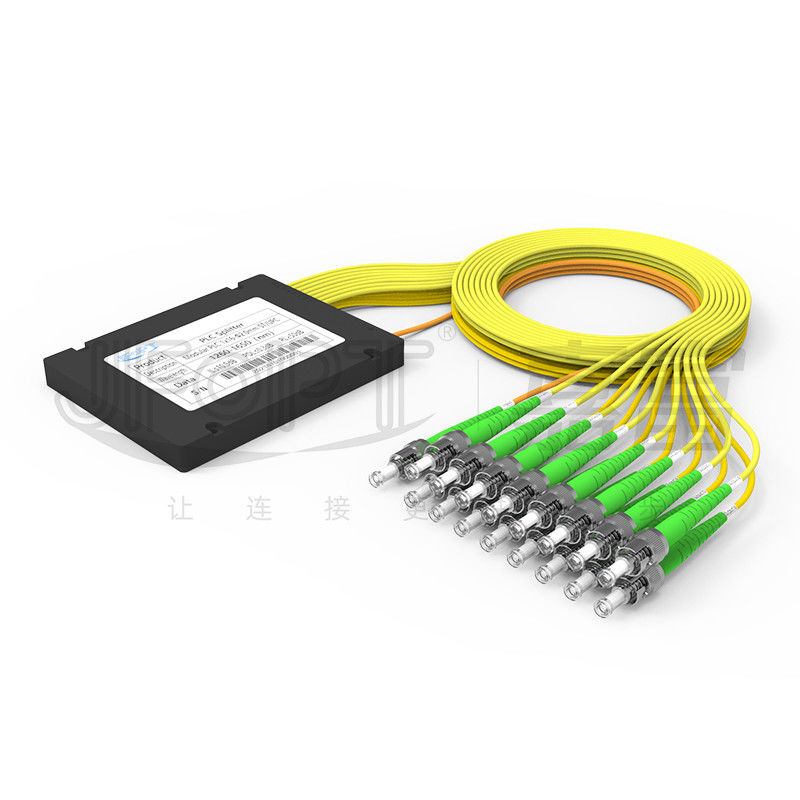

♦ PLC Splitter Figure
♦ Product Parameters
|
PLC Splitter SPEC |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Fiber Type |
G657A1 |
||||||
|
Package Size(L×W×D)(mm) |
100×80×10 |
120×80×18 |
140×115×18 |
||||
|
Tube Type |
Input |
2.0/3.0mm yellow jacket |
|||||
|
Output |
2.0/3.0mm yellow jacket |
||||||
|
Input length |
1.5m/customizable |
||||||
|
Output length |
1.5m/customizable |
||||||
|
Connector Type |
Conncetor Model |
SC/FC/LC/ST/Other unconventional connectors |
|||||
|
Polishing |
APC/UPC |
||||||
|
Connector Type |
Conncetor Model |
SC/FC/LC/ST/Other unconventional connectors |
|||||
|
Polishing |
APC/UPC |
||||||
♦ Product Packaging
|
|
|
|
Packaged in blister packaging |
placed in an outer box, and sealed |
