Place of Origin:
CHINA
Brand Name:
JFOPT
Model Number:
JFFDB-108-08A-FX
Contact Us
Fiber Distribution Splitter Box 1 input 8 output Wall Mount by 4 Corners Spacious Fiber Splicing / Patching Zoned
JFFDB-108-08A-FX Fiber Optic Distribution Box is a customer-side distribution equipment used in FTTH optical networks. It is mainly used for functions such as fusion splicing, splitting, branching, storage, and protection of optical transmission terminals. Fiber Optic Distribution Box of JFOPT can distribute fiber optic signals to different target devices, allowing for flexible adjustment and management based on requirements. Fiber Optic Distribution Box of JFOPT are made of high-quality engineering plastic and hardware components, effectively addressing environmental changes in temperature, UV radiation and rain brush, with excellent lifespan. The distribution boxes can be protected to IP65, combined with JFOPT adapters and pigtails, ensure stable fiber optic connections. JFOPT can provide Fiber Optic Distribution Boxes with various core counts and functionalities based on customer's needs.
♦ Features
|
① Made of high-quality PC and ABS engineering plastic, and different flame retardant grade materials are available. |
②IP65 protection level with a metal door lock for waterproof, dustproof, and anti-theft protection |
|
|
|
|

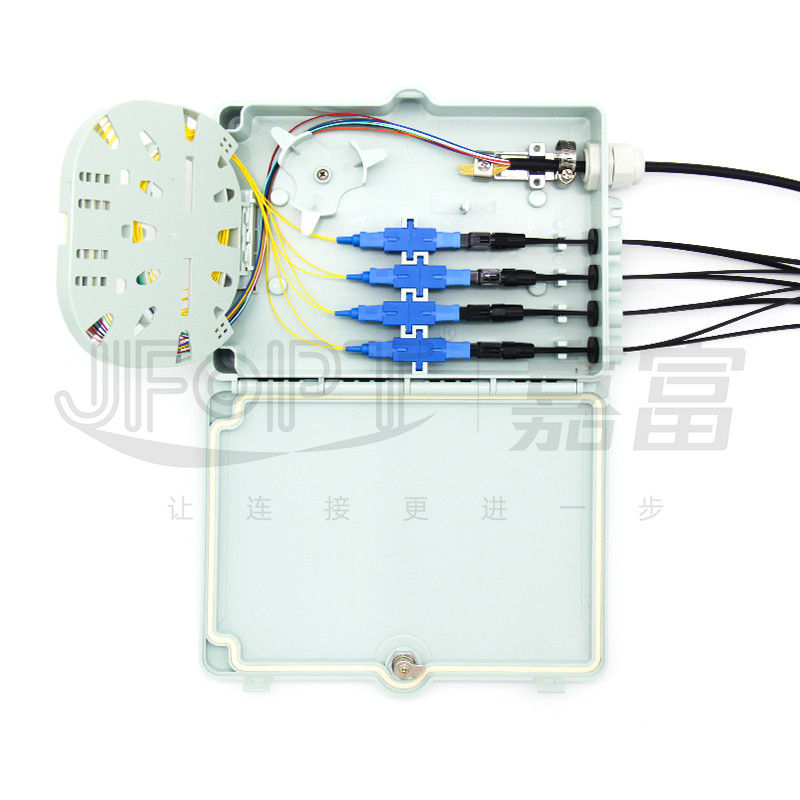

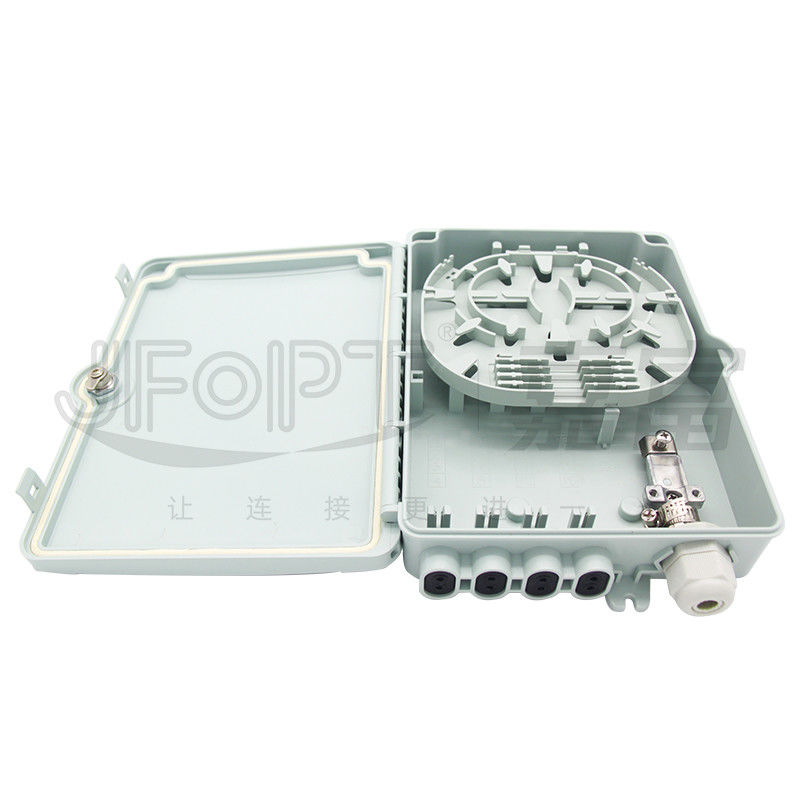

③ Special cable winding channels for pigtails and fiber optic cable, allowing for layered management and sufficient space for fiber optic winding (minimum bending radius of 40mm) to protect the fiber from bending damage. |
④ Equipped with 1 inlet port (6-12mm) at the bottom and 8 outlet ports (3.0mm), with dustproof rubber sleeves that can be split according to needs. The inlet port is equipped with a fiber optic cable clamping and fixing device |
|
|
|
|
⑤ Can accommodate 1x8 optical splitters |
- |
|
|
- |
♦ Applications
1.Fiber to the Home (FTTH)
2.CATV (Cable TV)
3.Local Area Networks (LAN) and Wide Area Networks (WAN)
4.Security and Surveillance Systems
♦ Dimension
|
|
|
|

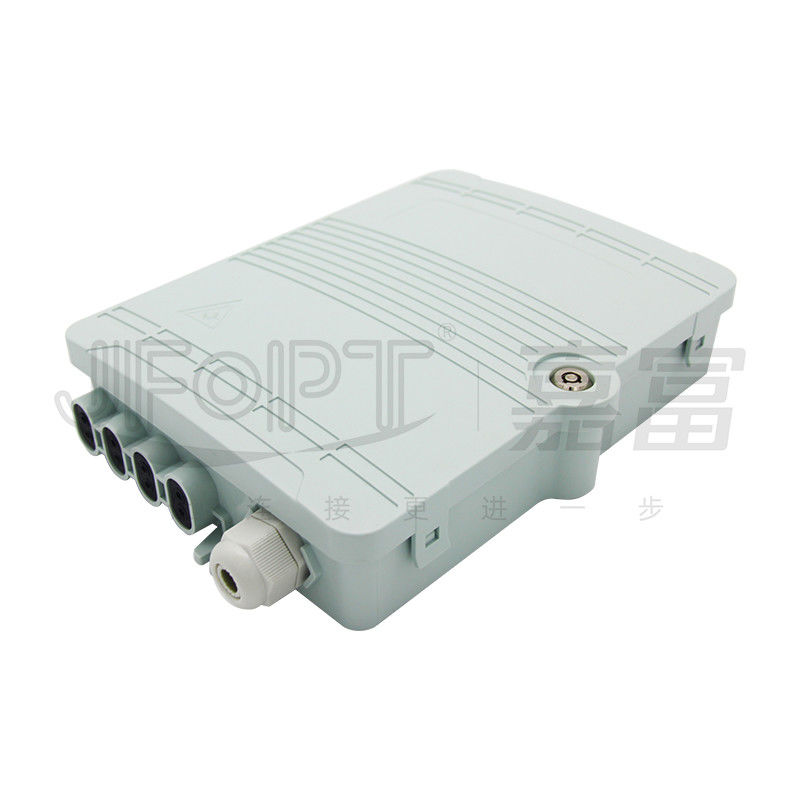

XYZ axis 45° oblique view |

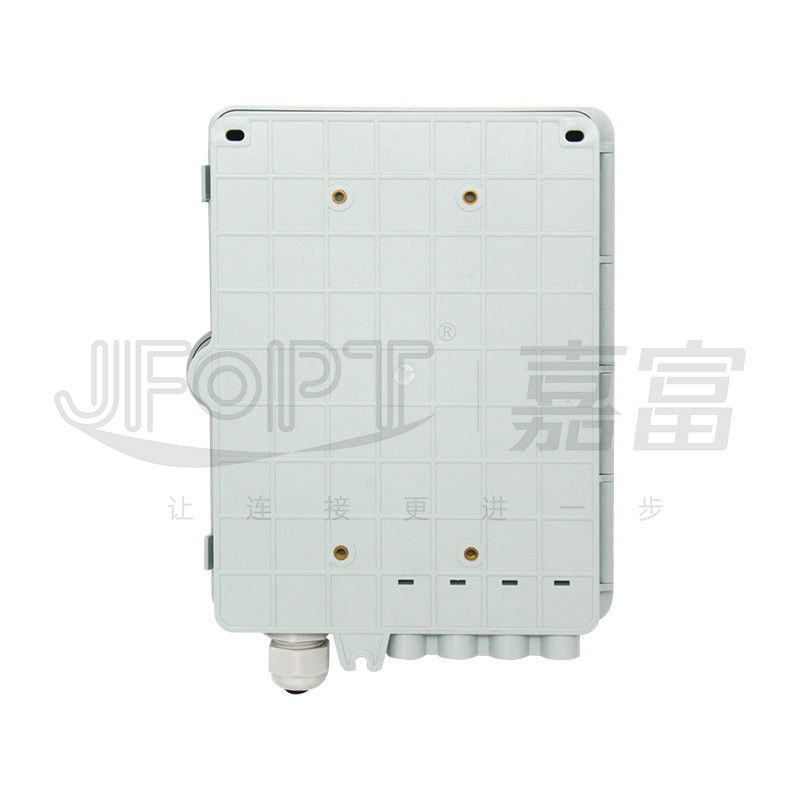

Back view |
|
|
|
|

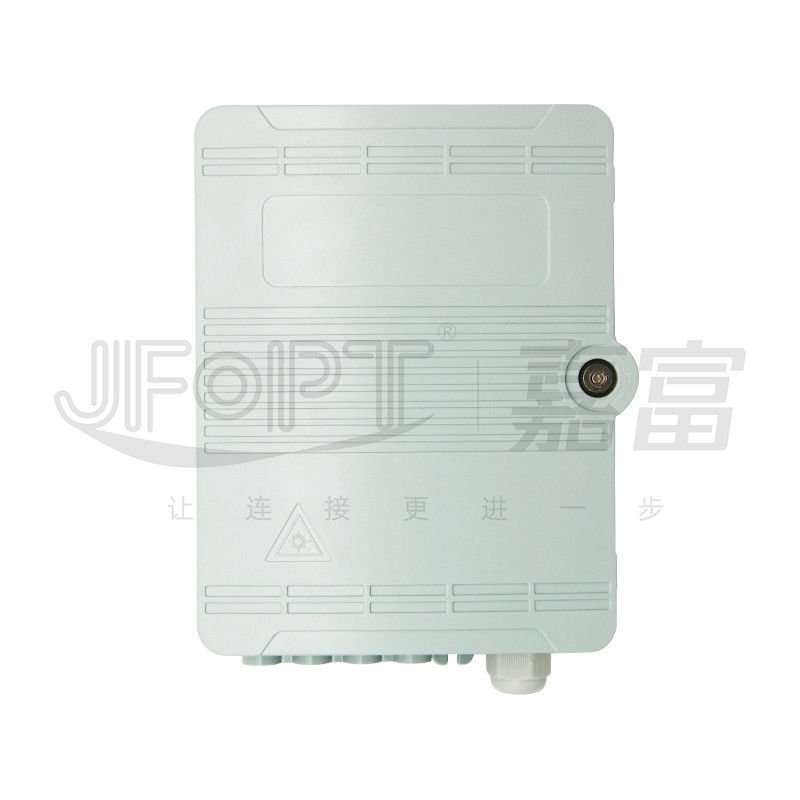

Top view |
Side view |
♦ Available Accessories
|
|
|
|
|
Expansion screw *3 sets |
Protective sleeve 45mm*8 pcs |
Nylon ties *4 pcs |
|
|
|
- |
|
Transparent tube *1 piece |
Key *2 pcs |
- |
♦ Product Packaging
|
|
|
|
|
Pack the product into PE bags |
Pack the product into inner boxes and seal the boxes |
Pack multiple inner boxes into an outer box and seal the box |
♦ Factory Strength
|
Specialization: JFOPT has professional production technology and equipment for Fiber Optic Splitter Distribution Boxes. Combined with extensive feedback from engineering customers, we continuously develop and mold various distribution boxes with different functions to meet diverse usage requirements. |
|
|
Manufacturing Capacity: JFOPT uses precision injection molds and precision injection molding equipment for the production of fiber distribution boxes, and has assembly lines in place for the rapid assembly of a large number of these boxes. |
|
|
Quality Control: JFOPT implements strict quality control, with quality inspections at various stages of production, including raw material procurement, injection molding, material cutting, and assembly. |
|
|
Standardization: JFOPT has an experienced R&D team with expertise in structural design, mold design, and structural optimization. JFOPT can provide cost-effective overall solutions based on end customers' usage requirements to meet different needs. |
|
|
Technological Innovation: JFOPT focuses on technological innovation and continuously upgrades and innovates our products. We have developed over 200 sets of plastic molds to meet various customer requirements. |
|
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction. |
|
♦ Frequent Q&A
1.What should I consider when purchasing a fiber distribution and splitting box?
You should consider factors such as the required capacity, protection level, plastic material, and installation method.
2.Can the fiber distribution and splitting box be used directly after purchase?
The fiber distribution and splitting boxes produced by JFOPT are fully equipped with the necessary accessories and components for installation, so there is no need for additional purchases. Additionally, when purchasing our adapters and patch cords, you can achieve a complete set of equipment.
3.Can we customize the plastic material of the fiber distribution and splitting box?
Yes, customization of the plastic material is possible. However, there may be minimum order requirements. Please consult our sales service for more details.
4.What protection level can our fiber distribution and splitting box achieve?
Our fiber distribution and splitting boxes typically achieve an IP65 protection level.
5.What tools are required for the installation of our fiber distribution and splitting box at the construction site?
The installation of our fiber distribution and splitting box requires tools such as a fusion splicer, fiber stripping pliers, and fiber cleaning tools.
6.Can we choose different types of patch cords to match with the fiber distribution and splitting box?
We can provide matching solutions based on your specific requirements for different types of patch cords, ensuring compatibility with your equipment.
7.What is the lead time for delivery?
For standard production items, the lead time is typically 3 working days.
