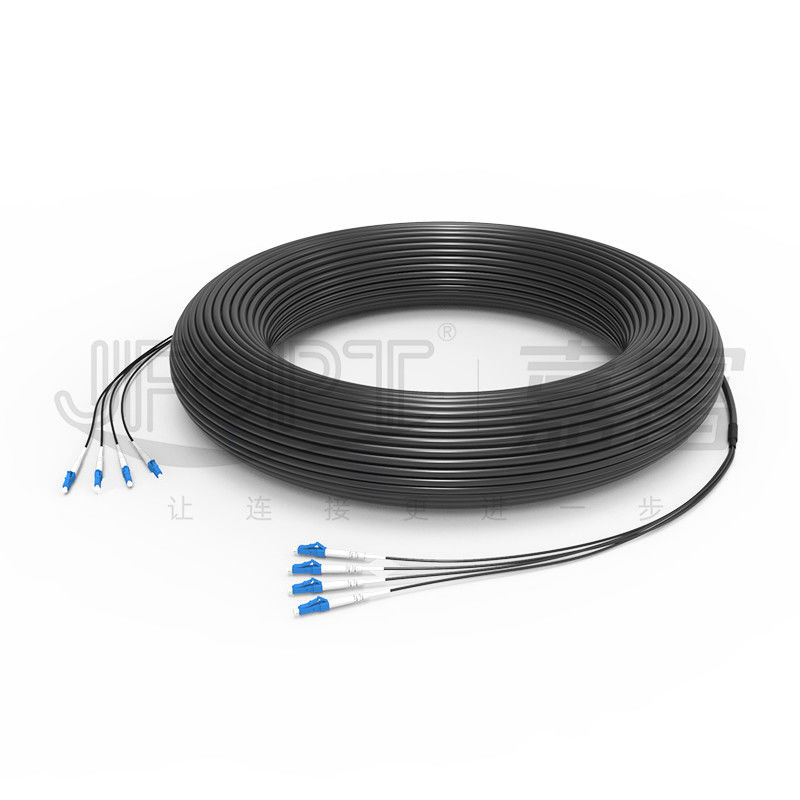

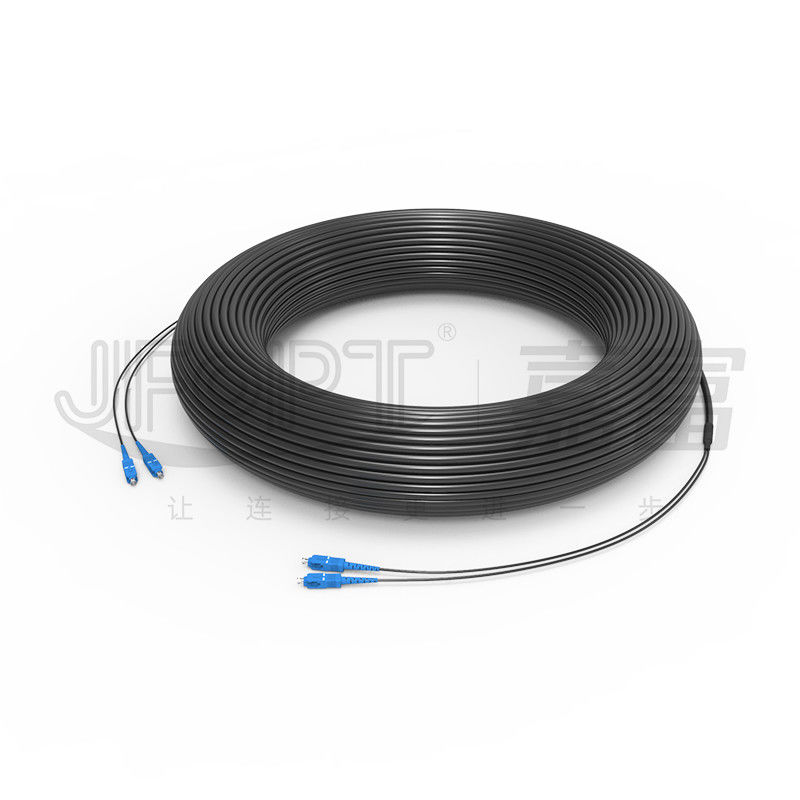

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable

Flexible TPU Tactical Fiber Optic Cable

FTTA Base Station Tactical Fiber Cable

Flexible TPU Tactical Fiber Cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Model Number:

JFOC-GJFJH(FTTA)

Contact Us

Request A Quote
Product Details
Type:
Base Station Fiber Cable
Application:
Outdoor
Number Of Cores:
2/4 Cores
Outer Diameter:
7.0mm
Strength Member:
Aramid Yarn
Fiber Type:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Color:
Black
Outer Jacket:
LSZH/OFN/ONFR
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

FTTA Base Station Cable Customizable Fiber Count Filler Rope Low Cost Long Reach Cabling Solution Flexible TPU Material

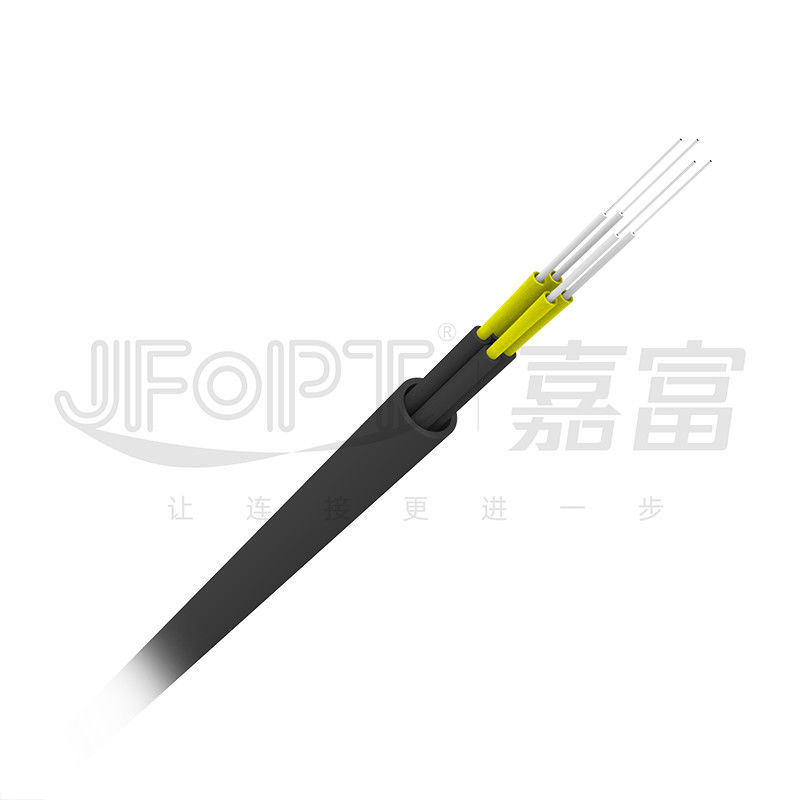

JFOPT's Base Station Fiber Cable is designed by extruding a layer of aramid strength member over tight-buffered fiber, forming subunits. Multiple subunits are then stranded around a center to form the cable core, which is finally sheathed with an outer jacket. The Base Station Remote Fiber Cable exhibits excellent durability and adaptability, utilizing high-strength fiber materials and protective layers to withstand harsh environmental conditions and external interference. Whether it's high temperatures, low temperatures, or humidity changes, JFOPT's fiber optic cables maintain stable performance, ensuring the reliability and longevity of communication networks.



♦ Product Features

① Uses top brands such as Yangtze Optical Fibre and Cable (YOFC) and Corning for premium-grade optical fibers, ensuring high optical performance and data transmission quality

②High-strength aramid material provides excellent tensile performance for the cable

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 0

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 1

③All-dielectric design eliminates electromagnetic induction interference

④Available in different jacket materials to meet various fire safety requirements, ensuring safety and reliability

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 2

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 3

⑤100% factory tested to guarantee transmission performance

-

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 4

-



♦ Applications

1.Base station communication systems
2.Video surveillance systems

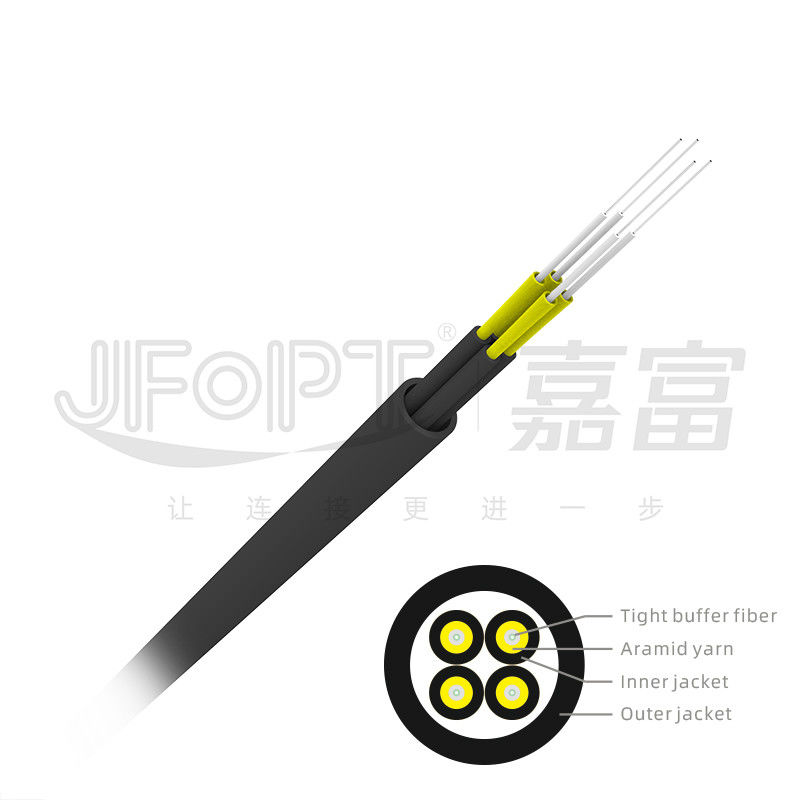

♦ Structure Presentation

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 5

   Cable Parameters

Items

Specifications

Fiber Count

2

4

Tight-buffer Fiber

Diameter

0.85mm±0.05mm

Material

PVC/LSZH

Color

White/Customer-Specified

Inner
simplex cable

Dimension

2.0mm±0.2mm

Material

LSZH

Color

Yellow

Printing Marks

1#~2#

1#~4#

Strength Member

Aramid Yarn

Outer Jacket

Diameter

7.0mm±0.2mm

Material

LSZH

Color

Black/Customer-Specified



♦ Mechanical performance

Items

Specifications

Tension(Long Term)/ N

200

Tension(Short Term)/ N

400

Crush(Long Term)/ N/10cm

500

Crush(Short Term)/ N/10cm

1000

Min. Bend Radius(Dynamic)/mm

20D

Min. Bend Radius(Static)/mm

10D

Operating Temperature/℃

-20~+60

Storage Temperature/℃

-20~+60



♦ Fiber Parameters

Single mode

Items

Unit

G.652D

G.657A1

G.657A2

Mode Field Diameter

1310nm

μm

9.1±0.4

8.8±0.4

8.8±0.4

1550nm

μm

10.4±0.5

9.8±0.5

9.8±0.5

Cladding Diameter

μm

125±1

125±0.7

125±0.7

Cladding Non-Circularity

%

≤1

≤0.7

≤0.7

Core-Cladding Concentricity Error

μm

≤0.6

≤0.5

≤0.5

Coating Diameter

μm

245±7

245±5

245±5

Coating Non-Circularity

%

≤6.0

≤6.0

≤6.0

Cladding-Coating Concentricity Error

μm

≤12.0

≤12.0

≤12.0

Cable Cutoff Wavelength

nm

λcc≤1260

λcc≤1260

λcc≤1260

Cable Attenuation Coefficient

1310nm

dB/km

≤0.4

≤0.4

≤0.4

1550nm

dB/km

≤0.3

≤0.3

≤0.3



Multi-mode

Items

unit

62.5/125

50/125

OM3-150

OM3-300

OM4

Core Diameter

μm

62.5±2.5

50±2.5

50±2.5

50±2.5

50±2.5

Cladding Diameter

μm

125±1.0

125±1.0

125±1.0

125±1.0

125±1.0

Core Non-Circularity

%

≤5.0

≤5.0

≤5.0

≤5.0

≤5.0

Cladding Non-Circularity

%

≤1.0

≤1.0

≤1.0

≤1.0

≤1.0

Core-Cladding Concentricity Error

μm

≤1.5

≤1.5

≤1.0

≤1.0

≤1.0

Coating Diameter

μm

245±7

245±7

245±7

245±7

245±7

Coating Non-Circularity

%

≤6.0

≤6.0

≤6.0

≤6.0

≤6.0

Cladding-Coating Concentricity Error

μm

≤12.0

≤12.0

≤12.0

≤12.0

≤12.0

OFL Bandwidth

850nm

MHz·km

≥160

≥500

≥700

≥1500

≥3500

1300nm

MHz·km

≥500

≥500

≥500

≥500

≥500

Cable Attenuation Coefficient

850nm

dB/km

≤3.0

≤3.0

≤3.0

≤3.0

≤3.0

1300nm

dB/km

≤1.0

≤1.0

≤1.0

≤1.0

≤1.0



♦ Product Packaging

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 6

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 7

Packed on drum

Drum sealed



Factory Strength

Specialization:


JFOPT has a professional research and development team, production technology, and equipment to produce various structures of base station fiber cables, including non-metallic all-dielectric, total metallic armor, subunit armor, non-metallic/metallic center strength member, and more.

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 8

Manufacturing Capacity:


JFOPT has a production line and equipment for large-diameter cable sheathing, offering custom lengths, custom coiling, and batch production to meet customer needs.

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 9

Quality Control:


JFOPT implements strict quality control, selecting materials that fully comply with international, national, or industry-standard requirements, and can provide relevant certification.

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 10

Standardization:


JFOPT's professional team understands your specific needs and provides customized solutions. Whether it's base station construction, expansion, or maintenance, we can offer professional advice and support to ensure the smooth progress of your projects.

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 11

Technological Innovation:


JFOPT focuses on technological innovation, conducting research and development upgrades for products annually, and continuously introducing innovative products to meet evolving market demands.

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 12

Service and Technical Support:


JFOPT not only provides high-quality products but also comprehensive technical support and after-sales service. Our professional technical team can provide installation guidance, performance testing, troubleshooting, and other services.

Flexible TPU Tactical Fiber Optic Cable FTTA Base Station Tactical Fiber Cable 13



♦ Frequent Q&A

1.What should be considered when selecting fiber optic cables?
It is important to consider the cable's type/model, fiber count, color, outer diameter, material, fire rating, mechanical performance, and other relevant specifications.



2.Can we request customized colors and printing on the cables?
Yes, we can customize the colors and printing based on the samples and content you provide.



3.Can we have the fiber optic cables processed into remote fiber optic jumpers for base station use?
We have a professional connector processing production line that can process various fiber optic cables into the fiber optic jumpers you need for base station applications.



4.What other types of fiber optic cables can we manufacture?
We can manufacture different types of indoor and outdoor fiber optic cables, including tight-buffered cables, mini cables, ribbon cables, ADSS (All-Dielectric Self-Supporting) cables, GYTA (Outdoor Aerial Armored) cables, GYTS (Outdoor Aerial Non-Armored) cables, GYXTW (Outdoor Aerial Non-Armored) cables, and more.



5.What is our delivery lead time?
For regular fiber optic cables, we usually have a lead time of 3 working days.
