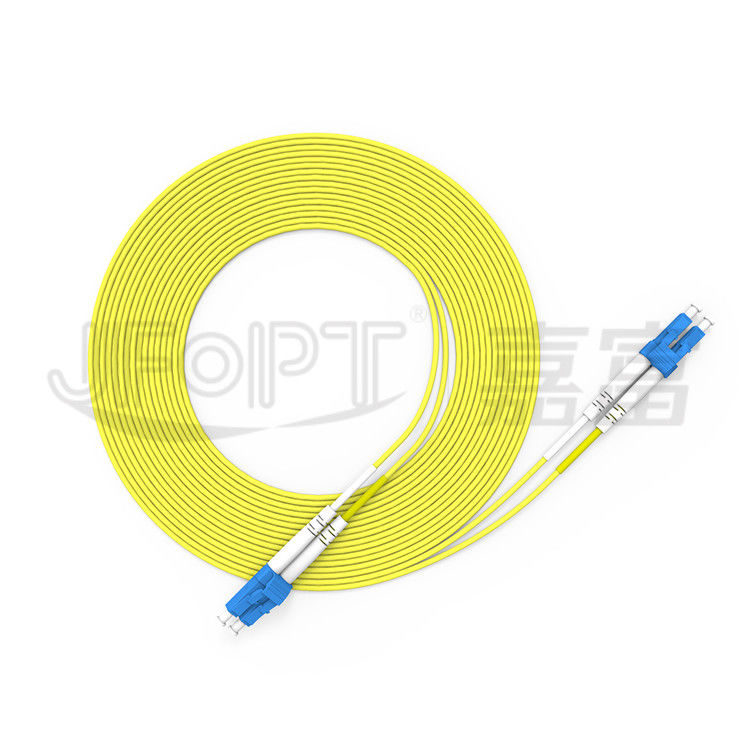

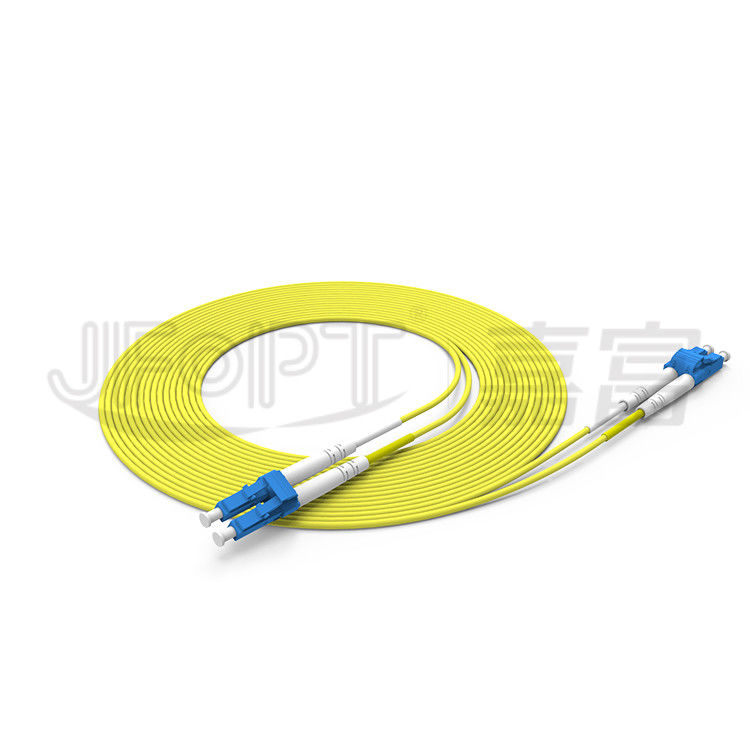

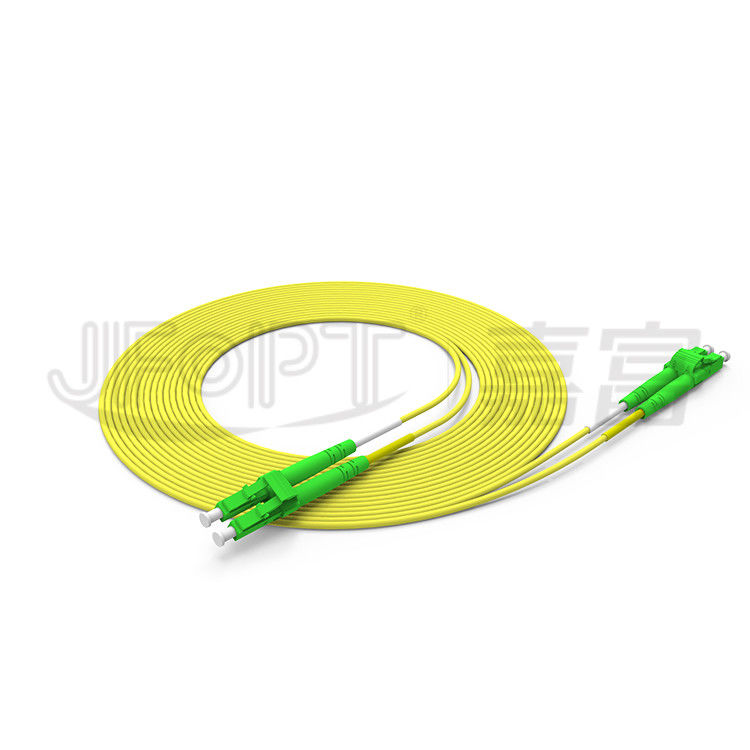

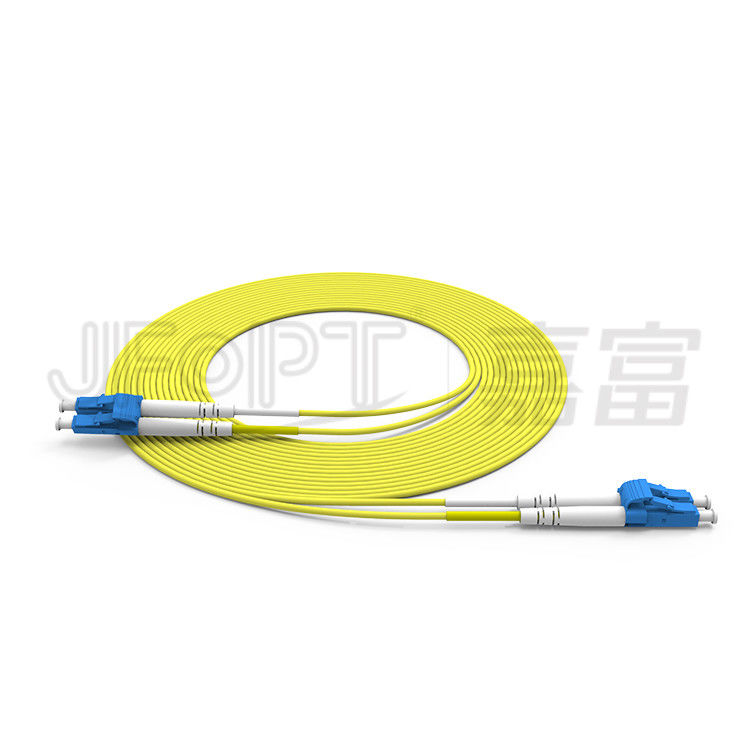

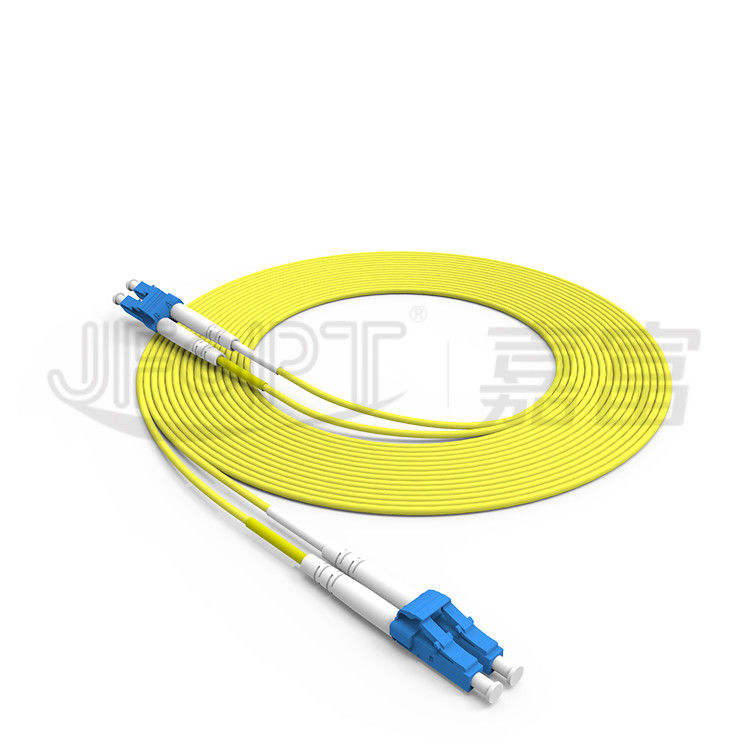

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable

Duplex LC- LC Fiber Patch Cord

OS2 Zipcord Fiber Optic Cable

LC- LC Fiber Patch Cord 2.0mm

Contact Us

Request A Quote
Product Details
Number Of Cores:
2
Choice Of Fiber Cable Model:
G652D/G657A1/G657A2/G655
Choice Of Fiber Cable Outer Diameter:
2.0/3.0
Choice Of Fiber Cable Material:
PVC/LSZH
Flame Retardant Rating:
OFN/OFNR/OFNP
Choice Of Fiber Cable Color:
Yellow Or Custom Color
End Face:
UPC/APC
Connector Model:
LC DX
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quoted based on product length, model, and loss parameters
Delivery Time
1-5 days
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Duplex Fiber Optic Patch Cord LC - LC 2.0/3.0mm Single - Mode OS2 Zipcord Fiber Cable Yellow



JFOPT's duplex jumpers are widely used in data center distribution. Compared to SC connectors, LC connectors offer higher density, allowing for a doubling of the capacity of patch panels. Our standard duplex jumpers are available in 1.6/1.8/2.0/3.0 mm cable outer diameter options, and the SM fiber can use various models such as G652D/G657A1/G657A2/G655. JFOPT maintains sufficient inventory and, with our in-house fiber cable production lines, we can quickly deliver customized orders. We have a comprehensive production and quality control process, with 100% inspection of the end face, loss data, appearance, and packaging, to ensure the quality of products delivered to end customers.



♦ Features

① Duplex connection

②Using high-quality, low-loss optical fiber from top brands like YOFC/Corning

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 0

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 1

③Utilizing high-quality, low-loss Three-circle ceramic ferrules

④ 100% factory termination and testing to ensure transmission performance

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 2

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 3

⑤Customizable cable and connector housing colors, identification rings, heat shrink tubing, and other special requirements

-

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 4

-



Applications

1.Fiber optic access networks
2.Fiber optic data transmission
3.Fiber optic communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



♦ Connector Parameters

Connector Type

Insertion Loss

Return Loss

SC/LC/FC/ST
Connector

SM

≤0.3dB

APC≥60dB
UPC≥50dB

MM

≤0.3dB

UPC≥25dB



♦ 3D Geometric Parameters (Optional)

Items

UPC

APC

SC/FC/ST

LC

SC/FC

LC

SM

MM

SM

MM

SM

SM

Radius of curvature (mm)

10-25

7-25

5-12

Apex offset (μm)

≤50

≤30

Fiber Depressed (nm)

±100

Angle deviation (°)

0

8±0.3

Bond angle deviation (°)

0

±0.5

Fiber diameter (μm)

123-135



♦ Connector Housing Color Options

LC connector

Single mode

Blue

Green

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 5

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 6

Multimode

Beige

Aqua

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 7

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 8

Heather Violet

Lime Green

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 9

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 10



♦ Optical Cable Parameters

Item

Parameter

Fiber type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber count

2

Reinforcement element

Aramid yarn

Outer sheath material

Optional LSZH/PVC/TPU

Outer sheath diameter

3.0mm

Outer sheath color

Customizable

Max. Tensile Strength (long term)

160N

Max. Tensile Strength (short term)

300N

Max. crush resistance (long term)

200N/cm

Max. crush resistance (short term)

1000N/cm

Minimum bending radius (dynamic)

50mm

Minimum bending radius (static)

30mm

Operating temperature

-20~60℃

Storage temperature

-20~60℃

flame retardance

Optional OFN/OFNR/OFNP



♦ Connector Options

Duplex

Cable diameter

Boot type


Drawings

2.0mm
Duplex

Standard boot

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 11

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 12

2.0mm
Duplex

Short boot 1

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 13

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 14

2.0mm
Duplex

Short boot 2

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 15

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 16

3.0mm
Duplex

Standard boot

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 17

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 18

3.0mm
Duplex

Short boot 1

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 19

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 20

3.0mm
Duplex

Standard UNIBOOT

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 21

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 22

2.0/3.0mm
Duplex

45° boot

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 23

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 24

2.0/3.0mm
Duplex

90° boot

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 25

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 26

Duplex
Narrow pitch clip

With any boot
(except UNIBOOT)

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 27

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 28



♦ Duplex Polarity Selection

TYPE A-B(Straight)

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 29

TYPE A-A(Crossing)

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 30



♦ Product Packaging

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 31

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 32

Thickened ziplock bag

Thickened carton



Factory Strength

Specialization:


With over 20 years of focus on fiber optic jumpers, JFOPT has professional production technology to manufacture high-quality and high-performance fiber optic jumpers.

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 33

Manufacturing Capacity:


JFOPT has 5 production lines and equipment to efficiently produce a large quantity of fiber optic jumpers to meet customer demands.

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 34

Quality Control:


JFOPT follows strict quality control measures throughout the procurement of raw materials and production process. Insertion loss testing and end-face inspection are performed to ensure product quality.

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 35

Setting Standards:


JFOPT can customize and strictly adhere to production standards for fiber optic jumpers according to user requirements, ensuring consistency and performance stability.

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 36

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber optic jumpers.

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 37

Service and technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction.

Duplex LC- LC Fiber Patch Cord 2.0mm 3.0mm Single Mode OS2 Zipcord Fiber Optic Cable 38



♦ Frequent Q&A

1.What issues should be considered when customizing standard fiber jumpers?
Customization requirements for standard fiber jumpers include length, cable material, fiber type and count, duplexing sequence, color, labeling, and other specifications.



2.How do we ensure the stability of our standard fiber jumpers?
JFOPT's standard fiber jumpers undergo 100% insertion loss testing and end-face inspection, ensuring quality stability through multiple checks.



3.What other advantages products do we offer besides LC jumpers?
In addition to LC jumpers, we also manufacture FC/ST/SC and other standard model jumpers, various connector adapter jumpers, MPO adapters for standard connectors (such as LC), outdoor waterproof cables and jumpers, as well as various non-standard and special fiber connectors.



4.What is our delivery lead time?
For standard products, our delivery lead time can be controlled within 2 working days, ensuring prompt shipment.
