Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH, Company: ISO9001/ISO14001
Model Number:
LC Short Boot/Bendable Boot
Contact Us

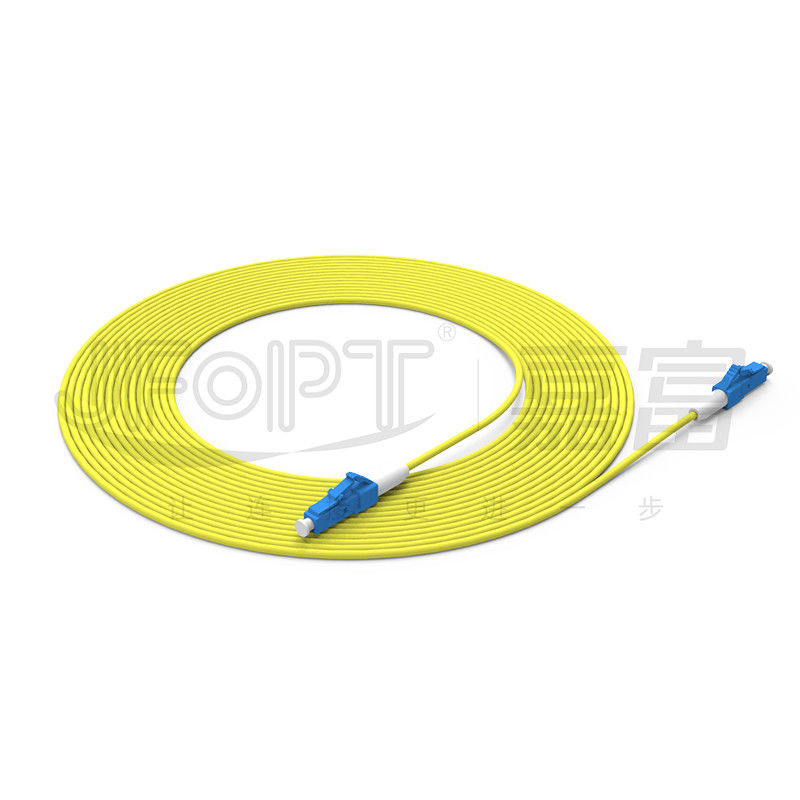

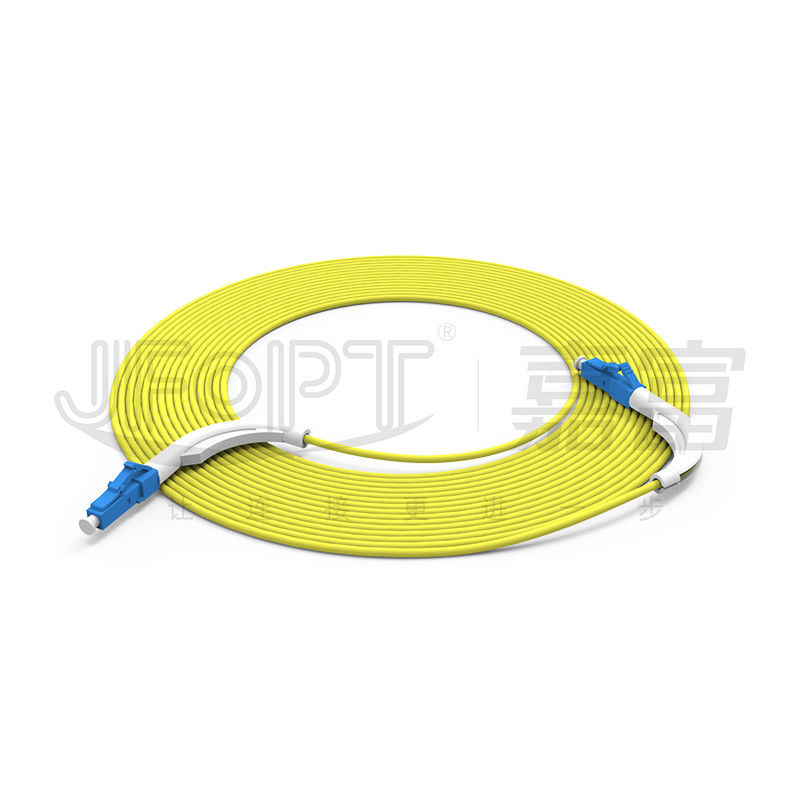

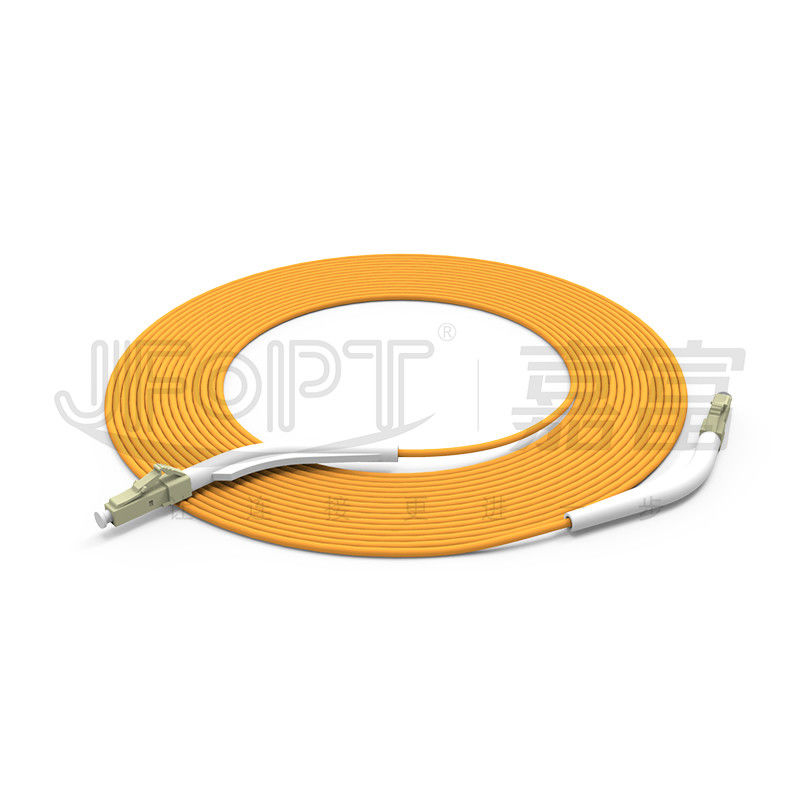

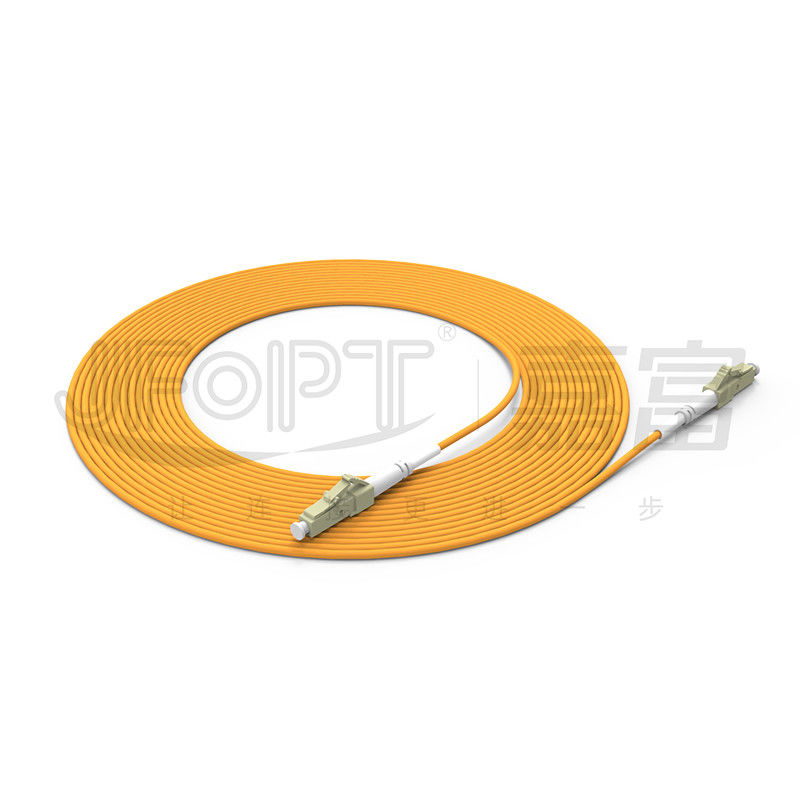

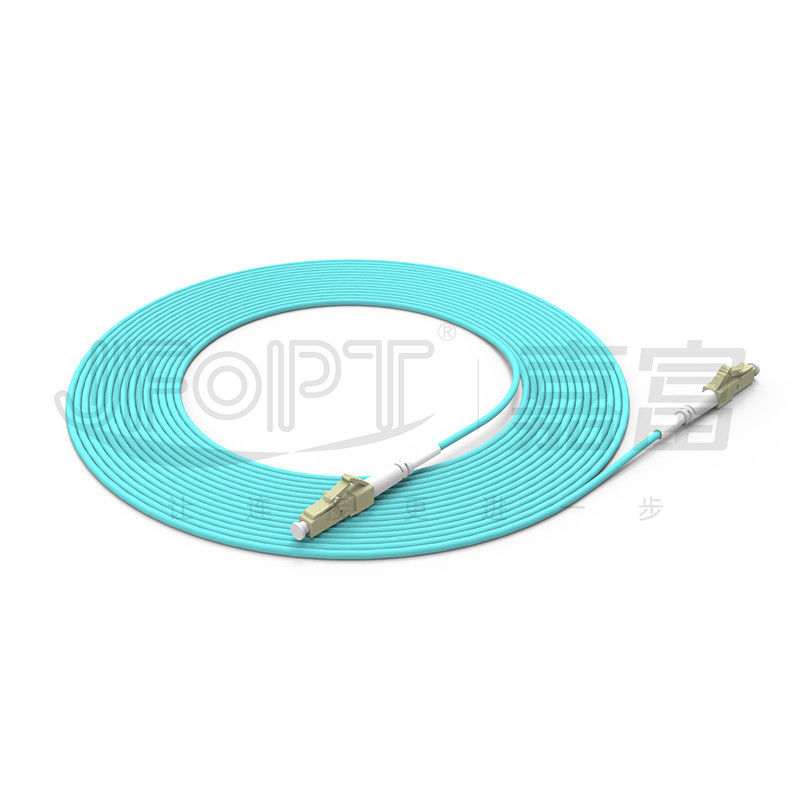

LC - LC Short Boot Angled Boot Fiber Optic Patch Cord
JFOPT offers personalized fiber optical patch cord with short boot or angled boot, suitable for high-density wiring requirements in narrow spaces. The short boot reduces the depth requirement of the patch panel, while the bent boot secures the cable routing direction at the connector end, making the wiring neater and reducing cable stress. Like regular jumpers, they are compatible with cables of various outer diameters such as 1.6/1.8/2.0/3.0mm and support both single-mode and multi-mode fiber types. JFOPT usually maintains sufficient inventory, combined with own cable production line, finaly achieve quick delivery for customized orders. JFOPT has a comprehensive production and quality inspection process, ensuring that the products delivered to end customers are of high quality through 100% inspection of the end faces, loss data, appearance, and packaging.
♦ Features
|
①Patch cord with short boot and bent boot suitable for installation in small spaces with high density |
②Made with bend insensitive fiber to improve transmission stability |
||||
|
|
|
||||
|
③Equipped with high-quality, low-loss ceramic ferrules for excellent stability |
④ Carefully selected new materials, resistant to high temperatures, environmentally friendly, and durable |
||||
|
|
|
||||
|
⑤100% factory termination and testing to ensure transmission performance |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber optic access networks
2.Fiber optic data transmission
3.Fiber optic communication systems, cable TV networks, and telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ Single Core Fiber Optic Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
|||
|
Number of Fiber Cores |
1 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Sheath Material |
Optional:LSZH/PVC |
|||
|
Outer Sheath Diameter |
1.9±0.1mmmm |
2.9±0.1mm |
||
|
Outer Sheath Color |
Yellow/Orange/Aqua/Purple/Lime Green/Custom |
|||
|
Tensile Strength (Long-term) |
60N |
80N |
||
|
Tensile Strength (Short-term) |
100N |
150N |
||
|
Crush Resistance (Long-term) |
100N/cm |
100N/cm |
||
|
Crush Resistance (Short-term) |
500N/cm |
500N/cm |
||
|
Minimum Bending Radius (Dynamic) |
50mm |
60mm |
||
|
Minimum Bending Radius (Static) |
30mm |
30mm |
||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional: OFN/OFNR/OFNP |
|||
♦ Dual Core Fiber Optic Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
|||
|
Number of Fiber Cores |
2 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Sheath Material |
Optional:LSZH/PVC |
|||
|
Outer Sheath Diameter |
(1.9±0.1)×(3.9±0.2)mm |
(2.9±0.1)×(5.9±0.2)mm |
||
|
Outer Sheath Color |
Yellow/Orange/Aqua/Purple/Lime Green/Custom |
|||
|
Tensile Strength (Long-term) |
90N |
160N |
||
|
Tensile Strength (Short-term) |
150N |
300N |
||
|
Crush Resistance (Long-term) |
200N/cm |
200N/cm |
||
|
Crush Resistance (Short-term) |
1000N/cm |
1000N/cm |
||
|
Minimum Bending Radius (Dynamic) |
50mm |
60mm |
||
|
Minimum Bending Radius (Static) |
30mm |
30mm |
||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional: OFN/OFNR/OFNP |
|||
♦ 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Housing Color Options
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Connector Options
|
Duplex |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Short boot 1 |
|
|
|
2.0mm |
Short boot 2 |
|
|
|
3.0mm |
Short boot 1 |
|
|
|
2.0/3.0mm |
45° boot |
|
|
|
2.0/3.0mm |
90° boot |
|
|
|
Simplex |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Short boot 1 |
|
|
|
2.0mm |
Short boot 2 |
|
|
|
3.0mm |
Short boot 1 |
|
|
|
2.0/3.0mm |
45° boot |
|
|
|
2.0/3.0mm |
90° boot |
|
|
♦ Duplex Polarity
|
TYPE A-B(Straight) |
|
|
|
TYPE A-A(Crossing) |
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of focus on fiber optic jumpers, JFOPT has professional production techniques to manufacture high-quality and high-performance fiber optic jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has five production lines and equipment, enabling fast and efficient production of a large quantity of fiber optic jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspection and monitoring at every stage, from raw material to production processes, conducting insertion loss testing and end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber optic jumper production standards based on customer requirements to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team continuously developing advanced and high-performance fiber optic jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Customization requirements may include fiber optic patch cord length, cable material, fiber type and count, duplex polarity, color, labeling, and other specific requirements.
2.How do we ensure the stability of our standard fiber optic patch cords' parameters?
JFOPT's standard fiber optic patch cords undergo 100% insertion loss testing and end-face inspection. Multiple inspections are conducted to ensure parameter stability and product quality.
3.What are the advantages of our products besides LC patch cords?
In addition to LC patch cords, we also manufacture FC/ST/SC and other standard connector types of patch cords, various connector adapter patch cords, MPO to standard connector (such as LC) conversion patch cords, outdoor waterproof cables and patch cords, as well as various non-standard and special fiber optic connectors.
4.What is our delivery lead time?
For standard products, our delivery lead time can be controlled within 2 working days, ensuring prompt shipment.
