Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH, Company: ISO9001/ISO14001
Model Number:
ST-LC/SC/FC/E2000
Contact Us

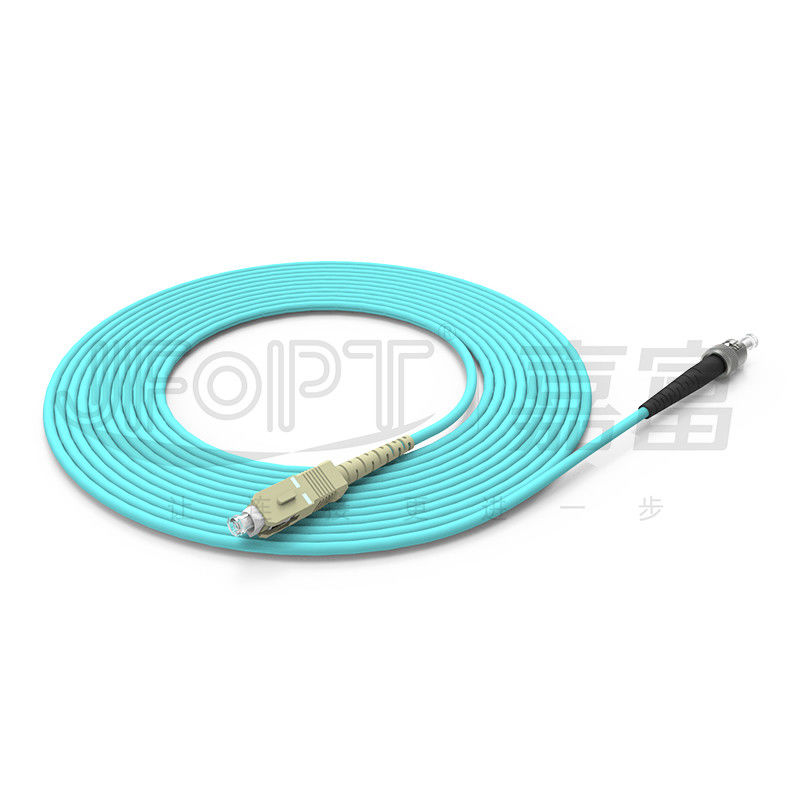

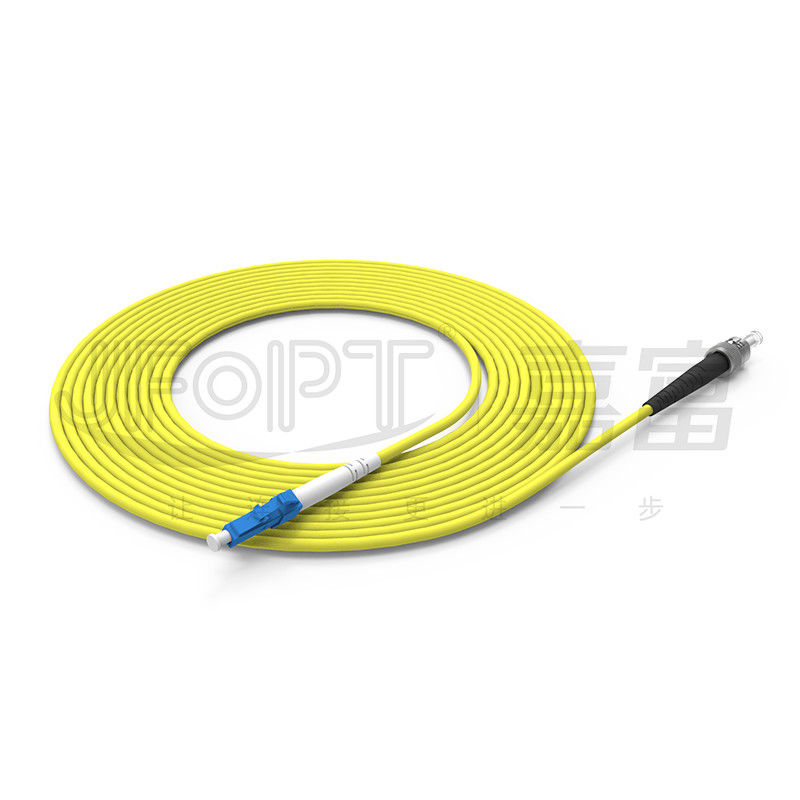

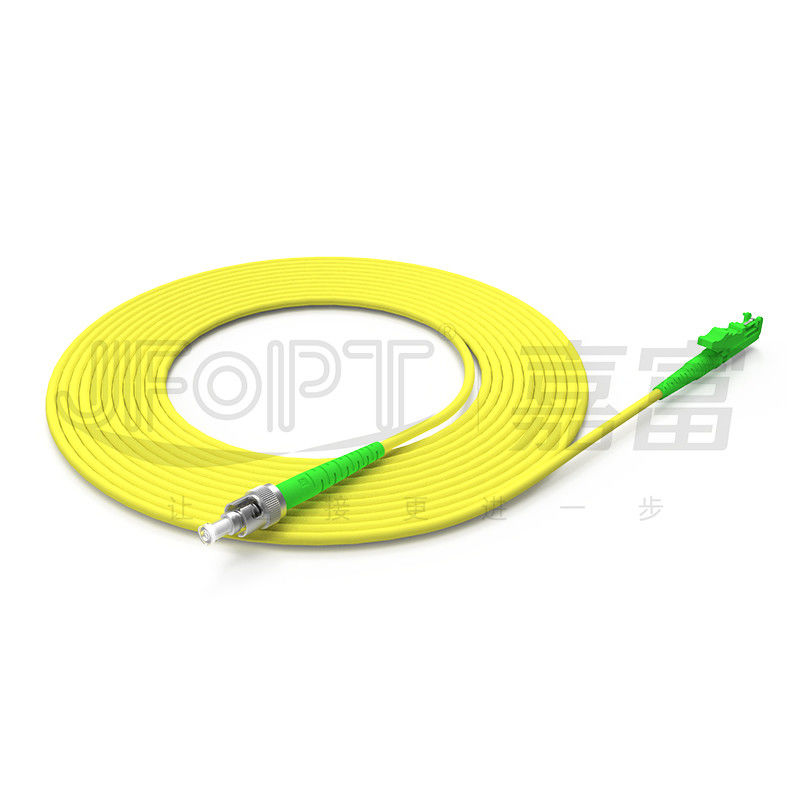

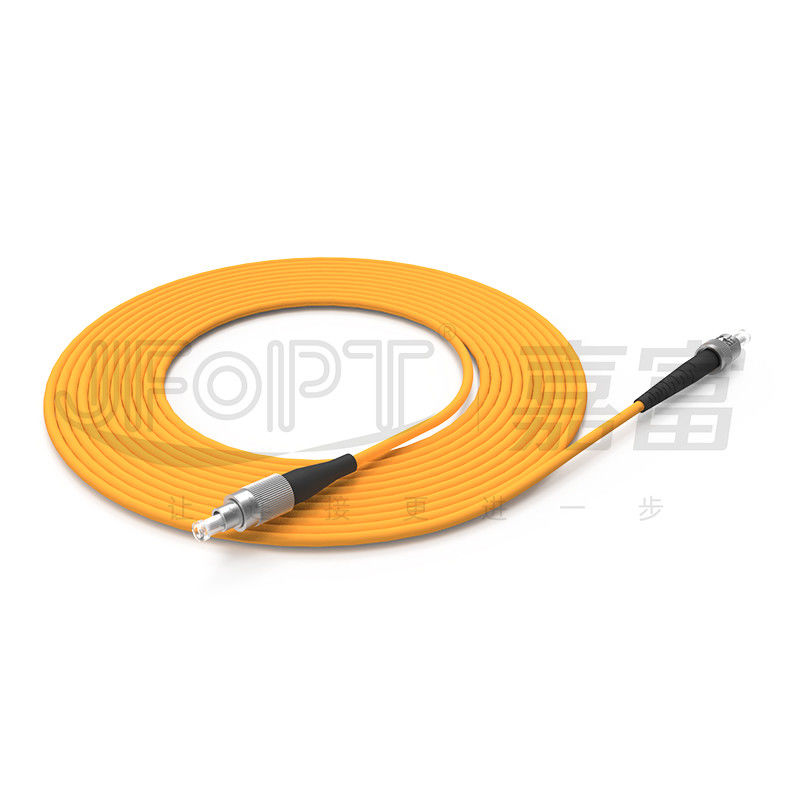

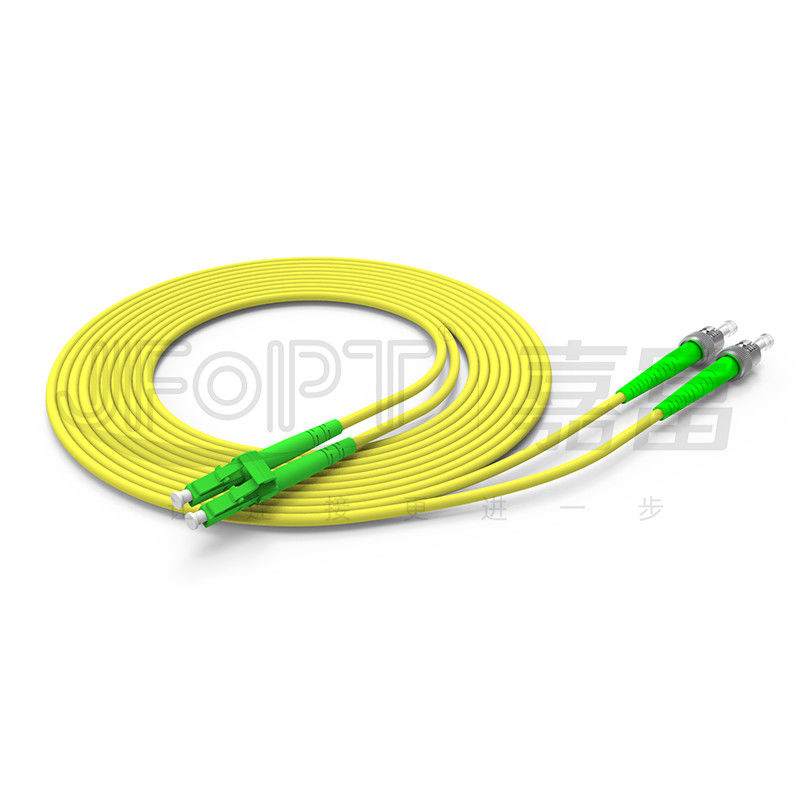

ST - LC SC FC E2000 2.0mm / 3.0mm Adapter Fiber Optic Patch Cord
With over 20 years of experience in fiber optic jumper production, JFOPT offers a wide range of jumpers. JFOPT can produce non-standard ST/APC connector models, and the ST connectors have passed salt spray testing. In addition, we also produce SC, LC, FC, ST, E2000, MU, DIN, D4, ESCON, MPO, MTP, and other connectors in large quantities. JFOPT fiber optic jumpers can be customized with different fiber types, cable outer diameters, and jumper lengths. Through our comprehensive customized service for passive optical communication products, we help customers reduce procurement costs and achieve one-stop shopping. JFOPT jumper products comply with TIA 604 (FOCIS), IEC 61754, and YD/T industry standards, and are widely used in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and other places.
♦ Features
①Different cable diameters to suit various environments |
②A-grade zirconia ceramic ferrule ensures low-loss connections |
||||
|
|
||||
③Multiple options for sheath materials to meet different fire resistance ratings |
④100% factory terminated and tested to ensure transmission performance |
||||
|
|
||||
⑤Multiple connector options, including SC, LC, FC, ST, E2000, etc., to meet one-stop procurement needs |
- |
||||
|
- |
||||
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable television networks, telecommunication networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Technical Parameters
Connector Characteristics |
Connector Type |
LC/SC/FC/ST/E2000 |
|||
Ferrule Type |
Single mode: UPC/APC; Multimode: UPC |
||||
Ferrule Material |
A-grade zirconia ceramic |
||||
Matching Cable Outer Diameter |
0.9mm/2.0mm/3.0mm/4.0mm |
||||
Connector Color |
Blue/Green/Beige/Aqua/Purple |
||||
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
Return Loss |
Single mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
||||
Repeatability |
≤0.2dB |
||||
Interchangeability |
≤0.2dB |
||||
Cable Characteristics |
Fiber Type |
OS2/OM1/OM2/OM3/OM4/OM5 |
|||
Number of Cores |
Single core/Dual core |
||||
Outer Diameter |
2.0/3.0mm |
||||
Sheath Material |
PVC/LSZH or customer customization |
||||
Cable Color |
Yellow/Orange/Aqua/Purple/Lime green/Custom |
||||
Fire Resistance Rating |
Optional OFN/OFNR/OFNP |
||||
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
Storage Temperature |
-40~80℃ |
♦ 3D Geometry Parameters (Optional)
Items |
UPC |
APC |
||||
SC/FC/ST |
LC |
SC/FC |
LC |
|||
SM |
MM |
SM |
MM |
SM |
SM |
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
Apex offset (μm) |
≤50 |
≤30 |
||||
Fiber Depressed (nm) |
±100 |
|||||
Angle deviation (°) |
0 |
8±0.3 |
||||
Bond angle deviation (°) |
0 |
±0.5 |
||||
Fiber diameter (μm) |
123-135 |
♦ Product Packaging
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
Expertise: JFOPT has been specializing in fiber optic jumper production for over 20 years, with professional manufacturing techniques to produce high-quality, high-performance fiber optic jumpers. |
|
||||
Manufacturing Capacity: JFOPT has 5 production lines and equipment, enabling fast and efficient production of a large number of fiber optic jumpers to meet customer demands. |
|
||||
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material to production processes. Insertion loss testing and end-face inspections are conducted to ensure product quality. |
|
||||
Standardization: JFOPT can establish and strictly adhere to fiber optic jumper production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team that continuously develops more advanced and higher-performance fiber optic jumpers. |
|
||||
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What aspects should be considered when customizing standard fiber optic patch cords?
Fiber Optic Patch Cord Length/Cable Material/Fiber Optic Type and Core Count/Duplex or Simplex Configuration/Color/Labeling.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT ensures the stability of our standard fiber optic patch cords through rigorous testing and multiple inspections. All our patch cords undergo 100% insertion loss testing and end-face inspection. This multi-step testing process guarantees the stability and quality of our products.
3.Apart from standard model patch cords, what other advantageous products do we offer?
In addition to standard model patch cords, we also manufacture various types of hybrid patch cords such as LC/SC/FC/ST/E2000, MPO hybrid patch cords (e.g., LC to MPO), outdoor waterproof fiber optic cables and patch cords, as well as a wide range of non-standard and special model fiber optic connectors.
4.What is our delivery lead time?
For standard products, we can ensure a delivery lead time of within 2 working days, guaranteeing prompt shipment to meet your needs.
