Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH ；Company : ISO9001 / ISO14001
Model Number:
ST G652D / G657A1 / A2 LSZH
Contact Us

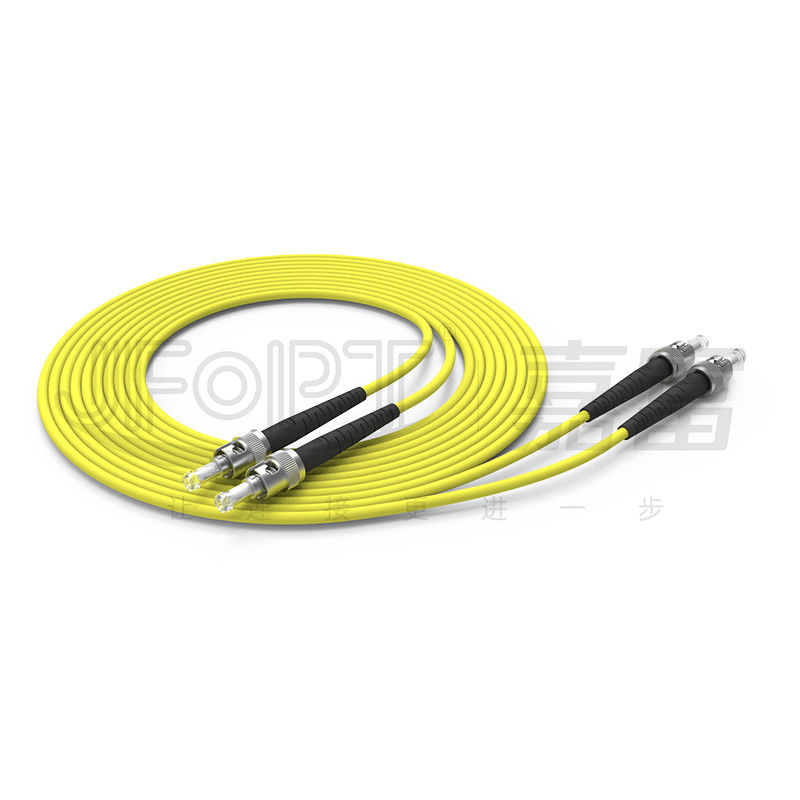

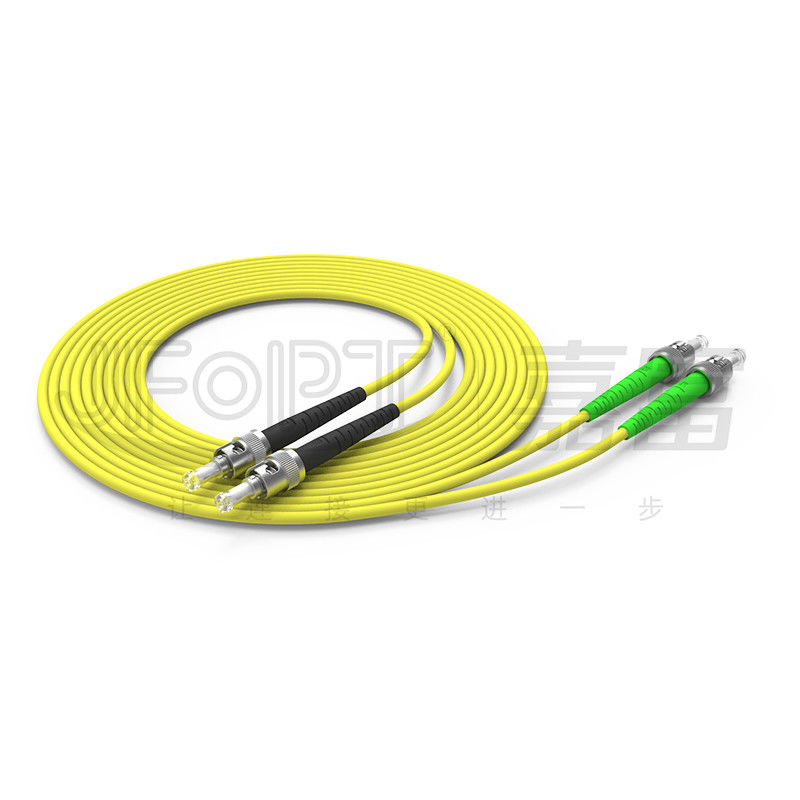

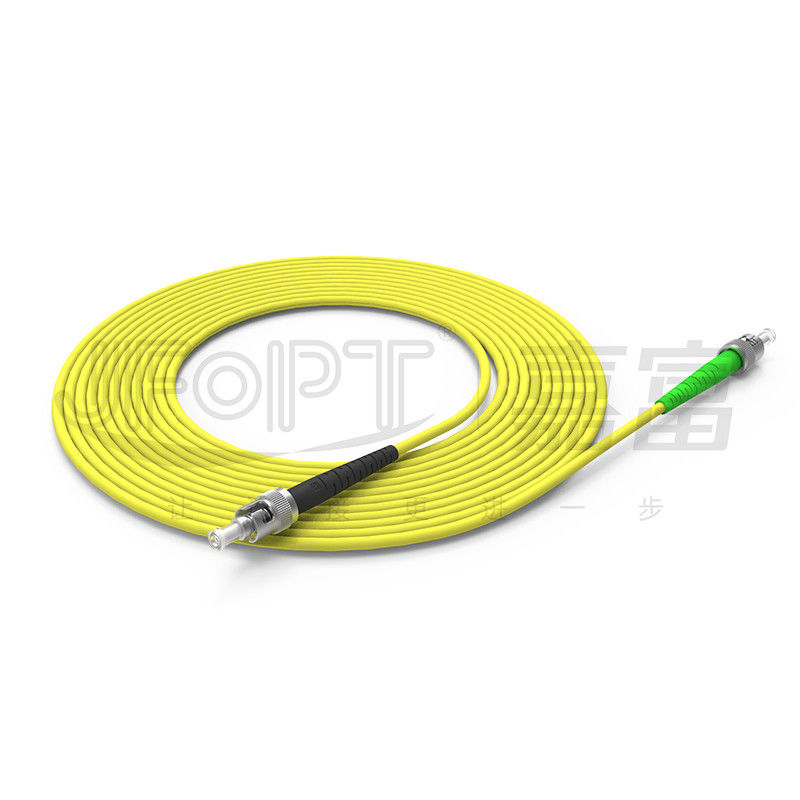

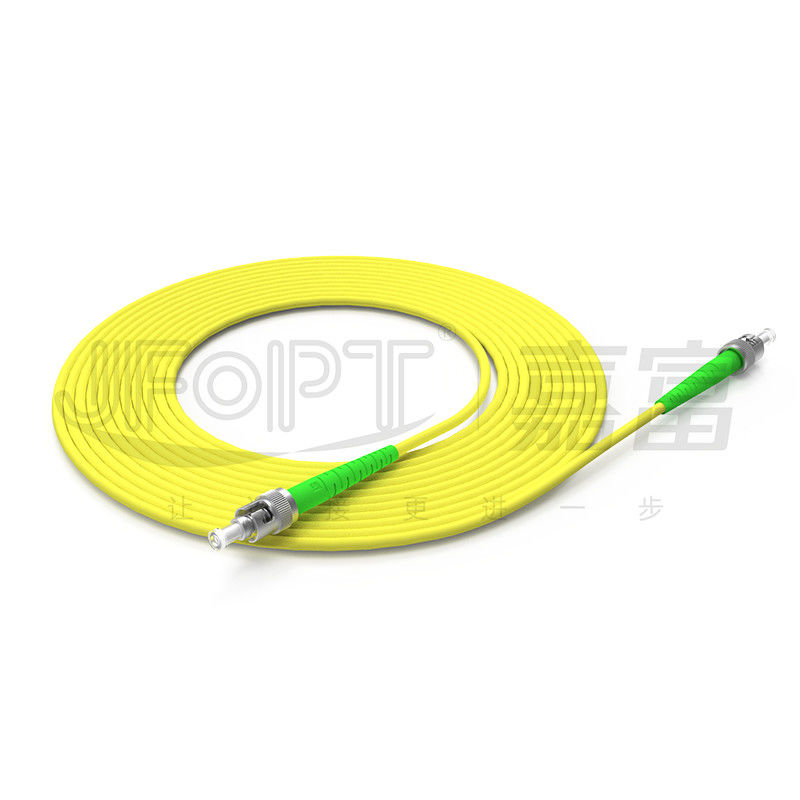

ST - ST Single Mode OS2 G652D / G657A1 / A2 LSZH Fiber Optic Patch Cord
The ST connector is a snap-in style connector made of metal material, known for its easy and quick installation, effectively preventing connector disconnection. With over 20 years of experience in fiber optic jumper production, JFOPT can provide not only standard-sized 0.9mm/2.0mm/3.0mm ST jumpers but also bend tail ST jumpers with bend tails to help customers achieve wiring in limited spaces. JFOPT usually maintains sufficient inventory, with its own fiber cable production line, can quickly deliver customized orders. JFOPT has a comprehensive production and quality inspection process, with 100% inspection of end faces, loss data, appearance, and packaging, ensuring the quality of products delivered to end customers.
♦ Features
|
① Grade A zirconia ceramic ferrule ensures low loss |
②LSZH (Low Smoke Zero Halogen) jacket is environmentally friendly and safe |
||||
|
|
|
||||
|
③Multiple jacket material are available to meet different fire resistance ratings |
④ 100% factory termination and testing guarantee transmission performance |
||||
|
|
|
||||
|
⑤ Snap-in style metal connector provides a secure and anti-disconnection connection |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Technical Parameters
|
Connector Characteristics |
Connector Type |
FC |
|||
|
Polishing Type |
UPC/APC |
||||
|
Insert Core Material |
Grade A Zirconia Ceramic Ferrule |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode - UPC≥50dB; APC≥60dB |
||||
|
Repetitiveness |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
|
Cable Characteristics |
Fiber Type |
G652D/G657A1/G657A2 |
|||
|
Number of Fibers |
Simplex/duplex |
||||
|
Outer Diameter |
0.9/2.0/3.0mm |
||||
|
Jacket Material |
LSZH or customized |
||||
|
Cable Color |
Yellow/customized |
||||
|
Fire Resistance Rating |
Optional OFN/OFNR/OFNP |
||||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
|
Storage Temperature |
-40~80℃ |
||||
♦ Product Selection
|
Cable diameter |
Boot Type |
Image |
Drawing |
|
0.9mm |
Standard Boot |
|
|
|
2.0mm |
Standard Boot |
|
|
|
3.0mm |
Standard Boot |
|
|
|
2.0/3.0mm |
45° Boot |
|
|
|
2.0/3.0mm |
90° Boot |
|
|
♦ Connector Housing Color Options
|
ST connector |
||||||
|
|
|
|
|
|
|
|
|
Blue |
Green |
Beige |
Aqua |
Red |
Black |
White |
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT focuses on fiber optic jumper production for over 20 years and has professional production technology to manufacture high-quality and high-performance fiber optic jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has five production lines and equipment to produce a large quantity of fiber optic jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control, including professional quality testing and monitoring at every stage from raw material procurement to the production process, ensuring product quality through insertion loss testing and end face inspections. |
|
||||
|
Standardization: JFOPT can develop and strictly follow fiber optic jumper production standards according to customer requirements to ensure consistency and performance stability of products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance fiber optic jumpers. |
|
||||
|
Service Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1. What should be considered when customizing standard fiber optic patch cords?
Customization requirements may include fiber optic patch cord length, cable material, fiber type and count, duplex polarity, color, labeling, and other specifications.
2. How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's standard fiber optic patch cords undergo 100% insertion loss testing and end-face inspection to ensure quality stability. Multiple inspections are conducted to ensure reliable performance.
3. What other advantageous products do we offer besides ST patch cords?
In addition to ST patch cords, we also produce FC/LC/SC and other common types of patch cords, connector conversion patch cords for various connector types, MPO conversion patch cords (e.g., LC to MPO), outdoor waterproof fiber optic cables and patch cords, as well as various custom and specialized fiber optic connectors.
4. What is our delivery lead time?
For standard products, our delivery lead time can be controlled within 2 working days, ensuring prompt shipment for your convenience.
