Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH；Company : ISO9001 / ISO14001
Model Number:
E2000 UPC/APC LowLoss SM/MM
Contact Us

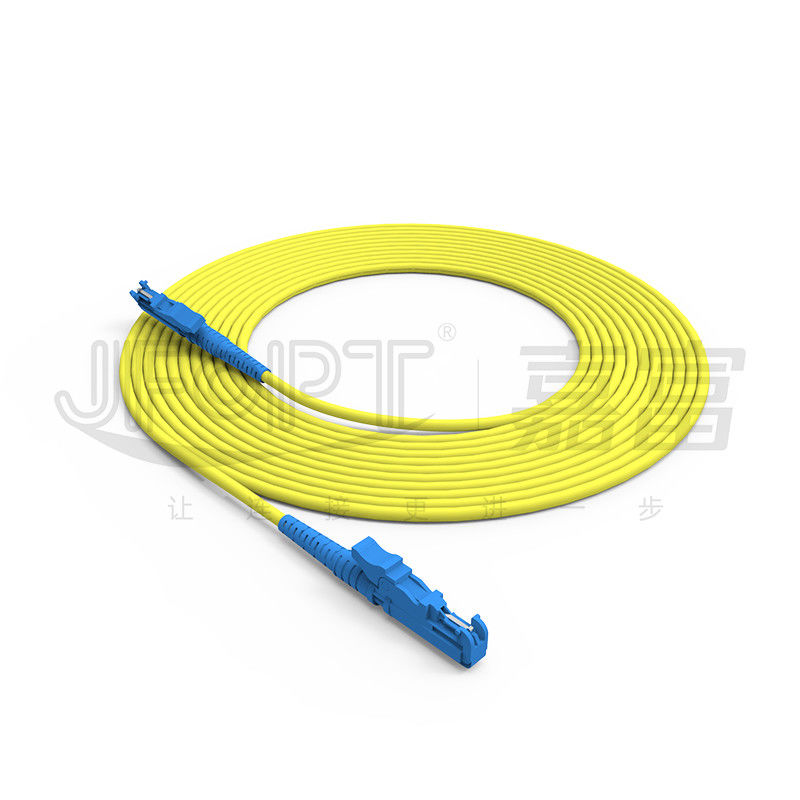

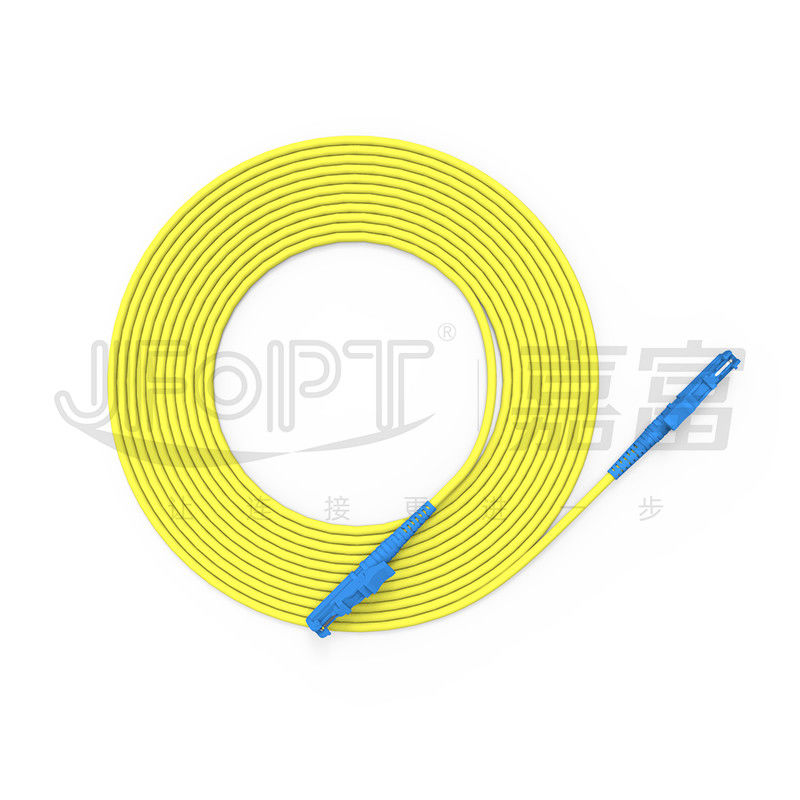

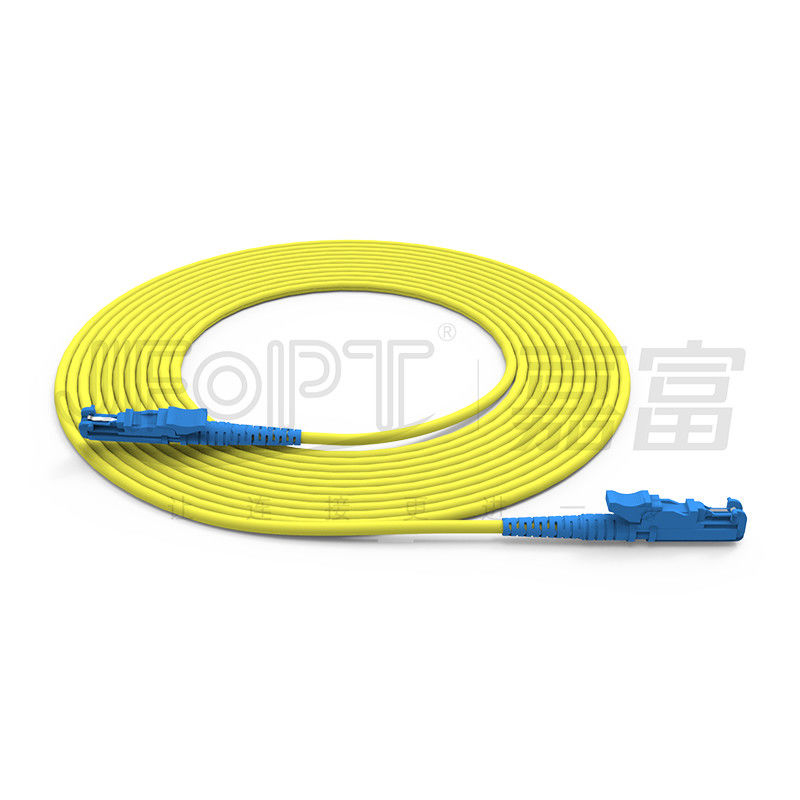

E2000 - E2000 Fiber Optic Patch Cord Low Loss ≤0.3dB Single Mode / Multimode
The E2000 fiber connector features a spring-loaded valve and a push-pull locking mechanism. When the connector is mated with an adapter, the locking mechanism securely fastens, and the spring-loaded valve automatically closes upon disconnection. Therefore, the significant advantage of the E2000 connector is the effective protection of the ferrule from contamination or scratch. JFOPT offers low-loss E2000 connectors with the loss as low as 0.3dB or below. With over 20 years of experience in the production of fiber optic jumper, JFOPT has rich expertise and a strong supply chain, providing various brands of E2000 connectors and customizable options for different fiber types, cable outer diameters, and jumper lengths to help customers reduce costs. JFOPT usually maintains sufficient inventory and ensures fast and high-quality delivery through a comprehensive production and quality inspection process.
♦ Features
|
①Different cable diameters are available for various installing spaces |
②Aramid yarn adopted as the reinforcement to ensure the high tensile strength of the cable |
||||
|
|
|
||||
|
③Can supply low-loss and high-performance jumpers |
④ 100% factory terminated and tested to ensure transmission performance |
||||
|
|
|
||||
|
⑤ E2000 connectors support brands such as R&M, H&S |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Technical Parameters
|
Connector Characteristics |
Connector Type |
E2000 |
|||
|
Ferrule Type |
Single mode: UPC/APC; Multimode: UPC |
||||
|
Ferrule Material |
A-grade zirconia ceramic ferrule |
||||
|
Connector Color |
Blue/Green/Beige |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
UPC ≥50dB; APC ≥60dB; Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
|
Cable Characteristics |
Fiber Type |
OS2/OM1/OM2/OM3/OM4/OM5 |
|||
|
Number of Fibers |
Single core/Dual core |
||||
|
Outer Diameter |
0.9/2.0/3.0mm |
||||
|
Jacket Material |
PVC/LSZH or customer customization |
||||
|
Cable Color |
Yellow/Orange/Aqua/Violet/Lime Green/Customized |
||||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
||||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
|
Storage Temperature |
-40~80℃ |
||||
♦ Product Selection
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
0.9mm |
Standard boot |
|
|
|
2.0mm |
Standard boot |
|
|
|
3.0mm |
Standard boot |
|
|

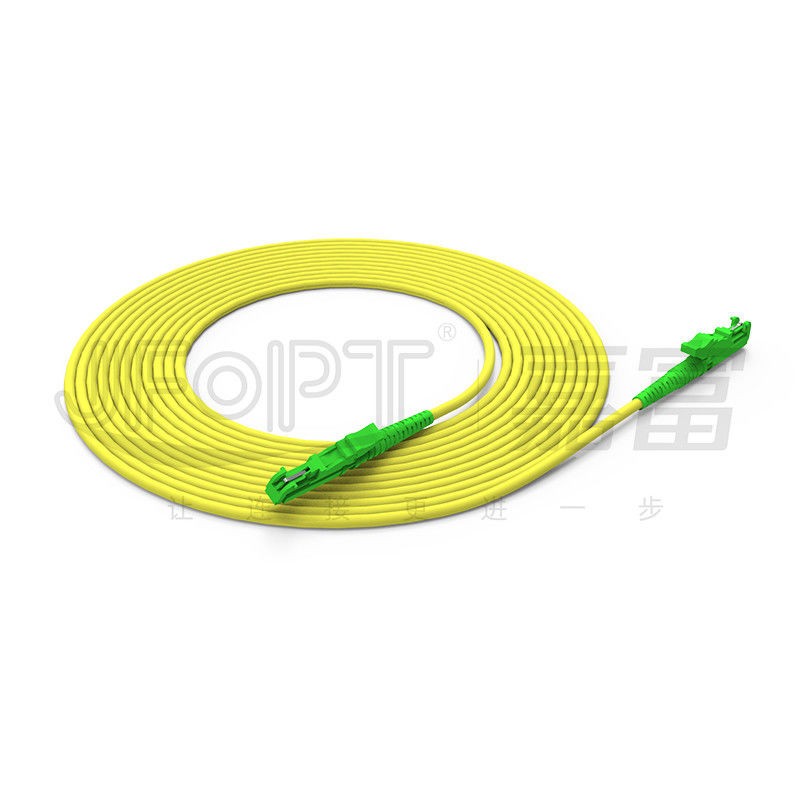

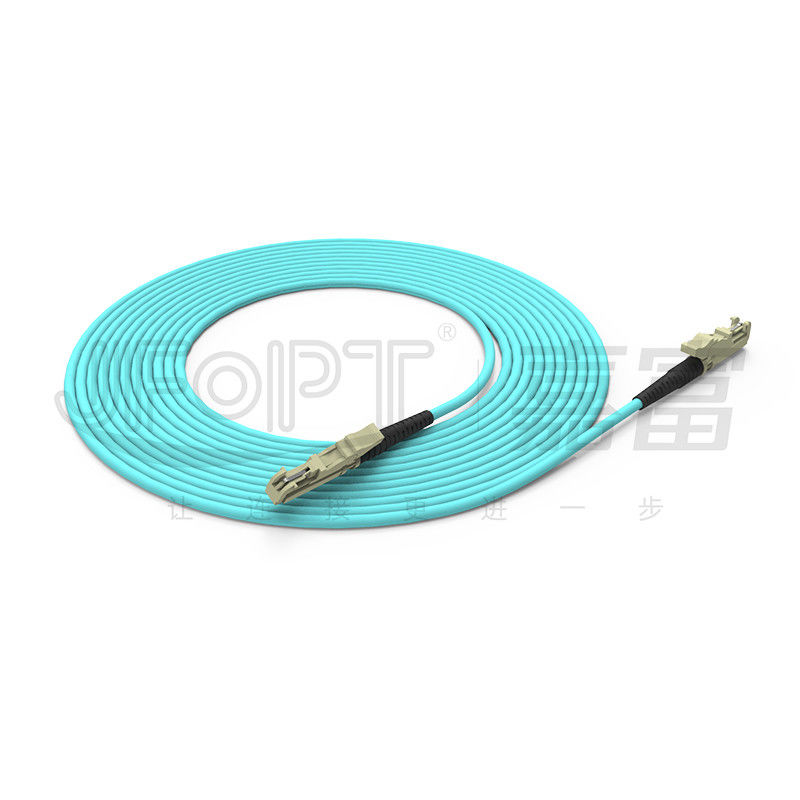

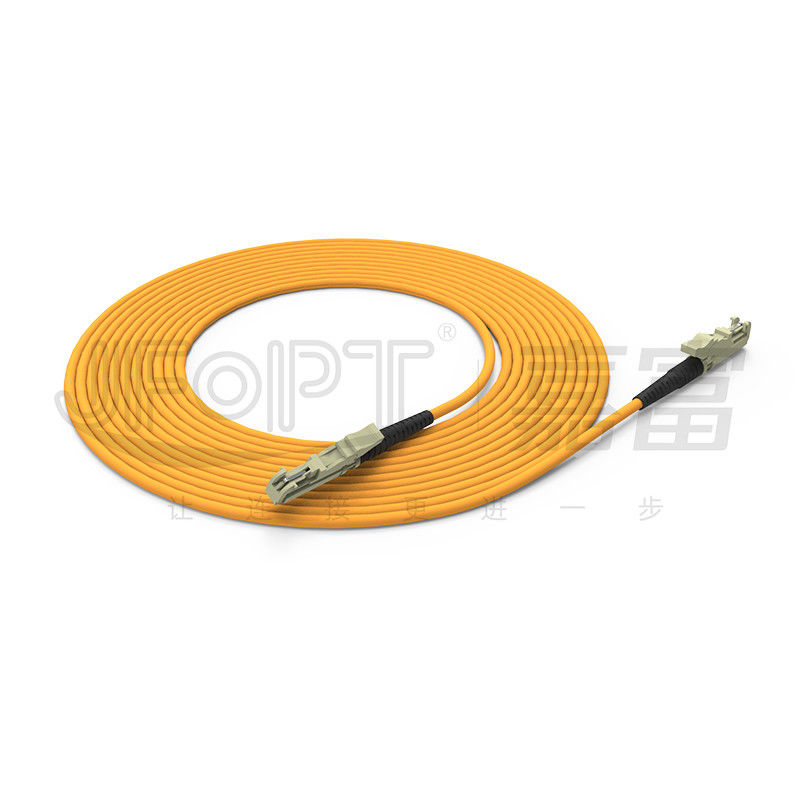

♦ Connector Color Options
|
E2000 connector |
||
|
SM |
MM |
|
|
|
|
|
|
Blue |
Green |
Beige |
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Professionalism: JFOPT has been dedicated to the production of fiber optic jumpers for over 20 years, possessing professional production techniques to produce high-quality and high-performance fiber optic jumpers. |
|
||||
|
Manufacturing Capability: With 5 production lines and equipment, JFOPT can rapidly and efficiently produce a large quantity of fiber optic jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material to production, performing insertion loss testing and end-face inspection to ensure product quality. |
|
||||
|
Standard Compliance: JFOPT can develop and strictly adhere to fiber optic jumper production standards based on customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation, with a professional R&D team constantly developing more advanced and higher-performance fiber optic jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.When customizing fiber optic jumpers, what factors should be considered?
Jumper Length / Cable jacket material / Fiber type and core count / Duplex polarity / Color / Labeling etc.
2.How do we ensure the stability of our fiber optic jumpers?
JFOPT's standard fiber optic jumpers undergo 100% insertion loss testing and end-face inspection. Multiple inspections are conducted to ensure stable product quality.
3.What other advantageous products do we offer besides E2000 jumpers?
In addition to E2000 jumpers, we also produce LC/FC/ST/SC and other standard jumpers, various hybrid jumpers, MPO hybrid patch cable, like MPO-LC, outdoor waterproof cables and jumpers, as well as various non-standard and special model fiber optic connectors.
4.What is our delivery time?
For standard products, our delivery time can be controlled within 2 working days, ensuring fast shipment to meet your needs.
