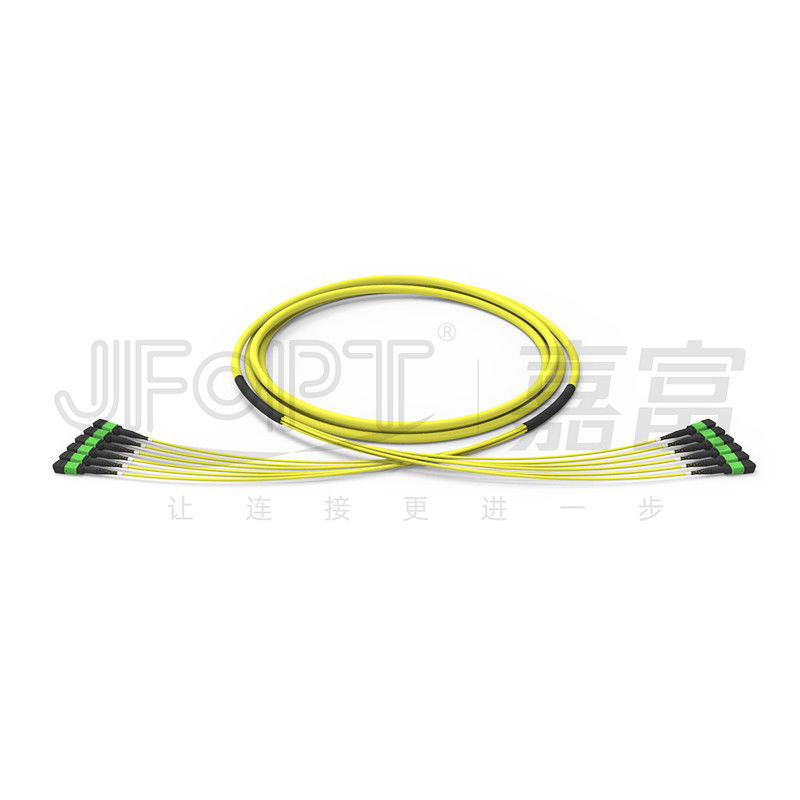

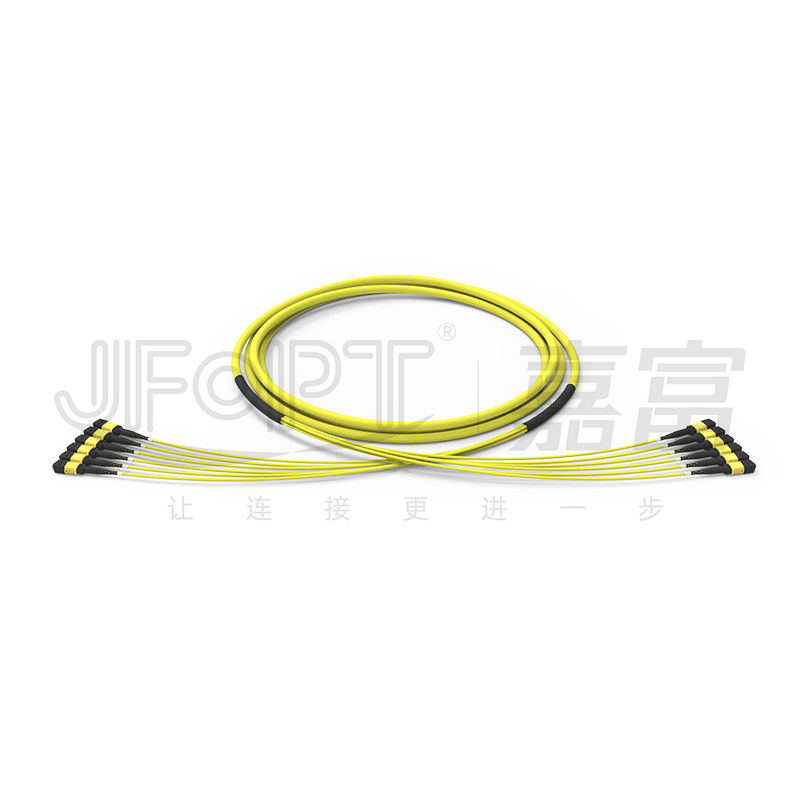

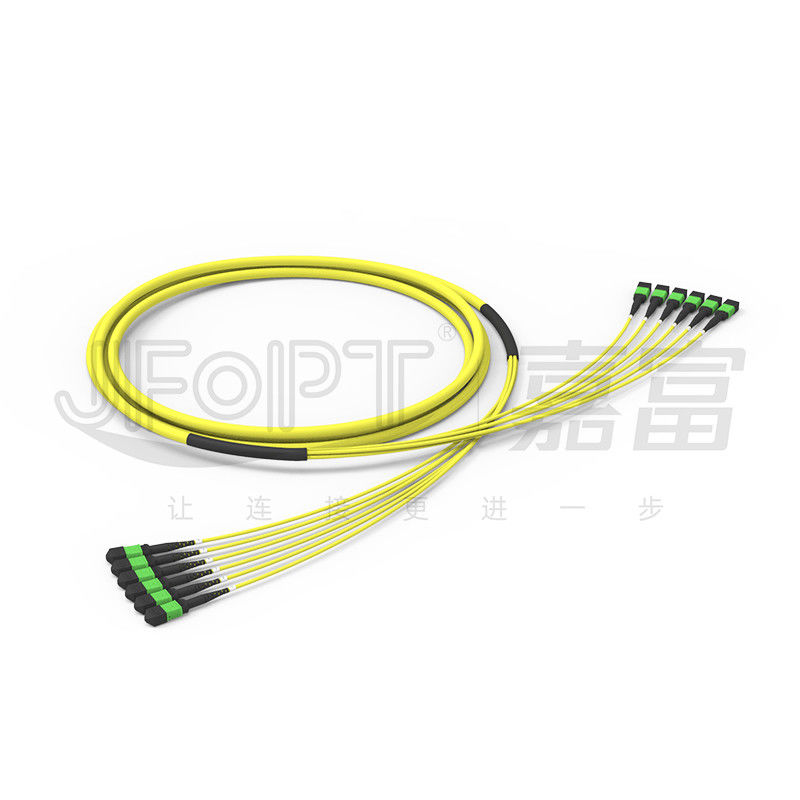

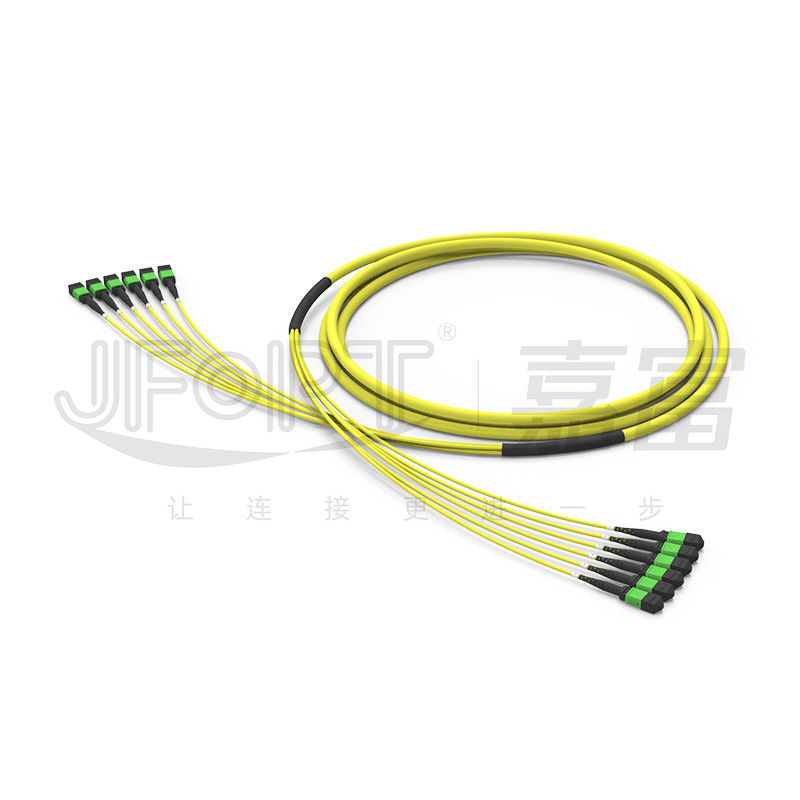

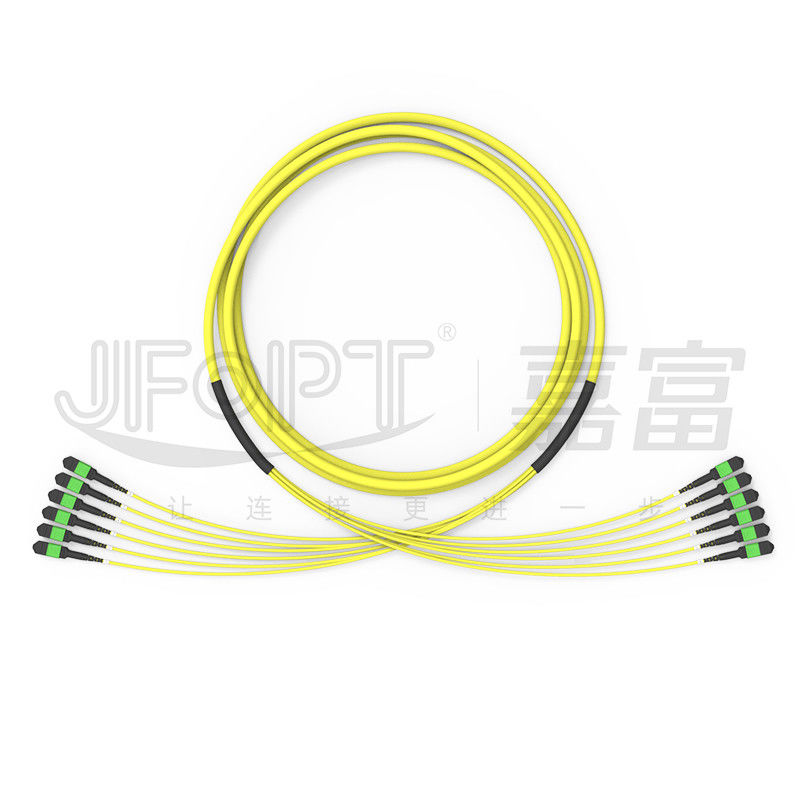

72-Core Mini Cable 6 Units MPO Single - Mode G657A1 MPO Trunk Cable
The feature of MPO trunk cable is their ability to achieve high-density wiring in very small spaces. They are often used in environments such as data centers to enable high-capacity and high-speed data transmission. JFOPT offers 72-core backbone jumpers with options for neutral brands as well as brands like SENKO/SUNCALL/NISSIN. The branches of this trunk cable can have equal or unequal length fan-outs, and they are equipped with number rings for quick identification of sub-cable unit channels. We also provide a variety of MPO high capacity distribution boxes, making it easy to achieve wiring and channel switching for MPO trunk cable, MPO breakout cable, and LC duplex jumpers in equiment rooms.
♦ Features
|
①Option for low-loss and standard-loss connectors |
②Made with G657A1 bend-insensitive fibers to reduce the risk of loss caused by bending |
||||
|
|
|
||||
|
③ Each connector has 12 cores, with no branching structure for added durability |
④100% factory terminated and tested to ensure transmission performance |
||||
|
|
|
||||
|
⑤ Single cable with 72 cores for quick and easy installation and cable management |
- |
||||
|
|
- |
||||
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male / Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Item |
Parameter |
||||||
|
Fiber Type |
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
||||||
|
Fiber Count |
24 |
48 |
72 |
96 |
144 |
288 |
|
|
Unit Count |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
24 cores / unit |
|
Central Strength Member |
/ |
/ |
FRP |
||||
|
Sub-Cable Unit Outer Diameter |
3.0mm |
||||||
|
Sub-Cable Unit Jacket Material |
PVC / LSZH |
||||||
|
Sub-Cable Unit Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Sub-Cable Unit Strength Member |
Aramid yarn |
||||||
|
Outer Jacket Diameter |
9.5mm |
9.5mm |
11.5mm |
13.5mm |
17.0mm |
||
|
Outer Jacket Material |
PVC / LSZH |
||||||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Tensile Strength (Long-Term) |
300N |
200N |
400N |
800N |
1600N |
||
|
Tensile Strength (Short-Term) |
600N |
400N |
1000N |
1500N |
3000N |
||
|
Crush Resistance (Long-Term) |
300N/10cm |
||||||
|
Crush Resistance (Short-Term) |
1000N/10cm |
||||||
|
Minimum Bending Radius (Dynamic) |
20D |
||||||
|
Minimum Bending Radius (Static) |
10D |
||||||
|
Operating Temperature |
-20~60℃ |
||||||
|
Storage Temperature |
-20~60℃ |
||||||
|
Fire Rating |
OFN / OFNR / OFNP |
||||||
♦ Connector Boot Selection
|
MPO boot type |
||||
|
Type |
Specification |
Applicable cable OD |
Picture |
Drawings |
|
Round boot |
3.0 boot L=33mm |
3.0/3.2 |
|
|
|
3.0 boot L=17mm |
3.0/3.2 |
|
|
|
|
Flat Boot |
3.0 boot L=25mm |
3.0/3.2 |
|
|
|
Push-pull tab |
Universal for all boots |
Universal |
|
|
♦ Connector Color Options
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
||||
|
24F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Expertise: With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and core count / Male or female connectors / Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% insertion loss testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male-to-female adapters, MT jumpers, and other MPO-related products.
