G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss

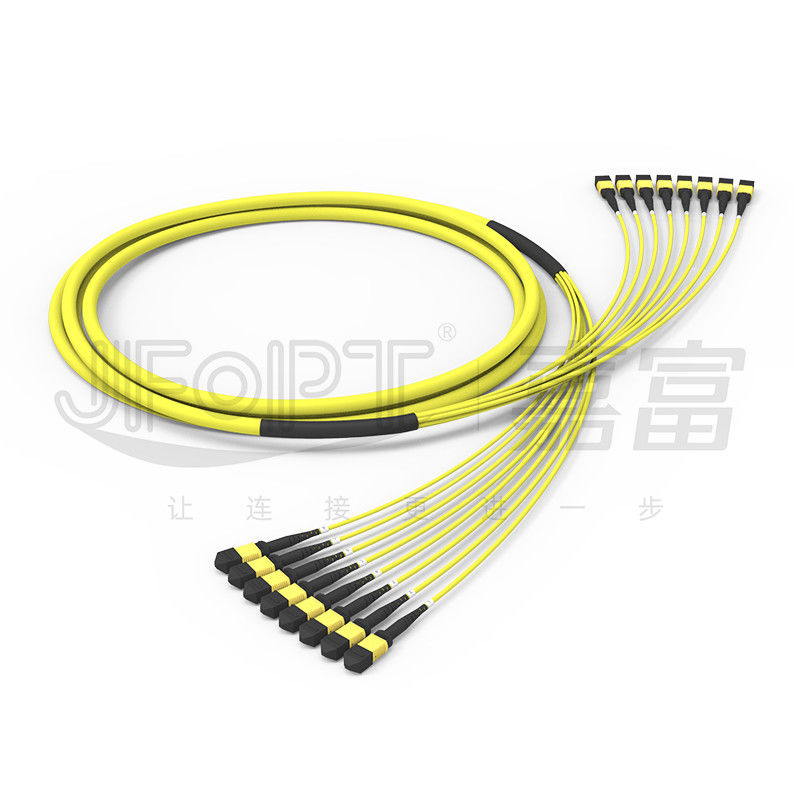

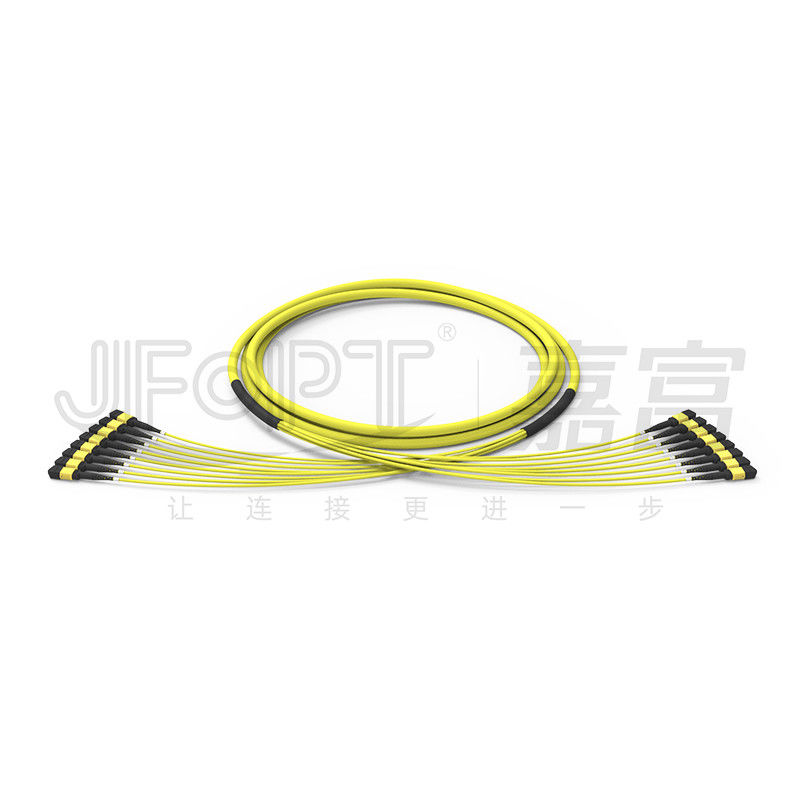

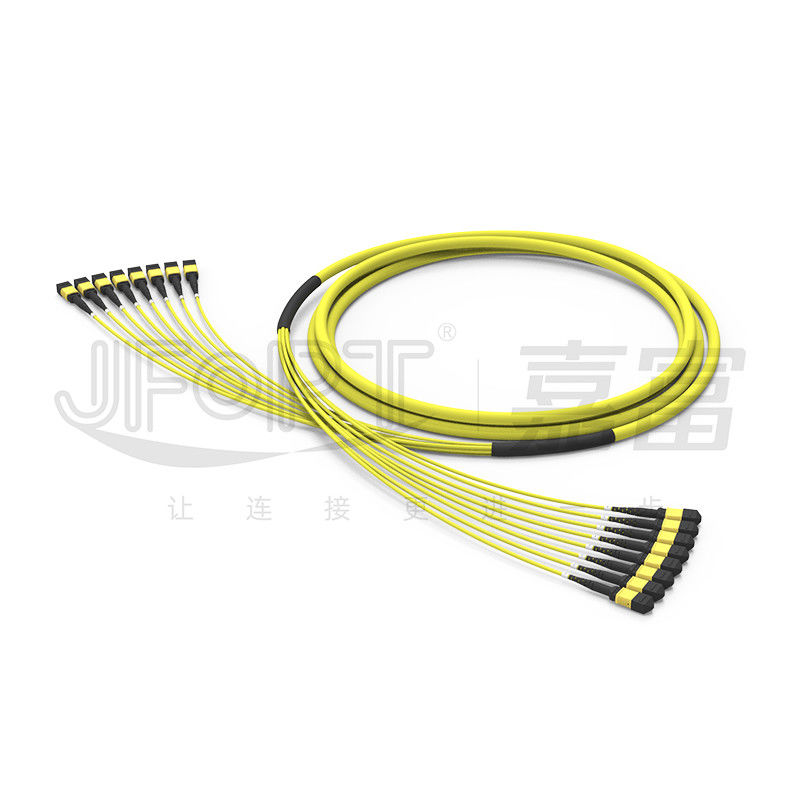

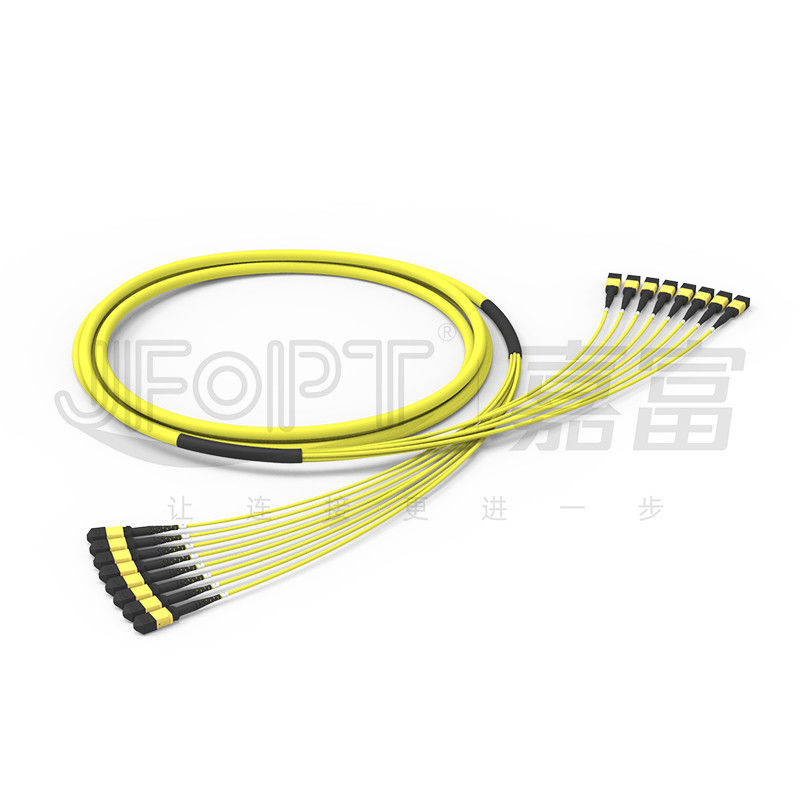

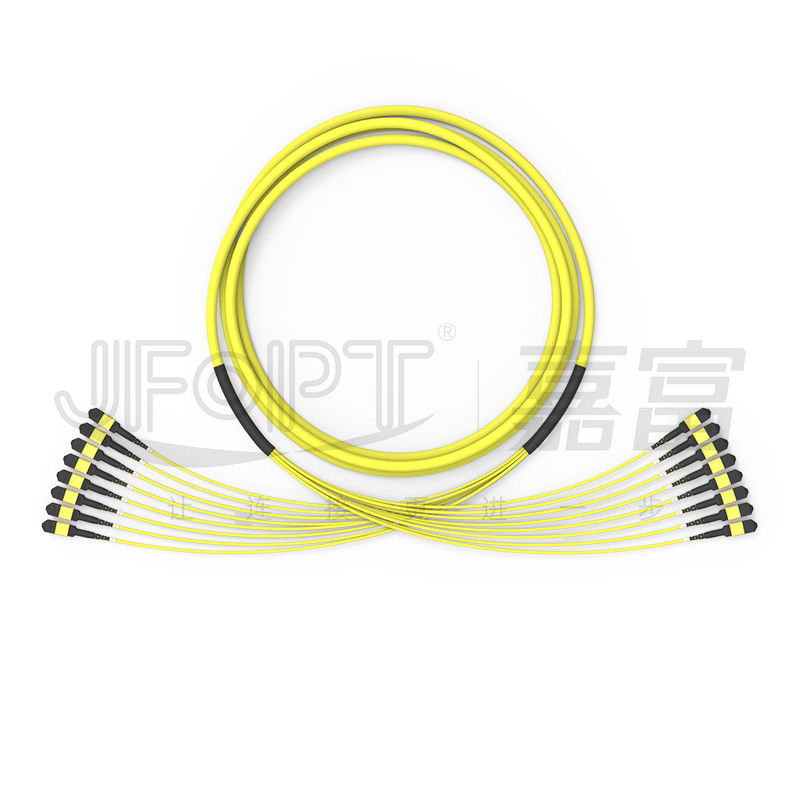

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss

MPO Fiber Optic Cable 96 Core

G657A1 bend insensitive fiber optic cable

Single Mode OS2 fiber optic cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO 96C OS2 G657A1 LL

Contact Us

Request A Quote
Product Details
Fiber Count:
96 Cores
Insertion Loss:
Low - Loss
Return Loss:
RL≥50dB APC RL≥60dB MM RL≥35dB
Fiber Type:
G657A1
Cable Structure:
8- Unit Mini Cable
Cable Jacket Material:
PVC / LSZH / TPU
Outer Jacket Color:
Green / Yellow / Aqua / Violet / Lime Green
Connector Brand:
Generic / SENKO / SUNCALL / NISSIN
Polarity:
A/B/C
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Negotiable
Delivery Time
1-5 days
Payment Terms
Cash
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

  MPO Trunk Cable 96-Core 8-Unit 12 Fibers Per Unit Single-Mode OS2 Low Loss IL ≤ 0.25dB G657A1 Bend-Insensitive Fiber



MPO fiber jumper is a multi-core high-density integrated jumper. The 96-core MPO is typically used for backbone signal transmission in data centers. The 96-core MPO trunk cable provided by JFOPT uses a subunit structure cable, and customers can choose between 12 fibers or 24 fibers per subunit. The MPO trunk cable produced by JFOPT are 24 fibers per subunit and can be equipped with a 24-core MPO module box for deployment. The MPO connector from JFOPT can be customized with male/female and standard/low-loss options. The low-loss connectors are widely used in data centers, terminated with G657A1 bend-insensitive single-mode fiber. The trunk cable is typically equipped with a female connector and can be connected to a male connector on the module box (the male connector has a guide pin, and the female connector has a guide hole).



♦ Features

① High-density connectivity, effectively saving space and reducing costs

②Quick installation tooless, convenient for deploying and maintaining

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 0

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 1

③ Flexible cabling, allowing for direct connections or branching based on different scenarios

④Standard interface, enabling easy interconnection

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 2

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 3

⑤100% tested in JFOPT factory to ensure transmission performance

-

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 4

-



♦ Applications

1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male / Female

Male : with Pin   Female : without Pin



♦ 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ Cable Parameters

Item

Parameter

Fiber Type

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5

Fiber Count

24

48

72

96

144

288

Unit Count

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

24 cores / unit

Central Strength Member

/

/

FRP

Sub-Cable Unit Outer Diameter

3.0mm

Sub-Cable Unit Jacket Material

PVC/LSZH

Sub-Cable Unit Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Sub-Cable Unit Strength Member

Aramid yarn

Outer Jacket Diameter

9.5mm

9.5mm

11.5mm

13.5mm

17.0mm

Outer Jacket Material

PVC/LSZH

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-Term)

300N

200N

400N

800N

1600N

Tensile Strength (Short-Term)

600N

400N

1000N

1500N

3000N

Crush Resistance (Long-Term)

300N/10cm

Crush Resistance (Short-Term)

1000N/10cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

OFN / OFNR / OFNP



♦ Connector Boot Selection

MPO boot type

Type

Specification

Applicable cable OD


Drawings

Round boot

3.0 boot L=33mm

3.0/3.2

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 5

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 6

3.0 boot L=17mm

3.0/3.2

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 7

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 8

Flat Boot

3.0 boot L=25mm

3.0/3.2

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 9

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 10

Push-pull tab

Universal for all boots

Universal

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 11

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 12



Connector Color Options

MPO connector

Single mode

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 13

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 14

Multimode

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 15

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 16

Violet

-

Reference color number PANTONE 7641C

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 17



♦ Polarity Selection

12F Patch Cord

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 18

24F Patch Cord

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 19



♦ Product Packaging

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 20

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 21

Thickened anti-static bag

Thickened carton



 Factory Strength

Specialization:


JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-brand equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality, high-performance MPO jumpers.

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 22

Manufacturing capacity:


JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands.

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 23

Quality Control:


JFOPT implements strict quality control throughout the raw materials and the production process, with professional quality inspection and monitoring at every stage, including 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality.

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 24

Service and Technical Support:


JFOPT can develop and strictly adhere to MPO jumper production standards based on customer requirements to ensure product consistency and performance stability.

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 25

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing MPO jumpers.

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 26

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

G657A1 Bend Insensitive MPO Fiber Optic Cable 96 Core 8 Unit 12 Fibers Single Mode OS2 Low Loss 27



♦ Frequent Q&A

1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and core count / Male or female connectors / Insertion loss standards / Color requirements / Labels and customization requests.



2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% insertion loss testing, ensuring stable parameters.



3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.



4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male-to-female adapters, MT jumpers, and other MPO-related products.
