288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk

om3 mpo cable OFNR OFNP

MPO PC Fiber Optic Trunk

Multimode OM3-300 Mpo Cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO / PC - MPO / PC 288C OM3-300 OFNP / OFNR

Contact Us

Request A Quote
Product Details
Fiber Count:
288 Cores
Sub-unit:
12* 24 Cores / 24 *12 Cores
Connector Type:
MPO / PC MM
Fiber Type:
Multimode OM3-300
Operating Wavelength:
850nm/1300nm
Jumper Type:
Trunk Cable
Outer Jacket Color:
Aqua
Flame Retardant Rating:
OFNR / OFNP
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quotation based on product length / model / and loss parameters
Delivery Time
1-5 days
Payment Terms
Payment in advance
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

  288 Cores 12 Sub-Unit Multimode OM3 -300 OFNR OFNP MPO / PC Trunk Patch Cord



The MPO multimode OM3 288 cores backbone jumper is suitable for high-density wiring centers. It is typically divided into 24 units of 12 cores mini cables or 12 units of 24 cores mini cables. Each subunit mini cable is equipped with an MPO connector, and the entire jumper has no branches, providing a more stable structure. Our company's MPO connectors are produced using a complete set of imported equipment, and all connectors undergo 100% testing in a dust-free workshop.



♦ Features

① OFNP/OFNR flame retardant rating

② Provides higher density and larger space

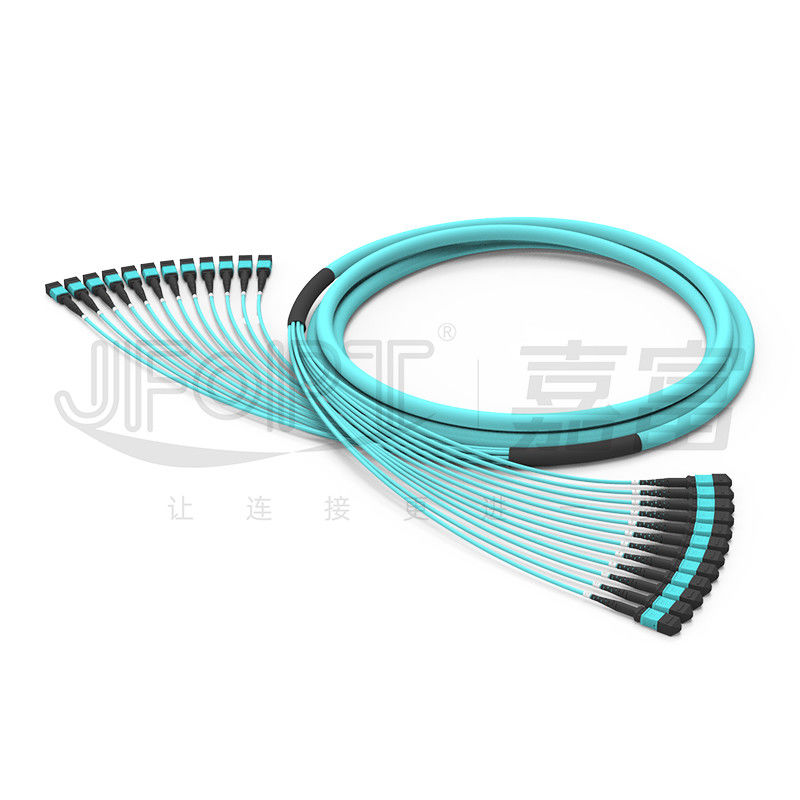

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 0

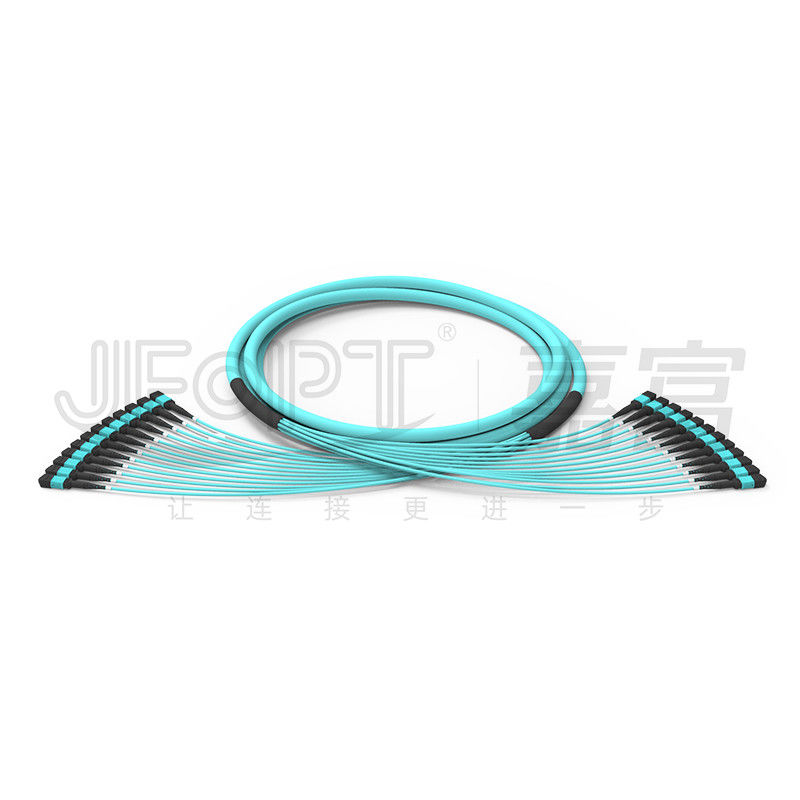

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 1

③ High-quality fibers and connectors ensure stable signal transmission

④ 100% 3D instrument testing to guarantee high quality

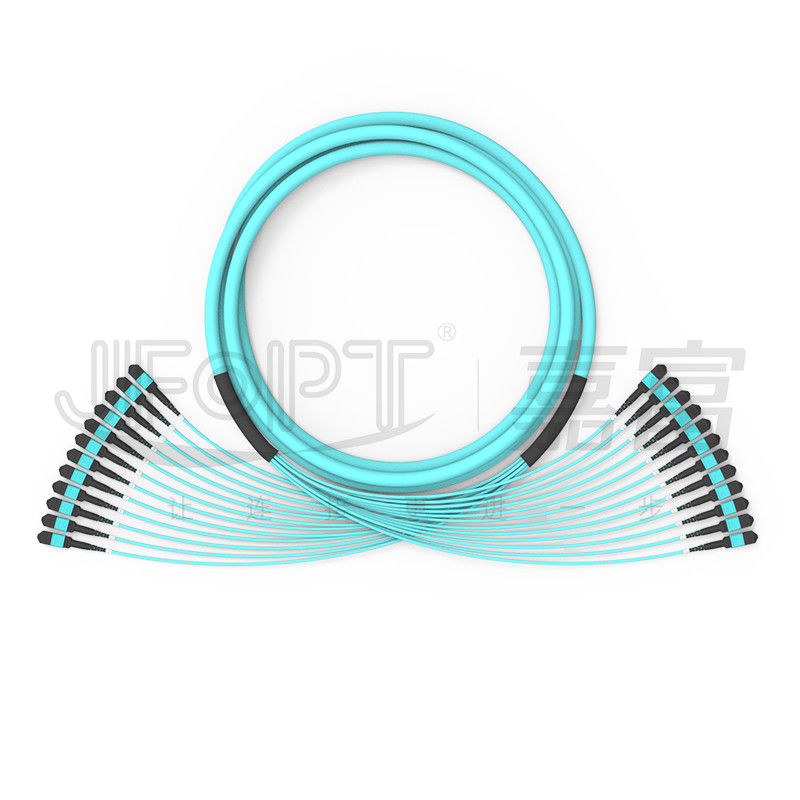

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 2

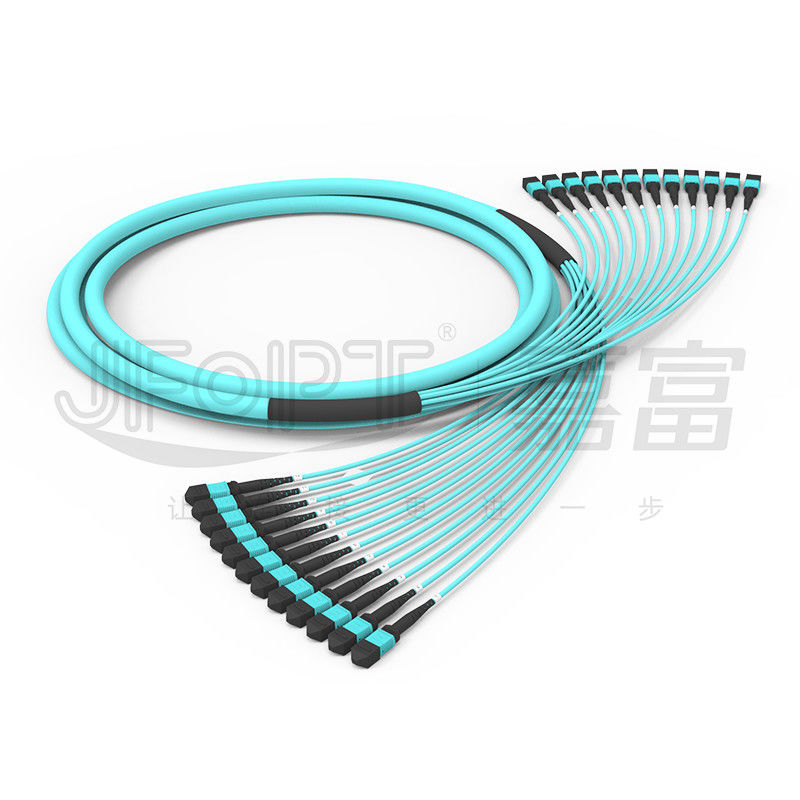

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 3

⑤ Easy installation and convenient connection

-

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 4

-



♦ Applications

1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male / Female

Male : with Pin   Female : without Pin



♦ 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ Cable Parameters

Item

Parameter

Fiber Type

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5

Fiber Count

24

48

72

96

144

288

Sub-cable

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

24 cores / unit

Central Strength Member

/

/

FRP

Sub- cable Outer Diameter

3.0mm

Sub-cable Jacket Material

PVC/LSZH

Sub-cable Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Sub-cable Strength Member

Aramid yarn

Outer Jacket Diameter

9.5mm

9.5mm

11.5mm

13.5mm

17.0mm

Outer Jacket Material

PVC/LSZH

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-Term)

300N

200N

400N

800N

1600N

Tensile Strength (Short-Term)

600N

400N

1000N

1500N

3000N

Crush Resistance (Long-Term)

300N/10cm

Crush Resistance (Short-Term)

1000N/10cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

OFN / OFNR / OFNP



♦ Connector Boot Selection

MPO Boot Type

Type

Specification

Applicable cable OD


Drawings

Round boot

3.0 boot L=33mm

3.0/3.2

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 5

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 6

3.0 boot L=17mm

3.0/3.2

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 7

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 8

Square boot

3.0 boot L=25mm

3.0/3.2

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 9

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 10

Push-pull tab

Universal for all boots

Universal

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 11

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 12



Connector Housing Color Options

MPO Connector

Single mode

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 13

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 14

Multimode

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 15

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 16

Violet

-

Reference color number PANTONE 7641C

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 17



♦ Polarity Selection

12F Patch Cord

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 18

24F Patch Cord

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 19



♦ Product Packaging

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 20

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 21

Thickened anti-static bag

Thickened carton



 Factory Strength

Professionalism:


JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MPO jumpers.

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 22

Manufacturing capacity:


JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands.

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 23

Quality Control:


JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality.

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 24

Standard Development:


JFOPT can develop and strictly adhere to MPO jumper production standards based on customer requirements to ensure product consistency and performance stability.

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 25

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing MPO jumpers.

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 26

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

288 Cores 12 Sub Unit Multimode OM3-300 Mpo Cable OFNR OFNP MPO PC Fiber Optic Trunk 27



♦ Frequent Q&A



1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.



2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.



3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.



4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
