144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH

12 Units MPO Trunk Cable

MPO Trunk Cable 3.0mm Sub Cable

Singlemode OS2 MPO Trunk Cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO / A OS2 144C LSZH Patch Cord

Contact Us

Request A Quote
Product Details
Number Of Fibers:
144
Subunit Structure:
12-unit Structure Mini Cable (3.0mm Subunit)
Fiber Type:
G652D / G675A1 / G657A2 / G657B3
Connector Type:
MPO / APC
Jacket Material:
LSZH
Insertion Loss:
Standard Loss / Low Loss
Single Tube Polarity:
TypeA / TypeB / TypeC
Length:
Customizable
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Based on product length / model / and loss parameters
Delivery Time
1-5 days
Payment Terms
T/T / PAYPAL / Trade Assurance Order Via Alibaba
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

  144- Core 12- Unit 3.0mm Sub - Cable Single - Mode OS2 MPO / APC LSZH MPO Trunk Cable



JFOPT's 144-core MPO backbone jumpers typically use a multi-unit mini cable structure, where the total number of units and fibers per unit can be customized based on requirements. For example, 12 units (12 fibers per unit) or 6 units (24 fibers per unit). The multi-unit mini cable is commonly used in data center wiring to accommodate multiple channels simultaneously, reducing wiring costs. The mini cable design strikes a balance between price and performance.
JFOPT uses bend-resistant fibers and imported aramid yarn in all its products. The cables are filled with sufficient aramid yarn internally to withstand the required pulling force. With over 10 years of experience in manufacturing MPO jumpers, JFOPT has multiple MPO production lines, and each MPO connector undergoes rigorous quality testing procedures to ensure compliance with the highest quality standards. The performance of JFOPT's jumpers is superior to most products available on the market.



♦ Features

① 144-core for high-density wiring

② Flame retardant rating up to OFN/OFNR/OFNP

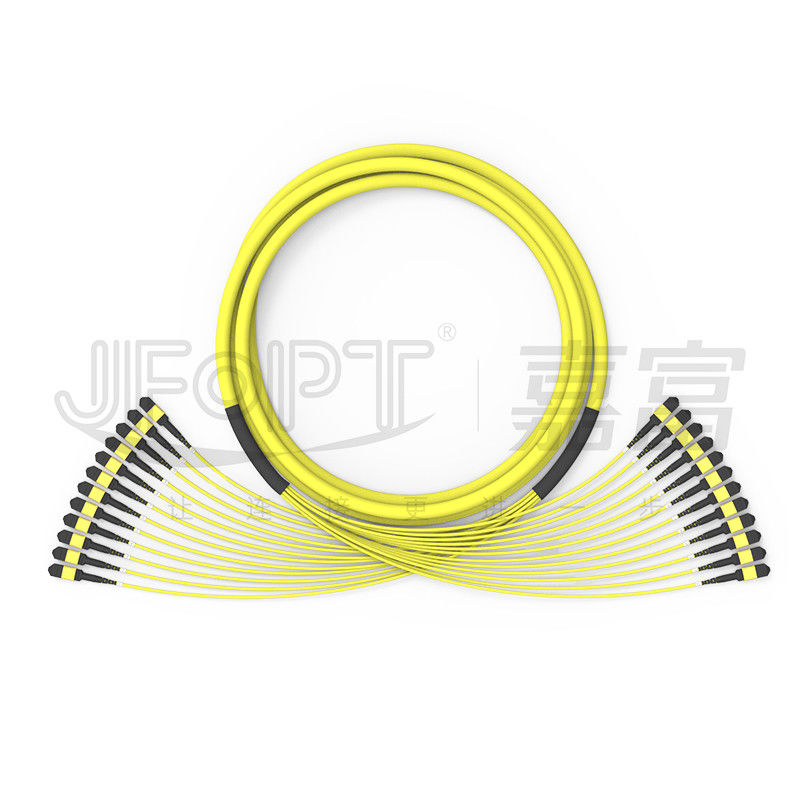

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 0

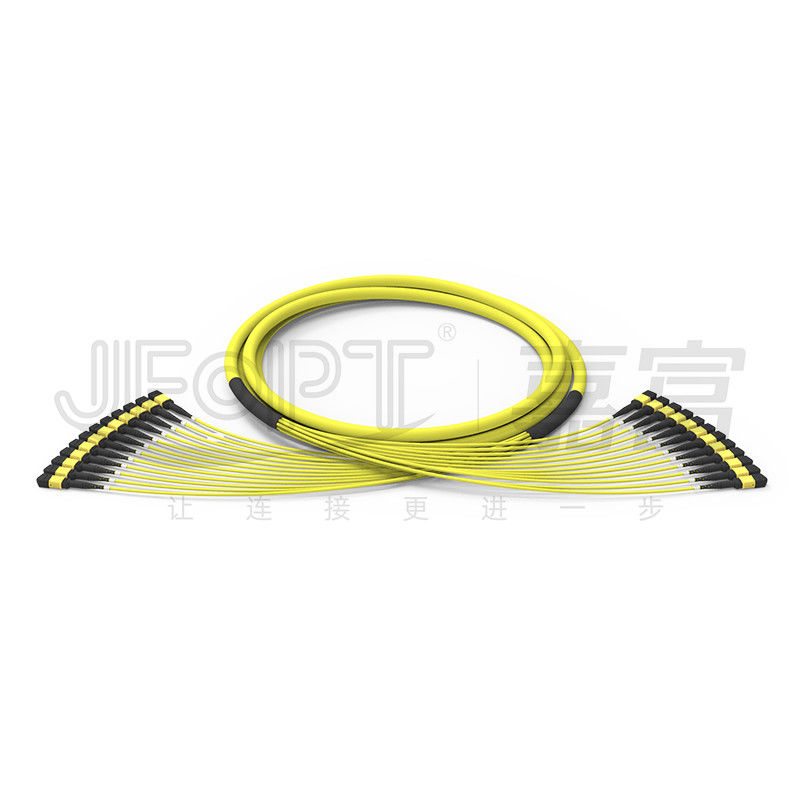

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 1

③ Suitable for 40G/100G data centers

④ 100% factory terminated and tested to ensure transmission performance

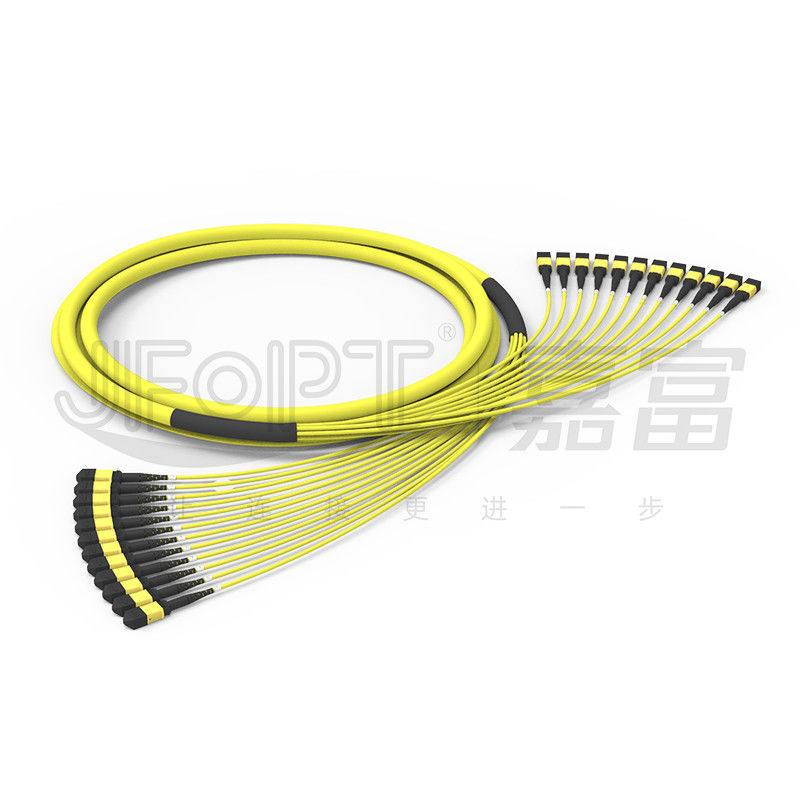

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 2

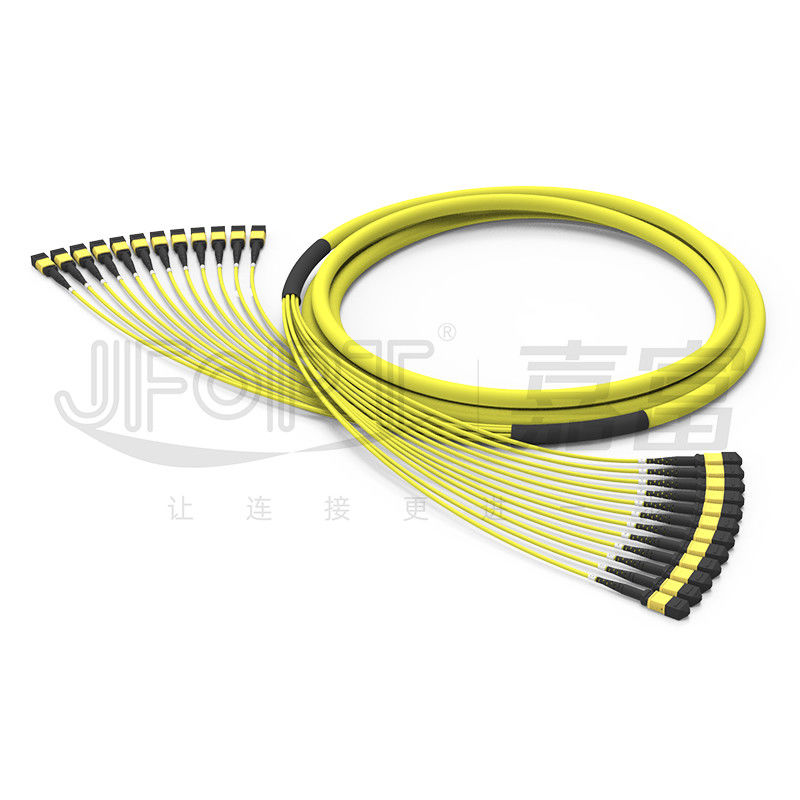

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 3

⑤ 100% tested with 3D interferometer, compliant with IEC standards

-

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 4

-



♦ Applications

1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male / Female

Male : with Pin   Female : without Pin



♦ 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ Cable Parameters

Item

Parameter

Fiber Type

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5

Fiber Count

24

48

72

96

144

288

Unit Count

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

24 cores / unit

Central Strength Member

/

/

FRP

Sub-Cable Unit Outer Diameter

3.0mm

Sub-Cable Unit Jacket Material

PVC/LSZH

Sub-Cable Unit Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Sub-Cable Unit Strength Member

Aramid yarn

Outer Jacket Diameter

9.5mm

9.5mm

11.5mm

13.5mm

17.0mm

Outer Jacket Material

PVC/LSZH

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-Term)

300N

200N

400N

800N

1600N

Tensile Strength (Short-Term)

600N

400N

1000N

1500N

3000N

Crush Resistance (Long-Term)

300N/10cm

Crush Resistance (Short-Term)

1000N/10cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

OFN / OFNR / OFNP



♦ Connector Boot Selection

MPO boot type

Type

Specification

Applicable cable OD


Drawings

Round boot

3.0 boot L=33mm

3.0/3.2

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 5

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 6

3.0 boot L=17mm

3.0/3.2

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 7

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 8

Square boot

3.0 boot L=25mm

3.0/3.2

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 9

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 10

Push-pull tab

Universal for all boots

Universal

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 11

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 12



Connector Housing Color Options

MPO connector

Single mode

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 13

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 14

Multimode

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 15

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 16

Violet

-

Reference color number PANTONE 7641C

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 17



♦ Polarity Selection

12F Patch Cord

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 18

24F Patch Cord

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 19



♦ Product Packaging

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 20

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 21

Thickened anti-static bag

Thickened carton



 Factory Strength

Specialization:


JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-brand equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality, high-performance MPO jumpers.

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 22

Manufacturing capacity:


JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands.

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 23

Quality Control:


JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, IL&RL testing, and end-face inspection to ensure product quality.

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 24

Standard Development:


JFOPT can develop and strictly adhere to MPO jumper production standards based on customer requirements to ensure product consistency and performance stability.

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 25

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing MPO jumpers.

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 26

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

144 Cores 12 Units MPO Trunk Cable 3.0mm Sub Cable Singlemode OS2 MPO / APC LSZH 27



♦ Frequent Q&A

1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and core count / Male or female connectors / Insertion loss standards / Color requirements / Labels and customization requests.



2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% insertion loss testing, ensuring stable parameters.



3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.



4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male-to-female adapters, MT jumpers, and other MPO-related products.
