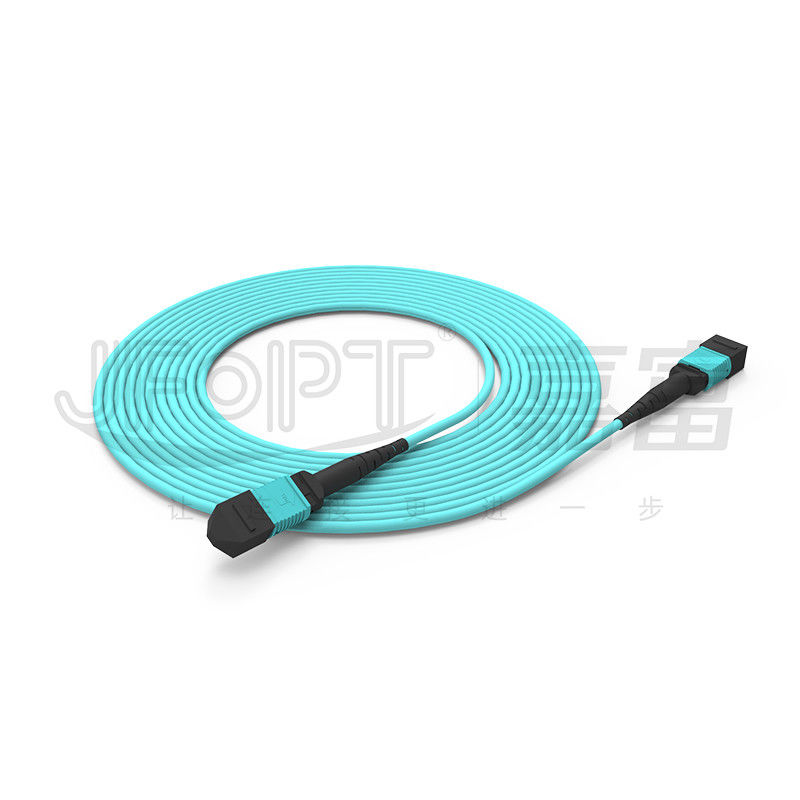

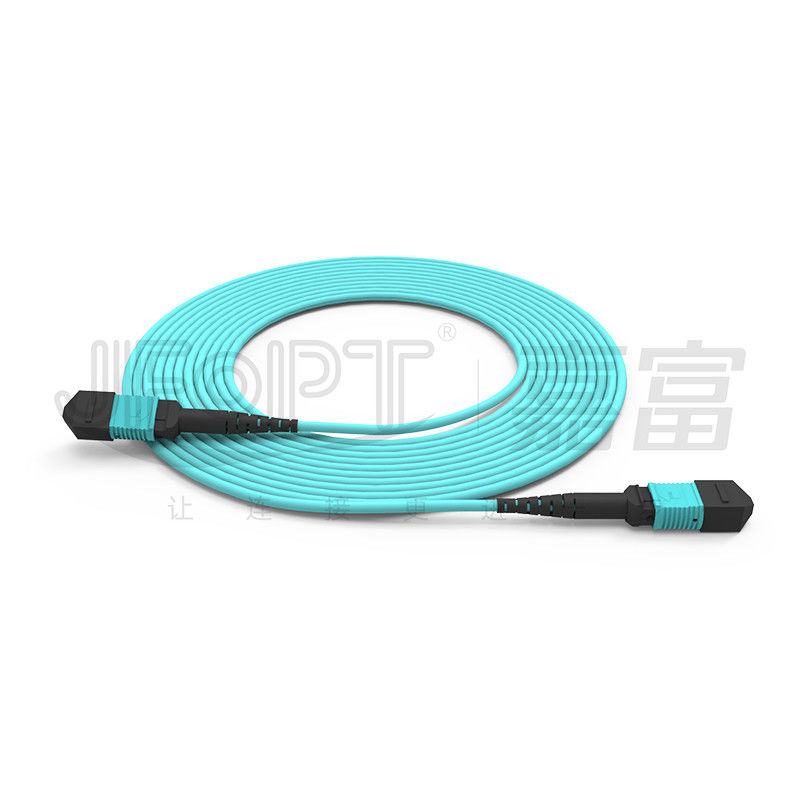

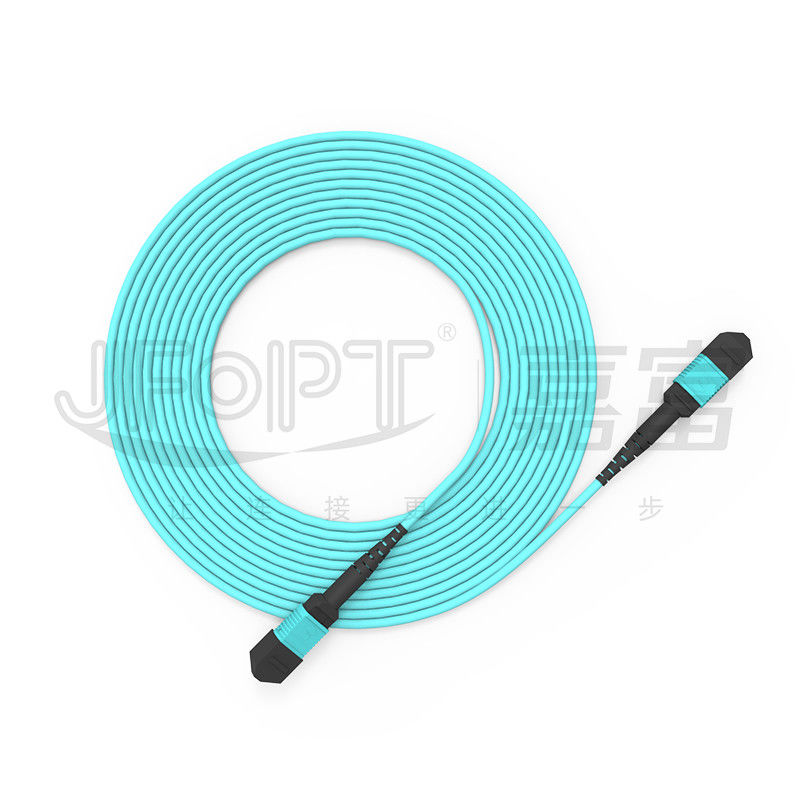

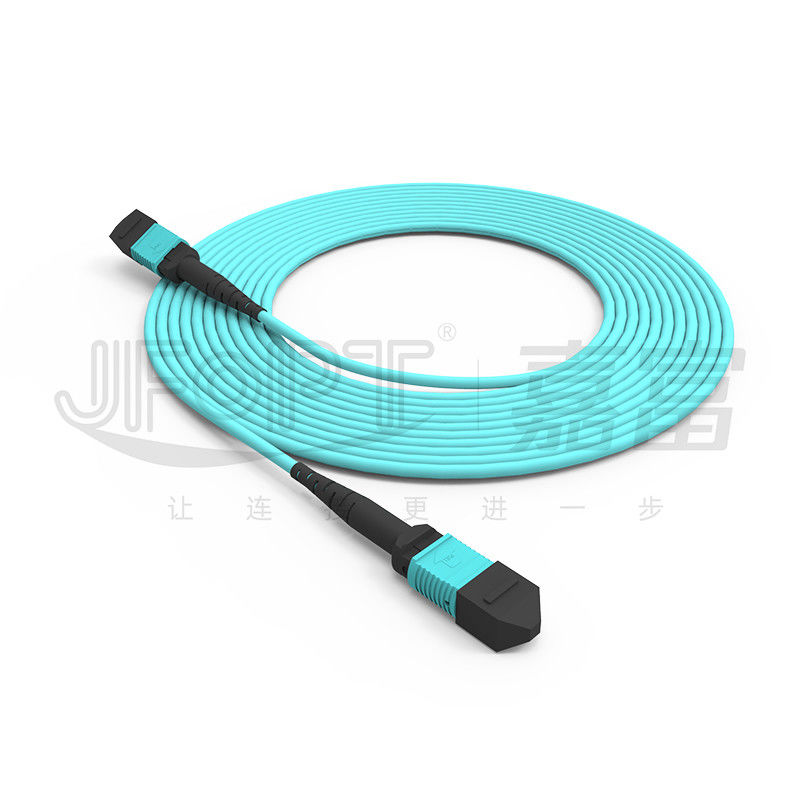

MPO Armored Trunk Cable 12 Fibers Armored Mini - Cable OM3 / OM4 / OM5 Aqua / Violet/Lime Green

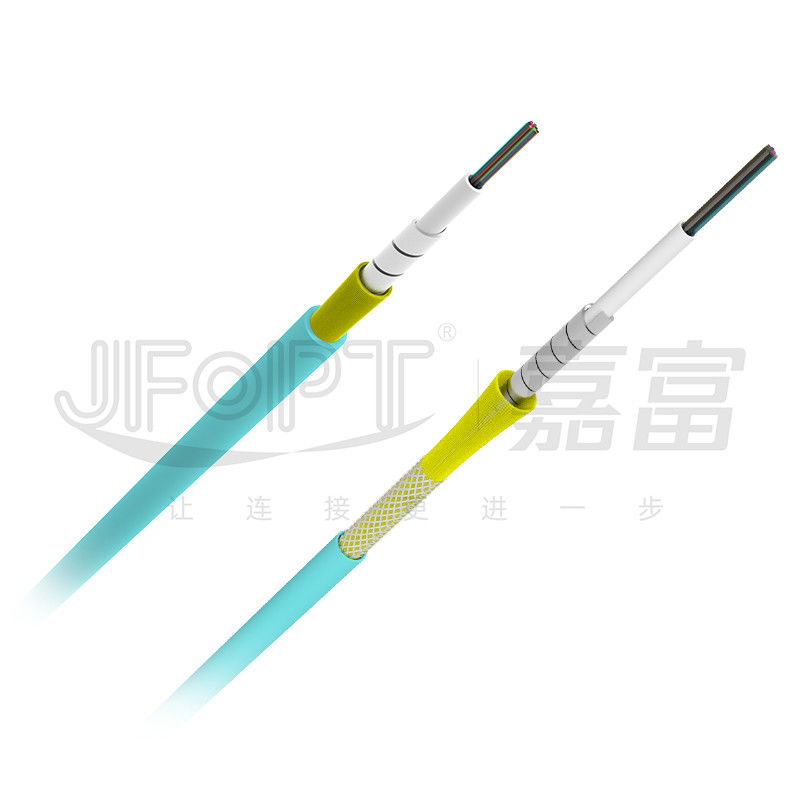

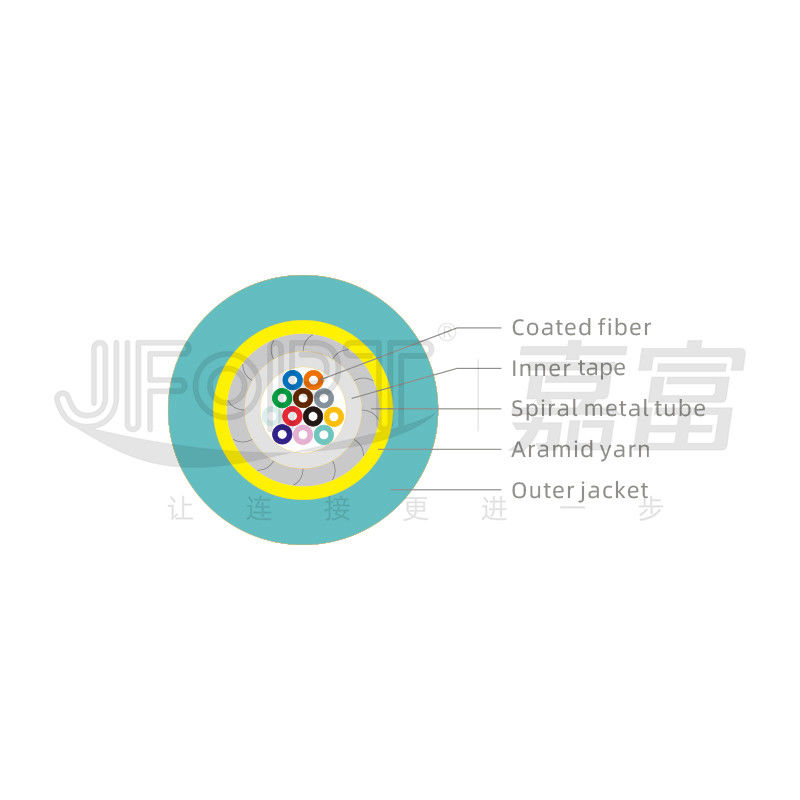

The MPO armored trunk cable utilizes armored mini-cable, which can be configured with a single layer of spiral armor or a combination of spiral armor and metal braid. In addition to the features of a regular mini trunk cable, the armored MPO trunk cable enhances the mechanical performance of the cable, including tensile and compressive strength, while maintaining its flexibility. The multimode fibers used in the MPO trunk cable have excellent bend resistance, ensuring stable data transmission even in confined spaces. JFOPT offers customized services with various cable lengths and types to meet your specific needs.
♦ Features
|
①Introduces armor layer for enhanced cable compression and tensile strength |
② Bend-insensitive fibers for improved transmission stability |
||||
|
|
|
||||
|
③Provides interchangeable polarity MPO connectors |
④ Multiple colors available for connector housings |
||||
|
|
|
||||
|
⑤ Quick and easy installation, reducing operation time |
⑥ 100% factory termination and testing to ensure transmission performance |
||||
|
|
|
||||
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Single Armored Single Sheath Cable Parameters
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 |
24 |
||
|
Armoring Material |
Stainless Steel |
|||
|
Armoring Outer Diameter |
2.1~2.2mm |
3.6~3.7mm |
||
|
Armoring Thickness |
0.25~0.28mm |
0.25~0.28mm |
||
|
Outer Sheath Diameter |
3.0±0.1mm |
4.5±0.1mm |
||
|
Outer Sheath Material |
Optional LSZH/TPU |
|||
|
Outer Sheath Color |
Yellow/Orange/Lime Green/Heather Violet/Custom |
|||
|
Tensile Strength (Long-term) |
500N |
200N |
||
|
Tensile Strength (Short-term) |
800N |
600N |
||
|
Crush Resistance (Long-term) |
800N/cm |
200N/cm |
||
|
Crush Resistance (Short-term) |
1200N/cm |
600N/cm |
||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Dual Armored Dual Sheath Cable Parameters
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 |
24 |
||
|
Inner Sheath Outer Diameter |
1.4±0.1mm |
3.0±0.2mm |
||
|
Inner Sheath Material |
LSZH |
|||
|
Armoring Material |
Stainless Steel |
|||
|
Armoring Outer Diameter |
2.0±0.1mm |
4.0±0.2mm |
||
|
Armoring Thickness |
0.25~0.28mm |
0.4~0.43mm |
||
|
Braiding Layer |
Stainless Steel |
|||
|
Outer Sheath Diameter |
3.0±0.1mm |
6.0±0.3mm |
||
|
Outer Sheath Material |
Optional LSZH/TPU |
|||
|
Outer Sheath Color |
Yellow/Orange/Lime Green/Heather Violet/Custom |
|||
|
Tensile Strength (Long-term) |
150N |
600N |
||
|
Tensile Strength (Short-term) |
300N |
1000N |
||
|
Compressive Strength |
3000N/10cm |
|||
|
Minimum Bending Radius (Dynamic) |
60D |
|||
|
Minimum Bending Radius (Static) |
30D |
|||
|
Operating Temperature |
-40~80℃ |
|||
|
Storage Temperature |
-40~80℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Color Options
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
|
Square boot |
2.0 boot length 25mm |
3.0/3.2 |
|
|
|
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has focused on the production of MPO jumpers for more than 10 years. With professional technology and a full set of first-class brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality, high-performance MPO jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 MPO production lines, allowing the rapid and efficient production of a large quantity of MPO trunk cables to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
|
Setting standards: JFOPT can formulate and strictly implement MPO jumper production standards according to user needs to ensure product consistency and performance stability. |
|
||||
|
Technological innovation: JFOPT focuses on technological innovation and has a professional R&D team to continuously develop MPO jumpers with more advanced functions and higher performance. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction. |
|
||||
