MPO - MPO 48F OM4 LSZH Heather violet 0.5m Branchout Pullingeye
Contact Us

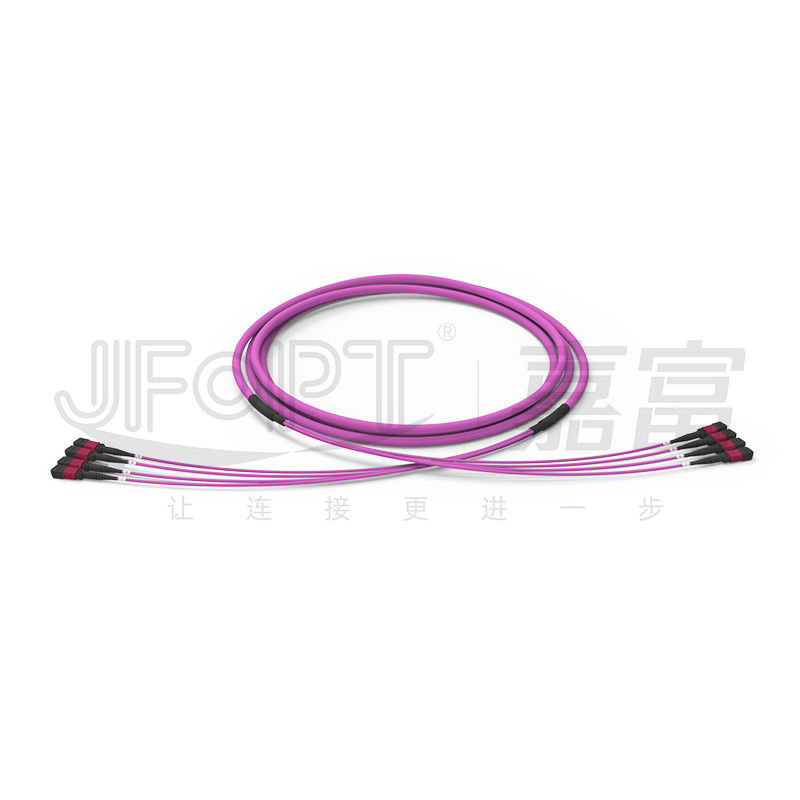

MPO Trunk Cable 48 Cores 4 - Unit Backbone Jumper OM4 Violet Purple 0.5m Branch With Pulling Eye

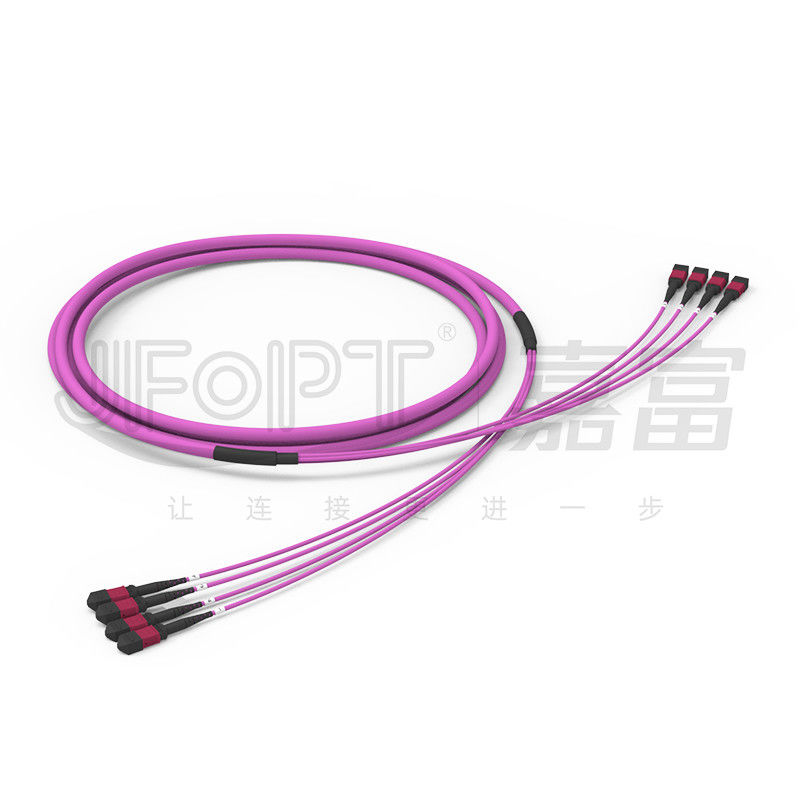

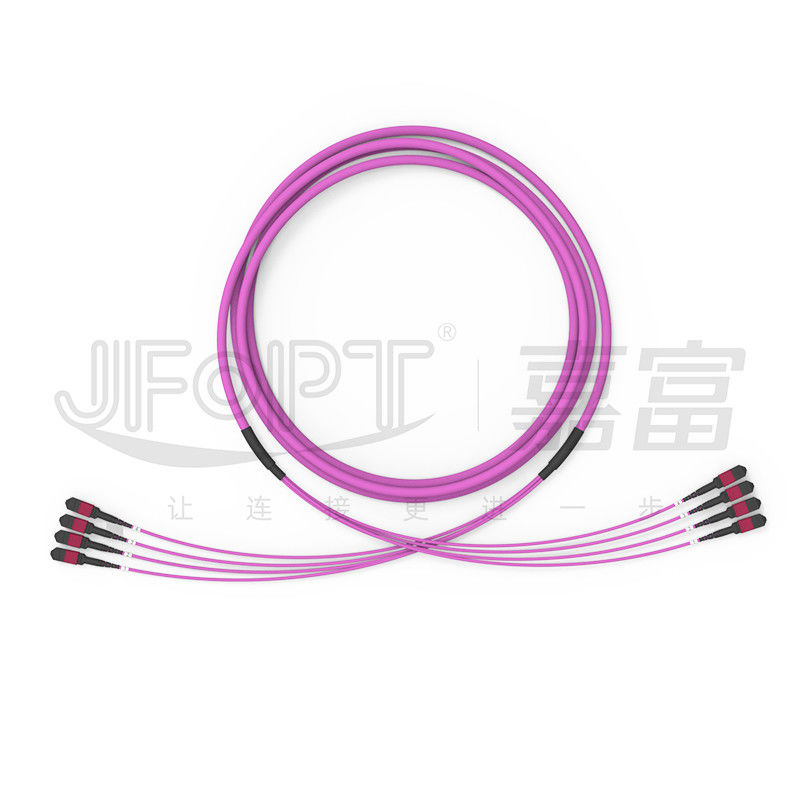

MPO 48-core 4-unit OM4 backbone fiber jumper has 4 MPO connectors with 12 fibers each at each end. Each end has 4 terminated branches wrapped with pulling-eye kit with mesh. The end of the mesh of pulling-eye kit is fixed to the backbone jumper, and when traction is applied, the mesh will be tightened, distributing the pulling force on the outer jacket of the backbone jumper through friction, reducing the possibility of damage to the branch structure. JFOPT OM4 backbone jumpers are available in various colors and can also be customized to match the connector colors, ensuring a unified and aesthetically pleasing appearance.
♦ Features
|
① Uses high-quality bend-insensitive OM4 fiber cores |
②Suitable for indoor connections in 40/100G applications |
||||
|
|
|
||||
|
③ Incorporates a pulling-eye kit |
④ No branch structure, providing more stable force transmission |
||||
|
|
|
||||
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Item |
Parameter |
||||||
|
Fiber Type |
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
||||||
|
Fiber Count |
24 |
48 |
72 |
96 |
144 |
288 |
|
|
Unit Count |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
24 cores / unit |
|
Central Strength Member |
/ |
/ |
FRP |
||||
|
Sub-Cable Unit Outer Diameter |
3.0mm |
||||||
|
Sub-Cable Unit Jacket Material |
PVC / LSZH |
||||||
|
Sub-Cable Unit Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Sub-Cable Unit Strength Member |
Aramid yarn |
||||||
|
Outer Jacket Diameter |
9.5mm |
9.5mm |
11.5mm |
13.5mm |
17.0mm |
||
|
Outer Jacket Material |
PVC / LSZH |
||||||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Tensile Strength (Long-Term) |
300N |
200N |
400N |
800N |
1600N |
||
|
Tensile Strength (Short-Term) |
600N |
400N |
1000N |
1500N |
3000N |
||
|
Crush Resistance (Long-Term) |
300N/10cm |
||||||
|
Crush Resistance (Short-Term) |
1000N/10cm |
||||||
|
Minimum Bending Radius (Dynamic) |
20D |
||||||
|
Minimum Bending Radius (Static) |
10D |
||||||
|
Operating Temperature |
-20~60℃ |
||||||
|
Storage Temperature |
-20~60℃ |
||||||
|
Fire Rating |
OFN / OFNR / OFNP |
||||||
♦ Connector Color Options
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
Square boot |
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has focused on the production of MPO jumpers for more than 10 years. With professional technology and a full set of first-class brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality, high-performance MPO jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 MPO production lines, allowing the rapid and efficient production of a large quantity of MPO trunk cables to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
|
Setting standards: JFOPT can formulate and strictly implement MPO jumper production standards according to user needs to ensure product consistency and performance stability. |
|
||||
|
Technological innovation: JFOPT focuses on technological innovation and has a professional R&D team to continuously develop MPO jumpers with more advanced functions and higher performance. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be paid attention to when customizing MPO jumpers?
MPO jumper length/cable material/fiber type and number of cores/connector male/female/insert loss standard/color/label and other customized requirements.
2.How does our MPO jumper ensure stable parameters?
JFOPT's MPO jumper 100% passed the 3D interference test and 100% passed the insertion return loss test to ensure stable parameters.
3.Our lead time?
We can produce 30000+ MPO connectors per month, which can fully guarantee your fast shipment.
4.What other MPO derivative products do we do?
We can also produce MPO related products such as MPO circuit breaker/MPO attenuator/MPO male-to-female transition connector/MT jumper wire.
