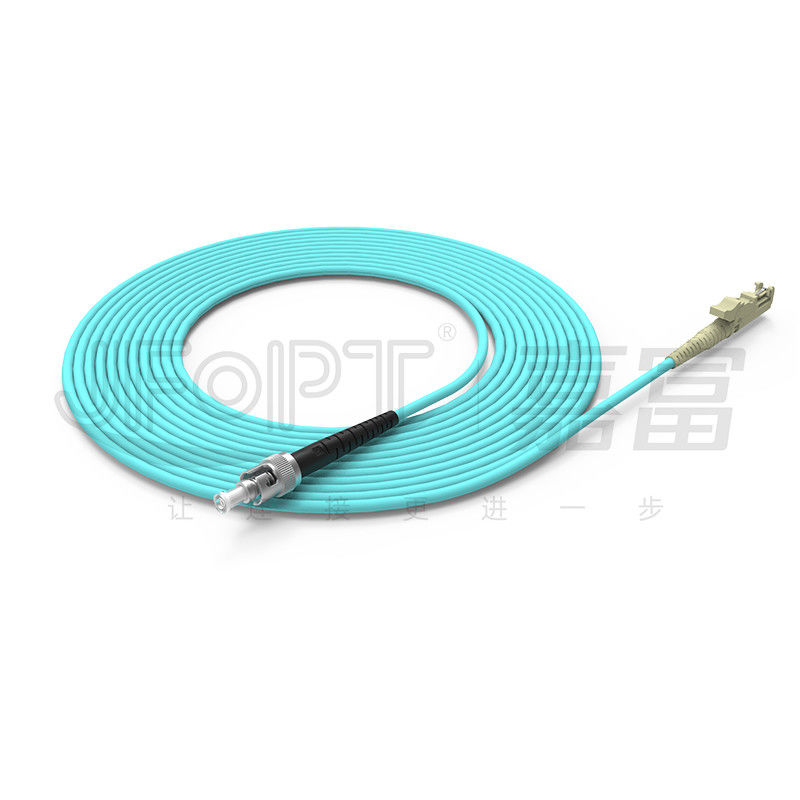

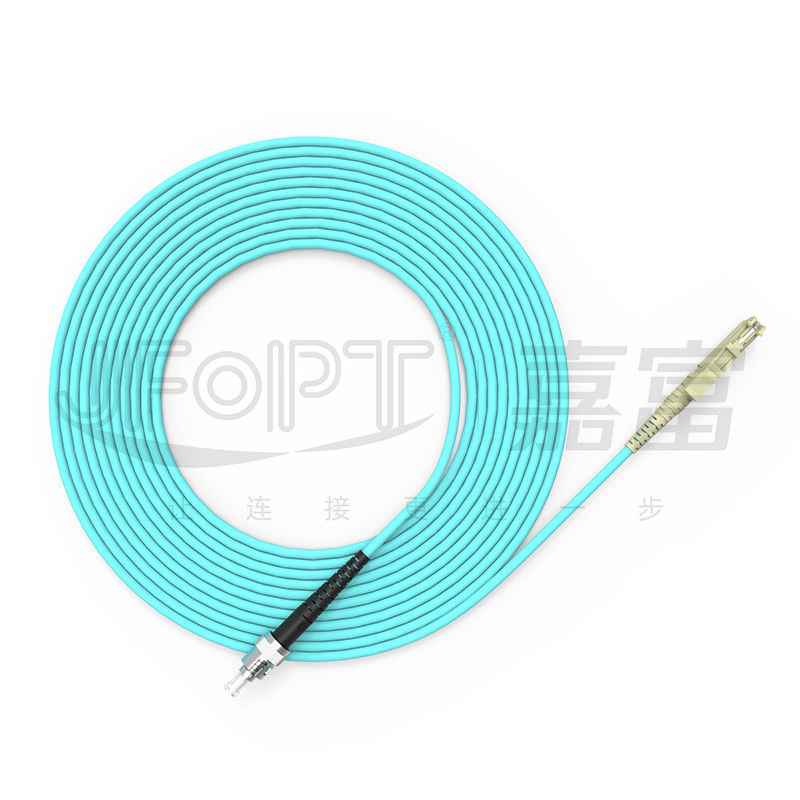

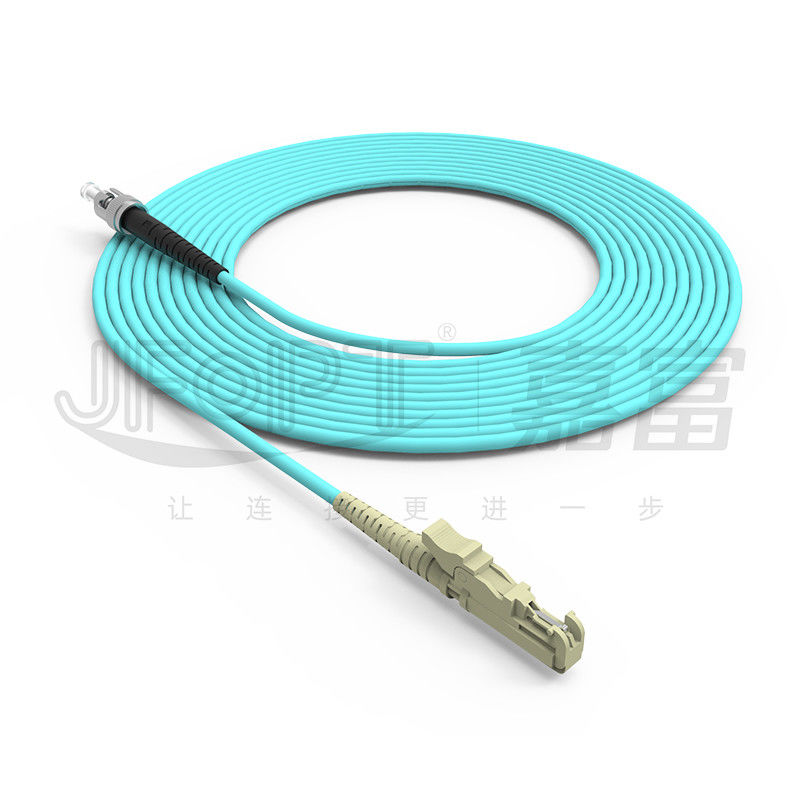

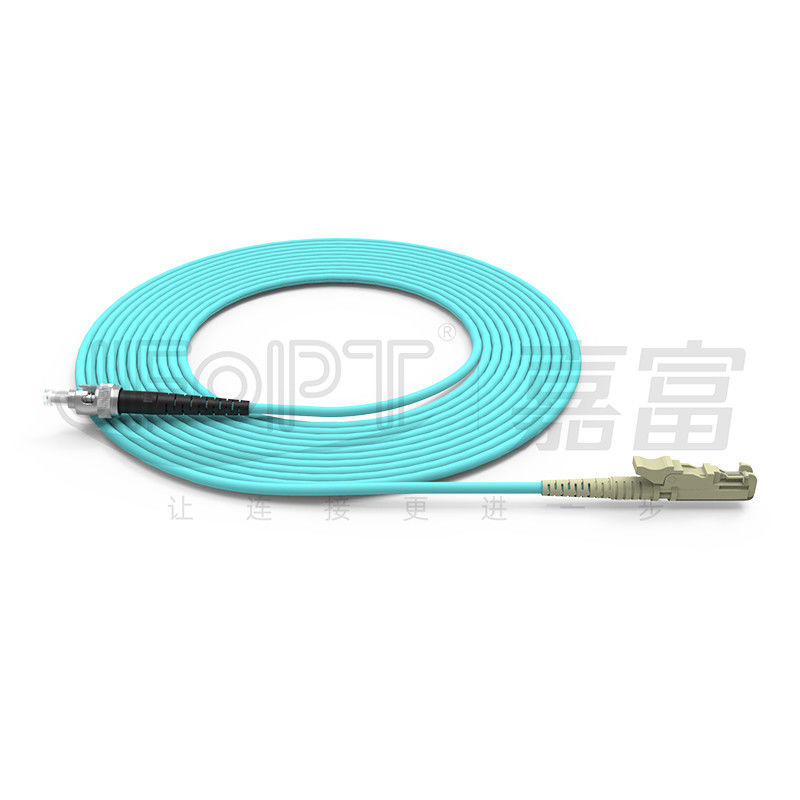

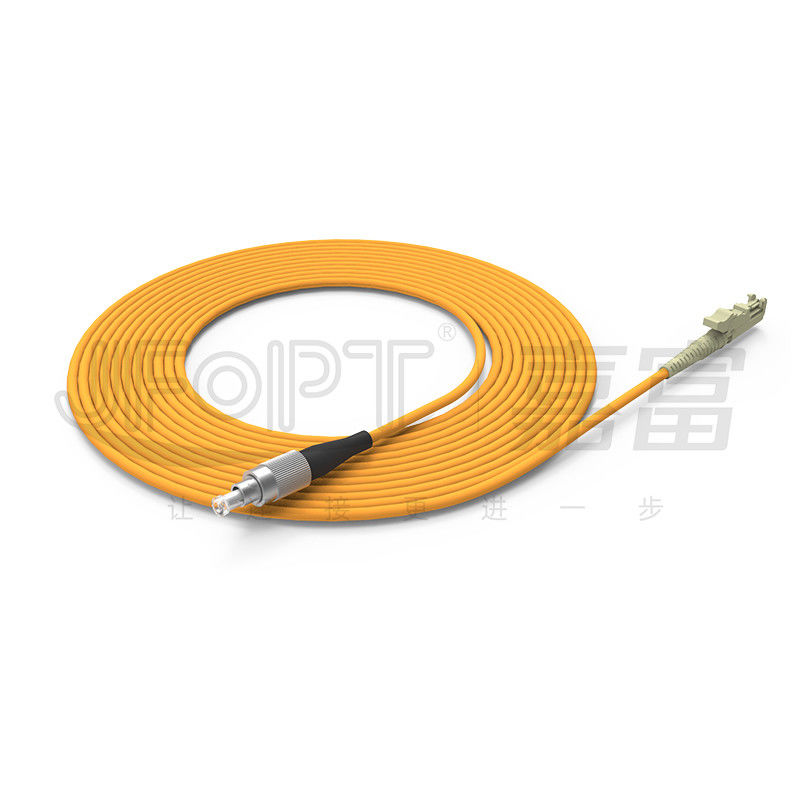

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord

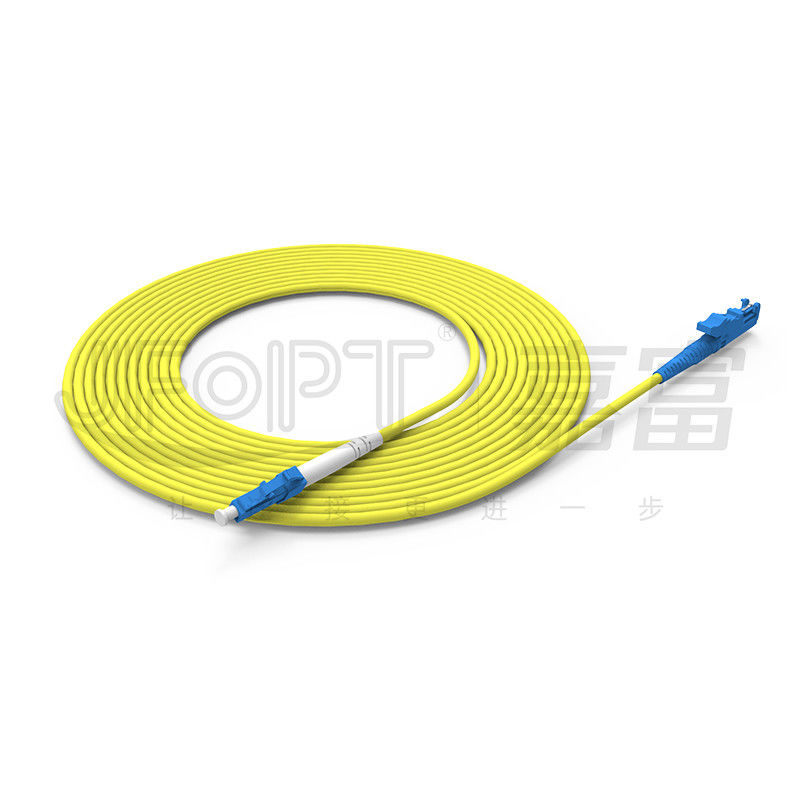

Fiber Optic Patch Cord E2000 - LC

Low Loss UPC APC Patch Cord

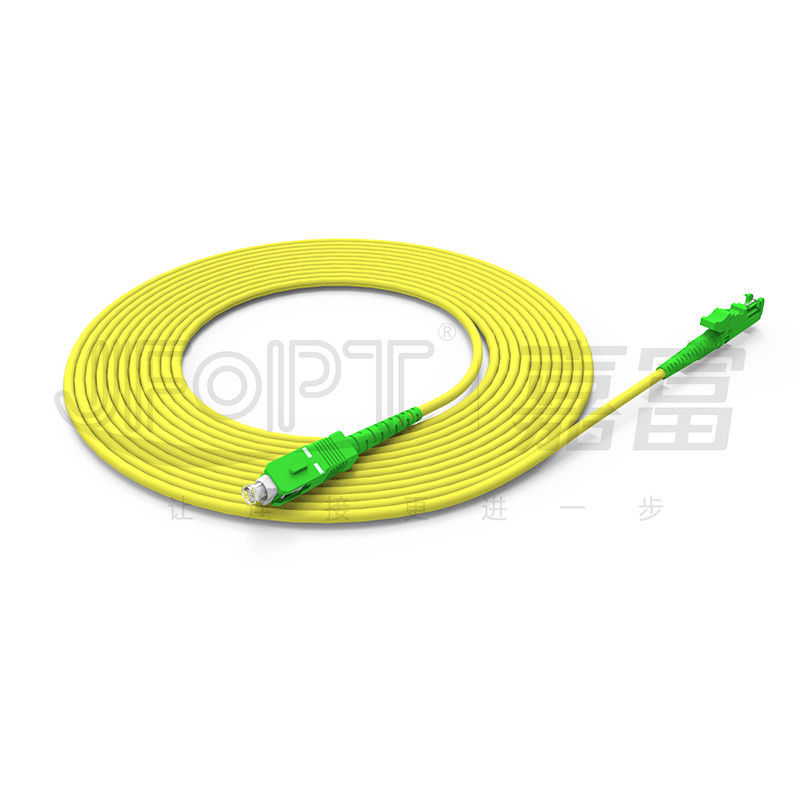

E2000-SC Fiber Optic Patch Cord

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH;Company : ISO9001 / ISO14001

Model Number:

E2000 - LC / SC / FC / ST Low - Loss

Contact Us

Request A Quote
Product Details
Connector Model:
E2000 To LC / SC / FC / ST
Fiber Type:
OS2 / OM1 / OM2 / OM3 / OM4 / OM5
Insertion Loss:
Low Loss ≤0.2dB/≤0.15dB
Number Of Fibers:
Single Fiber / Dual Fiber
Connector Housing Color:
Blue / Green / Beige
Cable Length:
1M/2M/3M/5M / Customized
Outer Jacket Material:
PVC / LSZH / PU / PE / Customized
Outer Jacket Color:
Yellow / Orange / Lime Green / Violet / Light Green
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Up to the length / model / loss
Delivery Time
1-5 days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
20,000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

E2000 - LC SC FC ST UPC / APC Low Loss Hybrid Fiber Optic Patch Cord



JFOPT E2000 connectors all use 0.5μm concentricity ferrule, the LC/SC/FC/ST connectors can be equipped with 0.5 or 0.3dB concentricity ferrule, and the loss can be as low as 0.2dB or 0.15dB. JFOPT E2000 connectors can provide neutral brands or original brands such as R&M/HS, UPC or APC for end faces, PVC/LSZH for optical cable materials, and 0.9/2.0/3.0 for cable outer diameter. The optical fiber jumpers produced by JFOPT have passed 100% strict factory testing and meet various industry standards. JFOPT's own technical team can provide corresponding customized solutions according to different needs of customers.



♦ Features

① Grade A 0.5μm concentricity precision zirconia ferrule

② Multiple brands of connectors are available

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 0

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 1

③Comply with TIA604(FOCIS), IEC 61754 and YD/T industry standards

④Customized cable outer diameter to meet different wiring requirements

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 2

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 3



Applications

1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
5. Testing equipment, fiber optic sensor.



♦ Technical Parameters

Connector Characteristics

Connector Type

LC / SC / FC / ST / E2000

Ferrule Type

Single mode : UPC / APC ; Multimode : UPC

Ferrule Material

Grade A zirconia ceramic ferrule

Connector housing Color

Blue / Green / Beige/Violet

Insertion Loss

≤0.3dB/≤0.2dB/≤0.15dB

Return Loss

UPC ≥50dB; APC ≥60dB; Multimode: ≥25dB

Repeatability

≤0.2dB

Interchangeability

≤0.2dB

Cable Characteristics

Fiber Type

OS2 / OM1 / OM2 / OM3 / OM4 / OM5

Fiber Count

Simplex / Duplex

Outer Diameter

0.9/2.0/3.0mm

Jacket Material

PVC / LSZH or customization

Cable Color

Yellow / Orange / Aqua / Violet / Lime Green / Customized

Fire Rating

Optional OFN / OFNR / OFNP

Temperature Characteristics

Operating Temperature

-20~70℃

Storage Temperature

-40~80℃



♦ 3D Geometric Parameters (Optional)

Items

UPC

APC

SC/FC/ST

LC

SC/FC

LC

SM

MM

SM

MM

SM

SM

Radius of curvature (mm)

10-25

7-25

5-12

Apex offset (μm)

≤50

≤30

Fiber Depressed (nm)

±100

Angle deviation (°)

0

8±0.3

Bond angle deviation (°)

0

±0.5

Fiber diameter (μm)

123-135



♦ Product Packaging

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 4

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 5

Thickened ziplock bag

Thickened carton



Factory Strength

Specialization:


JFOPT has been specializing in fiber optic jumper production for over 20 years, with professional production techniques to produce high-quality and high-performance fiber optic jumpers.

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 6

Manufacturing Capability:


JFOPT has 5 production lines and equipment, enabling fast and efficient production of a large quantity of fiber optic jumpers to meet customer demands.

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 7

Quality Control:


JFOPT implements strict quality control measures, including professional quality testing and monitoring at each stage from raw material procurement to production, including IL&RL testing and end-face inspection to ensure product quality.

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 8

Standardization:


JFOPT can establish and strictly follow fiber optic jumper production standards according to customer requirements to ensure consistency and performance stability of the products.

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 9

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing fiber optic jumpers.

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 10

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

Low Loss Hybrid Fiber Optic Patch Cord E2000 - LC SC FC ST UPC APC Patch Cord 11



♦ Frequent Q&A



1.When customizing fiber optic jumpers, what factors should be considered?
Jumper Length / Cable jacket material / Fiber type and fiber count / Duplex polarity / Color / Labeling etc.



2.How do we ensure the stability of our fiber optic jumpers?
JFOPT's standard fiber optic jumpers undergo 100% IL&RL testing and end-face inspection. Multiple inspections are conducted to ensure stable product quality.



3.What is our delivery time?
For standard products, our delivery time can be controlled within 2 working days, ensuring fast shipment to meet your needs.
