Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFFDB-224-24A-FX
Contact Us
24- core Fiber Distribution Box 2 input 24 output Independent Cable Port for Each Fiber FTTH Corridor Fiber Distribution
The JFFDB-224-24A-FX Fiber Distribution and Splitting Box features a design with 2 inputs and 24 outputs, allowing the distribution of optical fiber signals from two sources to twenty-four target devices or locations. It is suitable for various scenarios that require high-density fiber signal distribution and splitting, such as data centers, telecommunications networks, and cable TV networks. It simplifies the wiring and management of fiber networks, providing efficient signal distribution and sharing capabilities, thereby enhancing the reliability and flexibility of fiber communication systems.
♦ Features
|
①High mechanical strength: Made of PC and ABS, solid and insulated |
②High IP level: Up to IP66, equipped with screw lock, waterproof, dustproof and anti-theft |
|
|
|
|
③Capacity of adapters: Max. 24 SC simplex adapters |

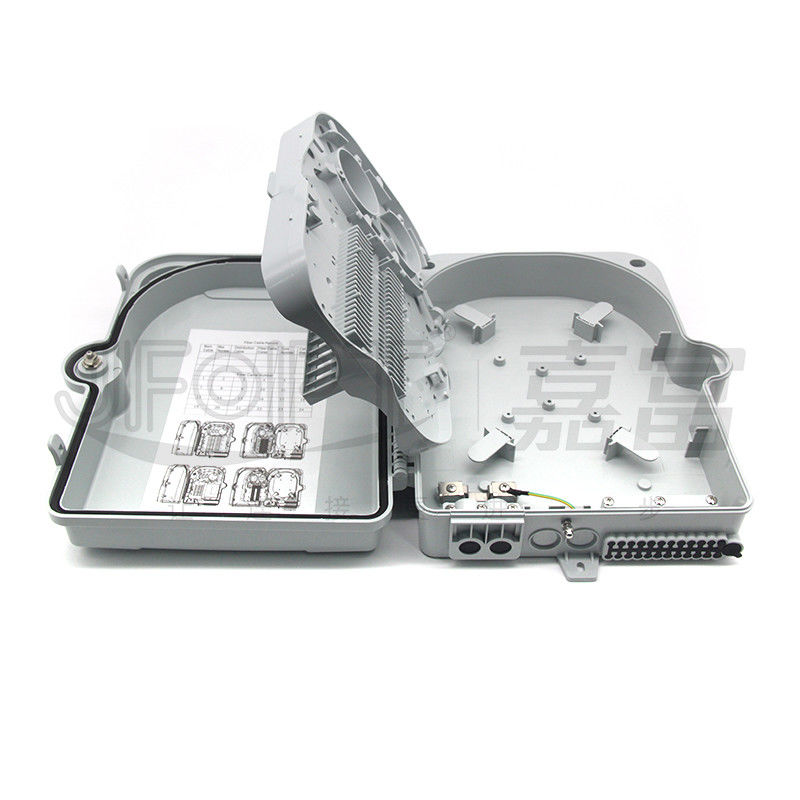

④Scientific and reasonable space design: Reasonable design and ample space for fiber splicing and storage, to guarantee the min. bending radius 40mm |
|
|
|
|
⑤Cable entry ports: Two 15mm entry port, twenty-four 5.0mm and one 11.8mm outlet port,Dustproof rubber sleeve available and equipped with clamping fixture |
⑥ Accommodate splitter: One 1*8 and one 1*16 optical splitter can be installed |
|
|
|
♦ Applications
1. FTTH
2. GPON
3. ODN
♦ Dimension
|
|
|
|

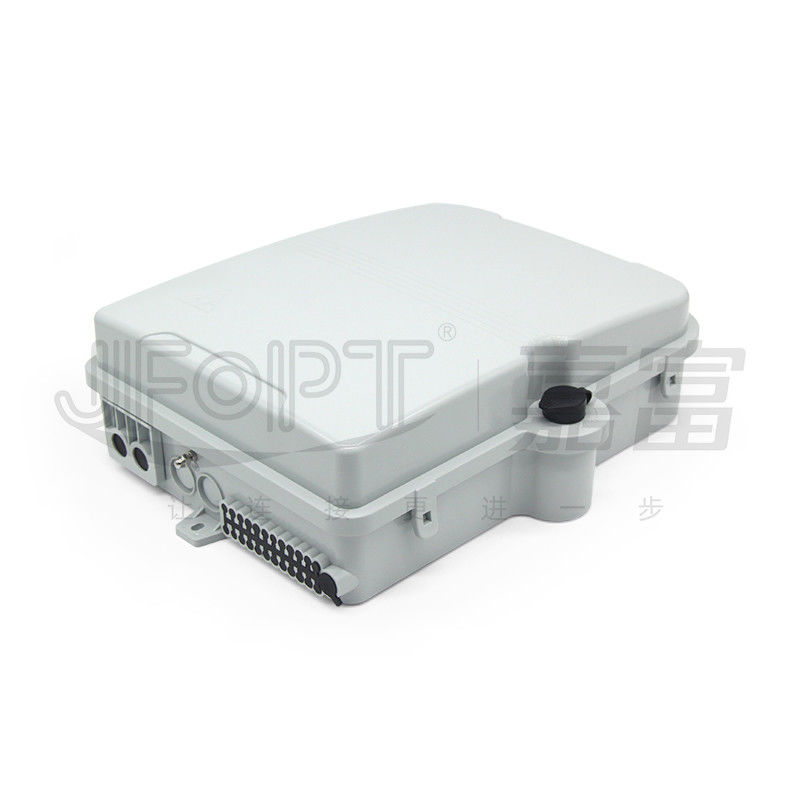

XYZ axis 45° oblique view |

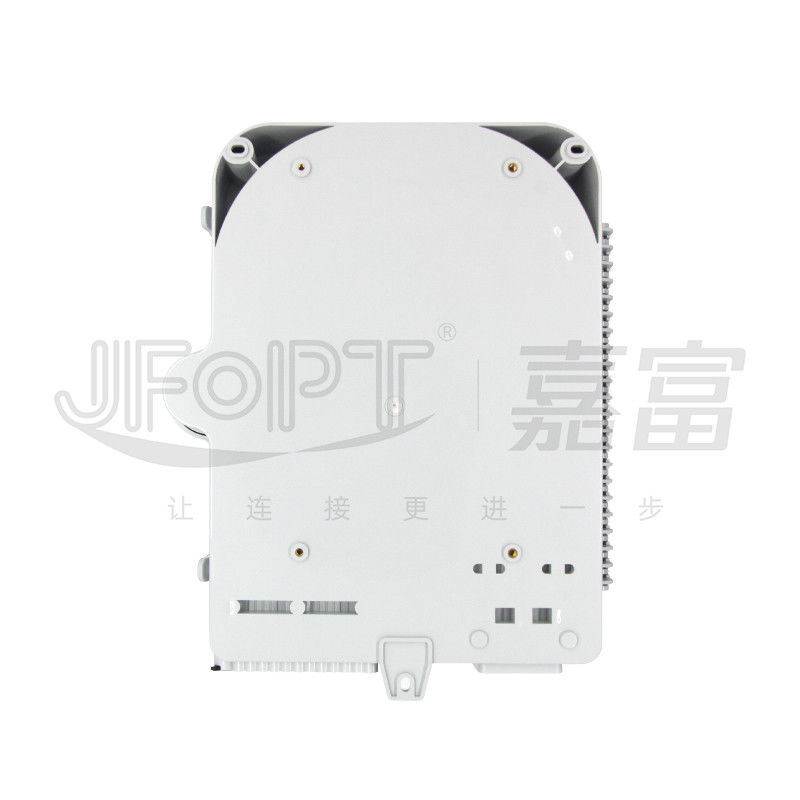

Back view |
|
|
|
|

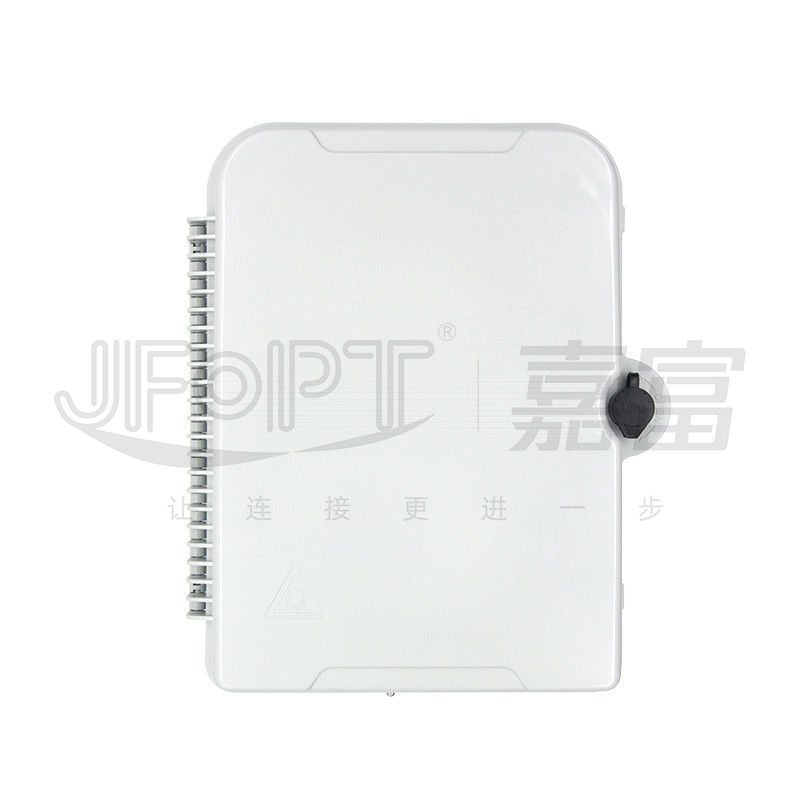

Top view |

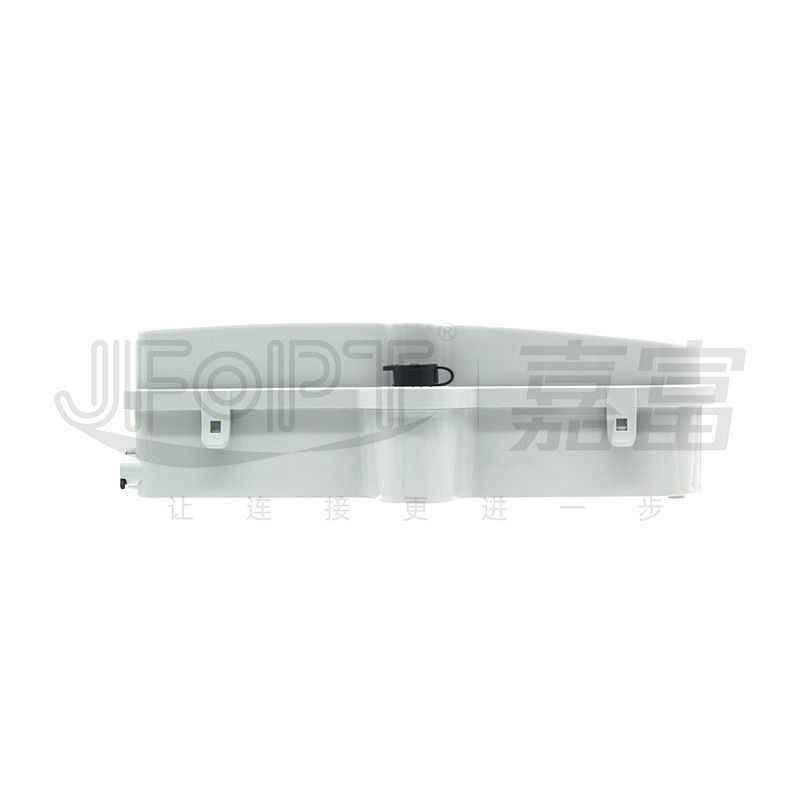

Side view |
♦ Available Accessories
|
|
|
|
|
Expansion Screw*3PCS |
45mm Protective Sleeve*24PCS |
Nylon Ties*10PCS |
|
|
|
|
|
Transparent Tube*1PC |
Key*2PCS |
Cable Clip*24PCS |
♦ Product Packaging
|
|
|
|
|
Pack the product into PE bags |
Pack the product into inner boxes and seal the boxes |
Pack multiple inner boxes into an outer box and seal the box |
♦ Factory Strength
|
Specialization: JFOPT has professional production technology and equipment for Fiber Optic Splitter Distribution Boxes. Combined with extensive feedback from engineering customers, we continuously develop and mold various distribution boxes with different functions to meet diverse usage requirements. |
|
|
Manufacturing Capacity: JFOPT uses precision injection molds and precision injection molding equipment for the production of fiber distribution boxes, and has assembly lines in place for the rapid assembly of a large number of these boxes. |
|
|
Quality Control: JFOPT implements strict quality control, with quality inspections at various stages of production, including raw material procurement, injection molding, material cutting, and assembly. |
|
|
Standardization: JFOPT has an experienced R&D team with expertise in structural design, mold design, and structural optimization. JFOPT can provide cost-effective overall solutions based on end customers' usage requirements to meet different needs. |
|
|
Technological Innovation: JFOPT focuses on technological innovation and continuously upgrades and innovates our products. We have developed over 200 sets of plastic molds to meet various customer requirements. |
|
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction. |
|
♦ Frequent Q&A
1.What should I consider when purchasing a fiber distribution and splitting box?
You should consider factors such as the required capacity, protection level, plastic material, and installation method.
2.Can the fiber distribution and splitting box be used directly after purchase?
The fiber distribution and splitting boxes produced by JFOPT are fully equipped with the necessary accessories and components for installation, so there is no need for additional purchases. Additionally, when purchasing our adapters and patch cords, you can achieve a complete set of equipment.
3.Can we customize the plastic material of the fiber distribution and splitting box?
Yes, customization of the plastic material is possible. However, there may be minimum order requirements. Please consult our sales service for more details.
4.What protection level can our fiber distribution and splitting box achieve?
Our fiber distribution and splitting boxes typically achieve an IP65 protection level.
5.What tools are required for the installation of our fiber distribution and splitting box at the construction site?
The installation of our fiber distribution and splitting box requires tools such as a fusion splicer, fiber stripping pliers, and fiber cleaning tools.
6.Can we choose different types of patch cords to match with the fiber distribution and splitting box?
We can provide matching solutions based on your specific requirements for different types of patch cords, ensuring compatibility with your equipment.
7.What is the lead time for delivery?
For standard production items, the lead time is typically 3 working days.
