Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFFDB-202-72A-FX
Contact Us

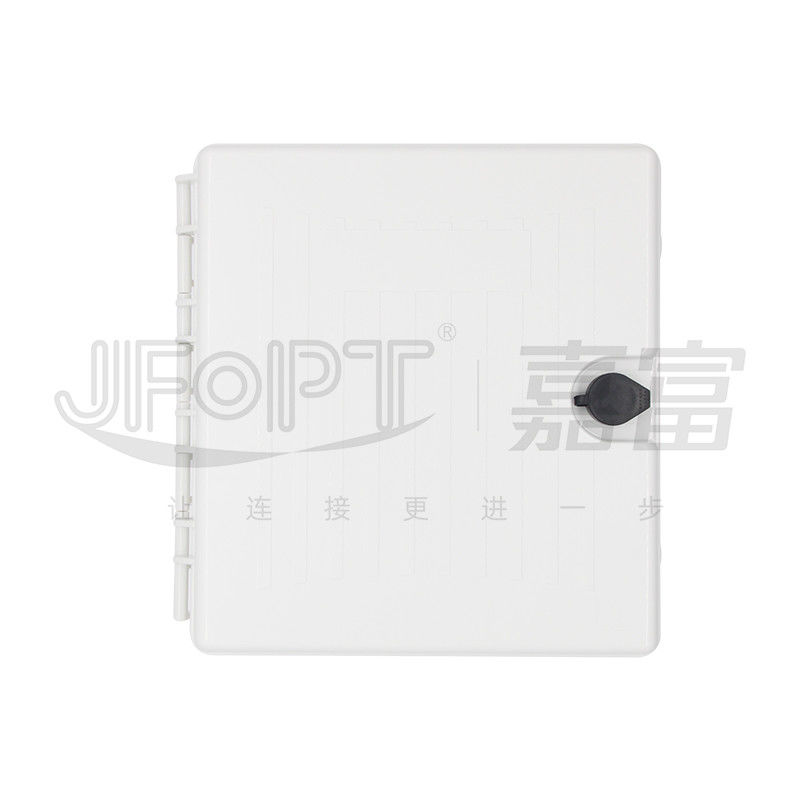

72-core Fiber Distribution Box 2 input 2 output 72-core Fusion and Storage Space Compatible with JFOPT Adapter Pigtail
The JFFDB-202-72A-FX Fiber Distribution and Splitting Box features a high capacity of up to 72 fiber cores, making it suitable for large-scale fiber networks. It is capable of holding a significant amount of fiber signals and distributing them to different target devices or locations. Manufactured with high-quality materials, it offers excellent impact resistance and protection to ensure the safety and stability of fiber connections. Moreover, it boasts a flexible modular design, allowing for the addition or replacement of splitter modules and other components according to specific fiber network requirements.
♦ Features
|
①High mechanical strength: Made of ABS, different flame retardant grade materials are optional |
②High IP level: Up to IP65, and equipped with metal lock, waterproof and dustproof |
|
|
|
|
③Capacity of adapters: Max.72 SC simplex adapters |

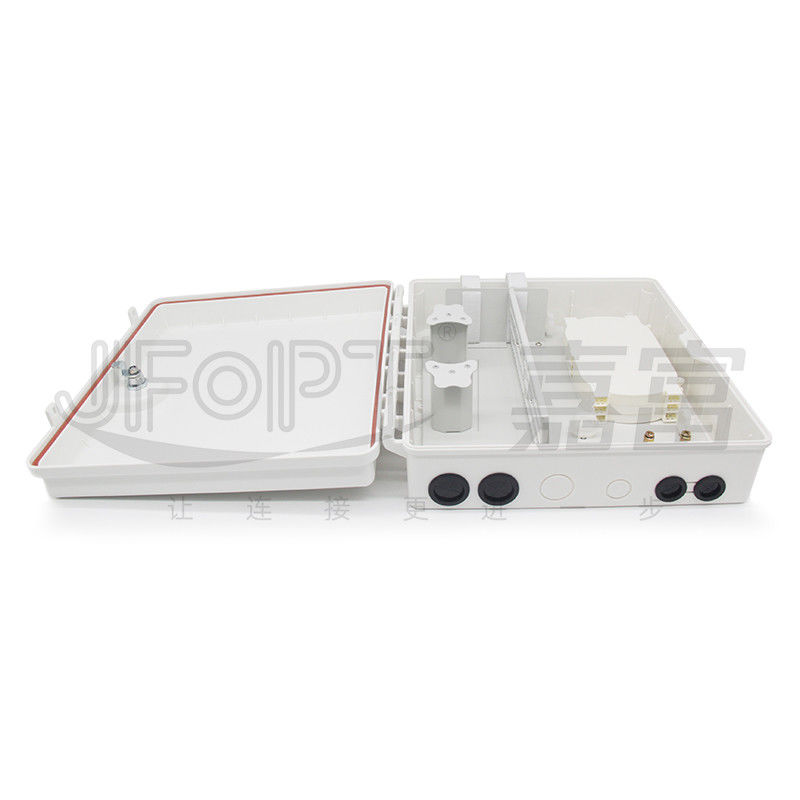

④Scientific and reasonable space design: Reasonable design and ample space for fiber splicing and storage, to guarantee the min. bending radius 40mm |
|
|
|
|
⑤Cable entry ports: 2 gland entry ports for 26mm cable and 2 output ports for 19mm drop cable,Dustproof rubber sleeve available and equipped with clamping fixture |
⑥ Accommodate splitters: One 1*32 ABS box type PLC splitters can be installed |
|
|
|
|
⑦Mounting method: Wall mounting and pole mounting (hoop clamp is requested) |
- |
|
|
- |
♦ Applications
1. FTTH
2. GPON
3. ODN
♦ Dimension
|
|
|
|

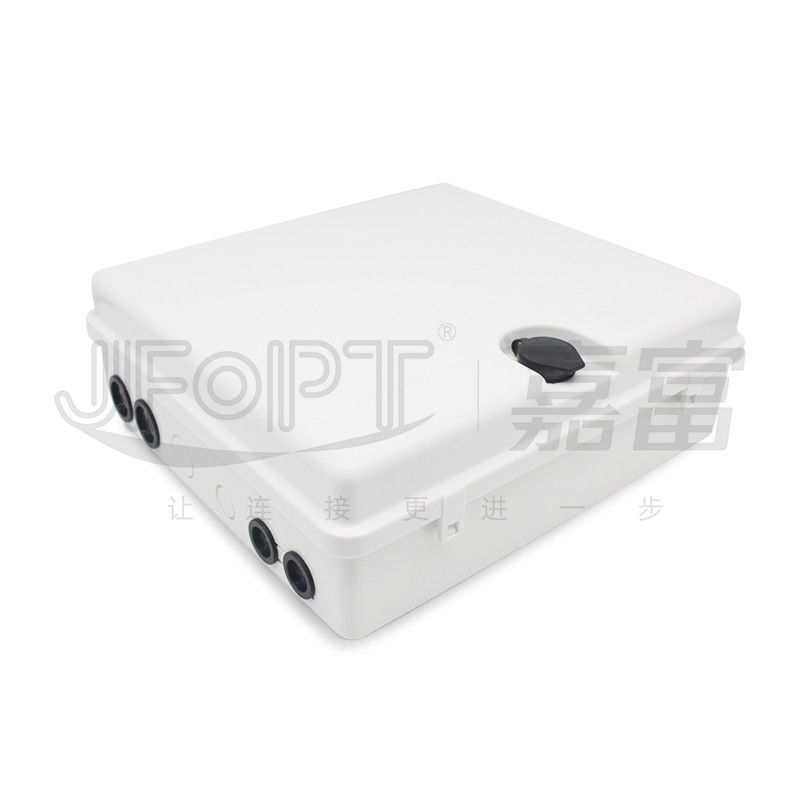

XYZ axis 45° oblique view |

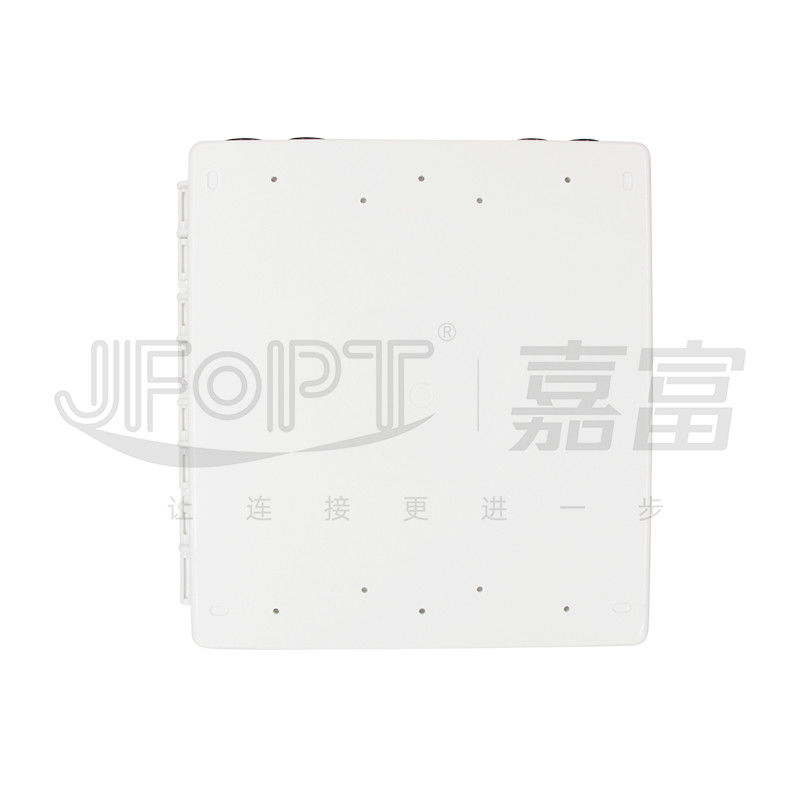

Back view |
|
|
|
|

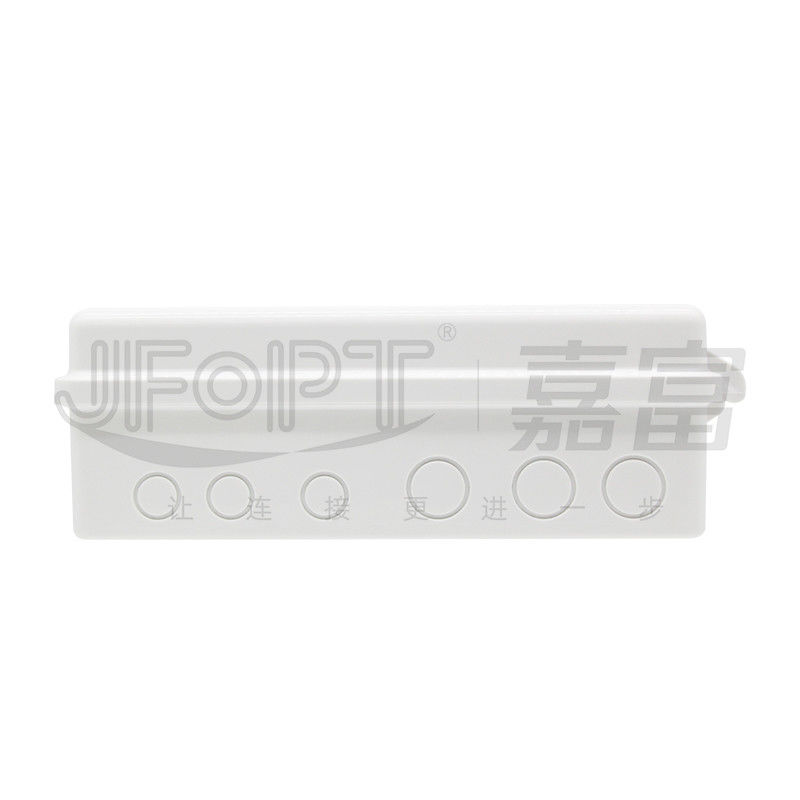

Top view |
Side view |
♦ Available Accessories
|
|
|
|
|
|
Expansion screw*4 sets |
Screws for fixing adapters*144 pcs |
Protective sleeve*72 pcs |
Hoop clamp*2 pcs |
|
|
|
|
|
|
Nylon ties*24 pcs |
Number label*6 pcs |
Key*1 pc |
Pole mounting hoop*2 sets (optional) |
♦ Product Packaging
|
|
|
|
|
Pack the product into PE bags |
Pack the product into inner boxes and seal the boxes |
Pack multiple inner boxes into an outer box and seal the box |
♦ Factory Strength
|
Specialization: JFOPT has professional production technology and equipment for Fiber Optic Splitter Distribution Boxes. Combined with extensive feedback from engineering customers, we continuously develop and mold various distribution boxes with different functions to meet diverse usage requirements. |
|
|
Manufacturing Capacity: JFOPT uses precision injection molds and precision injection molding equipment for the production of fiber distribution boxes, and has assembly lines in place for the rapid assembly of a large number of these boxes. |
|
|
Quality Control: JFOPT implements strict quality control, with quality inspections at various stages of production, including raw material procurement, injection molding, material cutting, and assembly. |
|
|
Standardization: JFOPT has an experienced R&D team with expertise in structural design, mold design, and structural optimization. JFOPT can provide cost-effective overall solutions based on end customers' usage requirements to meet different needs. |
|
|
Technological Innovation: JFOPT focuses on technological innovation and continuously upgrades and innovates our products. We have developed over 200 sets of plastic molds to meet various customer requirements. |
|
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction. |
|
♦ Frequent Q&A
1.What should I consider when purchasing a fiber distribution and splitting box?
You should consider factors such as the required capacity, protection level, plastic material, and installation method.
2.Can the fiber distribution and splitting box be used directly after purchase?
The fiber distribution and splitting boxes produced by JFOPT are fully equipped with the necessary accessories and components for installation, so there is no need for additional purchases. Additionally, when purchasing our adapters and patch cords, you can achieve a complete set of equipment.
3.Can we customize the plastic material of the fiber distribution and splitting box?
Yes, customization of the plastic material is possible. However, there may be minimum order requirements. Please consult our sales service for more details.
4.What protection level can our fiber distribution and splitting box achieve?
Our fiber distribution and splitting boxes typically achieve an IP65 protection level.
5.What tools are required for the installation of our fiber distribution and splitting box at the construction site?
The installation of our fiber distribution and splitting box requires tools such as a fusion splicer, fiber stripping pliers, and fiber cleaning tools.
6.Can we choose different types of patch cords to match with the fiber distribution and splitting box?
We can provide matching solutions based on your specific requirements for different types of patch cords, ensuring compatibility with your equipment.
7.What is the lead time for delivery?
For standard production items, the lead time is typically 3 working days.
