24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail

24 Core fixed Fiber Distribution Box

LC Duplex OM3 Removable Adapter Panel

Aqua OM3 Pigtail Removable Adapter Panel

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

1U Rack Mount Patch Panel 12 Port LC DX 24C OM3 Pigtail

Contact Us

Request A Quote
Product Details
Capacity:
24 Cores
Interface:
LC DX
Adapter Color:
OM3 Aqua
Pigtails:
Multimode OM3
Box Color:
Black/Customizable
Box Material:
Metal
Opening Method:
Fixed Type/Top Cover Opening
Cable Entry:
4 Ports Of 21mm Round Openings
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
Price quotation based on the number of cores
Delivery Time
15 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
3000 units per month
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

24-Core Fixed Fiber Distribution Box Removable Adapter Panel Aqua Adapter LC Duplex OM3 Pigtail



The JFOPP-RMP10-A-004 fiber distribution box is suitable for 19-inch/21-inch racks with a height of 1U. When configured with LC duplex adapters, it can accommodate a maximum fusion capacity of 48 cores. The adapter installation is typically designed as tool-less, removable and replaceable, allowing for a mix of different interfaces and core counts within the same distribution box. Each adapter panel is compatible with multiple JFOPT boxes. The box design includes a front cable management rack, which can be optionally installed based on the installation space and project budget. Installing the cable management rack facilitates cable organization and improves the overall neatness and aesthetics of the rack. However, if space is limited, omitting the cable management rack offers a cost-effective solution.



♦ Product Features

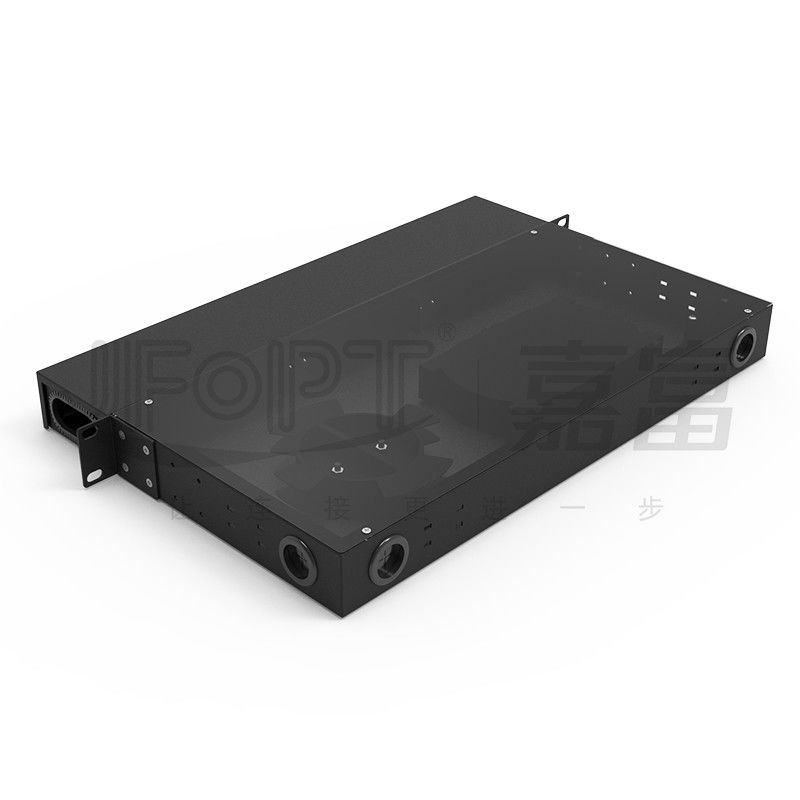

① Standard 1U height, high compatibility

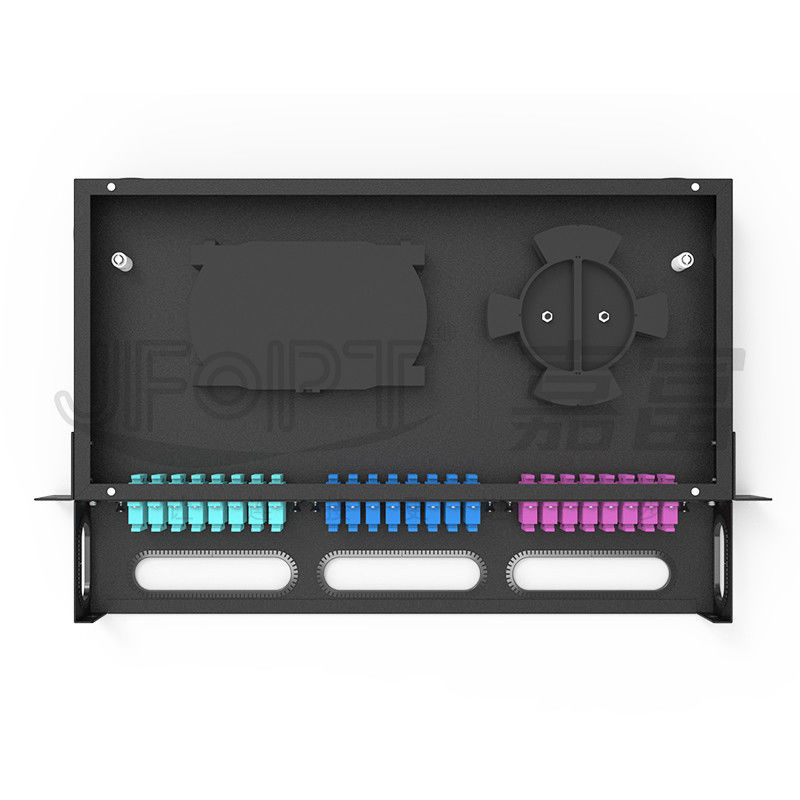

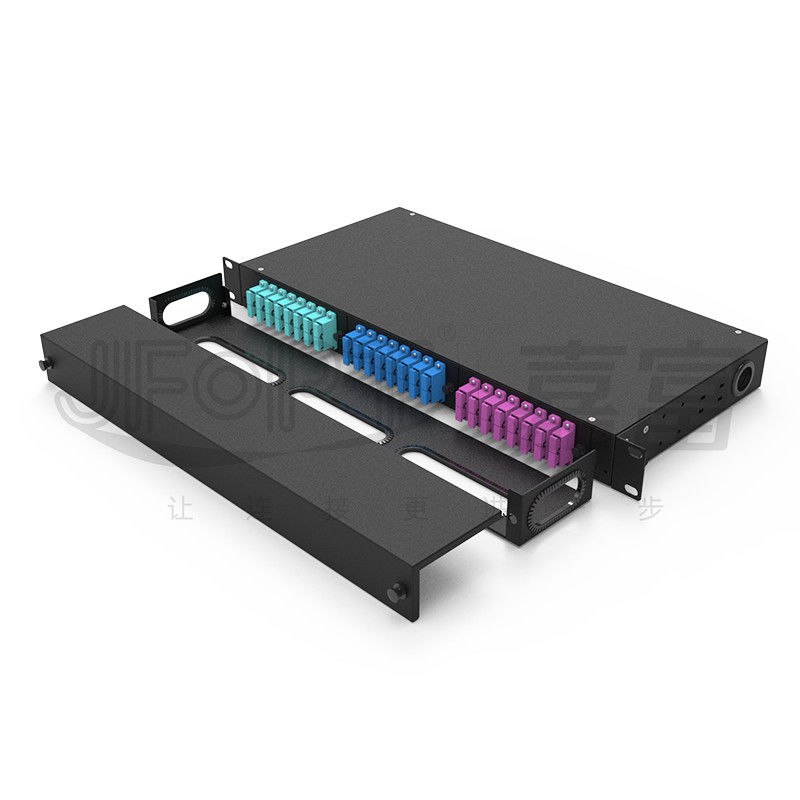

② Replaceable adapter panel

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 0

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 1

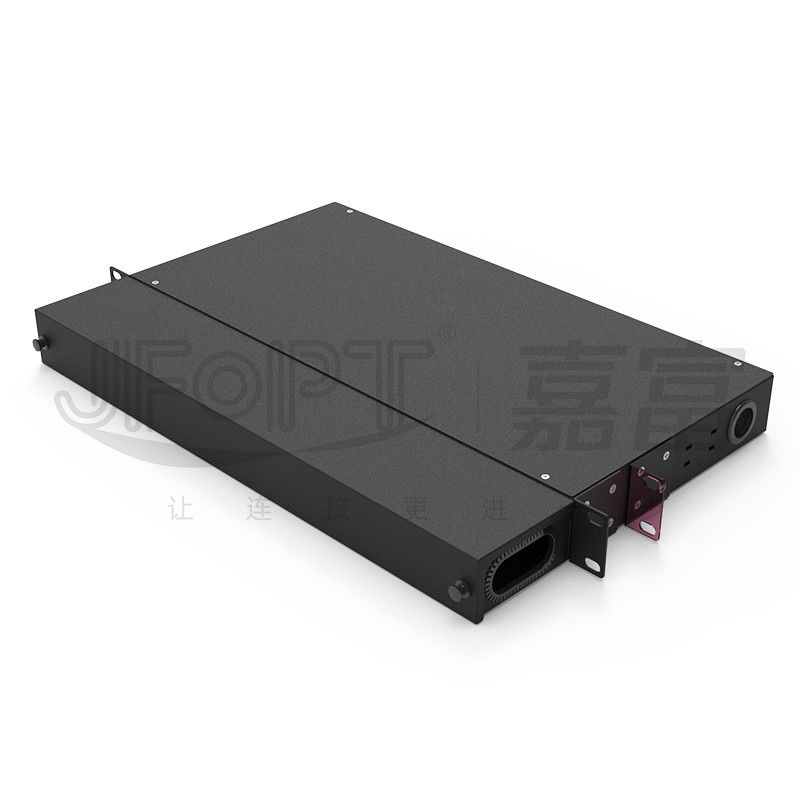

③Optional front cable management rack for convenient cable organization

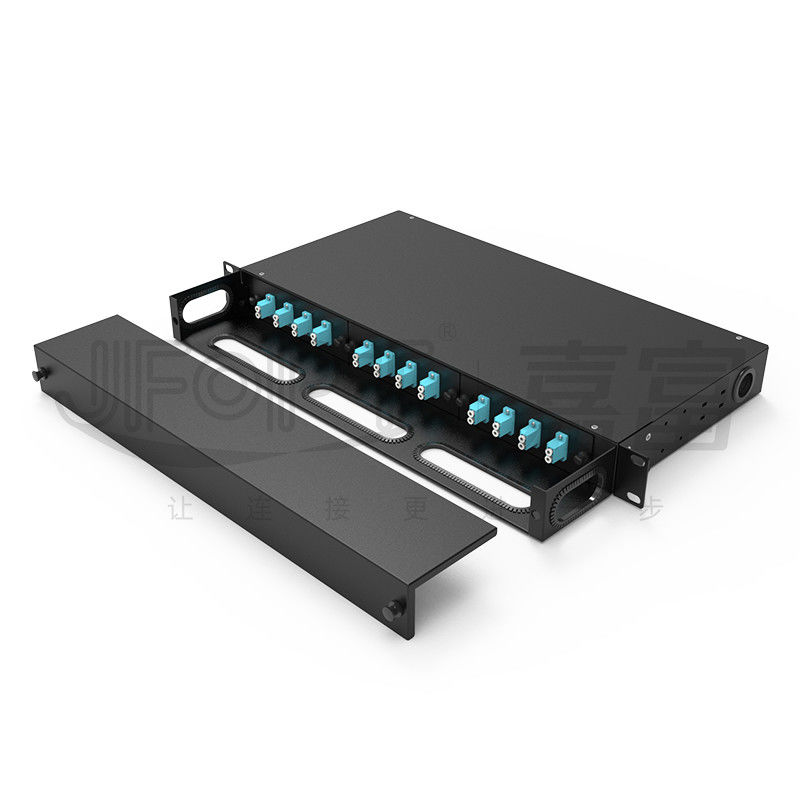

④ Equipped with fusion splice tray and fiber storage components internally

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 2

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 3

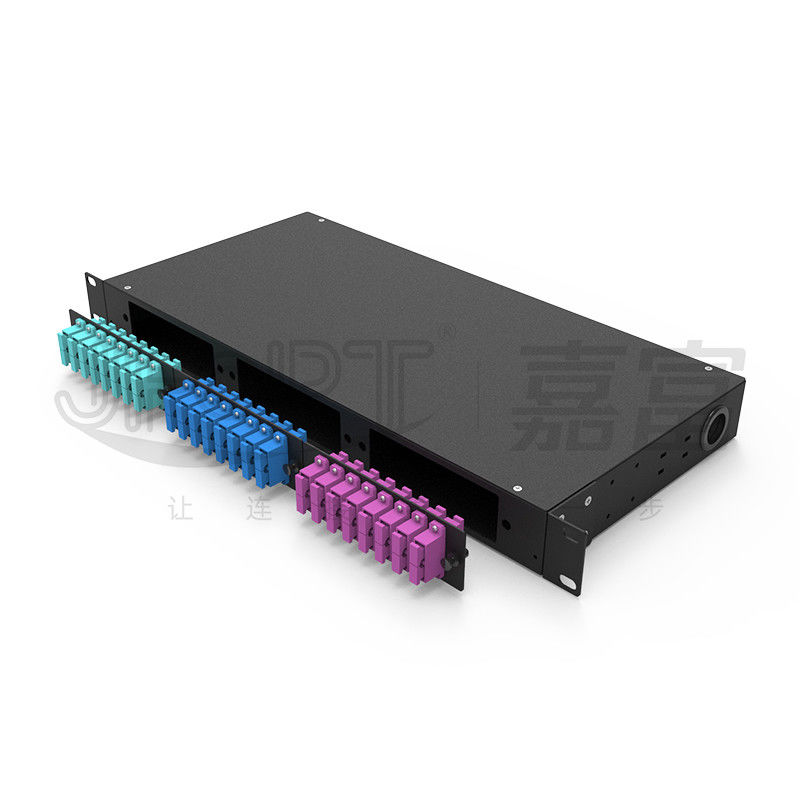

⑤ Compatible with various connectors such as SC, LC, FC, ST, E2000, etc

-

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 4

-



♦ Applications

1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.



Distribution Box Size

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 5



Auxiliary Material Information

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 6

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 7

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 8

3 * 100mm cable ties * 8 pieces

Cage screw and nut * 4 sets

1.5 * 60mm (steel rod OD * heat shrink tube length) heat shrink tube * core count



♦ Product Packaging

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 9

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 10

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 11

Pearl cotton protection and bubble wrap for the four corners of the distribution box

Packed into inner boxes and sealed

Several inner boxes packed into outer boxes and sealed,
Protective corners added to the outer box



Factory Strength

Expertise:


JFOPT has been focusing on fiber distribution box production for over 10 years and has professional manufacturing techniques and equipment.

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 12

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, metal stamping, and CNC bending equipment for manufacturing.

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 13

Quality Control:


JFOPT implements strict quality control measures, including quality inspections at each stage of production, from raw material procurement to stamping, bending, and painting.

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 14

Standards:


JFOPT can customize and strictly adhere to production standards based on customer requirements to ensure product consistency and performance stability.

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 15

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes.

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 16

Service And Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction.

24 Core Fixed Fiber Distribution Box Removable Adapter Panel LC Duplex Aqua OM3 Pigtail 17



♦ Frequent Q&A

1.When selecting a distribution box, it is important to consider the following factors?
Ensure that it meets the requirements for wiring installation, including the thickness of the sheet metal and structural strength, to ensure a visually appealing and damage-free product.You can contact us for custom production based on your samples or technical drawings, or provide us with your requirements for us to design accordingly.



2.Can we purchase patch cords to go with our distribution box?
Yes, we can provide patch cords and pigtails according to your specific requirements to meet different wiring needs.



3.What is our delivery lead time?
For standard products, the lead time is typically 2 working days. For customized products, the lead time is usually 15 working days.
