DIN Rail Type Terminal Box DIN Rail Mounting Capacity of 2-24 Cores
The optical terminal box is mainly used for the connection and storage between the external optical fiber and the equipment pigtail. It provides mechanical and environmental protection for the fusion of optical fiber and optical fiber, the fusion of optical fiber and pigtail, and the connection of optical connector. Optical terminal box is widely used in network systems, data, image transmission systems, CATV cable TV series, etc. The slide rail type DIN terminat box can meet customers' needs when the rack type terminal box and the wall mounted terminal box can not open up additional space.
♦ Product Features
|
① Ingenious design: There are oblique chamfer between the two sides and the back side of the box body, which can meet the use of the terminal box in the case of limited space |

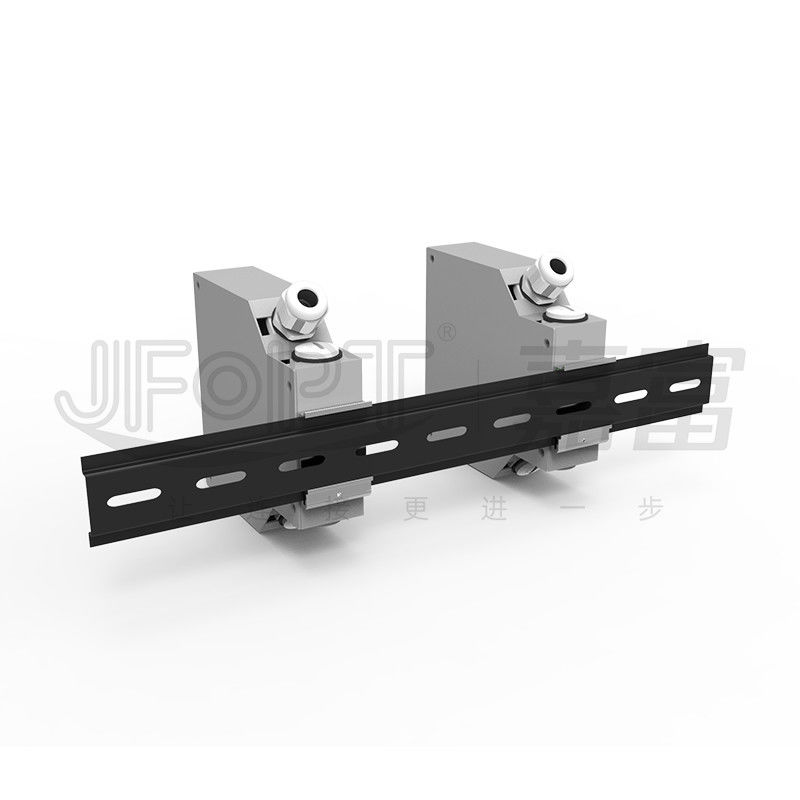

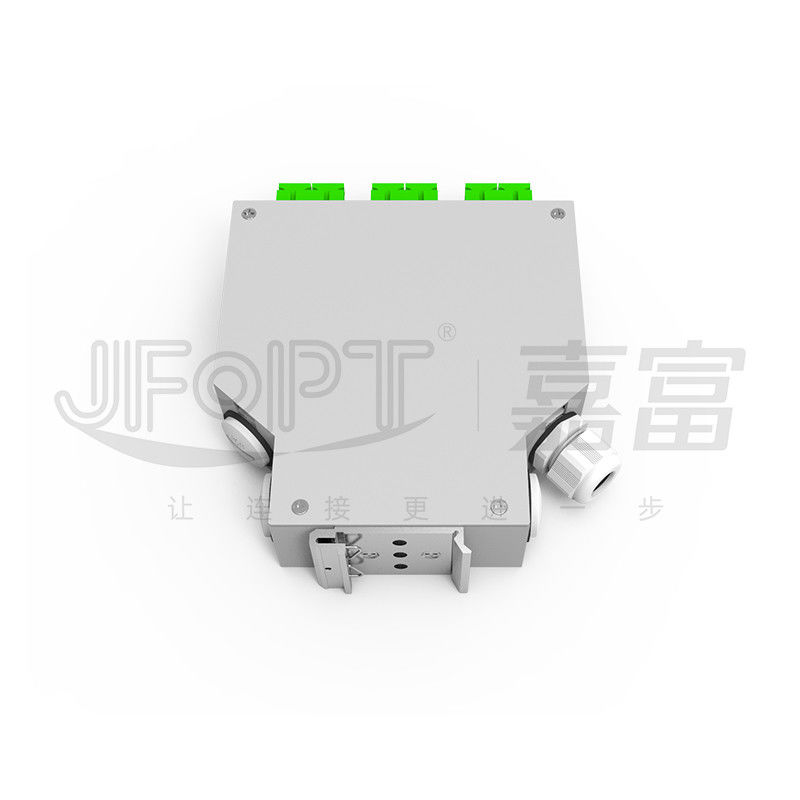

②Simple installation: a DIN buckle is provided on the rear side of the box body, and the box body can be easily mounted to a predetermined position through the DIN buckle |
|
|
|
|

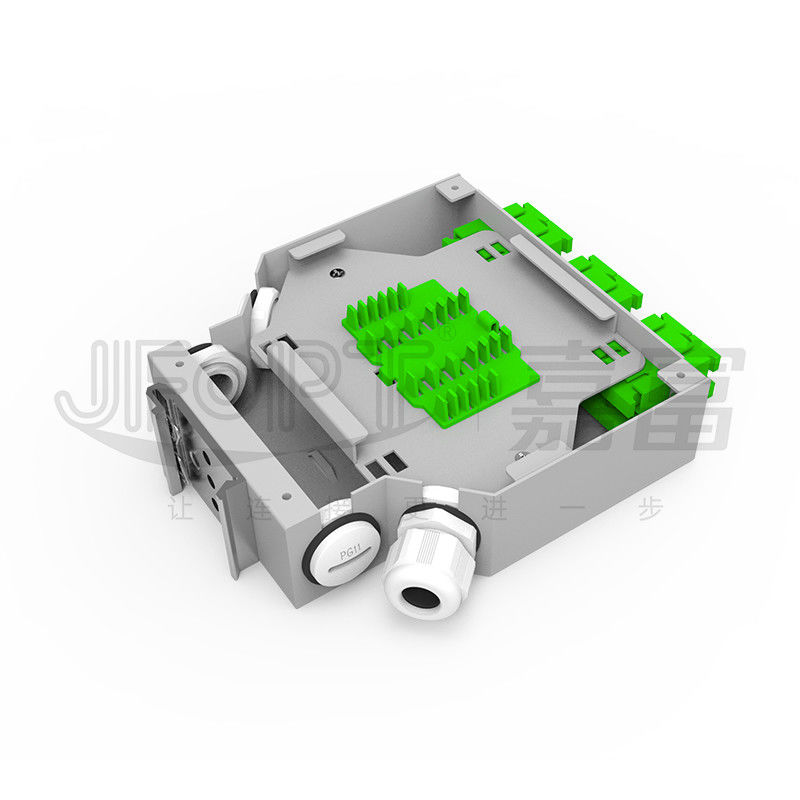

③Cable entry: There are 4 through holes on the chamfer, the inlet fiber can be freely selected through the PG11 waterproof gland to match the 5-10mm optical cable |

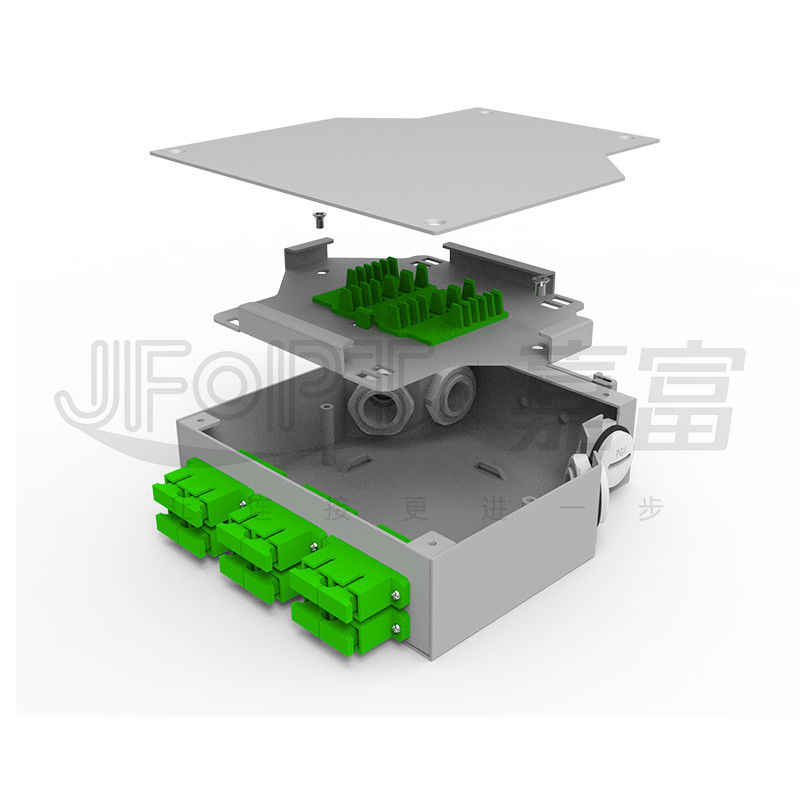

④Convenient wiring: The splice tray adopts a superimposed structure and can be disassembled and assembled separately, which is convenient and fast |
|
|
|
|

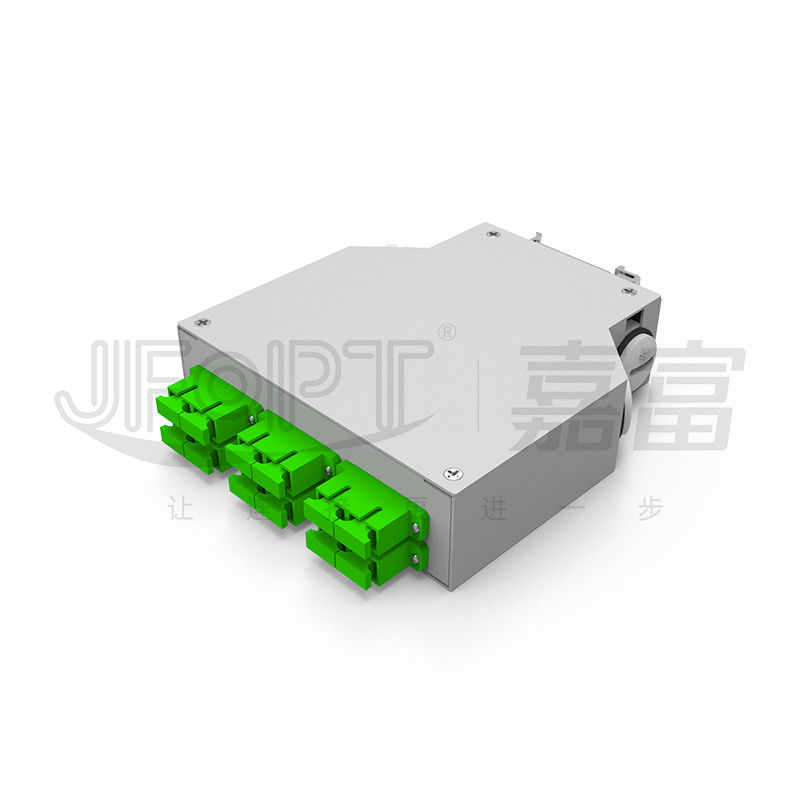

⑤ Adapter panels are optional: Different types of adapter panels with different core numbers can be selected according to customer needs to meet various wiring schemes |
- |
|
|
- |
♦ Applications
1.CATV.
2.Telephone and rural communication network systems.
3.Data and image transmission systems.
♦ Adapter Panel Ordering Information
|
SC 6C Simplex |
|
|
||||
|
SC 12C Simplex |
|
|
||||
|
SC 12C Duplex |
|
|
||||
|
FC 6C Small-D |
|
|
||||
|
FC 12C Small-D |
|
|
||||
♦ Size Information
♦ Accessory Information
|
|
|
|
Cable tie(3*100mm)8pcs |
Sinplex heat shrinlable tube* core1.5*60mm (According to the number of cores) |
♦ Product Packaging
|
|
|
|
|
Each terminal box packed in PE bag |
Inner carton box |
Multiple inner boxes packed into an outer box and sealing it |
|
Item |
Dimension (mm) |
Packaging method |
||||
|
Optical Terminal Box |
138*125*36mm |
1pc/inner carton |
||||
|
Inner carton |
170*140*45mm |
40pcs/master carton |
||||
|
Master carton |
580*360*270mm |
— |
||||
♦ Factory Strength
|
Expertise: JFOPT has been specializing in the production of fiber optic distribution boxes for over 10 years, with professional production techniques and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precise laser cutting, metal stamping and CNC bending equipment for production. |
|
||||
|
Quality Control: JFOPT implements strict quality control, with dedicated quality testing processes for sheet metal raw material procurement, stamping, bending, and coating production processes. |
|
||||
|
Standard Setting: JFOPT has a professional and experienced R&D team that provides cost-effective overall solutions based on different requirements to meet your various needs. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and conducts annual upgrades and improvements to its products, constantly introducing innovative products to meet the ever-changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when purchasing a terminal box?
Firstly, ensure that it meets your wiring installation requirements and pay attention to the thickness of the sheet metal and the structural strength to ensure a visually appealing and undamaged product. Typically, you can contact us for custom production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.
2.What tools are required for the installation of our terminal box?
The installation of our distribution box requires a fusion splicer, fiber stripping tool, fiber cleaning tools, etc.
3.Can our terminal box be installed with different types of patch cords?
We can match the terminal box with different types of patch cords according to your specific requirements to meet your usage needs.
4.What is our delivery lead time?
For standard products, delivery can be made within 2 working days. For customized products, the lead time is approximately 15 working days.
