Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces

Mini Terminal Box Capacity 12 Cores

Compact Design Mini Terminal Box

CATV Mini Terminal Box

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001

Model Number:

JFOPP-FTB00-A-001

Contact Us

Request A Quote
Product Details
Cable Inlet Amd Outlet:
2
Cable Fixation Method:
Center Strength Member Fixing + Hoop Fixation
Compatible Adapter Types:
SC/LC/FC/ST
Special Features:
Compact Mini Size
Internal Functions:
Fusion Splicing In The Upper Layer, Fiber Storage In The Lower Layer
Number Of Fibers:
2-12 Cores
Adapter Panel:
Replaceable Adapter Type
Dust Protection Measure:
Dust-proof Rubber Ring
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Welcome to contact our customer service
Delivery Time
1-5 days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
1000PCS/days
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Mini Terminal Box Capacity 12 Cores Compact Design for Small Spaces



JFOPP-FTB00-A-001-00 optical terminal box is mainly used for the connection and storage between outdoor cables and pigtials, provide mechanical and environmental protection for the fusion of optical fibers, the fusion of optical fibers and pigtials, and the handover of optical connectors. At the same time, appropriate inspections are allowed, and flexible line switching and maintenance management can also be carried out. This model can be widely applied for network system, data and video transmitting system and CATV etc.



♦ Product Features

① Mini size,Super mini size for much smaller space

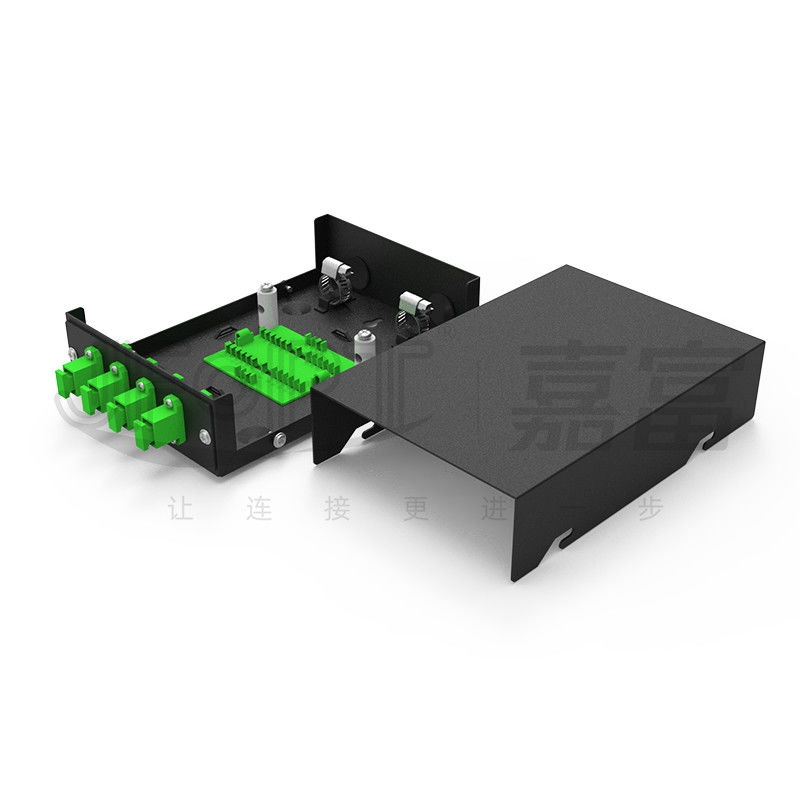

②Convenient assemble and disassemble,The top cover locked with the bottom base by buckle, easy to assemble and disassemble

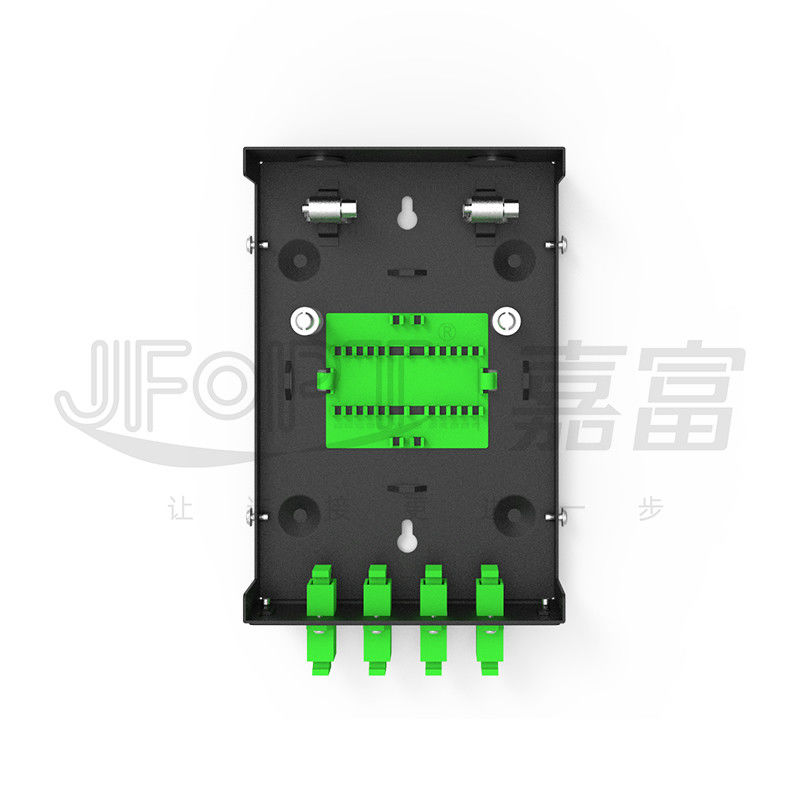

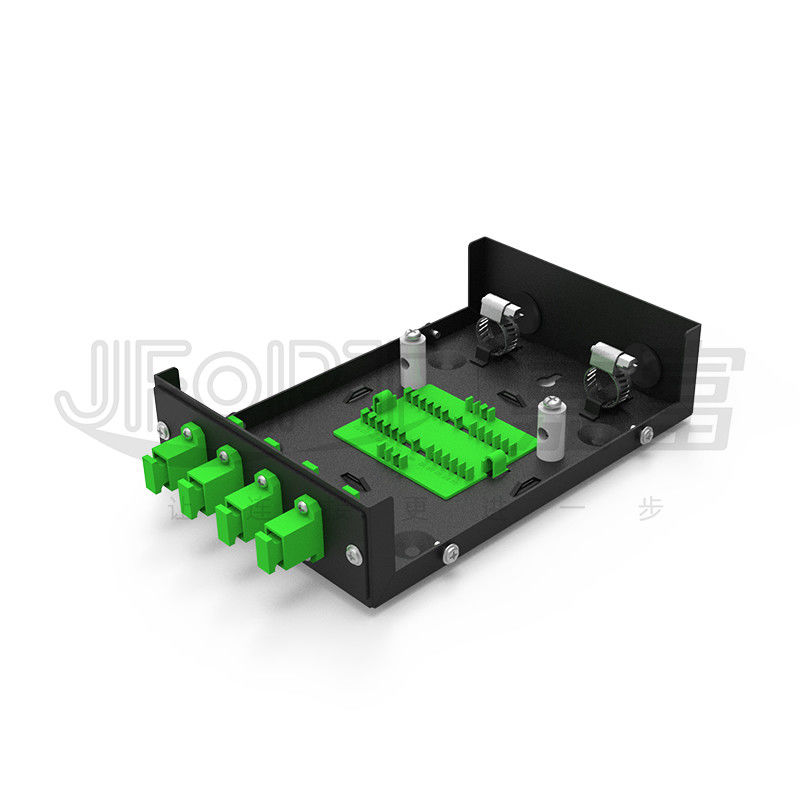

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 0

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 1

③Various mounted ways,Several mounted ways for options: on wall, ground, or in channel, control cabinet

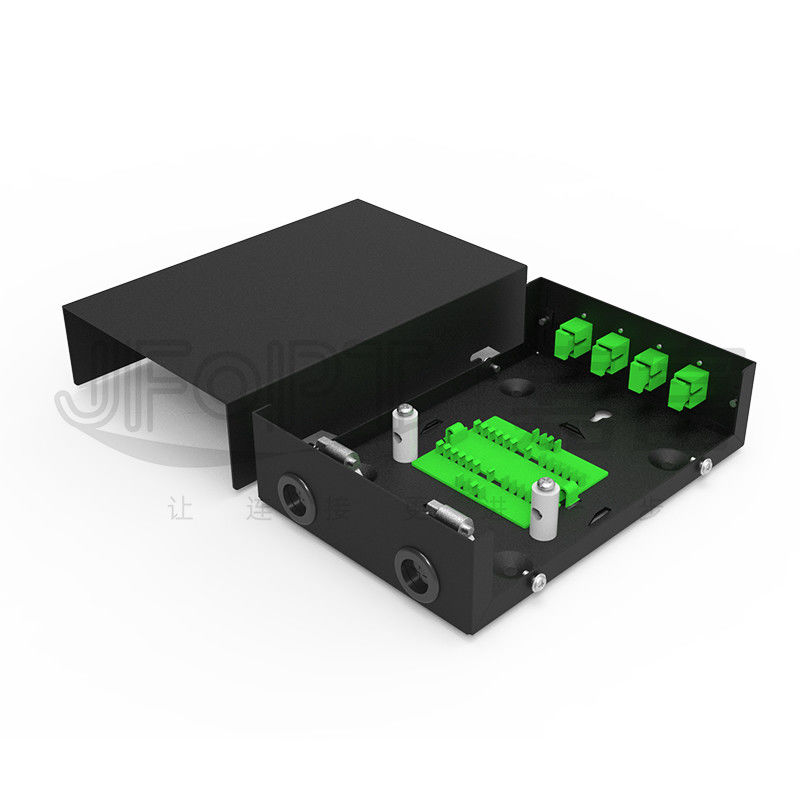

④Cable entry from rear,Two Φ15mm inlets on the rear of the box for cable entry. Together with rubber plugs, cable clamps and cable central reinforcement clamps, the inlet cable can be fixed tightly and safely

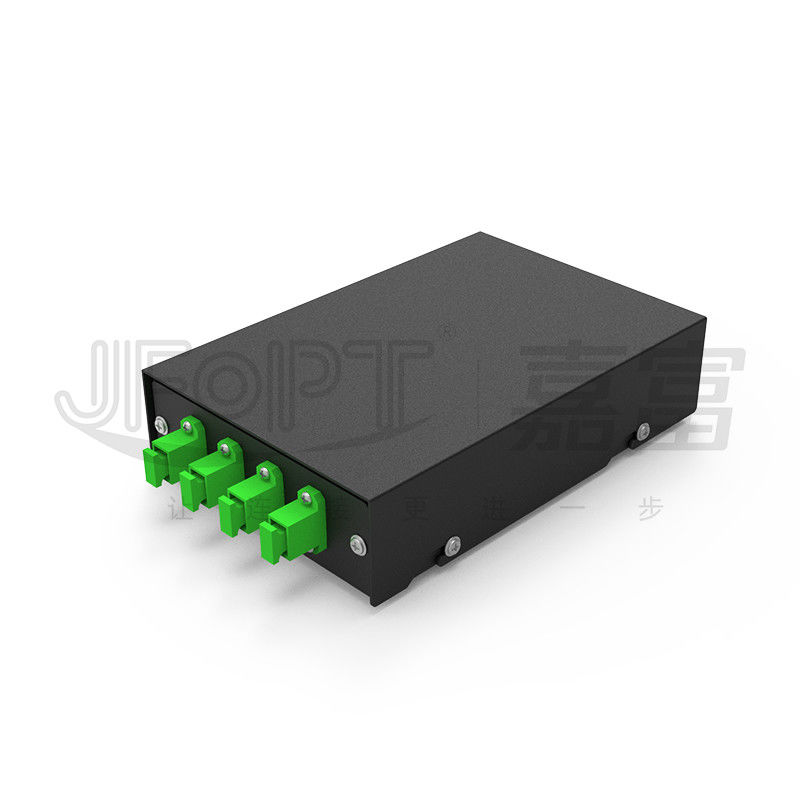

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 2

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 3



♦ Applications

1.CATV.
2.Telephone and rural communication network systems.
3.Data and image transmission systems.



Adapter Ordering Information

Adapter type

Cores type optional

SC

12-48C

LC

12-96C

FC

12-24C

ST

12-24C

For other requirements, please contact Marketing Department for customization.



♦ Fiber Optic Terminal Box Dimensions

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 4

Accessory Information

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 5

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 6

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 7

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 8

Cable Clamp 6~12mm * 2pcs

Cable tie 3*100mm*4pcs

Splice protector 60mm (quantity according to capacity)

Screws for wall mounting *2 sets



♦ Product Packaging

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 9

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 10

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 11

Each terminal box packed in PE bag

Inner carton box

Multiple inner boxes packed into an outer box and sealing it



Item

Size

Packaging method

Optical Terminal Box

170*120*44

1PC / inner carton

Inner carton

190*135*50

20PCS /master carton

Master carton

565*395*150

-



 Factory Strength

Expertise:


JFOPT has been specializing in the production of fiber optic distribution boxes for over 10 years, with professional production techniques and equipment.

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 12

Manufacturing Capacity:


JFOPT utilizes precise laser cutting, metal stamping and CNC bending equipment for production.

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 13

Quality Control:


JFOPT implements strict quality control, with dedicated quality testing processes for sheet metal raw material procurement, stamping, bending, and coating production processes.

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 14

Standard Setting:


JFOPT has a professional and experienced R&D team that provides cost-effective overall solutions based on different requirements to meet your various needs.

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 15

Technological Innovation:


JFOPT emphasizes technological innovation and conducts annual upgrades and improvements to its products, constantly introducing innovative products to meet the ever-changing market demands.

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 16

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales repairs, to meet customer needs and ensure customer satisfaction.

Compact Design CATV Mini Terminal Box Capacity 12 Cores For Small Spaces 17



♦ Frequent Q&A

1.What should be considered when purchasing a terminal box?
Firstly, ensure that it meets your wiring installation requirements and pay attention to the thickness of the sheet metal and the structural strength to ensure a visually appealing and undamaged product. Typically, you can contact us for custom production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.



2.What tools are required for the installation of our terminal box?
The installation of our distribution box requires a fusion splicer, fiber stripping tool, fiber cleaning tools, etc.



3.Can our terminal box be installed with different types of patch cords?
We can match the terminal box with different types of patch cords according to your specific requirements to meet your usage needs.



4.What is our delivery lead time?
For standard products, delivery can be made within 2 working days. For customized products, the lead time is approximately 15 working days.
