Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
7.5U ODF 144F SC SX/FC SX
Contact Us

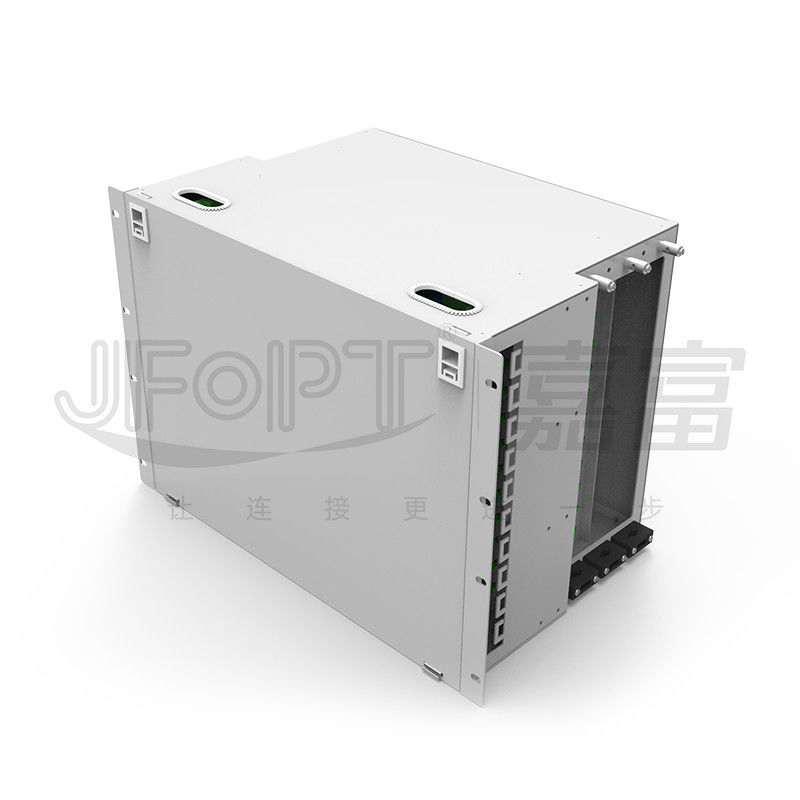

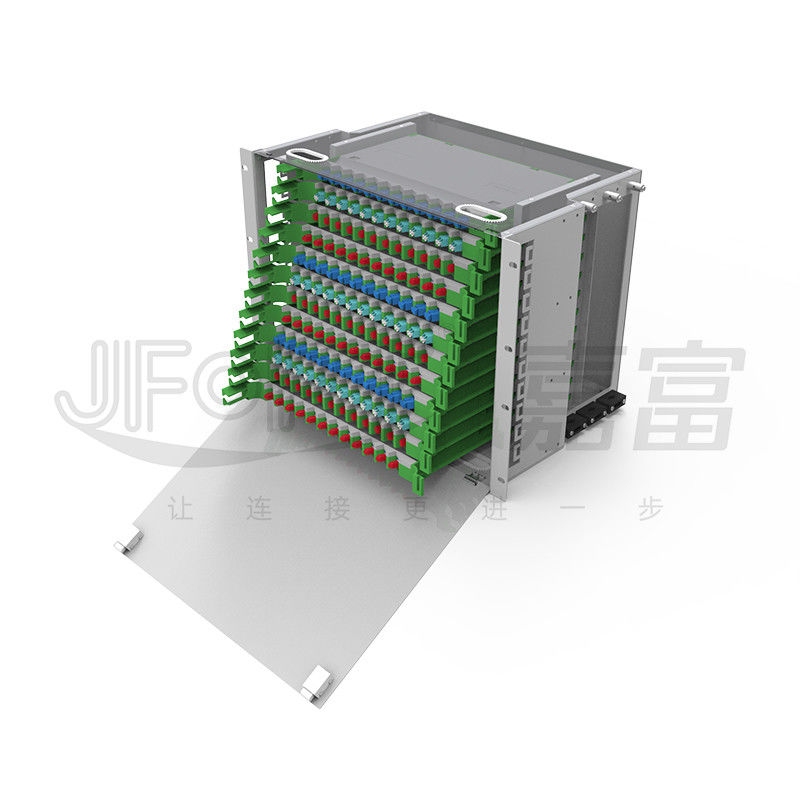

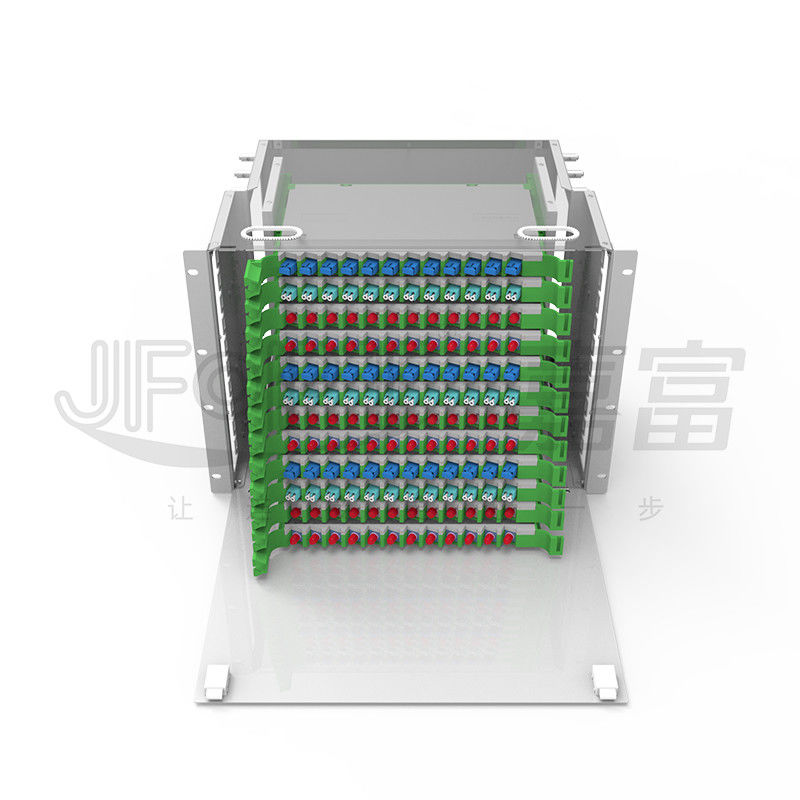

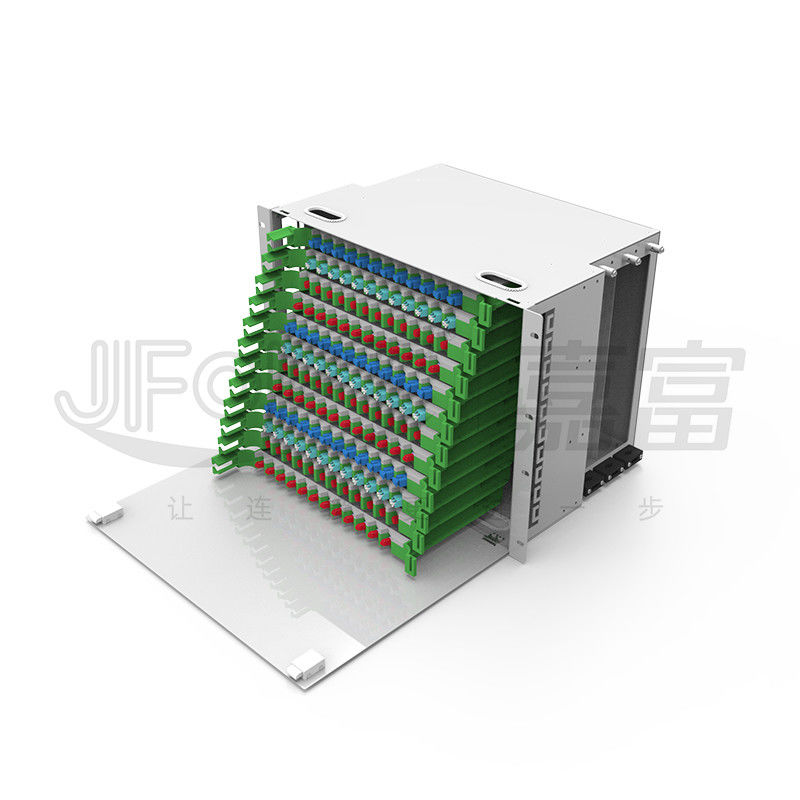

7.5U 144-Core SC SX / FC SX ODF Fiber Distribution Box With 300mm Depth
The 144 cores ODF features 12 pcs integrated modules, each integral module combines functions such as fiber splicing and storage, adapter connecting, effectively protecting the splicing points and stripped trunk cables. The adjustable mounting ears allow for both forward and reverse installation, and the mounting hole positions can be adjusted according to the cabinet space. With a total depth of 300mm, the cabinet is compatible with most fiber optic distribution cabinets available in the market. The material used is thickened cold-rolled steel plate, with a uniform and smooth surface achieved through electrostatic spraying. The product meets industry standards such as ROHS, FCC, ISO9001:2015, and IEC, and has passed third-party certifications for communication standards.
♦ Product Features
|
① Standard 12-core integrated module design |
②Made of high-quality cold-rolled steel plate for durability |
|
|
|
|
③Uniform and smooth surface achieved through electrostatic spraying |
④Strong compatibility with various adapters such as SC, FC, ST, and LC |
|
|
|
|
⑤ Can be matched with 12-color 0.9mm pigtails |
- |
|
|
- |
♦ Applications
1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.
♦ Distribution Box Size
♦ Auxiliary Material Information
|
|
|
|
|
3*100mm cable ties * 8 pieces |
Rack mounting nuts and screws * 4 sets |
Single-core heat shrink tubing * quantity based on the number of cores |
♦ Product Packaging
|
|
|
|
|
Pearl cotton protection and bubble wrap for the four corners of the distribution box |
Packed into inner boxes and sealed |
Several inner boxes packed into outer boxes and sealed, |
♦ Factory Strength
|
Expertise: JFOPT has been focusing on fiber distribution box production for over 10 years and has professional manufacturing techniques and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precision laser cutting, metal stamping, and CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including quality inspections at each stage of production, from raw material procurement to stamping, bending, and painting. |
|
||||
|
Standards: JFOPT can customize and strictly adhere to production standards based on customer requirements to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes. |
|
||||
|
Service And Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.When selecting a distribution box, it is important to consider the following factors?
Ensure that it meets the requirements for wiring installation, including the thickness of the sheet metal and structural strength, to ensure a visually appealing and damage-free product.You can contact us for custom production based on your samples or technical drawings, or provide us with your requirements for us to design accordingly.
2.Can we purchase patch cords to go with our distribution box?
Yes, we can provide patch cords and pigtails according to your specific requirements to meet different wiring needs.
3.What is our delivery lead time?
For standard products, the lead time is typically 2 working days. For customized products, the lead time is usually 15 working days.
