Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4

Module Box 1U Patch Panel

Patch Panel 19 Inch LC DX

1U Patch Panel 24 Cores * 4

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

1U 19Inch Rack Mount Patch Panel LC DX 24F*4

Contact Us

Request A Quote
Product Details
Installation Method:
Rack-mounted
Opening Method:
Top Cover Door With Latches
Interface Type:
MPO/SC /LC/ FC/ST
Capacity:
96 Cores
Cable Entry Ports:
22mm*7 And 16mm*6
Enclosure Material:
Cold-rolled Steel Plate / Electrostatic Spraying
Enclosure Height:
Standard 1U
Compatible Rack:
19-inch
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
Price quotation based on the number of cores
Delivery Time
15 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
3000 units per month
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Module Box Patch Panel 1U 19 - inch LC DX 24 cores * 4



The JFOPP-RMP10-A-009 distribution cabinet is designed for multi-purpose use and can be matched with module boxes or adapter panels according to project requirements. To accommodate this multi-purpose design, it features up to 13 cable entry ports on the left, right, and rear of the cabinet, catering to different configurations and cable diameters in various directions. The front of the distribution cabinet has a removable baffle, allowing for optional installation based on budget and available space.



♦ Product Features

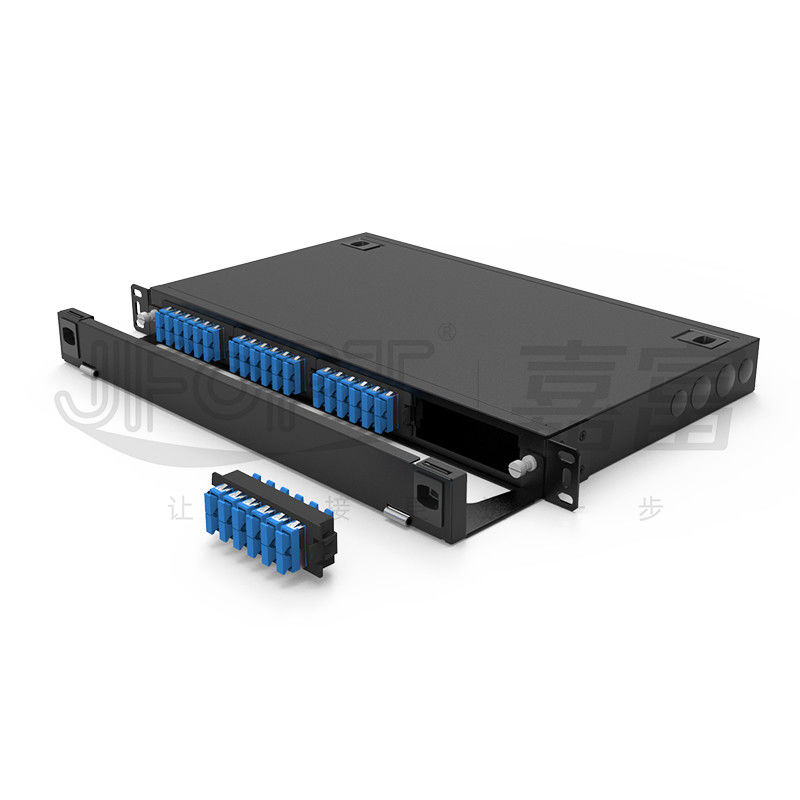

①Optional configuration with module boxes or modular adapter panels for flexible setups

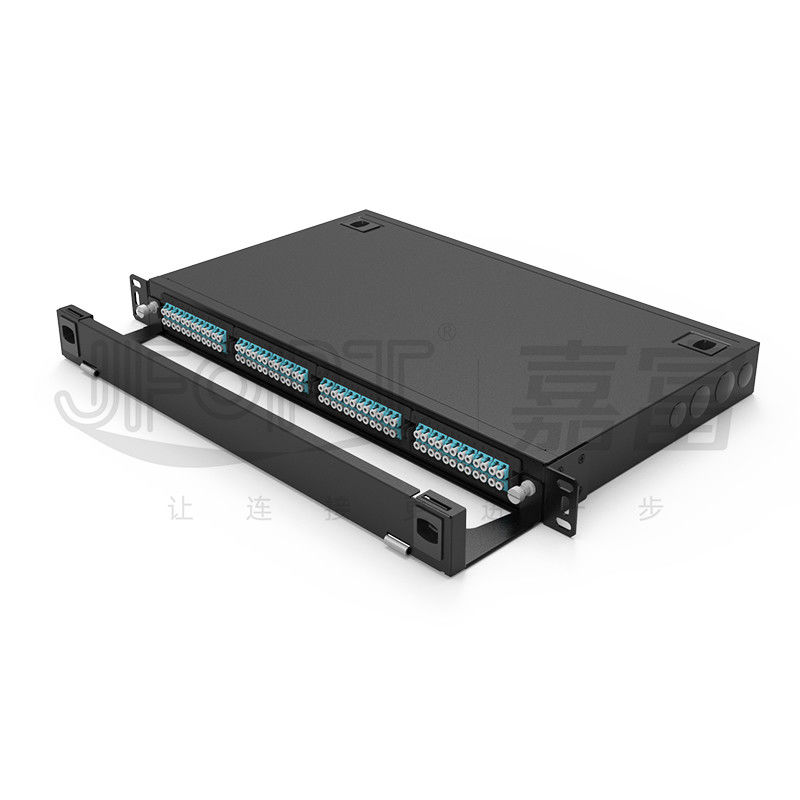

②1U space accommodates up to 96 cores, featuring a high-density modular design

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 0

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 1

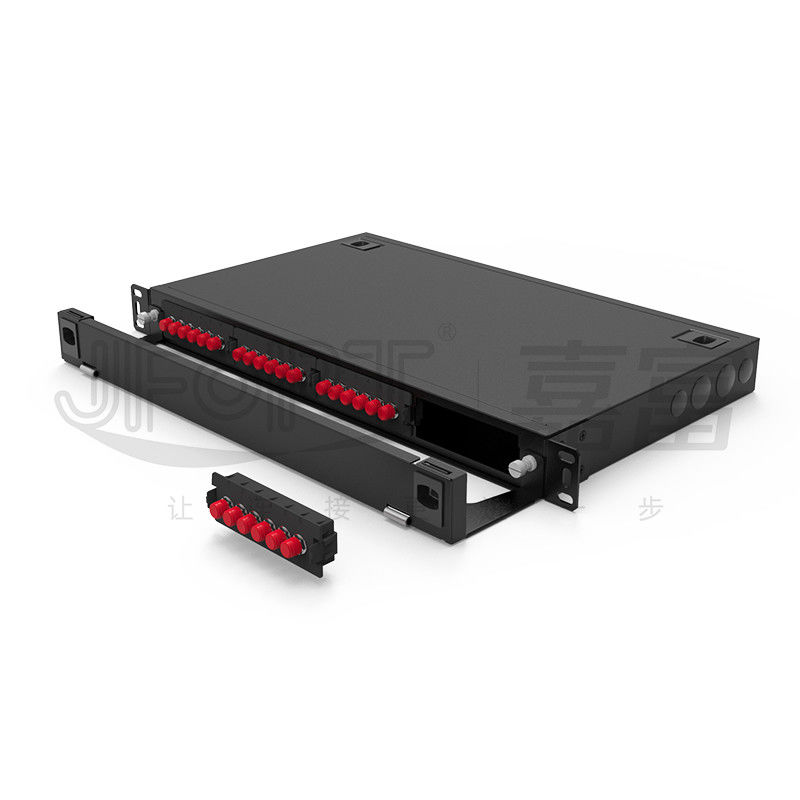

③Tool-free maintenance with a door latch opening mechanism on the top cover

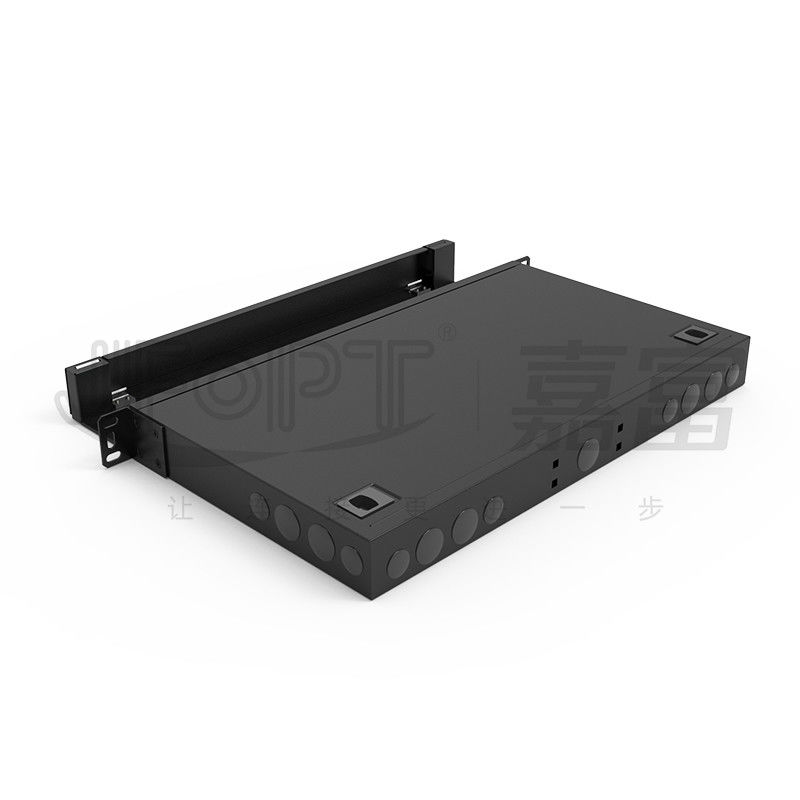

④ Up to 13 cable entry ports with different diameters to meet diverse requirements

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 2

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 3

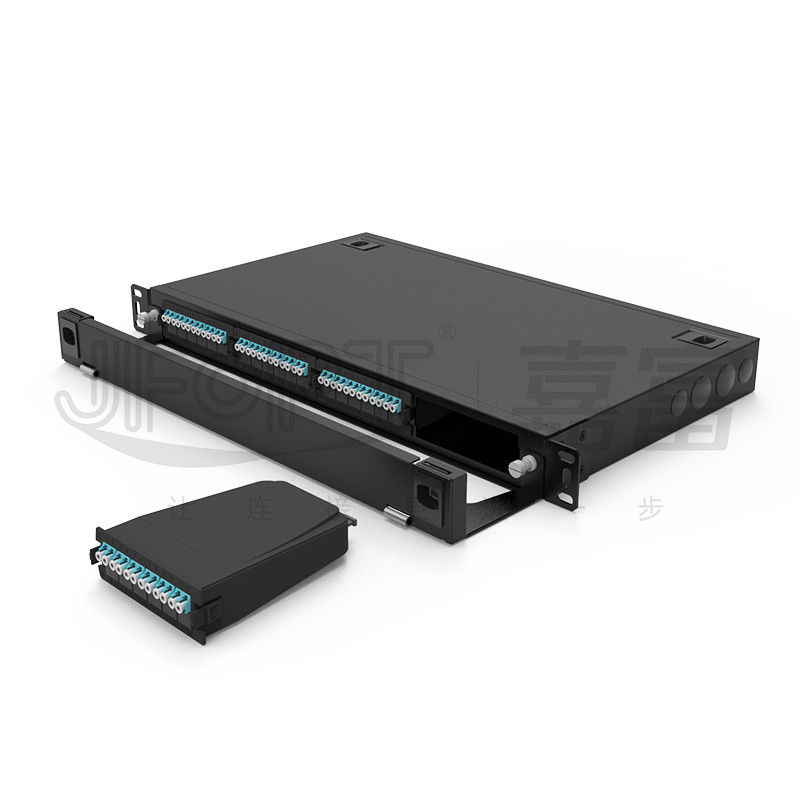

⑤Metal enclosure provides resistance against compression and impact

-

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 4

-



♦ Applications

1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.



Adapter Panel Order Information

SC Simplex 6 Ports

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 5

SC Simplex Flanged/Flangeless Adapter

LC Duplex Flanged/Flangeless Adapter

FC Simplex 6 Ports

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 6

FC Simplex Small-D Adapter

ST Simplex Adapter

SC Duplex 6 Ports

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 7

SC Duplex Flangeless Adapter

LC Quadruple Flangeless Adapter

6 Ports Cassette

(6 Plugs)

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 8

SC Simplex Flangeless Adapter

LC Duplex Flangeless Adapter

12 Ports Cassette

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 9

SC Simplex Flangeless Adapter

LC Duplex Flangeless Adapter



Dimension

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 10



Accessories

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 11

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 12

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 13

Cable Ties*8

Screw and nut *4PCS

Splicing Prote-ctive Sleeve

(Splice Tray Type)

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 14

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 15

-

Cable Management Hoop*4

Waterproof Cable Gland *2

-



♦ Product Packaging

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 16

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 17

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 18

Pearl cotton protection and bubble wrap for the four corners of the distribution box

Packed into inner boxes and sealed

Several inner boxes packed into outer boxes and sealed,
Protective corners added to the outer box



Factory Strength

Expertise:


JFOPT has been focusing on fiber distribution box production for over 10 years and has professional manufacturing techniques and equipment.

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 19

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, metal stamping, and CNC bending equipment for manufacturing.

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 20

Quality Control:


JFOPT implements strict quality control measures, including quality inspections at each stage of production, from raw material procurement to stamping, bending, and painting.

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 21

Standards:


JFOPT can customize and strictly adhere to production standards based on customer requirements to ensure product consistency and performance stability.

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 22

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes.

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 23

Service And Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction.

Module Box 1U Patch Panel 19 Inch LC DX 24 Cores * 4 24



♦ Frequent Q&A

1.When selecting a distribution box, it is important to consider the following factors?
Ensure that it meets the requirements for wiring installation, including the thickness of the sheet metal and structural strength, to ensure a visually appealing and damage-free product.You can contact us for custom production based on your samples or technical drawings, or provide us with your requirements for us to design accordingly.



2.Can we purchase patch cords to go with our distribution box?
Yes, we can provide patch cords and pigtails according to your specific requirements to meet different wiring needs.



3.What is our delivery lead time?
For standard products, the lead time is typically 2 working days. For customized products, the lead time is usually 15 working days.
