Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
Sliding Type Mount Patch Panel 2U LC QX 196C
Contact Us

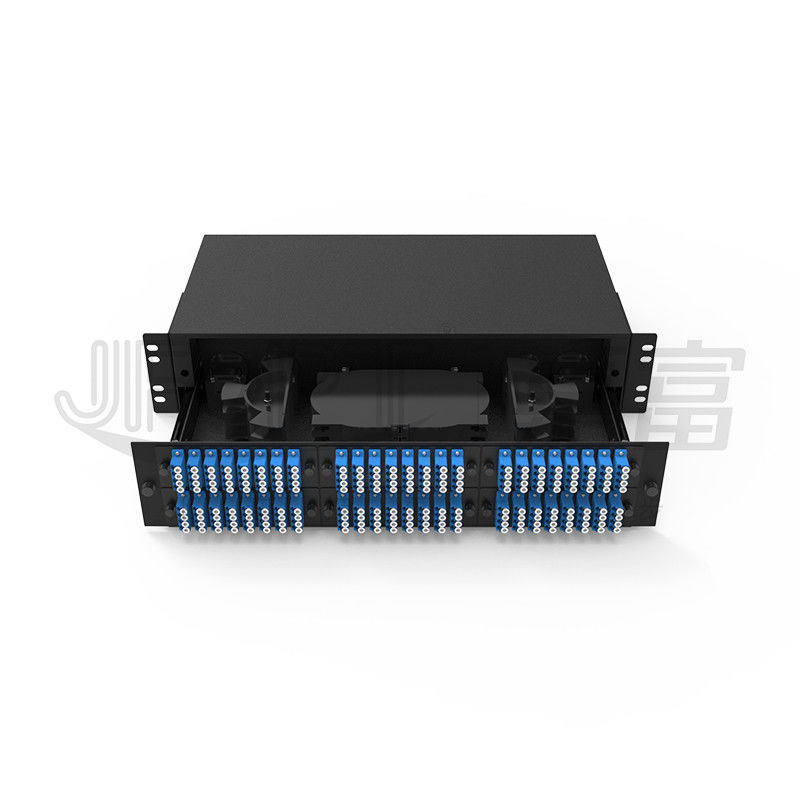

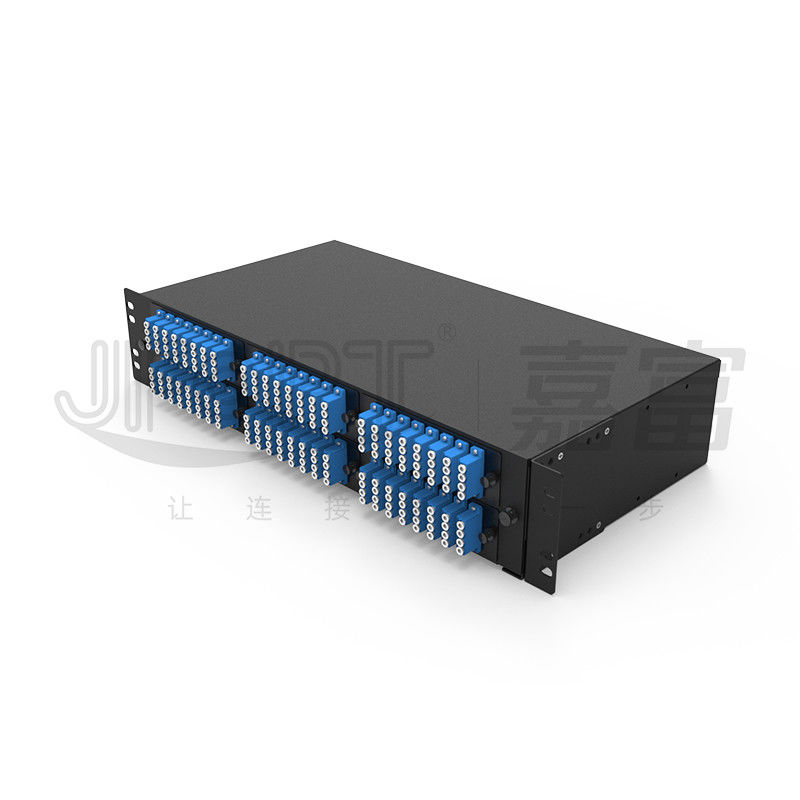

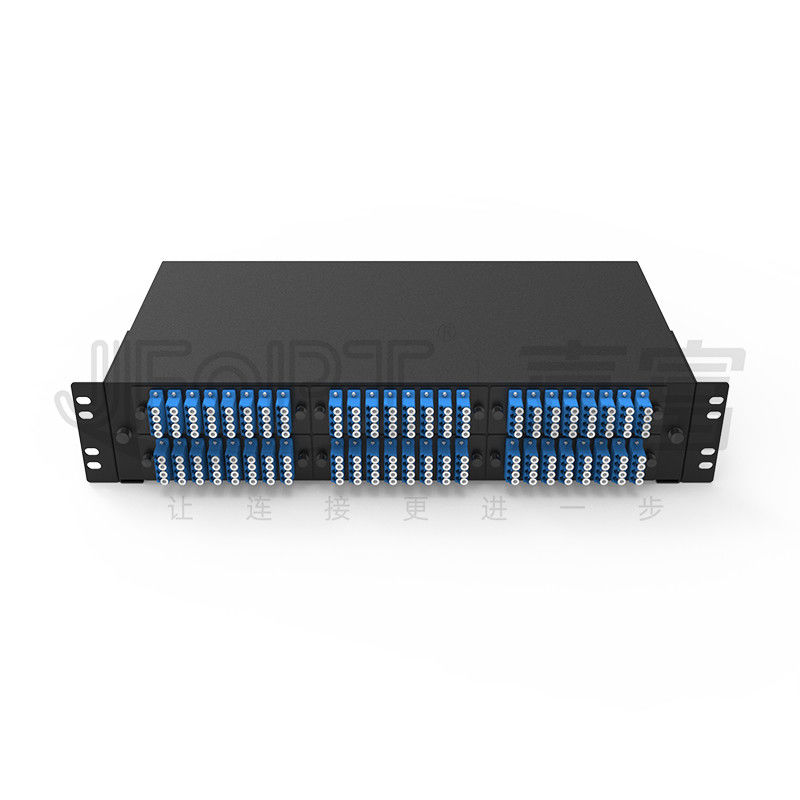

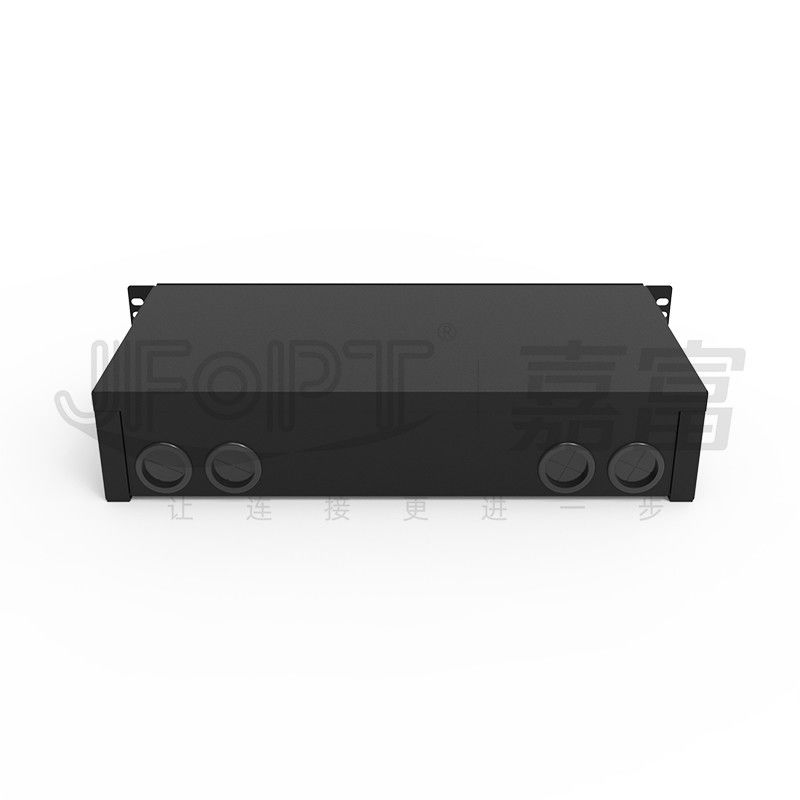

2U Sliding Fiber Distribution Box LC QX 196 Fibers Ultra-thin Fusion Splicing Tray 3-section Sliding Rail
To meet the increasing demand for dense cabling, JFOPT's distribution box can achieve a maximum fiber fusion capacity of 196 cores in a 2U height when equipped with optional LC 4-port adapters. It is equipped with 8 layers of independent fiber fusion trays, providing ample space for fiber cable storage. All JFOPT fiber distribution boxes are supplied with cable ties, fusion splice protection sleeves, and other construction accessories, enabling users to perform fusion splicing and cabling installation immediately upon receipt.
♦ Product Features
|

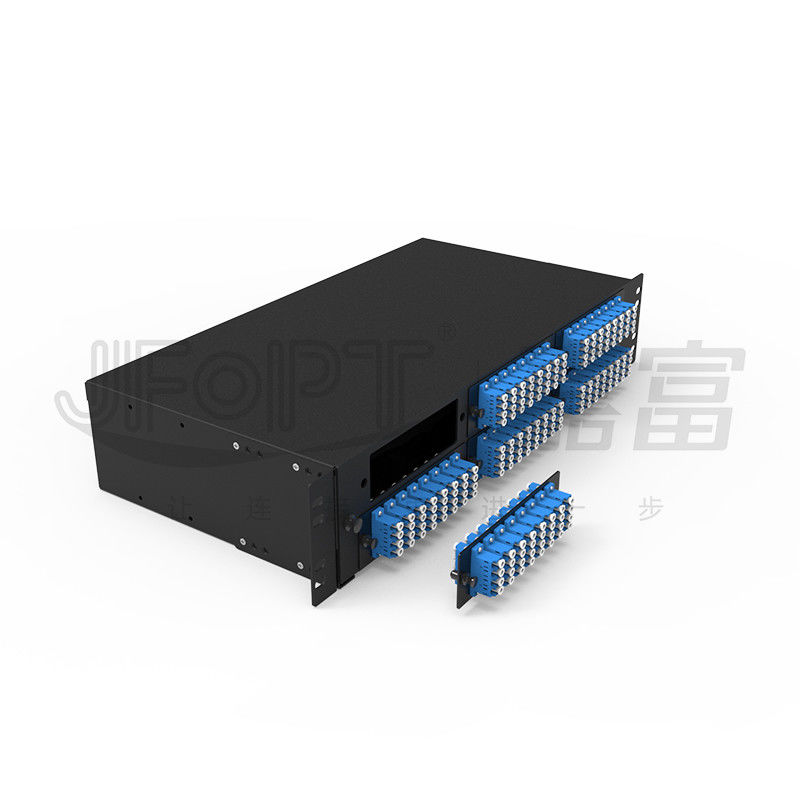

① Six interchangeable panels to accommodate mixed distribution and provide flexible cabling options |
② 2U height with 8 independent fusion splice trays |
|
|
|
|
③Sufficient fusion splicing space to handle high fiber count and multiple main cable fiber terminations |
④Low-loss adapters and pigtails to ensure minimal additional loss in the link |
|
|
|
♦ Applications
1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.
♦ Dimension of Distribution Box
♦ Accessory
|
|
|
|
|
3 * 100mm cable ties |
Cage screw and nut |
Single fiber splicing Protector 1.5*60mm Quantity: same as fiber count |
♦ Product Packaging
|
|
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Multiple inner boxes packed into an outer box and sealing it |
Outer carton box has corner protector |
♦ Factory Strength
|
Expertise: JFOPT has been specializing in the production of fiber distribution box for over 10 years, with professional techniques and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precise laser cutting, metal stamping, and CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections at each production stage, from sheet metal material procurement to stamping, bending and spray coating. |
|
||||
|
Standard-setting: With a professional and experienced R&D team, JFOPT provides cost-effective overall solutions based on different needs, meeting diverse requirements. |
|
||||
|
Technological innovation: JFOPT focuses on technological innovation, regularly upgrading and improving products, as well as introducing innovative solutions to meet evolving market demands. |
|
||||
|
Service and technical Support: JFOPT offers comprehensive pre-sales and after-sales services, including technical consultation, product recommendations and post-sales maintenance, to ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1. What should be considered when purchasing a distribution box?
Firstly, ensure that it meets your wiring installation requirements. Pay attention to the thickness of the sheet metal and structural strength to ensure the product has an attractive appearance without any damage. Typically, you can contact us to customize the production based on your samples or technical drawings, or you can inform us of your requirements for us to design it for you.
2.What tools are required for the installation of the distribution box?
Our distribution boxes are usually fixed by screws on the rack column and are compatible with all 19-inch cabinets. For the fusion of fiber pigtail, only the tools like fiber stripper, fusion splicer and fiber cleaning tools are needed.
3.Can our distribution box be installed with different types of patch cords?
We can provide different options for your different types of patch cord requirements. The adapters and patch cords, like SC/FC/ST/LC/E2000, can be chosen to meet your specific needs.
4.What is the delivery time for our products?
For regular products, the delivery time is within 2 working days. For customized products, the delivery time is within 15 working days.
