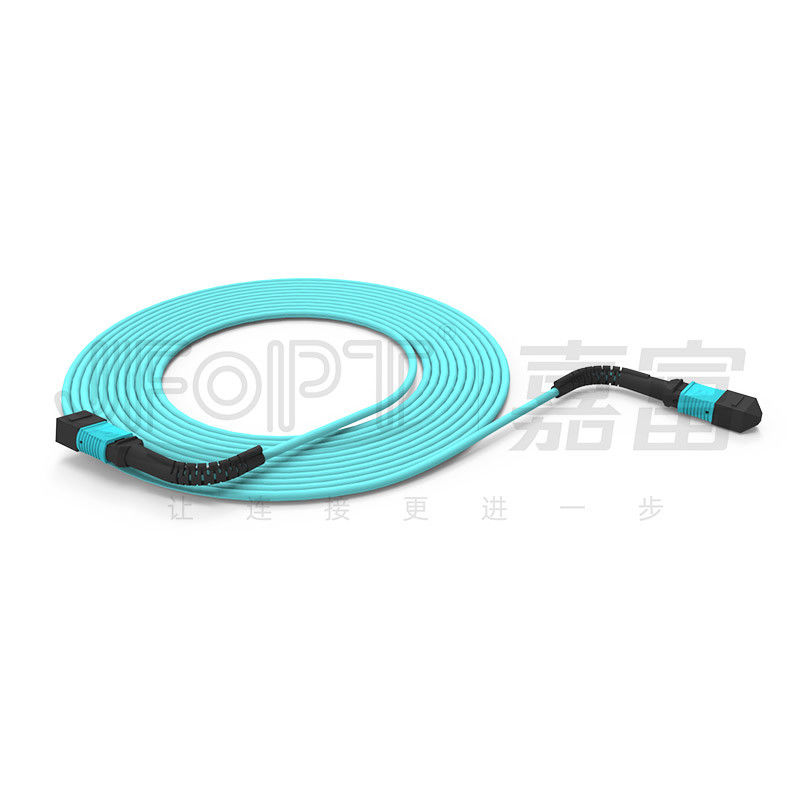

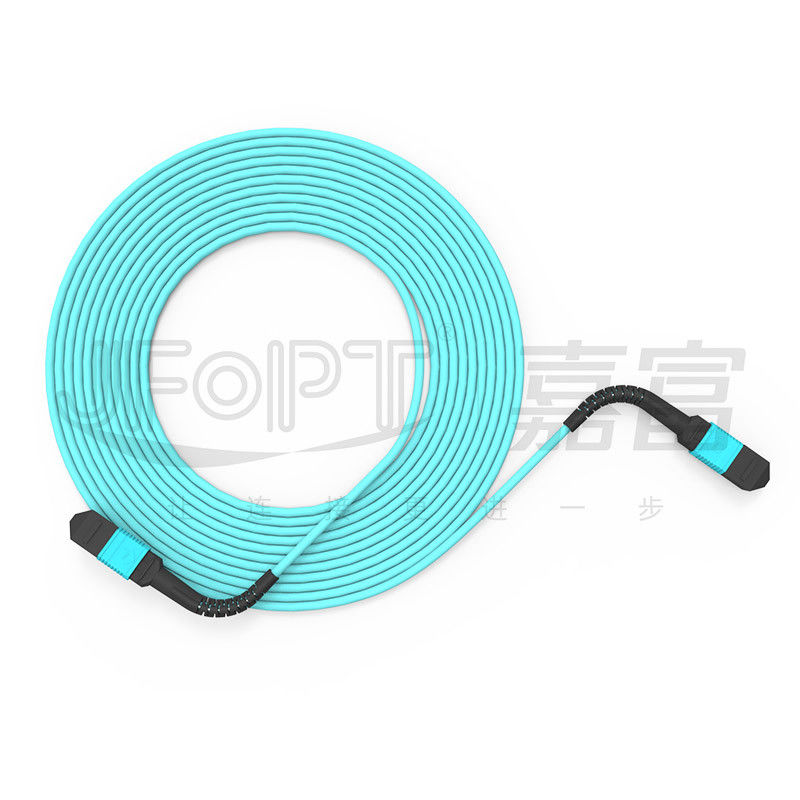

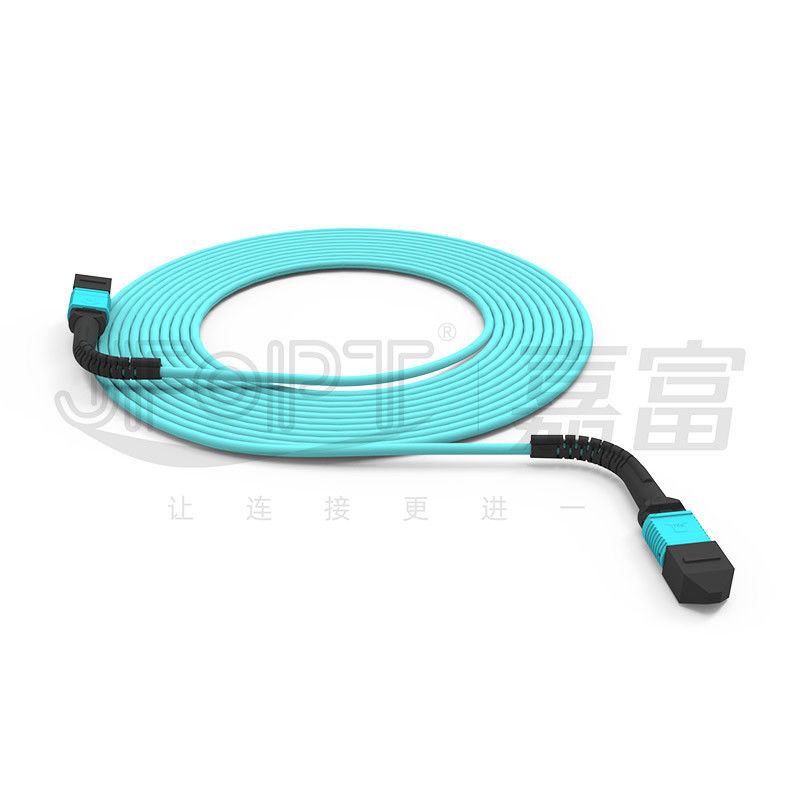

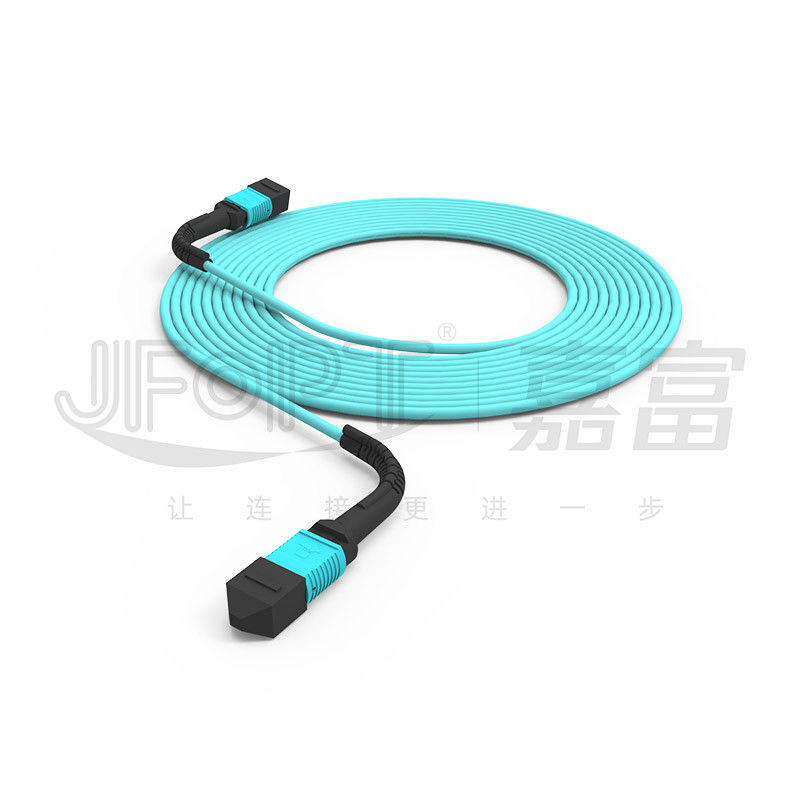

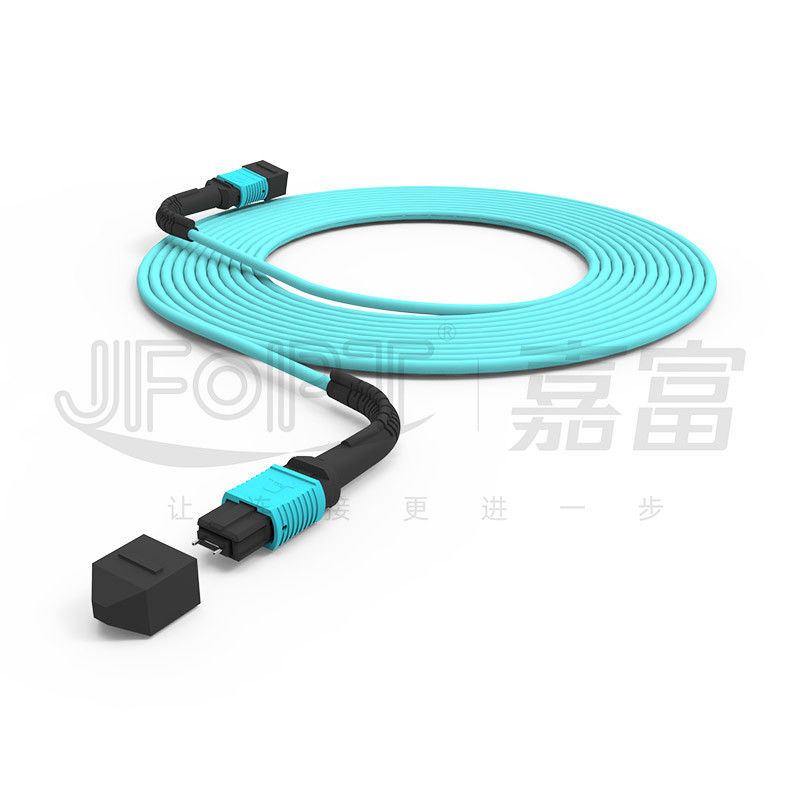

MPO Flexible Boot 3.0mm Round Cable 12-Core Single-mode/Multimode Trunk Cable
The MPO jumper with flexible boot offers the advantages of high-density and compact size typical of MPO jumpers, while also allowing adjustment of the boot's bending angle according to the installation environment. The flexible boot of the MPO jumper is equipped with a shapeable metal wire inside, which helps maintain the shape of the boot after installation, reducing the risk of cable stress-induced pulling or deformation. JFOPT MPO connectors surpass industry standards for component quality and have been supplied to leading brands in the industry. Over the years, our company has made significant improvements to MPO components, developing features such as multi-functionality (e.g., with push-pull tabs, interchangeable polarity, flexional boot) and various sizes (e.g., 2.0-5.0mm outer diameter, round cable, with cable, with fiber) to meet different project requirements while ensuring stable supply.
♦ Features
①Flexible boot allows for bending in any direction, suitable for limited spaces |
②JFOPT has strong development capabilities in MPO components and leads the industry with its multifunctional MPO components |
||||
|
|
||||
③ 100% tested according to IEC standards |
- |
||||
|
- |
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
Connector Type |
Insertion Loss |
Return Loss |
|||
Typical |
Maximum |
||||
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
SM Low Loss |
0.1dB |
0.35dB |
|||
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
MM Low Loss |
0.1dB |
0.35dB |
|||
Male/Female |
Male: with Pin, Female: without Pin |
♦ 3D Geometric Parameters
Items |
Max |
Min |
||
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
Y |
- |
5 |
||
Angle (°) |
X |
0.15 |
-0.15 |
|
Y(APC) |
8.2 |
7.8 |
||
Y(PC) |
0.2 |
-0.2 |
||
Radius of curvature of optical core (mm) |
- |
1 |
||
Fiber height (nm) |
3500 |
1000 |
||
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
Maximum negative coplanar (nm) |
300 |
N/A |
♦ Optical cable parameters
Project |
Parameters |
|||
Fiber Type |
Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
Fiber Count |
Optional : 8/12/16/24 |
|||
Strength Member |
Aramid yarn |
|||
Outer Jacket Material |
Optional : LSZH / PVC / TPU |
|||
Outer Jacket Diameter |
3.0mm |
|||
Outer Jacket Color |
Customization |
|||
Tensile Strength (Long-term) |
80N |
|||
Tensile Strength (Short-term) |
150N |
|||
Crush Resistance (Long-term) |
100N/cm |
|||
Crush Resistance (Short-term) |
500N/cm |
|||
Minimum Bending Radius (Dynamic) |
20D |
|||
Minimum Bending Radius (Static) |
10D |
|||
Operating Temperature |
-20~60℃ |
|||
Storage Temperature |
-20~60℃ |
|||
Fire Rating |
Optional : OFN / OFNR / OFNP |
♦ Connector Color Options
MPO connector |
||||
SM |
Green |
Yellow |
||
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|||
MM |
Beige |
Aqua |
||
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|||
Violet |
- |
|||
Reference color number PANTONE 7641C |
||||
|
♦ Boot Options
MPO boot |
||||
Type |
Specification |
Applicable cable |
Picture |
Drawings |
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
Square boot |
2.0 boot length 25mm |
3.0/3.2 |
|
|
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
12F Patch Cord |
||||
|
♦ Product Packaging
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
Professional: With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers. |
|
||||
Manufacturing Capacity: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
Standardization: JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers. |
|
||||
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be paid attention to when customizing MPO jumpers?
MPO jumper length/cable material/fiber type and number of cores/connector male/female/insert loss standard/color/label and other customized requirements.
2.How does our MPO jumper ensure stable parameters?
JFOPT's MPO jumper 100% passed the 3D interference test and 100% passed the insertion return loss test to ensure stable parameters.
3.Our lead time?
We can produce 30000+ MPO connectors per month, which can fully guarantee your fast shipment.
4.What other MPO derivative products do we do?
We can also produce MPO related products such as MPO circuit breaker/MPO attenuator/MPO male-to-female transition connector/MT jumper wire.
