10 Gigabit MPO 8/12C MM LL OM3/OM4 Type-B
Contact Us

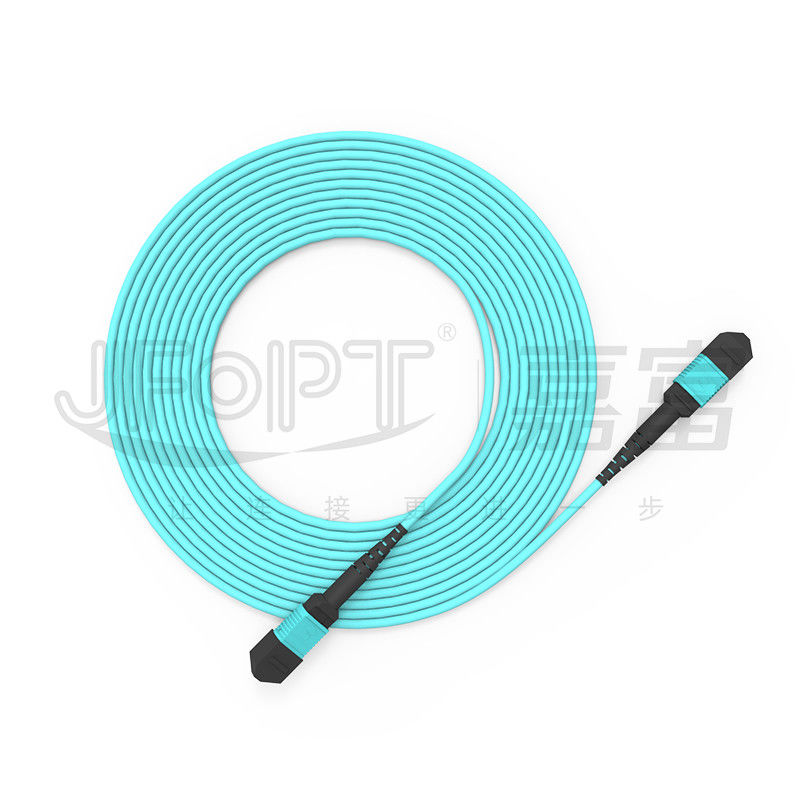

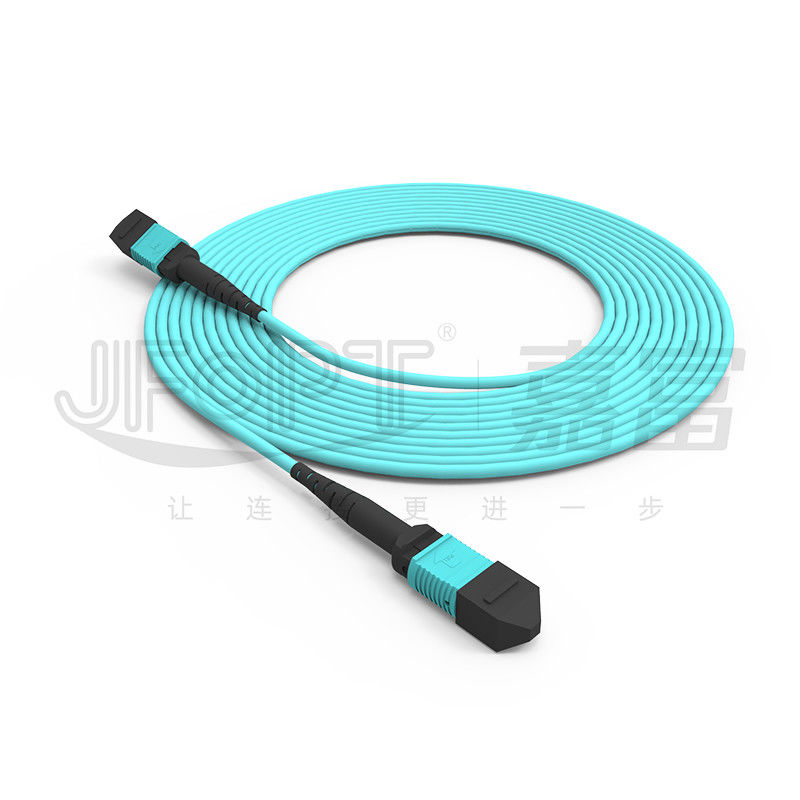

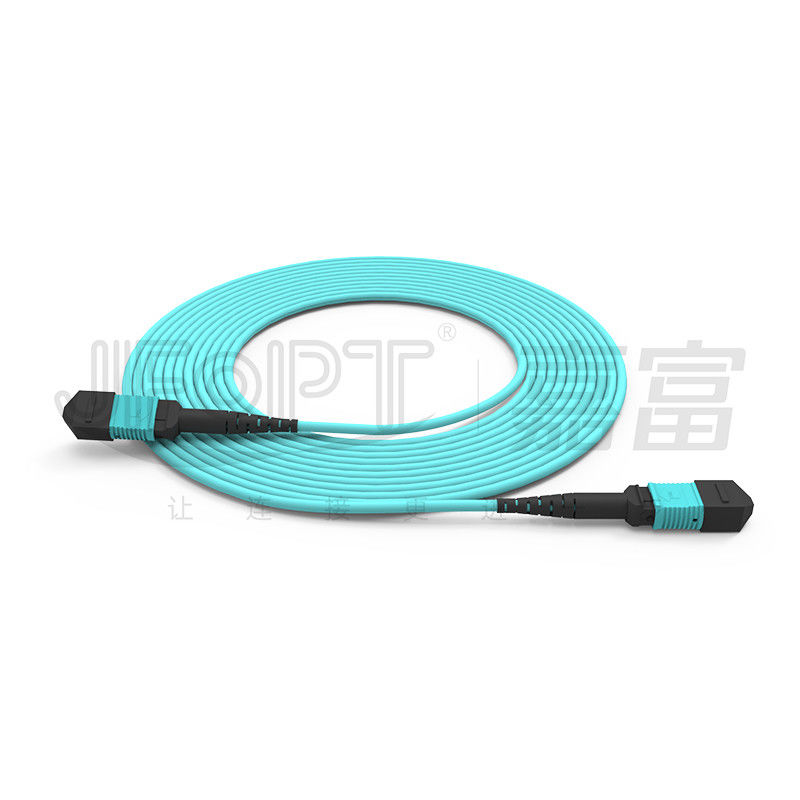

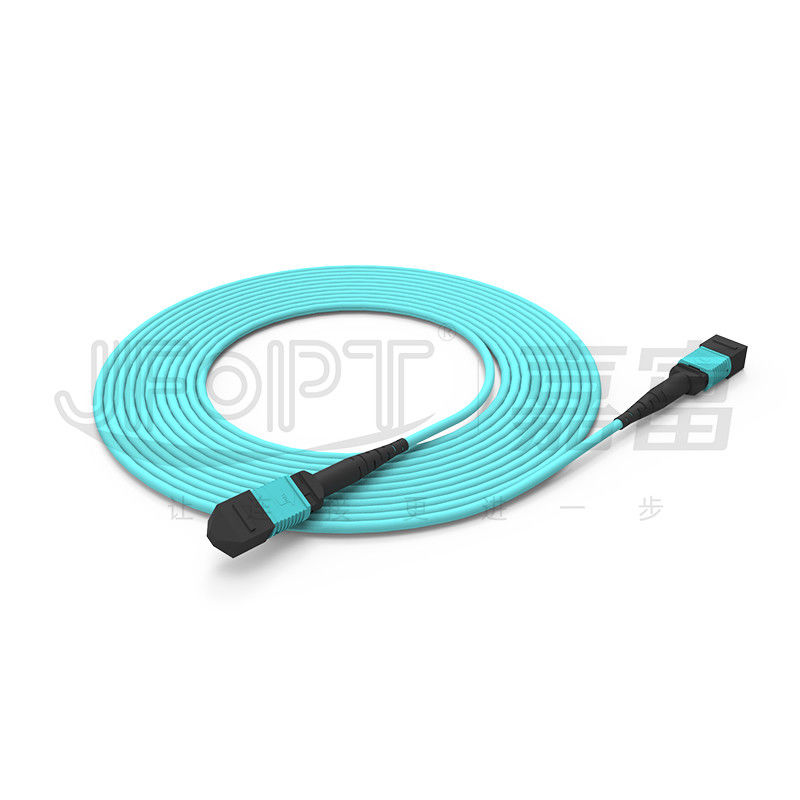

10 Gigabit MPO Trunk Cable 8/12 cores Multimode Low Loss OM3/OM4 Type B Polarity
JFOPT multimode 10 Gigabit 8/12-core MPO trunk cables utilize YOFC OM3/OM4 bend-insensitive optical fibers, ensuring fast and stable data transmission. They are widely used in 10 Gigabit optical transmission network systems. The MPO connectors feature low-loss MT ferrules, with insertion loss ≤0.35dB, reducing insertion loss. The cable sheath is made of brand new flame-retardant and environmentally friendly LSZH material, with imported aramid yarn as the reinforcement component, providing strong tensile performance. JFOPT MPO jumpers undergo 100% testing, and all parameters conform to international standards, significantly surpassing industry benchmarks.
♦ Features
|
①YOFC OM3/OM4 bend-insensitive optical fibers |
② Low-loss MT ferrules |
||||
|
|
|
||||
|
③Suitable for 10 Gigabit transmission systems, ensuring fast and stable data transmission |
④Quickly configured, reducing on-site installation time |
||||
|
|
|
||||
|
⑤Packaged in thick anti-static bags for effective product protection |
- |
||||
|
|
- |
||||
♦ Applications
1.Data center cabling
2.40G/100G optical communication systems, QSFP optical modules
3.Fiber optic communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters (Optional)
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Color Options
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
Optional 8/12/16/24 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
3.0mm |
|||
|
Outer sheath color |
Custom made |
|||
|
Max. Tensile Strength (long term) |
80N |
|||
|
Max. Tensile Strength (short term) |
150N |
|||
|
Max. crush resistance (long term) |
100N/cm |
|||
|
Max. crush resistance (short term) |
500N/cm |
|||
|
Minimum bending radius (dynamic) |
20D |
|||
|
Minimum bending radius (static) |
10D |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
Flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
|
Square boot |
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Expertise: With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO derivative products do we do?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
