Armored MPO-MPO 12C SM G657A1/G657A2 SL/LL
Contact Us

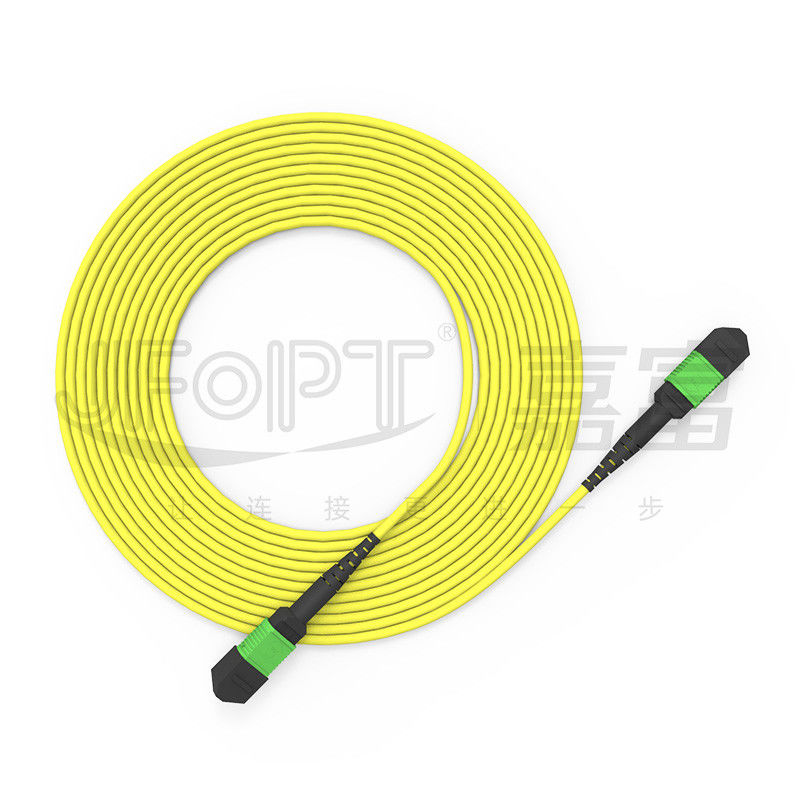

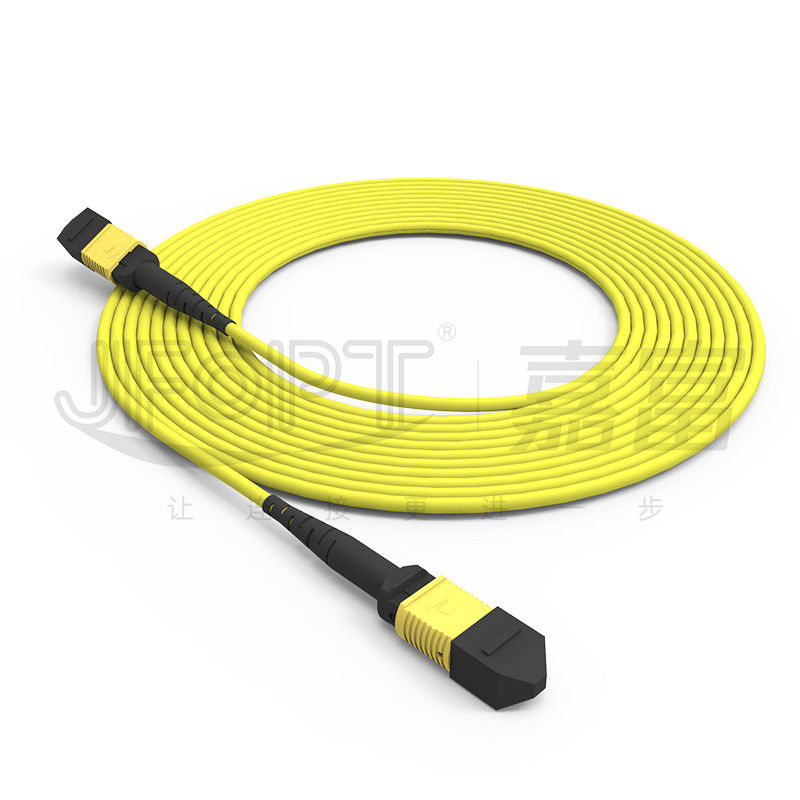

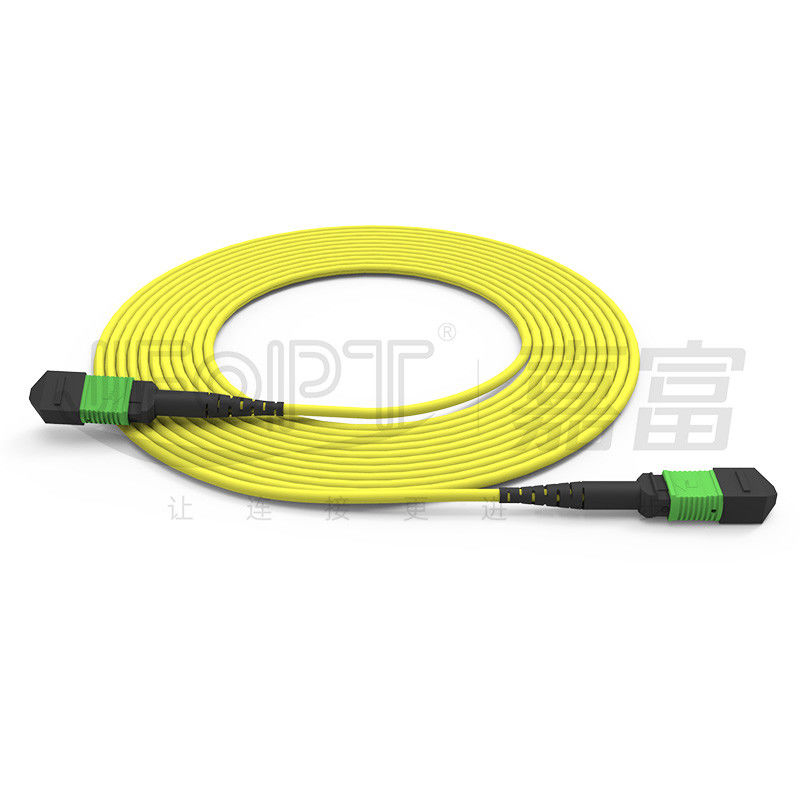

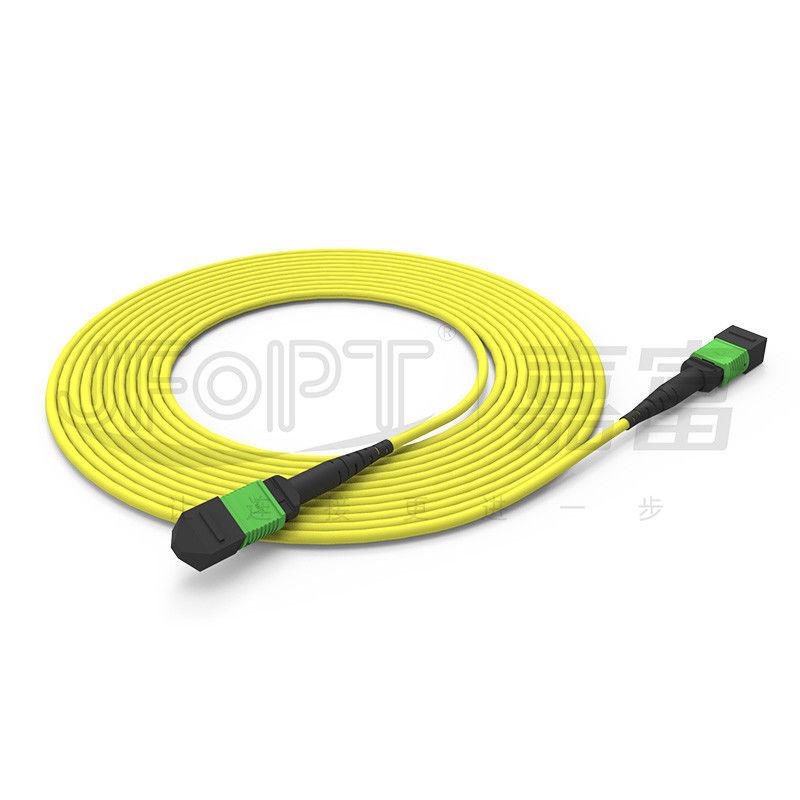

Armored Trunk Jumper MPO-MPO 12-Core Single Mode G657A1/G657A2 Standard Loss/Low Loss

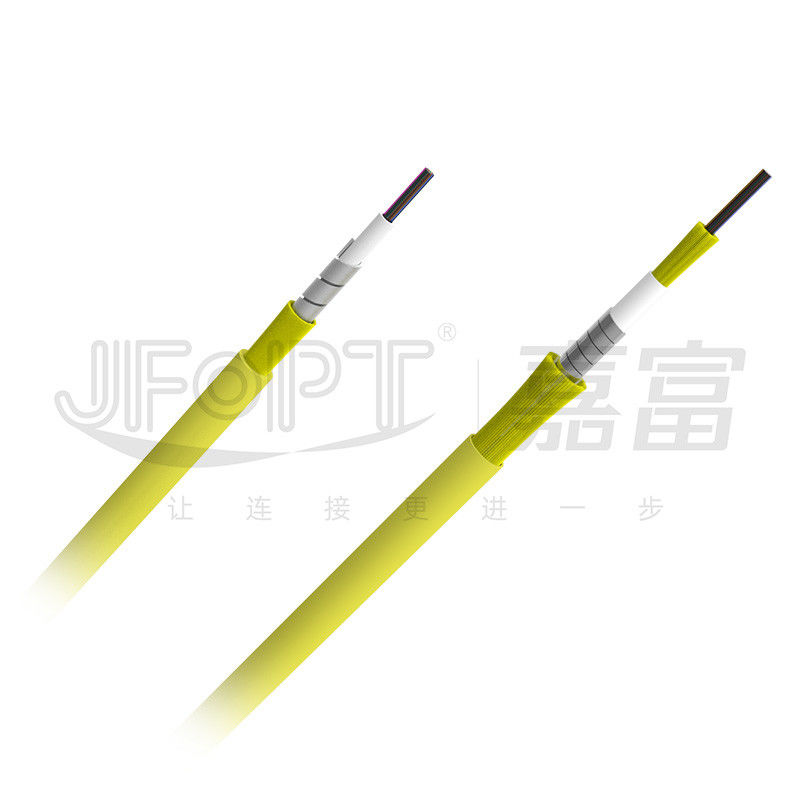

JFOPT armored single-mode 12-core MPO trunk jumper, with optical fibers covered by a layer of spiral stainless steel armor, providing the cable with strong resistance to bending, lateral pressure, impact, stretching, and rodent biting, ensuring more stable and reliable data transmission. The optical fibers single-mode G657A1/G657A2 is from brand YOFC bend-insensitive optical fibers, guaranteeing transmission quality. MPO connectors are available with standard loss (SL≤0.75dB) and low loss (LL≤0.35dB) MT ferrule, catering to different customer requirements. JFOPT offers various cable structures, including non-armored, single-armored, double-armored, and double-jacketed, for customization to meet diverse environmental applications.
♦ Features
|
①YOFC G657A1/G657A2 bend-insensitive optical fiber |
② Optional standard loss/low loss MT ferrule |
||||
|
|
|
||||
|
③Various cable structures available, including non-armored, single-armored, double-armored, double-jacketed, and more |
④Possesses excellent mechanical performance and rodent resistance capability |
||||
|
|
|
||||
|
⑤Customizable in different lengths according to requirements |
- |
||||
|
|
- |
||||
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||

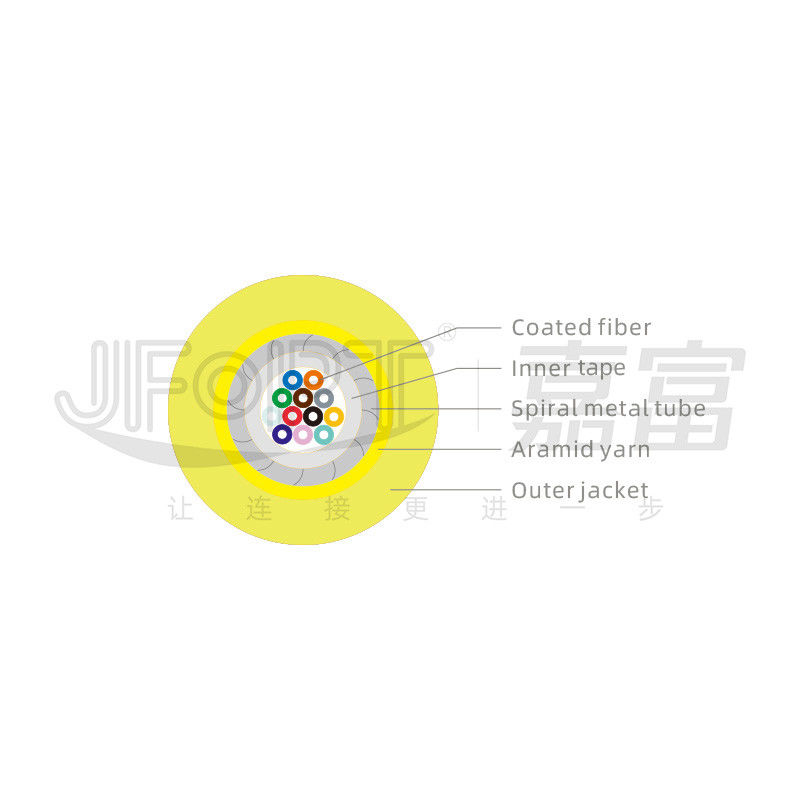

♦ Single Armored Single Sheath Cable Parameters
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 |
24 |
||
|
Armoring Material |
Stainless Steel |
|||
|
Armoring Outer Diameter |
2.1~2.2mm |
3.6~3.7mm |
||
|
Armoring Thickness |
0.25~0.28mm |
0.25~0.28mm |
||
|
Outer Sheath Diameter |
3.0±0.1mm |
4.5±0.1mm |
||
|
Outer Sheath Material |
Optional LSZH/TPU |
|||
|
Outer Sheath Color |
Yellow/Orange/Lime Green/Heather Violet/Custom |
|||
|
Tensile Strength (Long-term) |
500N |
200N |
||
|
Tensile Strength (Short-term) |
800N |
600N |
||
|
Crush Resistance (Long-term) |
800N/cm |
200N/cm |
||
|
Crush Resistance (Short-term) |
1200N/cm |
600N/cm |
||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Dual Armored Dual Sheath Cable Parameters
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 |
24 |
||
|
Inner Sheath Outer Diameter |
1.4±0.1mm |
3.0±0.2mm |
||
|
Inner Sheath Material |
LSZH |
|||
|
Armoring Material |
Stainless Steel |
|||
|
Armoring Outer Diameter |
2.0±0.1mm |
4.0±0.2mm |
||
|
Armoring Thickness |
0.25~0.28mm |
0.4~0.43mm |
||
|
Braiding Layer |
Stainless Steel |
|||
|
Outer Sheath Diameter |
3.0±0.1mm |
6.0±0.3mm |
||
|
Outer Sheath Material |
Optional LSZH/TPU |
|||
|
Outer Sheath Color |
Yellow/Orange/Lime Green/Heather Violet/Custom |
|||
|
Tensile Strength (Long-term) |
150N |
600N |
||
|
Tensile Strength (Short-term) |
300N |
1000N |
||
|
Compressive Strength |
3000N/10cm |
|||
|
Minimum Bending Radius (Dynamic) |
60D |
|||
|
Minimum Bending Radius (Static) |
30D |
|||
|
Operating Temperature |
-40~80℃ |
|||
|
Storage Temperature |
-40~80℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Color Options
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
|
Square boot |
2.0 boot length 25mm |
3.0/3.2 |
|
|
|
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Expertise: With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and core count / Male or female connectors / Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% insertion loss testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male-to-female adapters, MT jumpers, and other MPO-related products.
