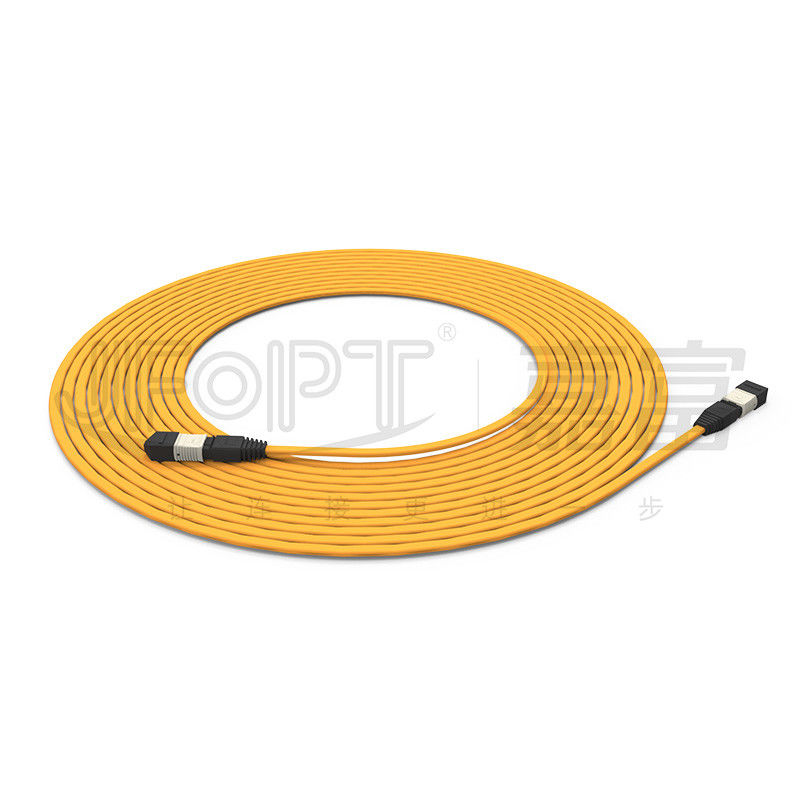

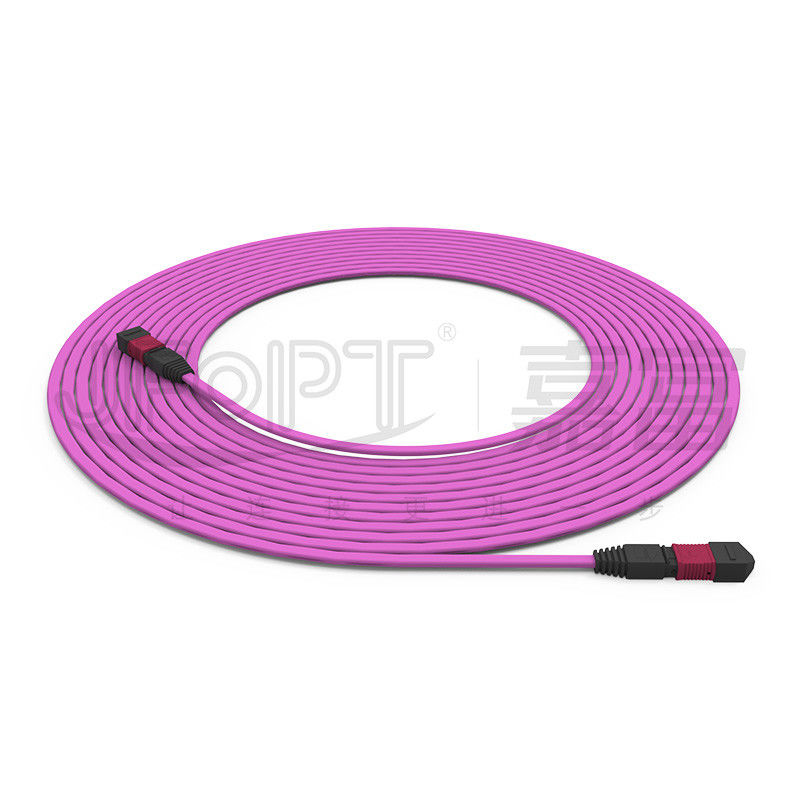

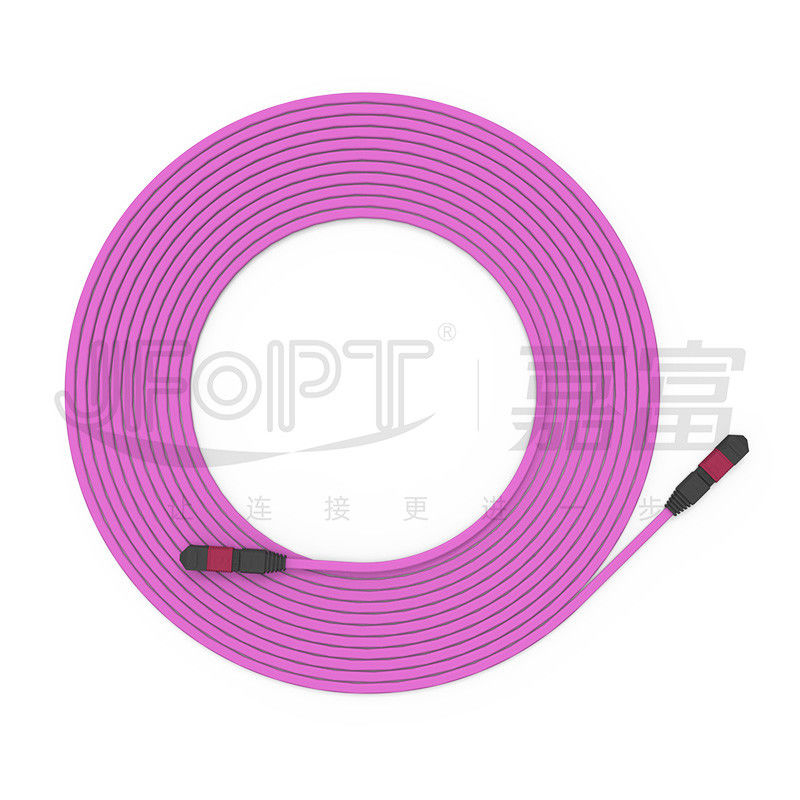

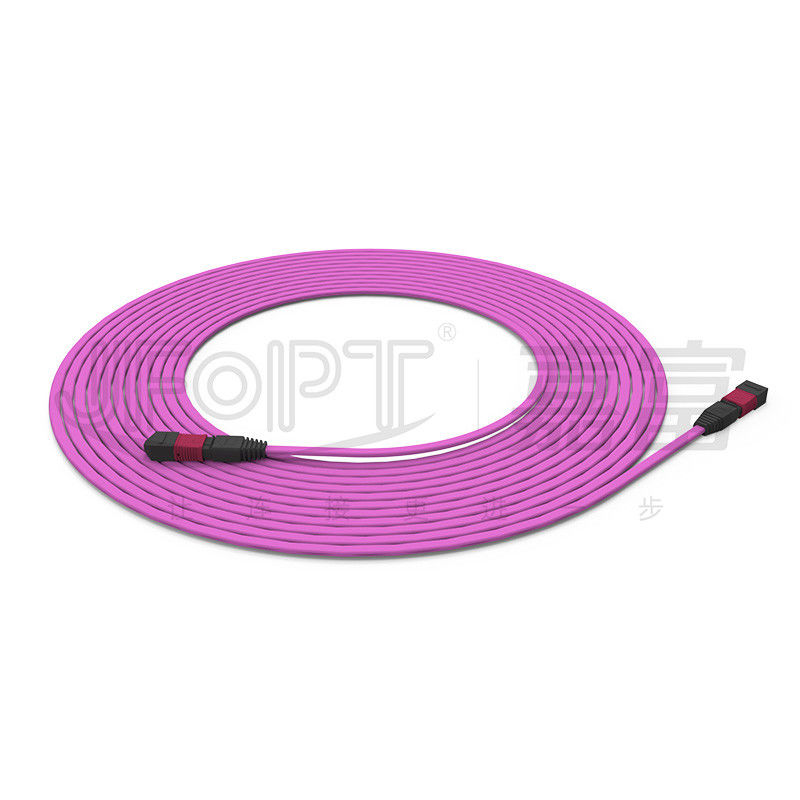

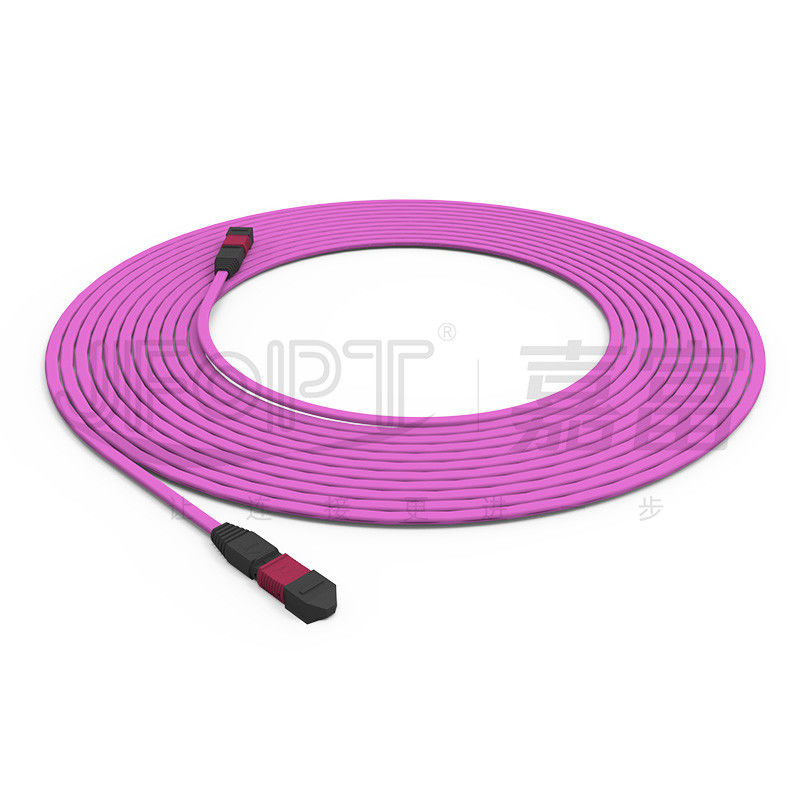

Flame-Retardant Trunk Cable 12-Core Multimode 50/125 OFNR/OFNP

①Multimode options include OM3/OM4/OM5 optical fibers

②Utilizes bend-insensitive optical fibers for stable transmission

③ Choice of MPO or MTP connectors

④Customization services available to meet customer requirements

④Complies with IEC standards and ROHS requirements

-

-

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male/Female

Male: with Pin, Female: without Pin

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A

Item

Parameter

Fiber type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber count

2~12芯

Reinforcement element

Aramid yarn

Outer sheath material

Optional LSZH/PVC/TPU

Outer sheath diameter

2.5x5.0mm

Outer sheath color

Yellow/Orange/Green/Plum Purple/Customized

Max. Tensile Strength (long term)

100N

Max. Tensile Strength (short term)

200N

Max. crush resistance (long term)

200N/cm

Max. crush resistance (short term)

500N/cm

Minimum bending radius (dynamic)

50mm

Minimum bending radius (static)

30mm

Operating temperature

-20~60℃

Storage temperature

-20~60℃

Flame retardance

Optional OFN/OFNR/OFNP

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

Violet

-

Reference color number PANTONE 7641C

Type

Specification

Applicable cable


Drawings

Round boot

3.0 boot length 33mm

3.0/3.2

3.0 boot length 17mm

3.0/3.2

4.0 boot length 33mm

3.8/4.0

Square boot

2.0 boot length 25mm

2.0

3.0 boot length 25mm

3.0/3.2

4.0 boot length 17mm

3.8/4.0

Ribbon Cable boot

2.5*5.0 boot length 22mm

2.5*5.0

Bare Ribbon fiber boot

Bare Ribbon fiber boot length 19mm

Bare Ribbon Fiber

Pull tab

Universal for all boots

Universal

Thickened anti-static bag

Thickened carton
