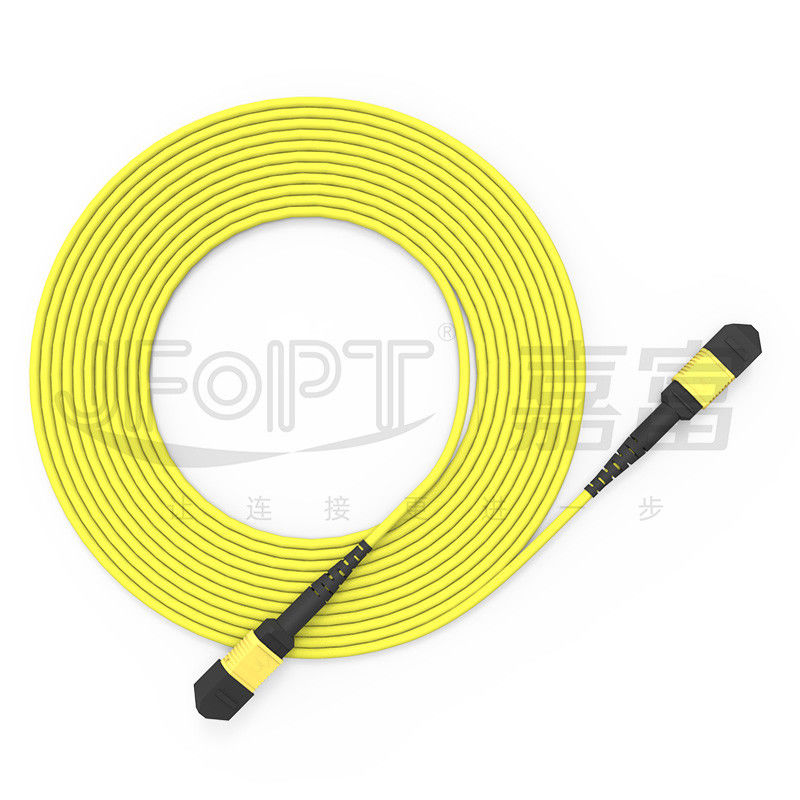

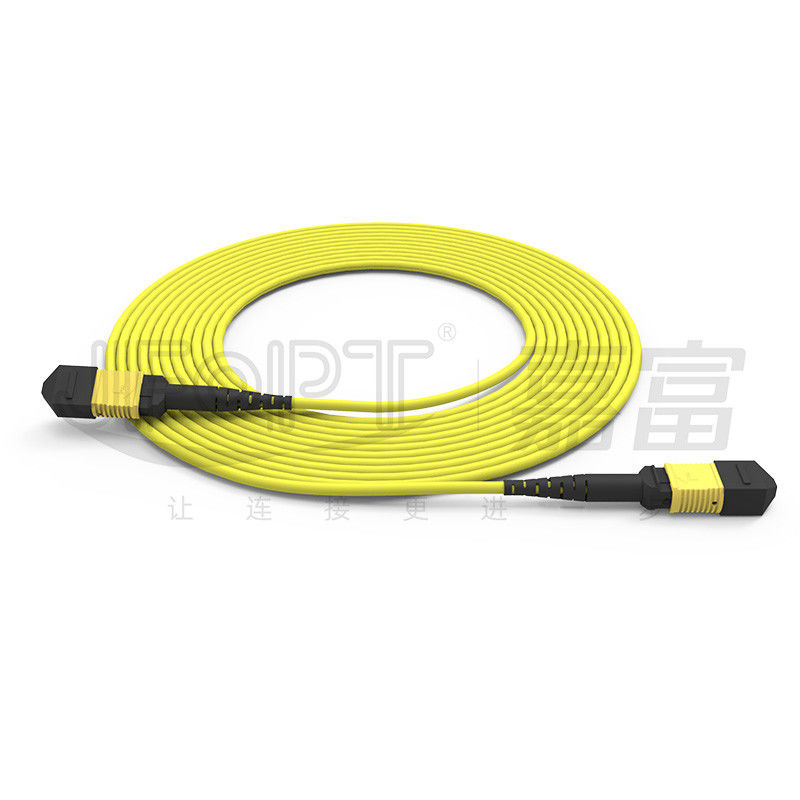

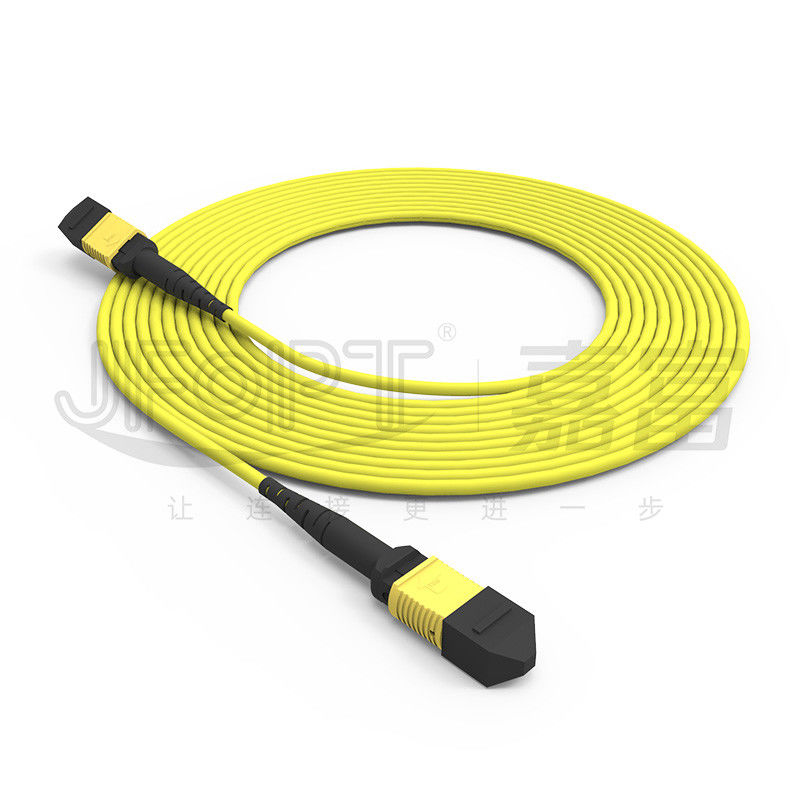

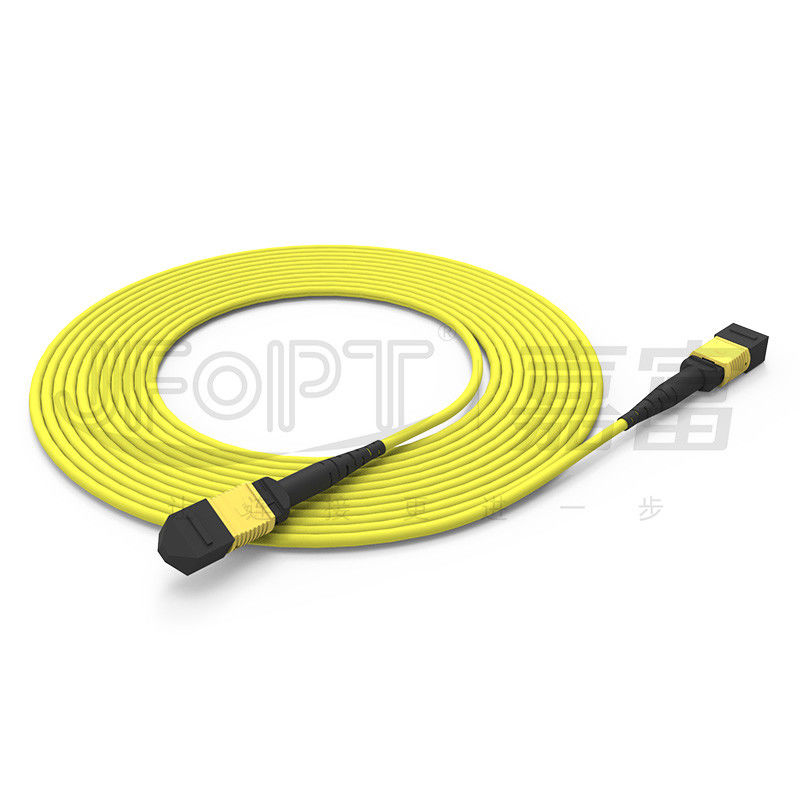

MPO-MPO 12-Core Single-Mode G657A1/G657A2 3.0 LSZH A/B Polarity Reversal Trunk Patch Cord
In complex wiring systems within the data center, there is often an issue of incorrect MPO jumper polarity, which can result in failed connections, causing delays in on-site construction and exceeding budget estimates. JFOPT has introduced a 12-core MPO jumper with polarity reversal to completely address this challenge. This MPO jumper with polarity reversal allows for seamless switching between A and B polarities, providing greater flexibility in optical fiber cabling and reducing the complexity of wiring. JFOPT's polarity reversal MPO jumper requires no additional tools, and you can easily switch between A and B polarities by pushing the housing backward, using the movable K-keys for extraction or concealment, making polarity reversal a simple and hassle-free process. With JFOPT's polarity reversal MPO jumper, you can eliminate the frustrations caused by incorrect polarities and effortlessly resolve these issues.
♦ Features
|
① A/B Polarity Reversal |
② No Tools Required for Reversal |
||||
|
|
|
||||
|
③No Need to Remove the Housing during Reversal |
④Flexible Cabling, Reducing On-Site Construction Complexity |
||||
|
|
|
||||
|
⑤Single-Mode Options: G657A1/G657A2; Multi-Mode Options: OM3/OM4/OM5 |
- |
||||
|
|
- |
||||
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Strength (Long-term) |
100N/cm |
|||
|
Crush Strength (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
2.5x5.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
100N |
|||
|
Tensile Strength (Short-term) |
200N |
|||
|
Crush Strength (Long-term) |
200N/cm |
|||
|
Crush Strength (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
50mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||

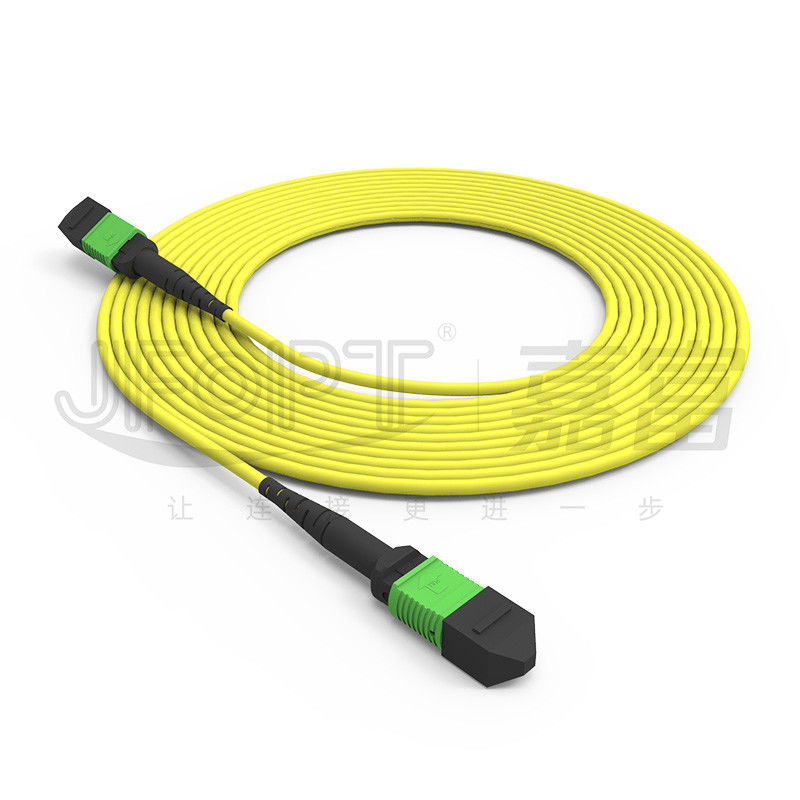

♦ Connector Housing Color Options
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
|
Square boot |
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
♦ Interchangeable polarity operation
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has focused on the production of MPO jumpers for more than 10 years. With professional technology and a full set of first-class brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality, high-performance MPO jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 MPO production lines, allowing the rapid and efficient production of a large quantity of MPO trunk cables to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/IL&RLtesting/end-face inspection to ensure product quality. |
|
||||
|
Setting standards: JFOPT can formulate and strictly implement MPO jumper production standards according to user needs to ensure product consistency and performance stability. |
|
||||
|
Technological innovation: JFOPT focuses on technological innovation and has a professional R&D team to continuously develop MPO jumpers with more advanced functions and higher performance. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / Male or female connectors / Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO-related products.
