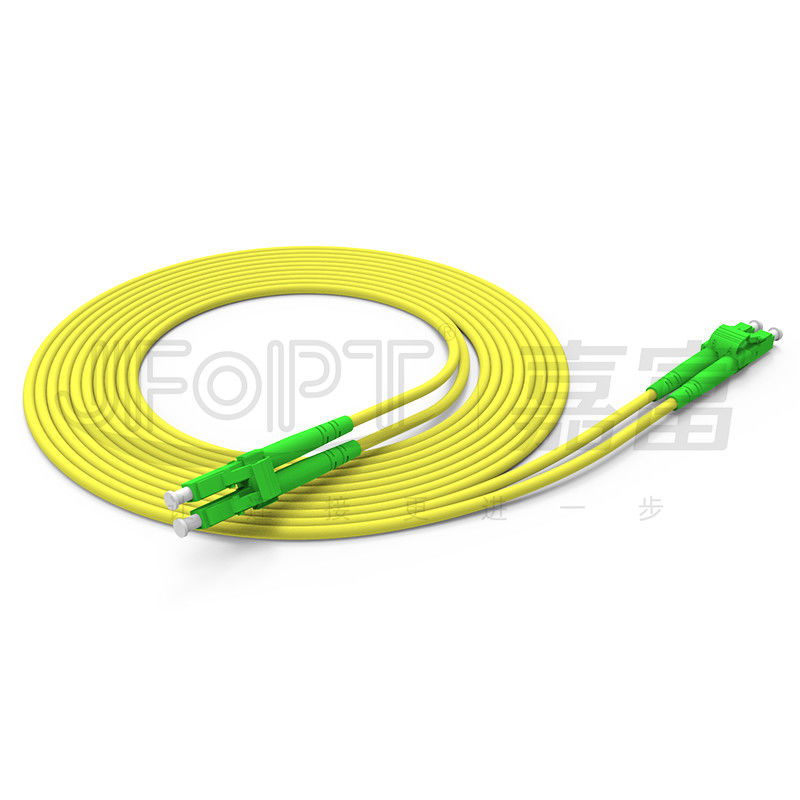

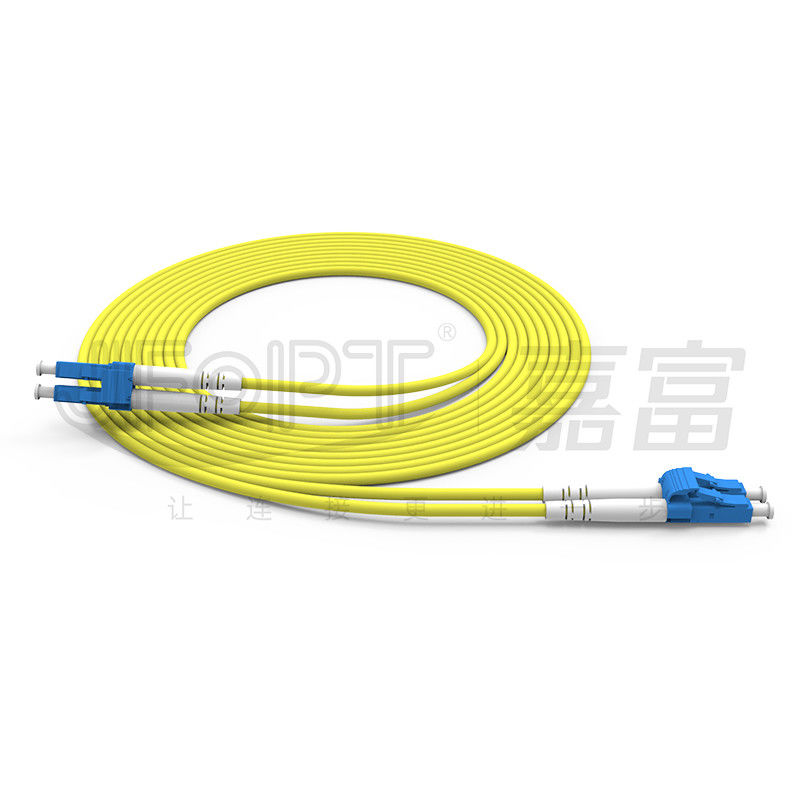

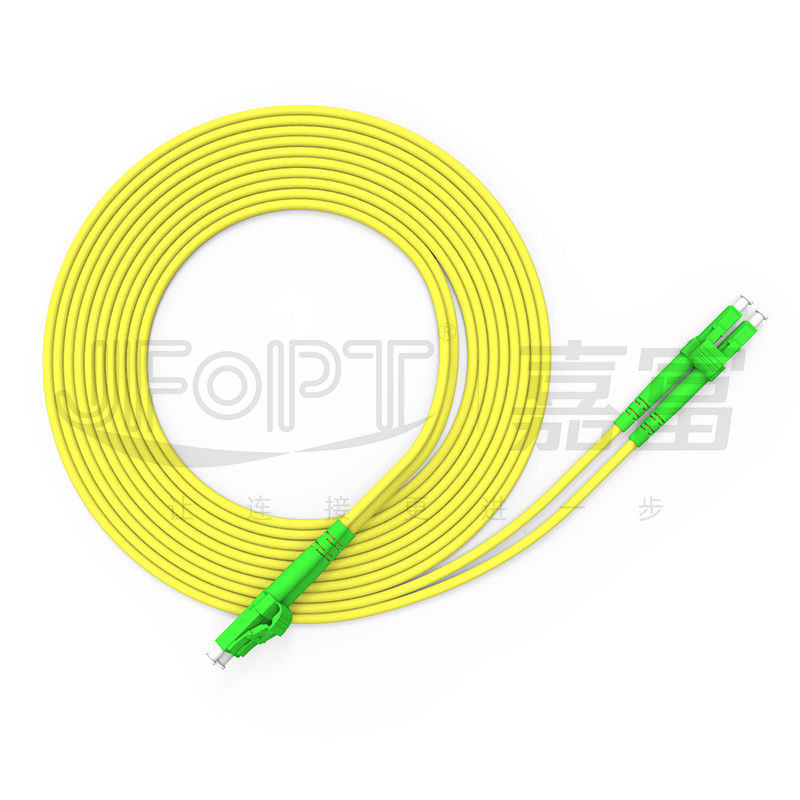

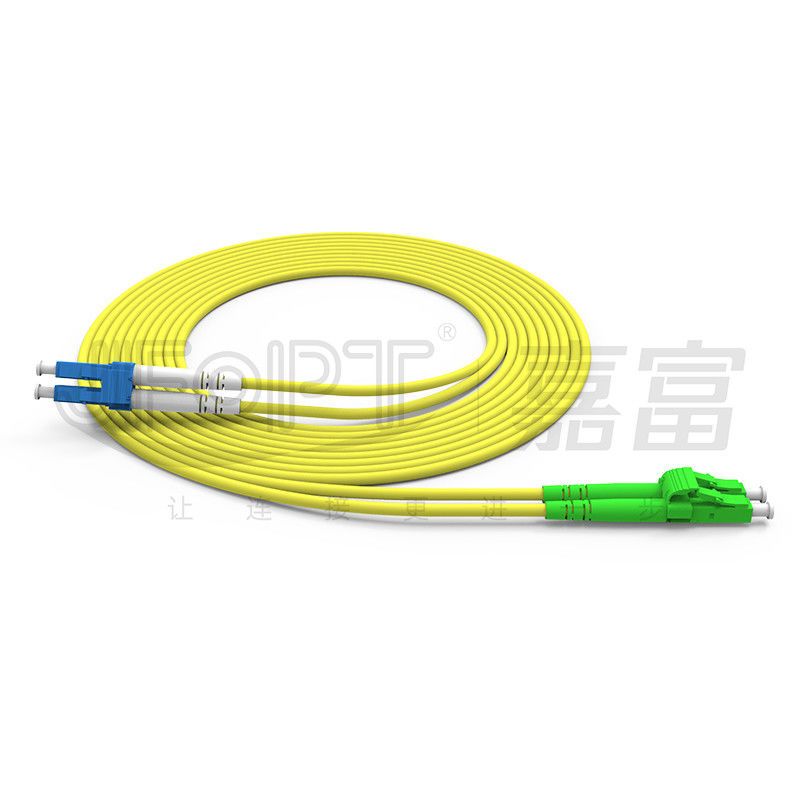

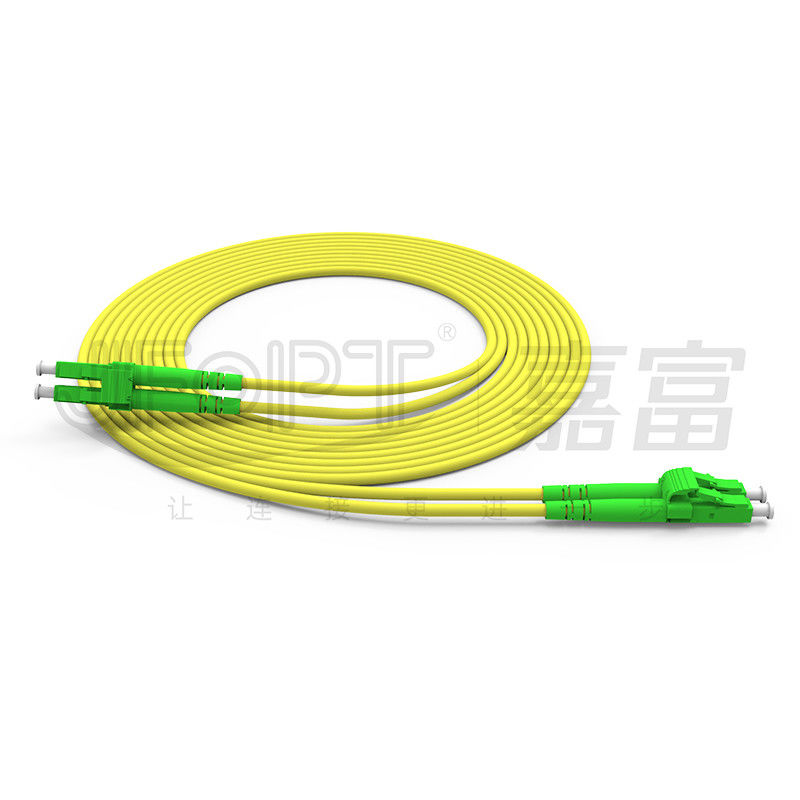

Single-mode 9/125 G652D/G657A1/G657A2 LC Duplex Fiber Patch Cable
JFOPT's LC patch cords are made from PEI material, offering stable performance and a long lifespan. They are widely used for interconnections between optical fiber equipment, optical fiber cabling systems, connections between hardware, or for connecting hardware devices to optical fiber cabling links. The fiber cores are sourced from leading brands to ensure stable performance, and high-quality aramid yarn is used internally to protect the fiber cores, preventing breakage and bending.
♦ Features
|
①High-quality fiber cores, bend-resistant, and reduced attenuation |
②Supports hot-plugging with lower insertion loss |
||||
|
|
|
||||
|
③Safe outer jacket material, resistant to aging, corrosion, and flame retardant |
④Strong compatibility, suitable for various optical fiber environments |
||||
|
|
|
||||
♦ Applications
1.Fiber access network
2.Fiber optic data transmission
3.Optical fiber communication system, cable television network, telecommunication network
4.Local area networks (lans), wide area networks (wans), fttx
5.Test equipment, fiber optic sensors
♦ SC/LC/FC/ST Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Color Options
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber count |
2 |
|||
|
Reinforcement element |
Aramid yarn |
|||
|
Outer sheath material |
Optional LSZH/PVC/TPU |
|||
|
Outer sheath diameter |
3.0mm |
|||
|
Outer sheath color |
Customizable |
|||
|
Max. Tensile Strength (long term) |
160N |
|||
|
Max. Tensile Strength (short term) |
300N |
|||
|
Max. crush resistance (long term) |
200N/cm |
|||
|
Max. crush resistance (short term) |
1000N/cm |
|||
|
Minimum bending radius (dynamic) |
50mm |
|||
|
Minimum bending radius (static) |
30mm |
|||
|
Operating temperature |
-20~60℃ |
|||
|
Storage temperature |
-20~60℃ |
|||
|
flame retardance |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Options
|
Duplex |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawings |
||
|
2.0mm |
Standard boot |
|
|
||
|
2.0mm |
Short boot 1 |
|
|
||
|
2.0mm |
Short boot 2 |
|
|
||
|
3.0mm |
Standard boot |
|
|
||
|
3.0mm |
Short boot 1 |
|
|
||
|
3.0mm |
Standard UNIBOOT |
|
|
||
|
2.0/3.0mm |
45° boot |
|
|
||
|
2.0/3.0mm |
90° boot |
|
|
||
|
Duplex |
With any boot |
|
|
||
♦ Duplex Polarity Selection
|
TYPE A-B(Straight) |
|
|
|
TYPE A-A(Crossing) |
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on the production of fiber patch cords for over 20 years, with professional production techniques to produce high-quality and high-performance fiber patch cords. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines, enabling efficient production of large quantities of fiber patch cords to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control, including quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality. |
|
||||
|
Standard Development: JFOPT can develop and strictly adhere to fiber patch cord production standards according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber patch cords. |
|
||||
|
Service and technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.Which issues should be considered when customizing standard fiber patch cords?
Customization requirements for fiber patch cords include length, cable material, fiber type and count, duplex polarity, color, and labeling.
2.How do we ensure the stability of our standard fiber patch cords?
JFOPT's standard fiber patch cords undergo 100% insertion loss testing and end-face inspection, ensuring quality stability through multiple inspections.
3.What is our delivery time?
For standard products, our delivery time can be controlled within 2 working days, ensuring prompt shipment.
