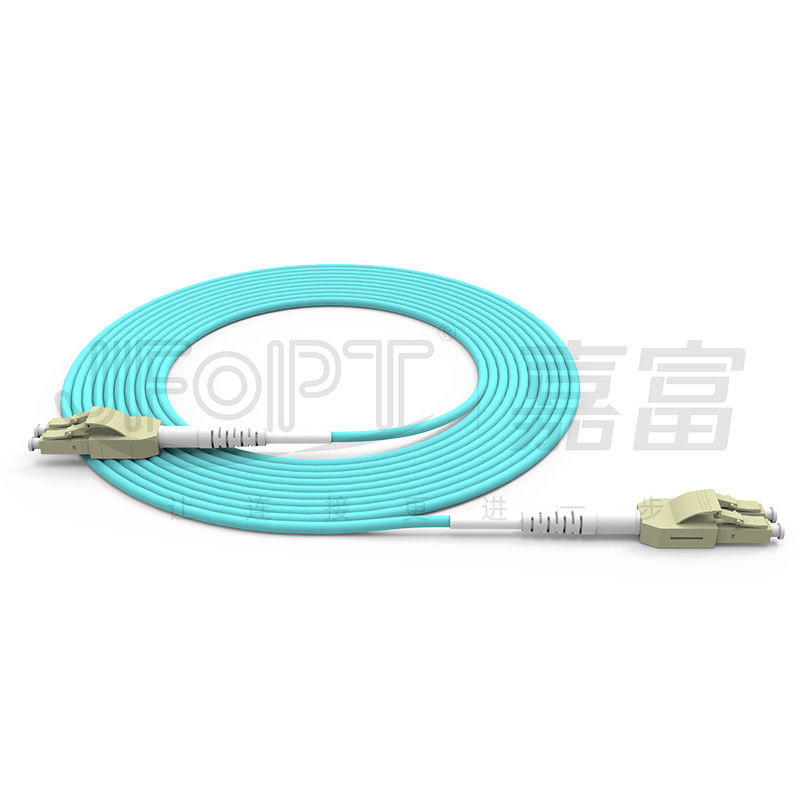

UNIBOOT LC Duplex Multi-mode OM3/OM4 10 Gigabit Fiber Patch Cable
JFOPT's UNIBOOT LC patch cords utilize single-core dual-fiber cables. Compared to traditional dual-core dual-boot patch cords, they are suitable for high-density assembly environments and significantly reduce the wiring volume. This can effectively improve ventilation issues in high-density congested environments. Moreover, the boot can be bent at will, making this type of patch cord very suitable for use in high-density environments.
♦ Features
|
① Integrated boot, cable volume can be saved by 50% |
② Multiple boot styles available for selection |
||||
|
|
|
||||
|
③ Equipped with dust caps to effectively prevent dust and protect connectors |
④Made from new environmentally friendly materials, resistant to pulling and dragging |
||||
|
|
|
||||
♦ Applications
1.Fiber optic access networks.
2.Fiber optic data transmission.
3.Fiber optic communication systems, cable television networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Connector Parameters
|
Connector Type |
LC Uniboot Switchable Polarity |
|||
|
Ferrule Type |
Single - mode : UPC ; Multi - mode : UPC |
|||
|
Insert Material |
Grade A Zirconia Ceramic Ferrule |
|||
|
Connector Color |
Blue / Beige / Aqua / Purple / Lime Green |
|||
|
Compatible Cable Outer Diameter |
Single - tube dual -c ore 2.0/3.0mm |
|||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
|||
|
Return Loss |
Single - mode : UPC≥50dB ; APC≥60dB ; Multi - mode : ≥25dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Interchangeability |
≤0.2dB |
|||
♦ Single Tube Duplex Cable Parameters
|
Item |
Parameters |
|||
|
Fiber Type |
G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Number of Fibers |
2 |
|||
|
Strength Member |
Aramid Yarn |
|||
|
Outer Jacket Material |
PVC / LSZH |
|||
|
Outer Jacket Diameter |
1.9±0.1mmmm |
2.9±0.1mm |
||
|
Outer Jacket Color |
Yellow / Orange / Aqua / Purple / Lime Green / Customized |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term |
150N |
|||
|
Crush Strength (Long-term) |
100N / cm |
|||
|
Crush Strength (Short-term) |
500N / cm |
|||
|
Minimum Bending Radius (Dynamic) |
60mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
OFN / OFNR / OFNP |
|||
♦ Connector Options

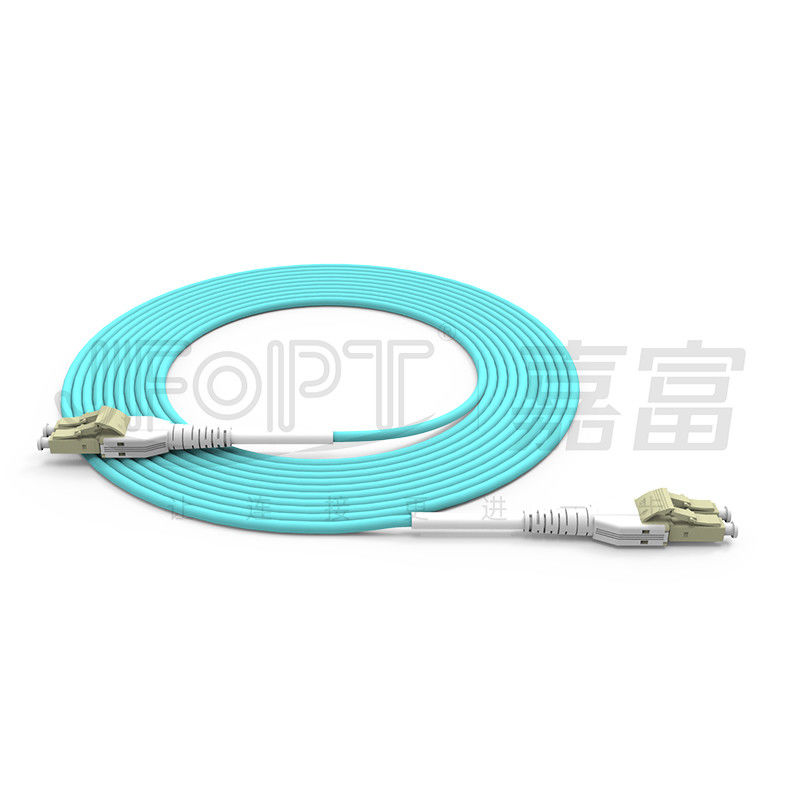

| Function | Non - pull tab | Non - switchable polarity | |||
| Type | Matching cable outer diameter | Image | Drawing | ||
| Style 1 | 2.0/3.0mm | |
|
||

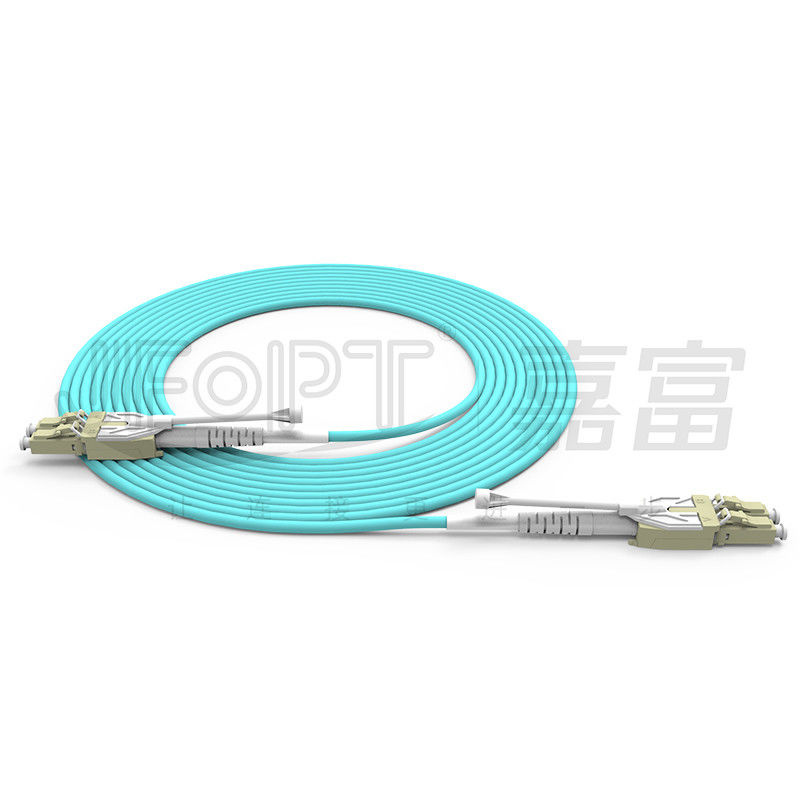

| Function | Pull tab | Non - switchable polarity | |||
| Type | Matching cable outer diameter | Image | Drawing | ||
| Style 1 | 2.0/3.0mm | |
|
||

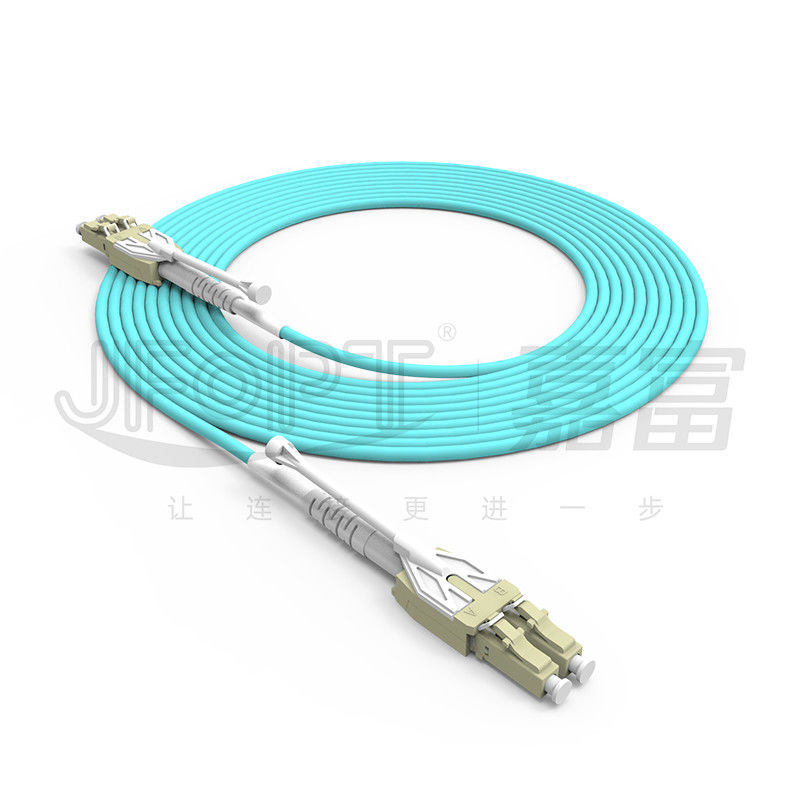

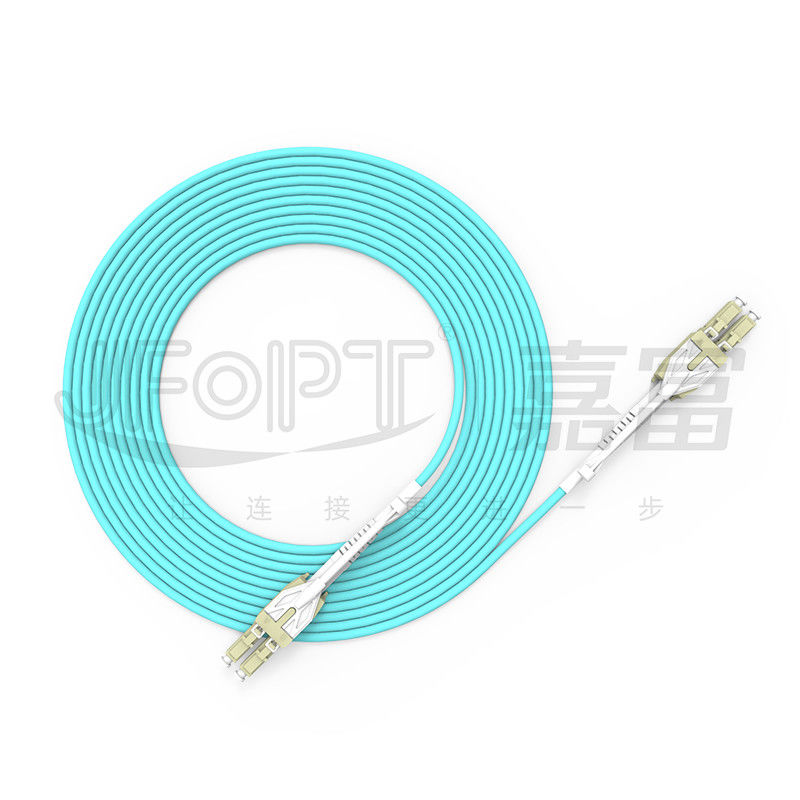

| Function | Pull tab | Switchable polarity | |||
| Type | Matching cable outer diameter | Image | Drawing | ||
| Style 1 | 2.0mm | |
|
||
| Style 2 | 3.0mm | |
|
||
| Switchable polarity is only available with UPC polishing | |||||
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Standardization: With over 20 years of focus on fiber optic jumper production, JFOPT possesses professional production technology to manufacture high-quality, high-performance fiber optic jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines and equipment to quickly and efficiently produce a large quantity of fiber optic jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage, from raw material procurement to production processes. Insertion loss testing and endface inspection are conducted to ensure product quality. |
|
||||
|
Standard Compliance: JFOPT can develop and strictly adhere to fiber optic jumper production standards based on customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and maintains a professional research and development team to continually develop fiber optic jumpers with advanced functionality and higher performance. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.When customizing standard fiber jumpers, there are several factors to consider?
Length of the fiber jumper / Cable material for the fiber jumper / Fiber type and core count / Duplex polarity for the fiber jumper / Color customization for the jumper / Custom labeling requirements.
2.How do we ensure the stability of our standard fiber jumpers?
JFOPT ensures the stability of our standard fiber jumpers through multiple quality checks. Our jumpers undergo 100% insertion loss testing and end-face inspection, among other tests, to ensure consistent quality.
3.What other advantage products do we offer besides LC jumpers?
In addition to LC jumpers, we also manufacture FC/ST/SC and other standard model jumpers, connector adapter jumpers of various models, MPO adapters for standard connectors (such as LC), as well as outdoor waterproof fiber cables and jumpers. We also provide various custom fiber connectors for special applications.
4.What is our delivery lead time?
For standard products, our delivery lead time can be controlled within 2 working days, ensuring prompt shipment and satisfying your needs for quick turnaround.
