Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
CE, ISO9001
Model Number:

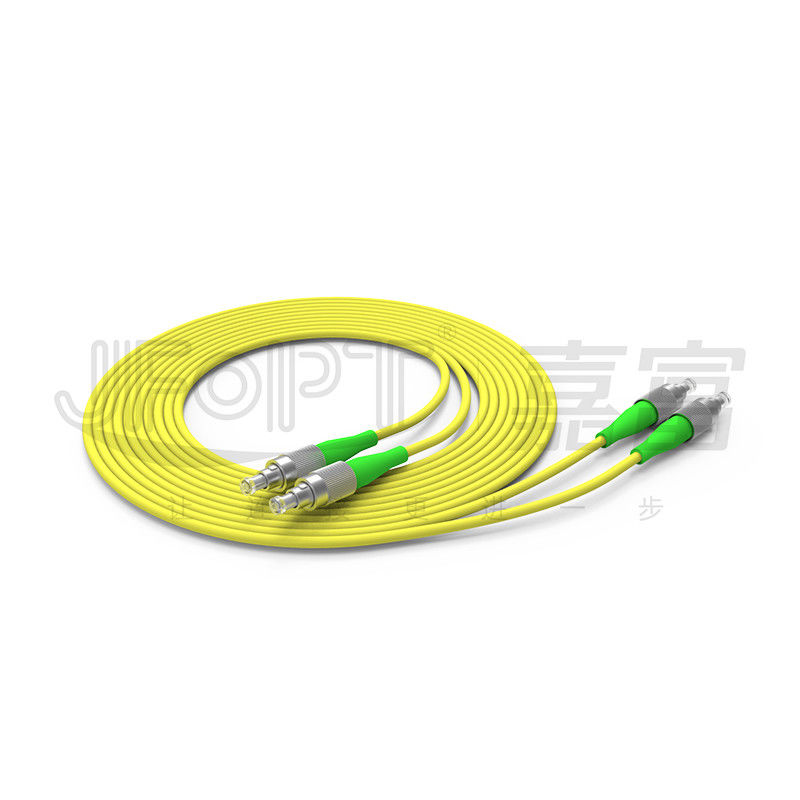

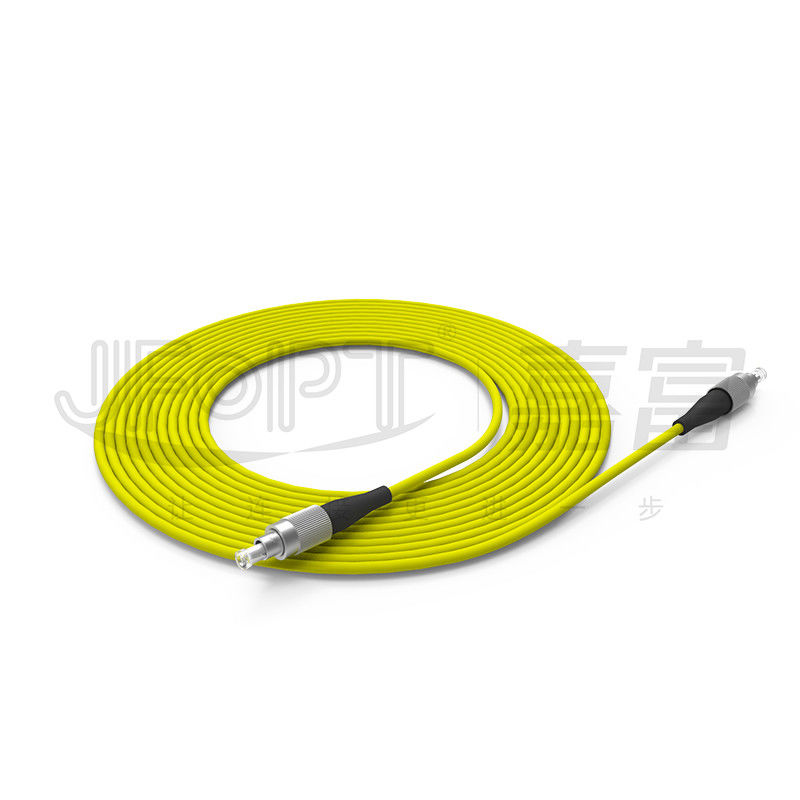

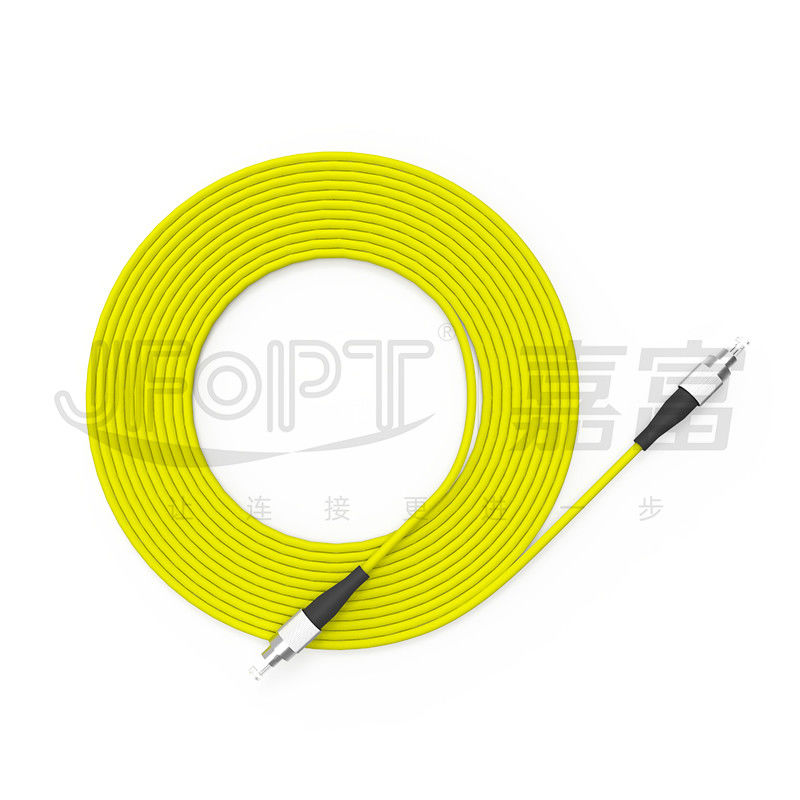

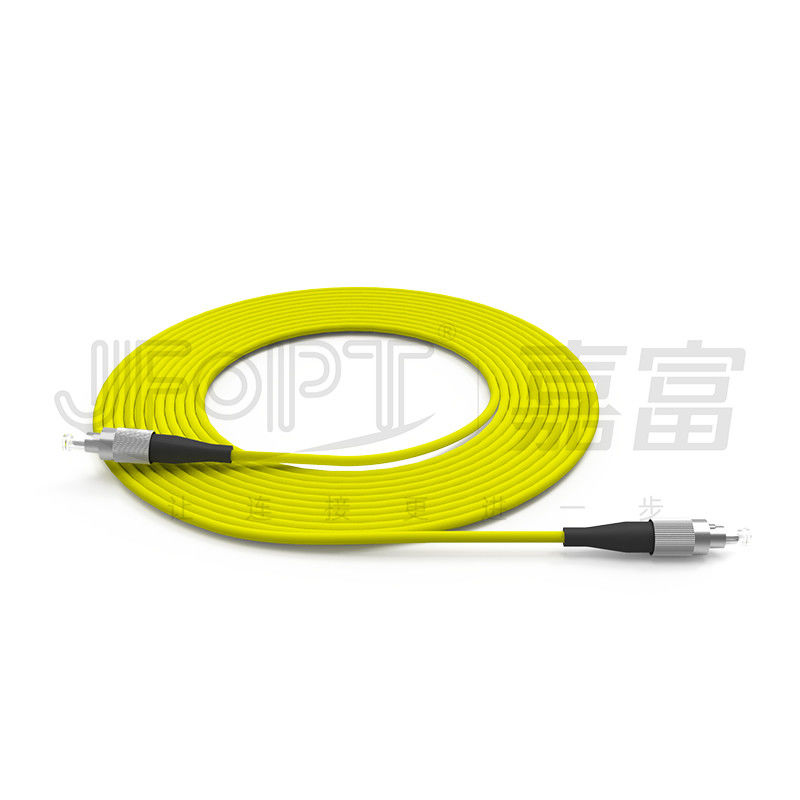

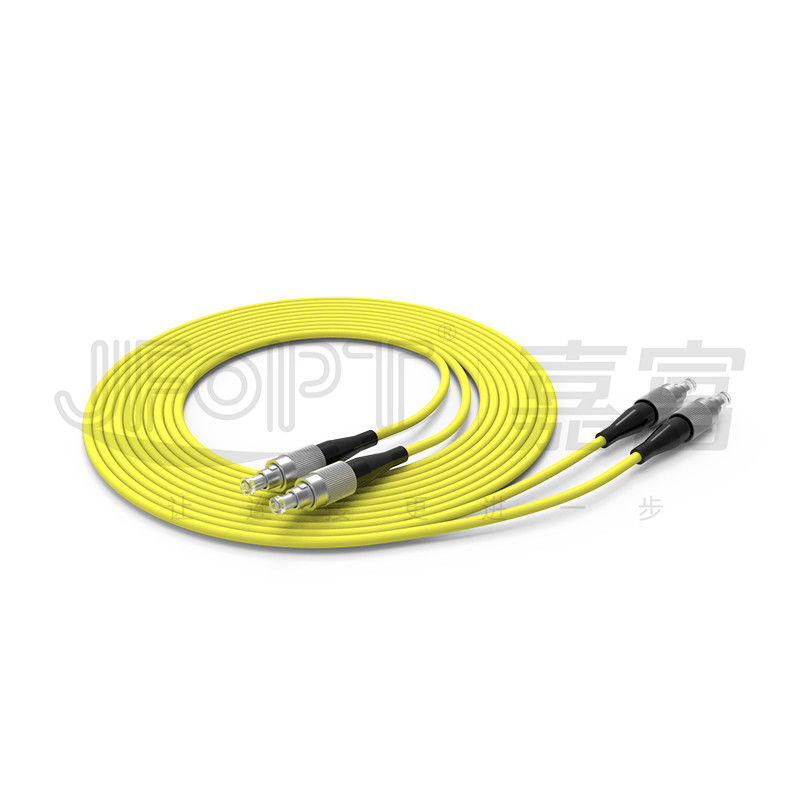

Single Mode FC Fiber Optic Jumper
Contact Us
|
Type |
Specification |
|---|---|
|
Fiber |
G652D |
|
Ferrule |
High Quality Ceramic Ferrule |
|
OEM |
Available |
|
Cable Jacket |
PVC OFNR LSZH |
|
Return Loss |
>50dB |
|
Standard |
IEC 60332-3C, IEC 60754-2, IEC 61034-2 |
|
Core Diameter |
125µm |
|
Cable Mode |
Single Mode |
|
Cable Core |
1/2 Core |
|
Technical Performance |
||||
|
Connector Characteristics |
Connector Type |
FC |
||
|
Polish Type |
UPC/APC |
|||
|
Ferrule Type |
Grade A zirconia ceramic ferrule |
|||
|
Matching Cable Outer Diameter |
2.0mm/3.0mm |
|||
|
Boot Color |
blue/green |
|||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
|||
|
Return Loss |
UPC≥50dB; APC≥60dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Interchangeability |
≤0.2dB |
|||
|
Cable Characteristics |
Fiber Type |
OS2 |
||
|
Fiber Count |
simplex/duplex |
|||
|
Jacket Material |
PVC/LSZH/PU/PE or customized |
|||
|
Jackt Color |
blue/orange /green /brown /gray /white /red/black /yellow/purple/pink /aqua |
|||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
||
|
Storage Temperature |
-40~80℃ |
|||
|
Cable Parameter |
||||||||
|
Items |
Specifications |
|||||||
|
Fiber Count |
1/2 |
|||||||
|
Tight/Loose buffer |
Diameter |
0.85mm±0.05mm |
||||||
|
Material |
PVC/LSZH |
|||||||
|
Color |
White or customized |
|||||||
|
Jacket |
Diameter |
1.9mm±0.1mm/2.9mm±0.1mm |
||||||
|
Material |
PVC/LSZH |
|||||||
|
Color |
Yellow |
|||||||
|
Fiber Parameter |
||||||||
|
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
||||
|
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
|||
|
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
||||
|
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
||||
|
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
||||
|
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
||||
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
||||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
||||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
||||
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
||||
|
Cable Attenuation Coefficient |
1310nm |
dB/km |
≤0.4 |
≤0.4 |
≤0.4 |
|||
|
1550nm |
dB/km |
≤0.3 |
≤0.3 |
≤0.3 |
||||
Our Fiber Optic Patch Cord is a high-quality, customizable product designed to meet your specific needs. As a leading manufacturer and supplier, we take pride in providing top-of-the-line fiber jumper cables and optical patch cords that are reliable, durable, and efficient.
With our customized service, you can choose from a variety of options to create the perfect patchcord optical fiber for your application. Our team of experts will work closely with you to understand your requirements and provide a tailored solution that meets your exact specifications.
Whether you need a single patch cord or a large quantity, we have the capability to meet your demands. We guarantee fast delivery and competitive pricing, making us the ideal choice for all your fiber optic needs.
Choose JFOPT for your customized fiber optic patch cord and experience superior quality and service. Contact us today to learn more about our customized service and how we can help you achieve your goals.
The Fiber Optic Patch Cord is carefully packaged to ensure safe delivery to our customers. Each patch cord is wrapped in a protective plastic bag and then placed in a sturdy cardboard box. The box is then sealed with tape to prevent any damage during transit.
For bulk orders, the patch cords are packaged in a larger cardboard box with foam padding to provide extra protection.
Our shipping options include:
Once your order has been shipped, we will provide you with a tracking number so you can easily track your package.
