Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
CE, ISO9001
Model Number:
singlemode multimode 8 12 24 cores MPO patch cord
Contact Us

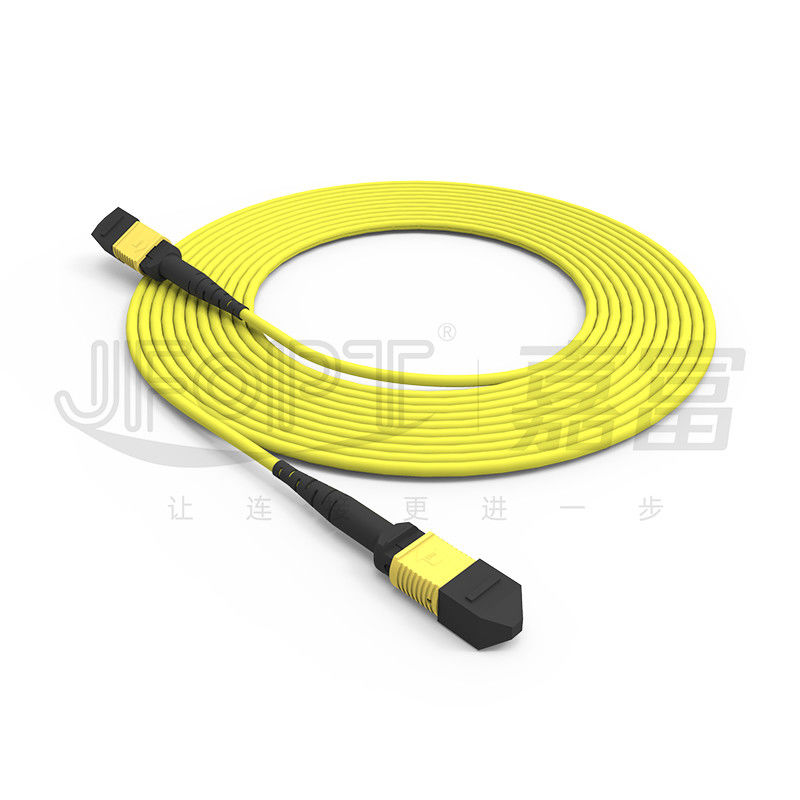

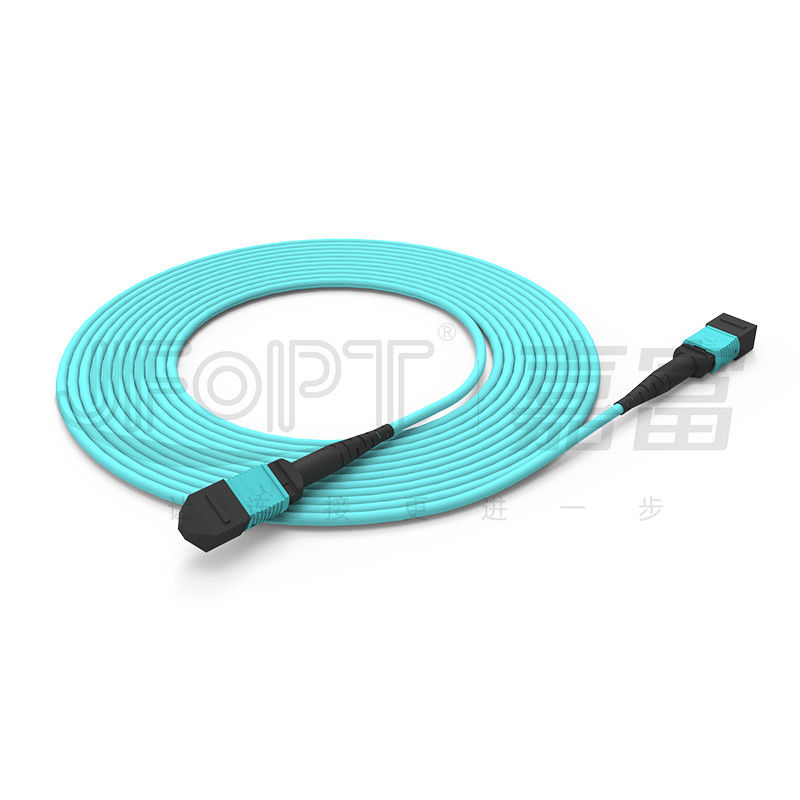

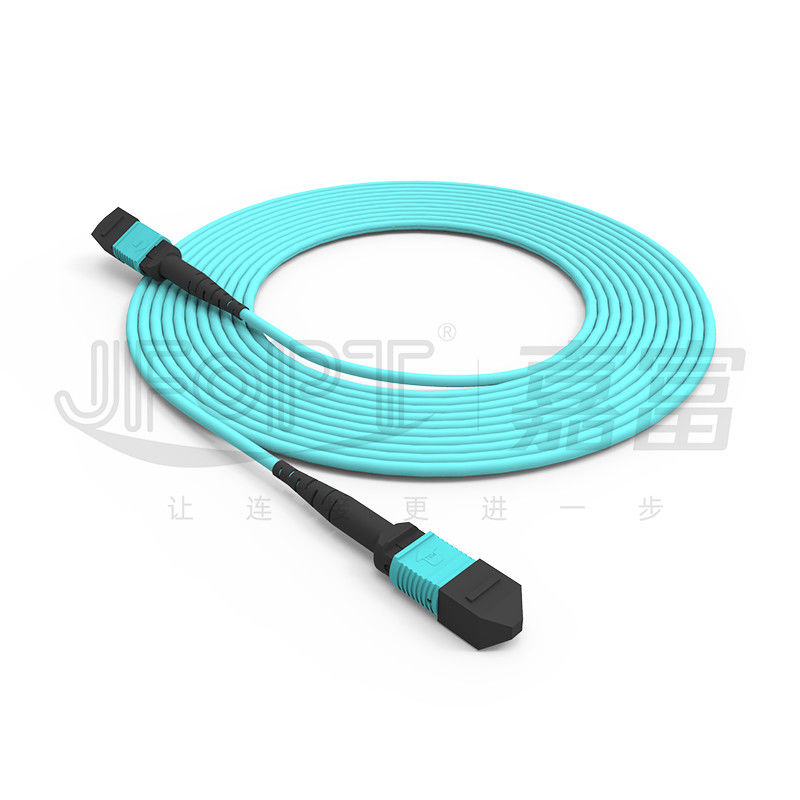

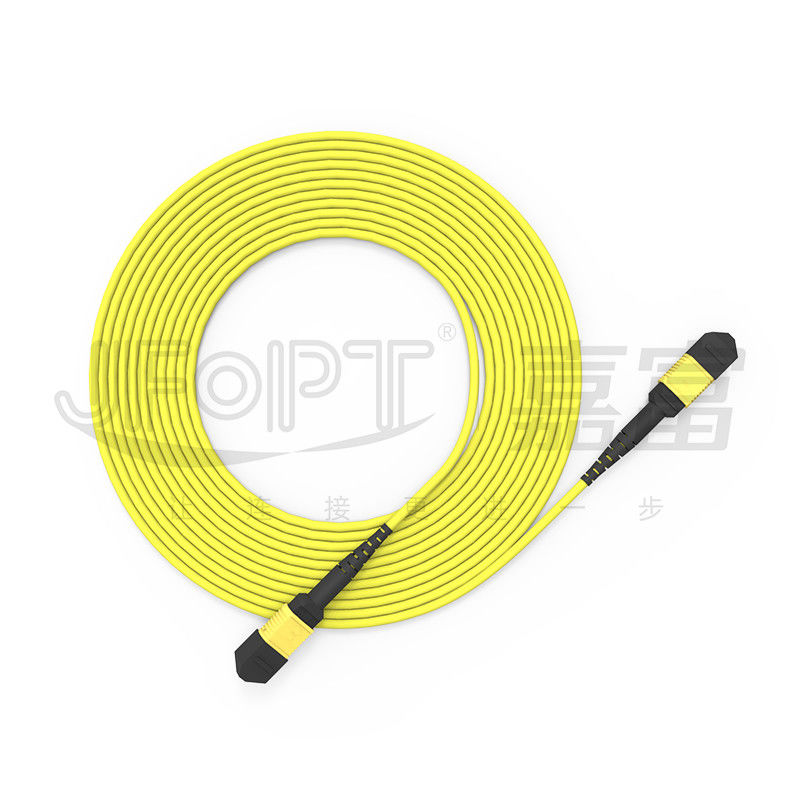

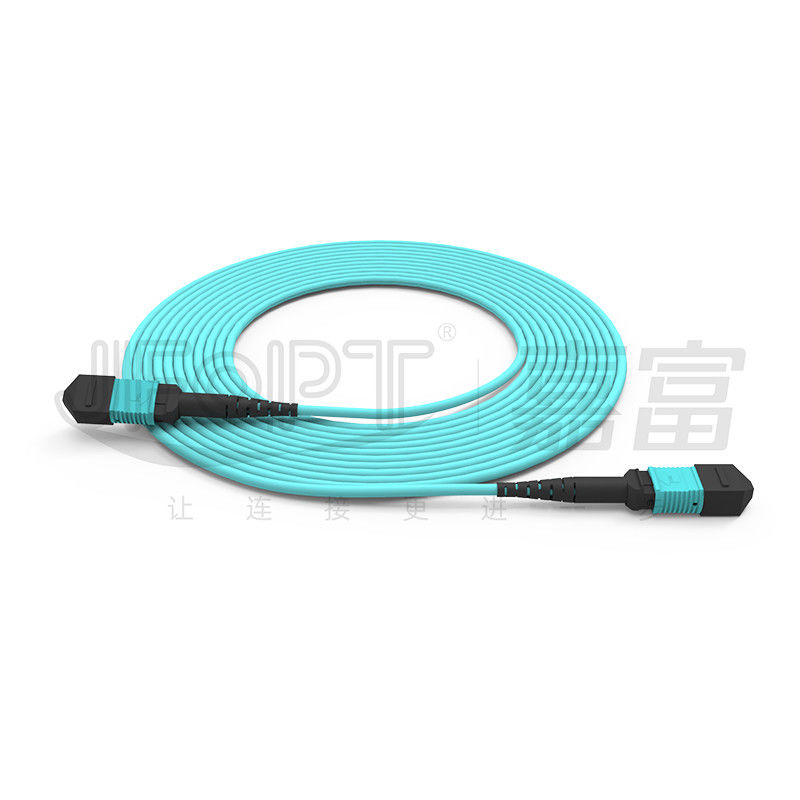

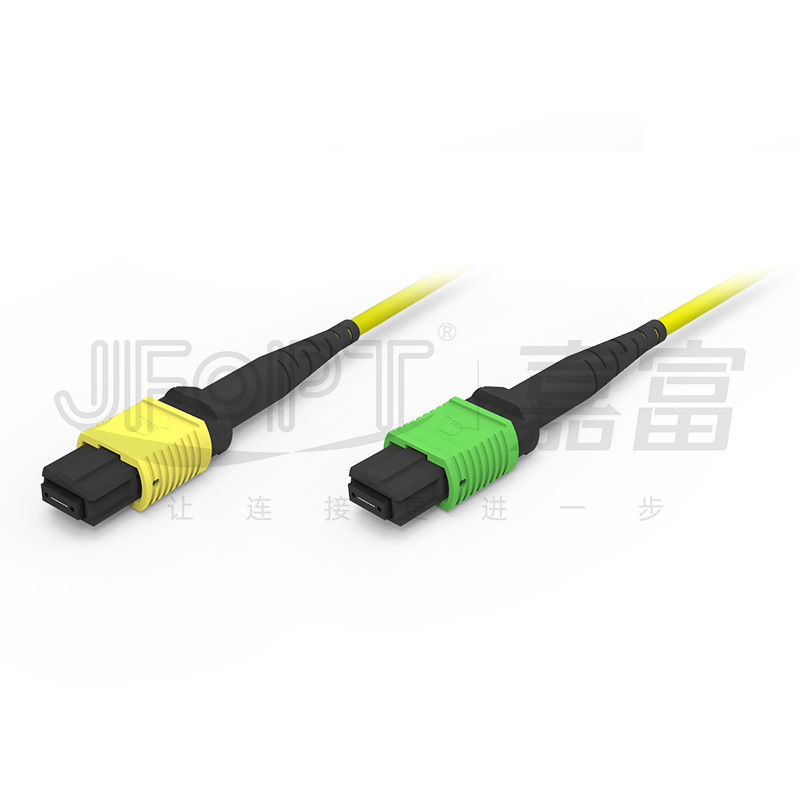

MPO backbone fiber optic patch cords are designed to provide long-lasting connections to MPO modules. JFOPT's MPO patch cord allow for easy changes of connection forms on fiber optic panels. By using small-diameter optical cables and 12 or 24-core MPO connectors, they form convenient MPO pre-terminated optical cables. These cables can be quickly deployed and effortlessly connected to plug-and-play modules or MPO adapter panels.
1.Improved Installation Efficiency
Eliminate termination errors and reduce installation time with our advanced technology.
2.Strict Testing Process
Our cables undergo rigorous testing to ensure top-notch quality and reliability.
3.Enhanced Performance
Experience superior performance with our MPO connectors and high-end components.
4.Flexible Fiber Options
Choose from a variety of fiber specifications, including multi-mode OM3 and OM4, and single-mode G652D and G657A2, to meet the unique configuration needs of our customers.
|
Product Name |
MPO Trunk Cable |
|---|---|
|
Speed |
10 Gigabits |
|
Length |
Customized |
|
Cable Color |
Blue/ Orange/ Green/ Brown/ Gray/ White/ Red/ Black/ Yellow/ Purple/ Pink/ Aqua |
|
Jacket Material |
LSZH/PVC/OFNP |
|
Return Loss |
MM≥20dB；SM≥60dB |
|
Loss |
Low Loss |
|
Optical Fiber |
G.652D/ G.657A1/ G.657A2/ OM1/ OM2/ OM3/ OM4 |
|
Brand Name |
JFOPT |
|
Model Number |
MPO Patch Cable |
|
Polarity Transformation |
A/B Polarity Switch |
|
Ferrule type |
Insertion loss |
Return loss |
|||||
|
Typical |
Maximum |
||||||
|
SM standard loss |
0.20dB |
≤0.75dB |
≥ 60dB (APC 8°) |
||||
|
SM low loss |
0.10dB |
≤0.35dB |
|||||
|
MM standard loss |
0.20dB |
≤0.6dB |
≥ 20dB |
||||
|
MM low loss |
0.10dB |
≤0.35dB |
|||||
|
MT Ferrule Options |
||||||
|
Fiber mode |
Performance |
Fiber count |
||||
|
Single mode |
Standard loss |
12 (1x12) |
||||
|
24 (2x12) |
||||||
|
Low loss |
12 (1x12) |
|||||
|
Multimode |
Standard loss |
12 (1x12) |
||||
|
16 (1x16) |
||||||
|
24 (2x12) |
||||||
|
32 (2x16) |
||||||
|
Low loss |
12 (1x12) |
|||||
|
24 (2x12) |
||||||
|
Mechanical Performance |
||||||||
|
Items |
Specifications |
|||||||
|
Fiber Count |
2 |
4 |
6 |
8 |
12 |
24 |
||
|
Tensile Strength (Long Term) / N |
80 |
|||||||
|
Tensile Strength (Short Term)/ N |
150 |
|||||||
|
Crush Resistance (Long Term) / N/10cm |
150 |
100 |
||||||
|
Crush Resistance (Long Term) / N/10cm |
500 |
|||||||
|
Min. Bend Radius (Dynamic) / mm |
20D |
|||||||
|
Min. Bend Radius (Static)/ mm |
10D |
|||||||
|
Operating Temperature/℃ |
-20～+60 |
|||||||
|
Storage Temperature/℃ |
-20～+60 |
|||||||
|
Fiber Parameter |
||||||||
|
SM: |
||||||||
|
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
||||
|
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
|||
|
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
||||
|
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
||||
|
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
||||
|
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
||||
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
||||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
||||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
||||
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
||||
|
Cable Attenuation Coefficient |
1310nm |
dB/km |
≤0.4 |
≤0.4 |
≤0.4 |
|||
|
1550nm |
dB/km |
≤0.3 |
≤0.3 |
≤0.3 |
||||
|
MM: |
||||||||
|
Items |
unit |
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4 |
||
|
Core Diameter |
μm |
62.5±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
||
|
Cladding Diameter |
μm |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
||
|
Core Non-Circularity |
% |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
||
|
Cladding Non-Circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
||
|
Core-Cladding Concentricity Error |
μm |
≤1.5 |
≤1.5 |
≤1.0 |
≤1.0 |
≤1.0 |
||
|
Coating Diameter |
μm |
245±7 |
245±7 |
245±7 |
245±7 |
245±7 |
||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
||
|
OFL Bandwidth |
850nm |
MHz·km |
≥160 |
≥500 |
≥700 |
≥1500 |
≥3500 |
|
|
1300nm |
MHz·km |
≥500 |
≥500 |
≥500 |
≥500 |
≥500 |
||
|
Cable Attenuation Coefficient |
850nm |
dB/km |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|
|
1300nm |
dB/km |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
||
A high density data center is a facility designed to accommodate a large amount of computing hardware in a small area. They are typically used by organizations and businesses that require a significant amount of computing power, such as technology companies and financial institutions.
FTTX (Fiber to the X) refers to various optical fiber network topologies that bring fiber closer to end users' premises, such as homes, businesses, and other buildings. This allows for faster and more reliable internet and data connections.
QSFP (Quad Small Form-factor Pluggable) is a type of optical transceiver module used in high-speed data communications applications. It has four channels for sending and receiving data, making it suitable for use in high-density data centers.
CFP (C form-factor pluggable) is another type of optical transceiver that supports higher data transmission rates than QSFP. It is commonly used for interconnection between high-density switches and routers in data centers.
Welcome to JFOPT MPO Trunk Cable Customized Services
Experience the best in fiber optic technology with JFOPT MPO Trunk Cable. Our customized services allow you to tailor the cable according to your specific needs. With a wide range of options for cable color, length, and jacket material, you can create a personalized solution for your network.
Order now and experience the best in fiber optic technology with JFOPT MPO Trunk Cable. Contact us for more information and to place your order today!
Our MPO Trunk Cables are carefully packaged to ensure safe and secure delivery to our customers. Each cable is individually packed in a polybag and then placed in a sturdy cardboard box to protect it from any damage during transportation.
We offer a variety of shipping options to meet our customers' needs. Our standard shipping method is by air, using reputable carriers such as DHL, FedEx, or UPS. For larger orders, we also offer sea freight shipping to reduce costs.
We take great care in labeling our packaging with product information, including cable length, connector type, and quantity. This ensures that our customers receive the correct products they ordered and helps with easy identification and organization upon arrival.
For international shipments, we provide all necessary documentation, including commercial invoices and packing lists, to facilitate customs clearance. We also offer the option for customers to use their own shipping accounts if preferred.
At MPO Trunk Cable, we strive to provide our customers with the best quality products and reliable shipping options to ensure their satisfaction. Contact us today to learn more about our packaging and shipping process.
Q: What is the brand name of this product?
A: The brand name of this product is JFOPT.
Q: What is the model number of this product?
A: The model number of this product is singlemode multimode 8 12 24 cores MPO patch cord.
Q: Where is this product made?
A: This product is made in CHINA.
Q: What certifications does this product have?
A: This product is CE and ISO9001 certified.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the price of this product?
A: The price of this product is not available.
Q: How is this product packaged?
A: This product is packaged in a carton box.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 5-8 working days.
Q: What are the payment terms for this product?
A: The payment terms for this product are T/T, AliPay, and PayPal.
Q: What is the supply ability for this product?
A: The supply ability for this product is 1000 pcs/day.
