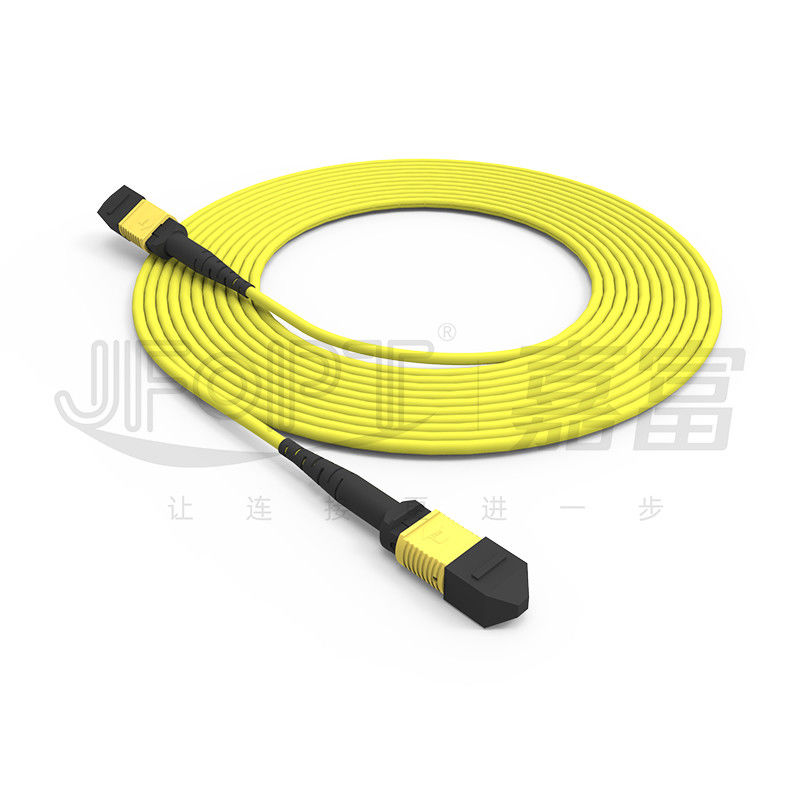

MPO Patch Cord SM 12 cores cable price optics cable fiber optic indoor outdoor fiber optic drop cable

MPO Patch Cord SM 12 cores cable price optics cable fiber optic indoor outdoor fiber optic drop cable

Mini MPO Conncetor Cable

Single-Tube MPO Conncetor Cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

CE, ISO9001

Model Number:

MPO Patch Cord SM 12 cores

Contact Us

Request A Quote
Product Details
Connector:
MPO-MPO
Connector Polish:
PC, UPC, APC
Application:
Optical Module Interconnect
Loss:
Standard Loss/Low Loss
Cable Sheath Material:
PVC/LSZH/OFN/ONFR/OFNP
Fiber Optic Model:
SM
Network:
Wireless Lan, Wired LAN, Wifi, 4g
Polarity Selection:
Type A/Type B/Type C
Connector Model:
MPO Male/Female With Round Boot
Length:
2M/3M/5M/10M/30M/Customized Definition
Matching Adapter:
MPO Adapter
Jacket Material:
LSZH, OFNP, OFNR
Jumper Type:
Trunk Cable
Payment & Shipping Terms
Minimum Order Quantity
1
Price
NA
Packaging Details
Carton box
Delivery Time
5-8 working days
Payment Terms
T/T, AliPay, PayPal
Supply Ability
1000 pcs/day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Product Description:

The 12-core MPO single-mode optical fiber jumper manufactured by JFOPT is a high-performance, high-reliability optical fiber connection product. This product offers a unique set of features and benefits, making it ideal for use in fiber optic communications systems. JFOPT's 12-core MPO single-mode fiber optic patch cord adopts a compact design and is equipped with a 12-core MPO connector. This design not only minimizes the possibility of failure, but also significantly reduces wiring space, making fiber optic cabling tidier and more efficient. In addition, it supports single-mode optical fiber specifications such as G657A1 and G657A2, which are suitable for long-distance, high-speed optical fiber communication applications.



Features:

1. High Quality Fiber Core

Our product features a high quality fiber core that ensures stable transmission. With a fast and stable transmission speed of up to 40G, it eliminates interference and delivers high resolution.

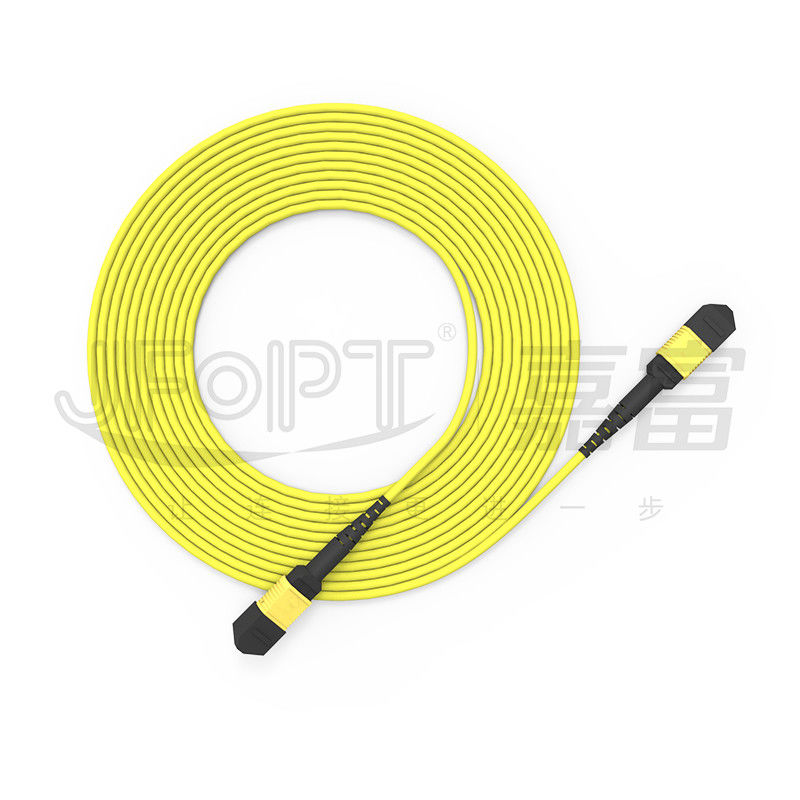

MPO Patch Cord SM 12 cores cable price optics cable fiber optic indoor outdoor fiber optic drop cable 0

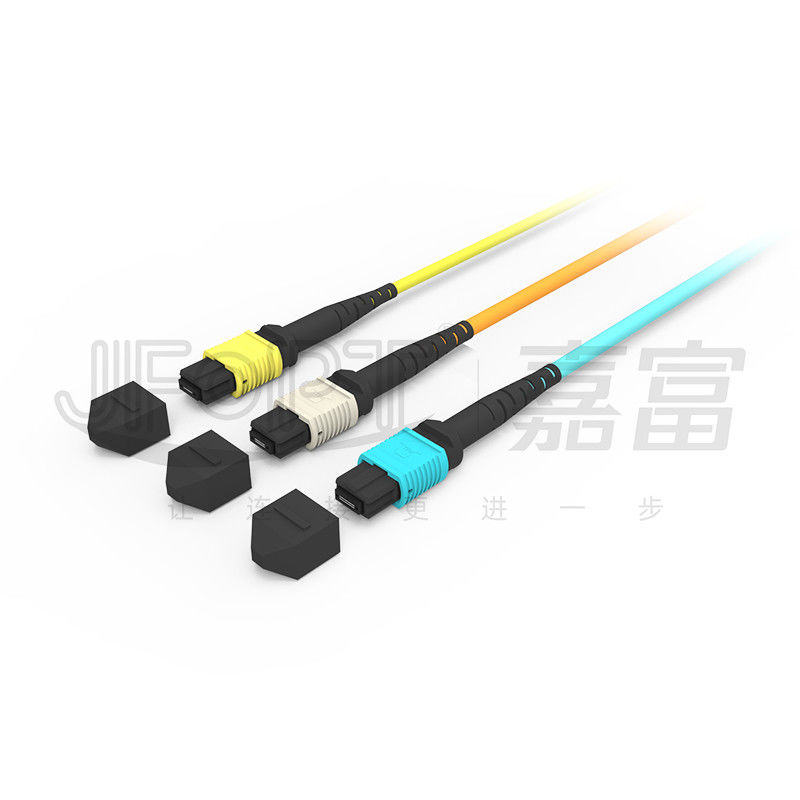

2. Dust Cap Protection

Our connectors are equipped with dust caps and protective ceramic connectors. This ensures that the connectors remain clean and free from any damage or wear and tear.

MPO Patch Cord SM 12 cores cable price optics cable fiber optic indoor outdoor fiber optic drop cable 1

3. Environmentally Friendly LSZH Material

Made with new and environmentally friendly LSZH material, our product is not only strong and durable, but also has a low carbon footprint. It is a great choice for those looking for eco-friendly options.

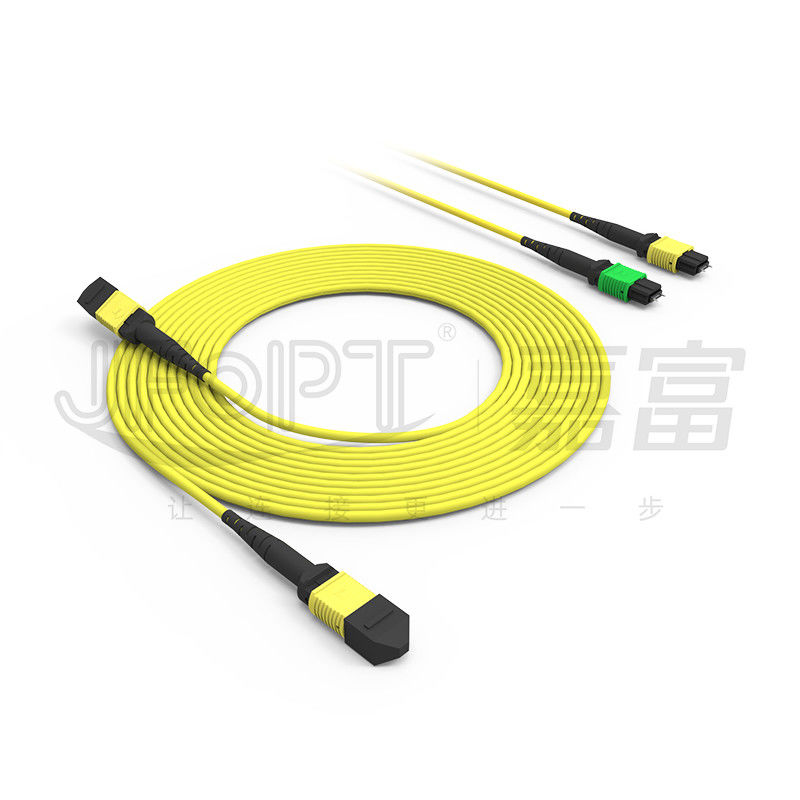

MPO Patch Cord SM 12 cores cable price optics cable fiber optic indoor outdoor fiber optic drop cable 2

4. Excellent interchangeability and pluggability
MPO connectors can be used in any combination and can be reused multiple times.

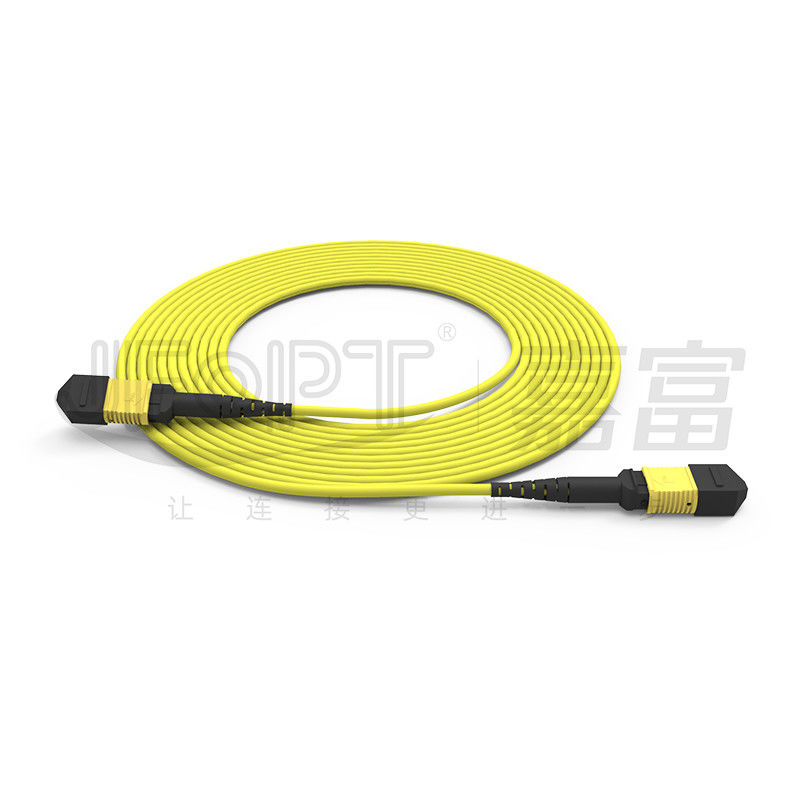

MPO Patch Cord SM 12 cores cable price optics cable fiber optic indoor outdoor fiber optic drop cable 3

Technical Parameters:

Product Name MPO Patch Cord SM 12 cores Trunk Cable
Application High Density Data Center
Boot Type Round Boot
Connector Polish PC, UPC, APC
Cable Length 1M
Loss Standard Loss/Low Loss
Outer Jacket Color Yellow
Cable Sheath Material PVC/LSZH/OFN/ONFR/OFNP
Cable Type Single-Tube Mini Cable
Connector MPO-MPO



Ferrule type Insertion loss Return loss
Typical Maximum
SM standard loss 0.20dB ≤0.75dB ≥ 60dB (APC 8°)
SM low loss 0.10dB ≤0.35dB
MM standard loss 0.20dB ≤0.6dB ≥ 20dB
MM low loss 0.10dB ≤0.35dB



MT Ferrule Options
Fiber mode Performance Fiber count
Single mode Standard loss 12 (1x12)
24 (2x12)
Low loss 12 (1x12)
Multimode Standard loss 12 (1x12)
16 (1x16)
24 (2x12)
32 (2x16)
Low loss 12 (1x12)
24 (2x12)



Cable Mechanical Performance
Items Specifications
Fiber Count 2 4 6 8 12 24
Tensile Strength (Long Term) / N 80
Tensile Strength (Short Term)/ N 150
Crush Resistance (Long Term) / N/10cm 150 100
Crush Resistance (Long Term) / N/10cm 500
Min. Bend Radius (Dynamic) / mm 20D
Min. Bend Radius (Static)/ mm 10D
Operating Temperature/℃ -20~+60
Storage Temperature/℃ -20~+60



Fiber Parameter
SM:
Items Unit G.652D G.657A1 G.657A2
Mode Field Diameter 1310nm μm 9.1±0.4 8.8±0.4 8.8±0.4
1550nm μm 10.4±0.5 9.8±0.5 9.8±0.5
Cladding Diameter μm 125±1 125±0.7 125±0.7
Cladding Non-Circularity % ≤1 ≤0.7 ≤0.7
Core-Cladding Concentricity Error μm ≤0.6 ≤0.5 ≤0.5
Coating Diameter μm 245±7 245±5 245±5
Coating Non-Circularity % ≤6.0 ≤6.0 ≤6.0
Cladding-Coating Concentricity Error μm ≤12.0 ≤12.0 ≤12.0
Cable Cutoff Wavelength nm λcc≤1260 λcc≤1260 λcc≤1260
Cable Attenuation Coefficient 1310nm dB/km ≤0.4 ≤0.4 ≤0.4
1550nm dB/km ≤0.3 ≤0.3 ≤0.3
MM:
Items unit 62.5/125 50/125 OM3-150 OM3-300 OM4
Core Diameter μm 62.5±2.5 50±2.5 50±2.5 50±2.5 50±2.5
Cladding Diameter μm 125±1.0 125±1.0 125±1.0 125±1.0 125±1.0
Core Non-Circularity % ≤5.0 ≤5.0 ≤5.0 ≤5.0 ≤5.0
Cladding Non-Circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Core-Cladding Concentricity Error μm ≤1.5 ≤1.5 ≤1.0 ≤1.0 ≤1.0
Coating Diameter μm 245±7 245±7 245±7 245±7 245±7
Coating Non-Circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Cladding-Coating Concentricity Error μm ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
OFL Bandwidth 850nm MHz·km ≥160 ≥500 ≥700 ≥1500 ≥3500
1300nm MHz·km ≥500 ≥500 ≥500 ≥500 ≥500
Cable Attenuation Coefficient 850nm dB/km ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0
1300nm dB/km ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0



Applications:

The MPO Trunk Cable is used in various applications that require high-speed and high-density data transmission. Its compact design and high-performance capabilities make it ideal for use in data centers, server rooms, and other networking environments. It is also suitable for use in telecommunications, broadcasting, and industrial control systems.



Scene Display
Data Center:

The MPO Trunk Cable is widely used in data centers due to its high-speed data transmission and high-density capabilities. Its compact design allows for easier cable management and more efficient use of space in the data center.

Server Room:

In server rooms, where space is often limited, the MPO Trunk Cable is an ideal choice. Its high-density and customizable cable length make it easier to manage and organize the network connections, ensuring a neat and efficient server room setup.

Telecommunications:

The MPO Trunk Cable is also suitable for use in telecommunications networks. Its high-speed data transmission and customizable options make it a reliable choice for transmitting large amounts of data in telecommunications systems.



Customization:

Our customized services for JFOPT MPO 10G Multi-mode OM3 Fiber Optic Patch Cord include:

  • Customized branding with JFOPT logo or customer's own logo
  • Customized cable length according to customer's requirements
  • Customized cable color options: Yellow, Orange, and Aqua
  • Customized polarity selection: Type A/Type B/Type C
  • Customized connector gender options: Male/Female
  • Customized boot type options: Round Boot
  • Customized packaging options

With our customized services, you can get a personalized MPO Trunk Cable that meets your specific needs and preferences. Our MPO 10G Multi-mode OM3 Fiber Optic Patch Cord is perfect for high-speed data transmission in data centers, LAN, and other applications. It is a 12 Core Fiber Optic Cable designed for easy installation and reliable performance. Contact us now to get your customized MPO Trunk Cable from JFOPT!



Packing and Shipping:

The MPO Trunk Cable is carefully packaged to ensure safe delivery and easy handling. The packaging materials used are durable and environmentally friendly.
Packaging:
  • The MPO Trunk Cable is first wrapped in a layer of bubble wrap to protect it from any damage during shipping.
  • It is then placed in a sturdy cardboard box with cushioning materials to prevent any movement during transit.
  • The box is sealed with strong packing tape to ensure the cable stays secure.
  • A label with the product details, quantity, and destination address is attached to the box for easy identification.
Shipping:

We offer various shipping options to meet your specific needs. Our shipping methods include air, sea, and land transportation. We also provide expedited shipping for urgent orders.

Our experienced logistics team will carefully select the most suitable shipping method for your order, taking into consideration factors such as distance, weight, and delivery time.

For international orders, we ensure that all necessary customs documents are prepared and included with the shipment to facilitate a smooth delivery process.

With our efficient packaging and reliable shipping services, you can rest assured that your MPO Trunk Cable will arrive at its destination in perfect condition and on time.
