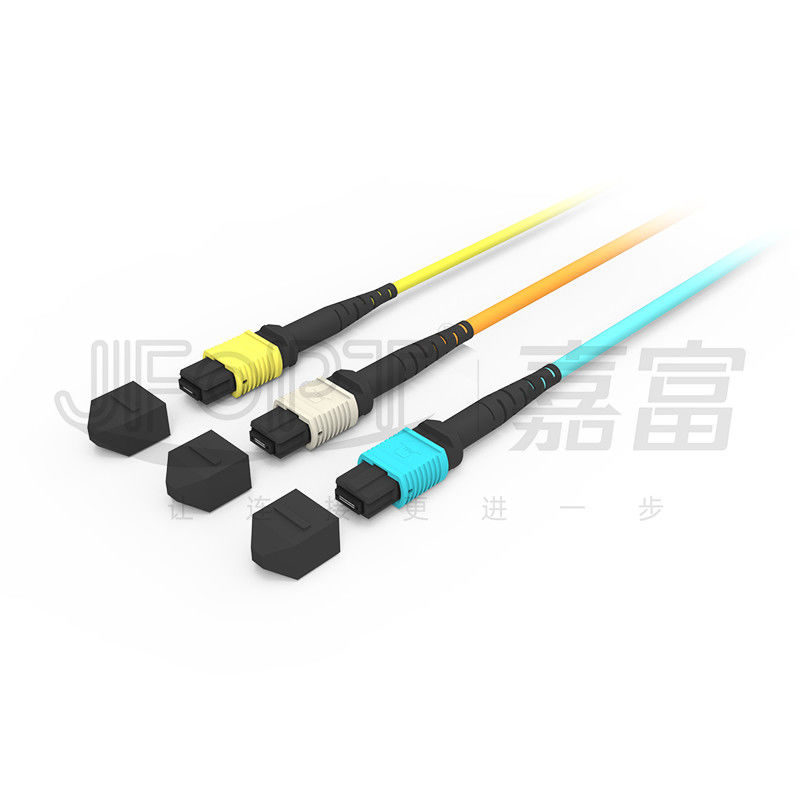

MPO-MPO Trunk Cable Aqua Round Boot Fiber Optic Pigtail Patch Cord for Versatile Networking Solutions

MPO-MPO Trunk Cable Aqua Round Boot Fiber Optic Pigtail Patch Cord for Versatile Networking Solutions

MPO-MPO Trunk Cable

Round Boot MPO Trunk Cable

Aqua MPO Trunk Cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

CE, ISO9001

Model Number:

MPO-MPO Trunk Cable Aqua Fiber Optic Patch Cord

Contact Us

Request A Quote
Product Details
Connector Type:
MPO 12/24 Cores
Loss:
Standard Loss/Low Loss
Jacket Material:
LSZH/PVC/TPU
Application:
Optical Module Interconnect
Cable Sheath Material:
PVC/LSZH/OFN/ONFR/OFNP
Connector Gender:
Male/Female
Boot Type:
Round Boot
Outer Jacket Color:
Aqua
Length:
Customizable
Use:
DATA CENTER
Network:
Wireless Lan, Wired LAN, Wifi, 4g
Payment & Shipping Terms
Minimum Order Quantity
1
Price
NA
Packaging Details
Carton box
Delivery Time
5-8 working days
Payment Terms
T/T, AliPay, PayPal
Supply Ability
1000 pcs/day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Product Description:

The MPO backbone fiber optic cable circular tail sleeve fiber optic pigtail patch cord created by JFOPT provides an efficient and stable solution for modern network communications with its excellent performance and versatility.
JFOPT's MPO backbone optical cable circular tail fiber pigtail patch cord, with its excellent transmission performance and stability, can easily cope with various complex network environments and provide powerful solutions for data centers, enterprise networks and broadband access. support.
We always adhere to strict quality control standards to ensure that every jumper reaches carrier-grade quality to protect your network communications. Choose JFOPT and choose a stable, efficient and reliable multi-functional network solution.



Features:

1. High Quality Fiber Core
Our fiber cores are of the highest quality, providing excellent performance for all your transmission needs. With stable transmission, you can trust that your data will be transmitted quickly and efficiently, up to 40G.

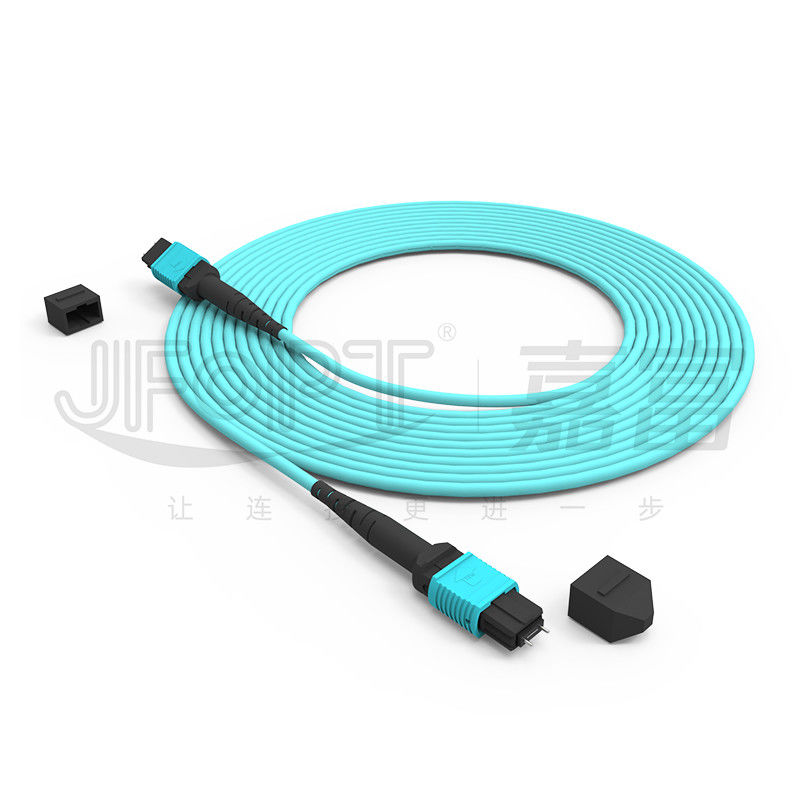

MPO-MPO Trunk Cable Aqua Round Boot Fiber Optic Pigtail Patch Cord for Versatile Networking Solutions 0

2. Dust Cap Protection
We understand the importance of keeping your connectors safe and protected from dust and debris. That's why our fiber cores come equipped with dust caps and protective ceramic connectors.

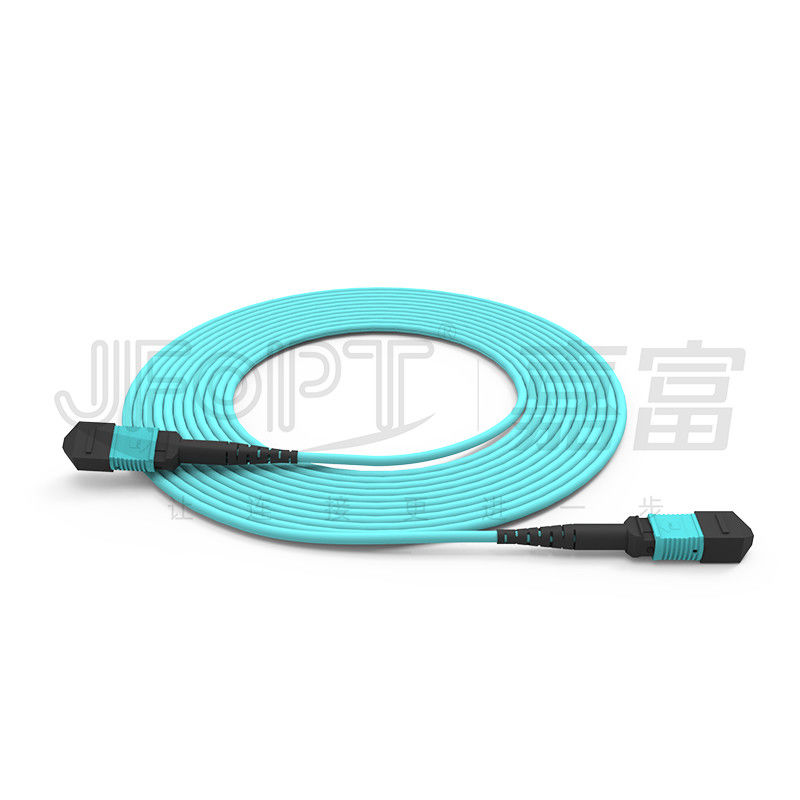

MPO-MPO Trunk Cable Aqua Round Boot Fiber Optic Pigtail Patch Cord for Versatile Networking Solutions 1
3. Durable and Tensile
In addition to being environmentally friendly, our fiber cores are also durable and tensile. The outer coating is made of flame-retardant LSZH material, providing excellent wear resistance.

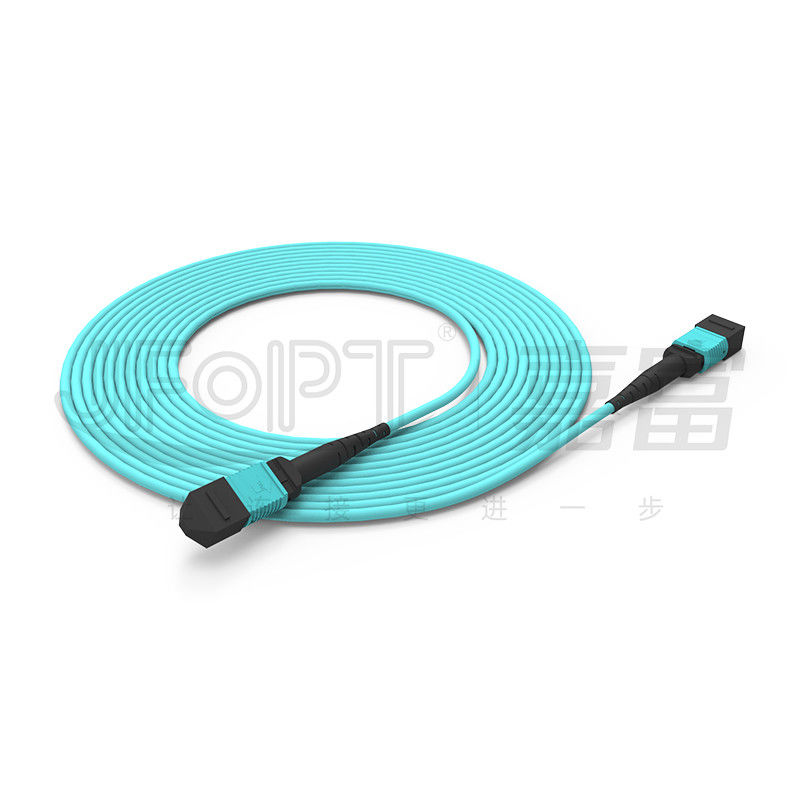

MPO-MPO Trunk Cable Aqua Round Boot Fiber Optic Pigtail Patch Cord for Versatile Networking Solutions 2

4. Environmentally Friendly LSZH Material
At our company, we care about the environment and strive to make sustainable choices. That's why our fiber cores are made from new, environmentally friendly LSZH material.

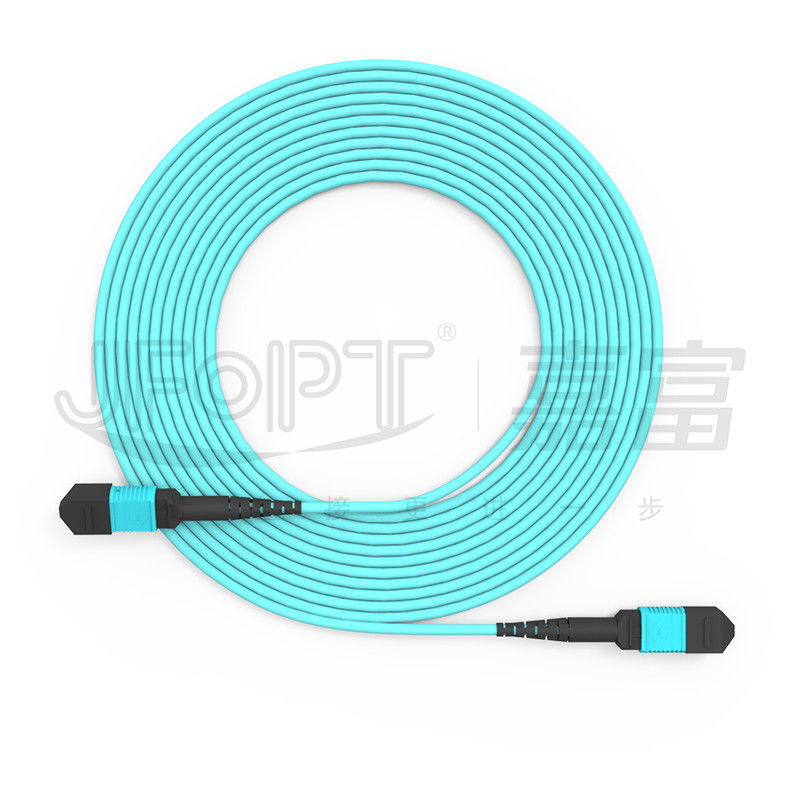

MPO-MPO Trunk Cable Aqua Round Boot Fiber Optic Pigtail Patch Cord for Versatile Networking Solutions 3

Technical Parameters:

Product Name:

MPO Trunk Cable

Cable Sheath Material:

PVC/LSZH/OFN/ONFR/OFNP

Cable Type:

Single-Tube Mini Cable

Connector Gender:

Male/Female

Application:

Optical Module Interconnect

Jacket Material:

LSZH/PVC/TPU

Connector Polish:

PC, UPC, APC

Core Model:

MPO-Multimode OM3

Outer Jacket Color:

Aqua

Cable Length:

1M

Cable Color:

Aqua



Ferrule type Insertion loss Return loss
Typical Maximum
SM standard loss 0.20dB ≤0.75dB ≥ 60dB (APC 8°)
SM low loss 0.10dB ≤0.35dB
MM standard loss 0.20dB ≤0.6dB ≥ 20dB
MM low loss 0.10dB ≤0.35dB



MT Ferrule Options
Fiber mode Performance Fiber count
Single mode Standard loss 12 (1x12)
24 (2x12)
Low loss 12 (1x12)
Multimode Standard loss 12 (1x12)
16 (1x16)
24 (2x12)
32 (2x16)
Low loss 12 (1x12)
24 (2x12)



Cable Parameter
Items Specifications
Fiber Count 2 4 6 8 12 24
Fiber Diameter 250±15μm
Color Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Strength Member Aramid Yarn
Outer Jacket Diameter 3.0±0.2mm
Material PVC /LSZH
Color Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua



Mechanical performance
Items Specifications
Fiber Count 2 4 6 8 12 24
Tensile Strength (Long Term) / N 80
Tensile Strength (Short Term)/ N 150
Crush Resistance (Long Term) / N/10cm 150 100
Crush Resistance (Long Term) / N/10cm 500
Min. Bend Radius (Dynamic) / mm 20D
Min. Bend Radius (Static)/ mm 10D
Operating Temperature/℃ -20~+60
Storage Temperature/℃ -20~+60



Fiber Parameter
SM:
Items Unit G.652D G.657A1 G.657A2
Mode Field Diameter 1310nm μm 9.1±0.4 8.8±0.4 8.8±0.4
1550nm μm 10.4±0.5 9.8±0.5 9.8±0.5
Cladding Diameter μm 125±1 125±0.7 125±0.7
Cladding Non-Circularity % ≤1 ≤0.7 ≤0.7
Core-Cladding Concentricity Error μm ≤0.6 ≤0.5 ≤0.5
Coating Diameter μm 245±7 245±5 245±5
Coating Non-Circularity % ≤6.0 ≤6.0 ≤6.0
Cladding-Coating Concentricity Error μm ≤12.0 ≤12.0 ≤12.0
Cable Cutoff Wavelength nm λcc≤1260 λcc≤1260 λcc≤1260
Cable Attenuation Coefficient 1310nm dB/km ≤0.4 ≤0.4 ≤0.4
1550nm dB/km ≤0.3 ≤0.3 ≤0.3
MM:
Items unit 62.5/125 50/125 OM3-150 OM3-300 OM4
Core Diameter μm 62.5±2.5 50±2.5 50±2.5 50±2.5 50±2.5
Cladding Diameter μm 125±1.0 125±1.0 125±1.0 125±1.0 125±1.0
Core Non-Circularity % ≤5.0 ≤5.0 ≤5.0 ≤5.0 ≤5.0
Cladding Non-Circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Core-Cladding Concentricity Error μm ≤1.5 ≤1.5 ≤1.0 ≤1.0 ≤1.0
Coating Diameter μm 245±7 245±7 245±7 245±7 245±7
Coating Non-Circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Cladding-Coating Concentricity Error μm ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
OFL Bandwidth 850nm MHz·km ≥160 ≥500 ≥700 ≥1500 ≥3500
1300nm MHz·km ≥500 ≥500 ≥500 ≥500 ≥500
Cable Attenuation Coefficient 850nm dB/km ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0
1300nm dB/km ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0





Applications:

The MPO Trunk Cable is ideal for various applications, including:

  • Data Centers
  • Telecommunication Networks
  • High-speed Internet Connections
  • Network Interconnectivity
  • Cloud Computing
  • Video Conferencing
  • Online Gaming

The MPO Trunk Cable is a high-density interconnect solution that offers reliable and efficient connectivity for data centers and telecommunication networks. With its high-speed transmission, low insertion loss, and high return loss, it is a cost-effective and versatile option for various applications. Its flexible design and easy installation make it a popular choice for network connectivity needs. Choose JFOPT's MPO Trunk Cable for a reliable and high-performing fiber optic cable solution.



Customization:

We provide customized MPO Trunk Patch Cord solutions for your specific needs. Our Patch Cords are made with high-quality materials and are designed to meet international standards. Trust JFOPT for all your Fiber Optic Cable needs.

Certification: CE, ISO9001

Our MPO Trunk Patch Cords are certified by CE and ISO9001, ensuring the highest quality and reliability.

Minimum Order Quantity: 1

No matter the size of your project, we can provide you with the necessary MPO Trunk Patch Cords, starting from a minimum order quantity of 1.

Price: NA

Our prices are competitive and depend on the customization options chosen for your MPO Trunk Patch Cord. Contact us for a quote.

Packaging Details: Carton box

Each MPO Trunk Patch Cord is carefully packaged in a sturdy carton box to ensure safe delivery.

Delivery Time: 5-8 working days

With our efficient production process, we can deliver your customized MPO Trunk Patch Cord within 5-8 working days.

Payment Terms: T/T, AliPay, PayPal

We offer flexible payment options for your convenience, including T/T, AliPay, and PayPal.

Supply Ability: 1000 pcs/day

Our state-of-the-art production facility allows us to provide a large supply of MPO Trunk Patch Cords, with a capacity of 1000 pcs per day.

Cable Type: Single-Tube Mini Cable

Our MPO Trunk Patch Cords are made with a single-tube mini cable, providing a compact and lightweight design for easy installation.

Connector: MPO-MPO

The MPO Trunk Patch Cord is equipped with MPO-MPO connectors for fast and efficient connectivity.

Outer Jacket Color: Aqua

The outer jacket of our MPO Trunk Patch Cord comes in a vibrant aqua color, making it easily identifiable and adding a touch of style to your network setup.

Core Model: MPO-Multimode OM3

The MPO Trunk Patch Cord is designed with a MPO-Multimode OM3 core model, providing high-speed data transmission for your network.

Cable Length: 1M

We offer the MPO Trunk Patch Cord in various cable lengths, with 1M being the standard length. Custom lengths are also available upon request.

For all your Patch Cord needs, choose JFOPT for top-quality products and reliable customization services.



Packing and Shipping:

Our MPO trunk cables are carefully packaged and shipped to ensure they arrive at your doorstep in perfect condition. Here's what you can expect when you order our MPO trunk cables:

Packaging:
  • All MPO trunk cables are individually packaged in a protective plastic bag to prevent any damage during transit.
  • Multiple MPO trunk cables are then placed in a sturdy cardboard box with proper cushioning material to avoid any movement or impact during shipping.
  • The box is sealed and labeled with the product name, quantity, and any other necessary information.
Shipping:

We offer various shipping options to meet your specific needs. Our standard shipping method is through reputable courier services, such as UPS or FedEx. We also offer expedited shipping for urgent orders.

Once your order is shipped, we will provide you with a tracking number so you can easily track its delivery status.

Please note that shipping costs may vary depending on your location and the quantity of MPO trunk cables ordered. Any additional customs or duty fees will be the responsibility of the buyer.

For bulk orders, we can also arrange for special shipping arrangements, such as using pallets or crates, to ensure safe and efficient delivery.



FAQ:

  • Brand Name: JFOPT
  • Model Number: MPO 10G Multi-mode OM3 Fiber Optic Patch Cord
  • Place of Origin: CHINA
  • Certification: CE, ISO9001
  • Minimum Order Quantity: 1
  • Price: NA
  • Packaging Details: Carton box
  • Delivery Time: 5-8 working days
  • Payment Terms: T/T, AliPay, PayPal
  • Supply Ability: 1000 pcs/day
