Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
CE, ISO9001
Model Number:
MPO 10G Multi-mode OM3 Fiber Optic Patch Cord
Contact Us

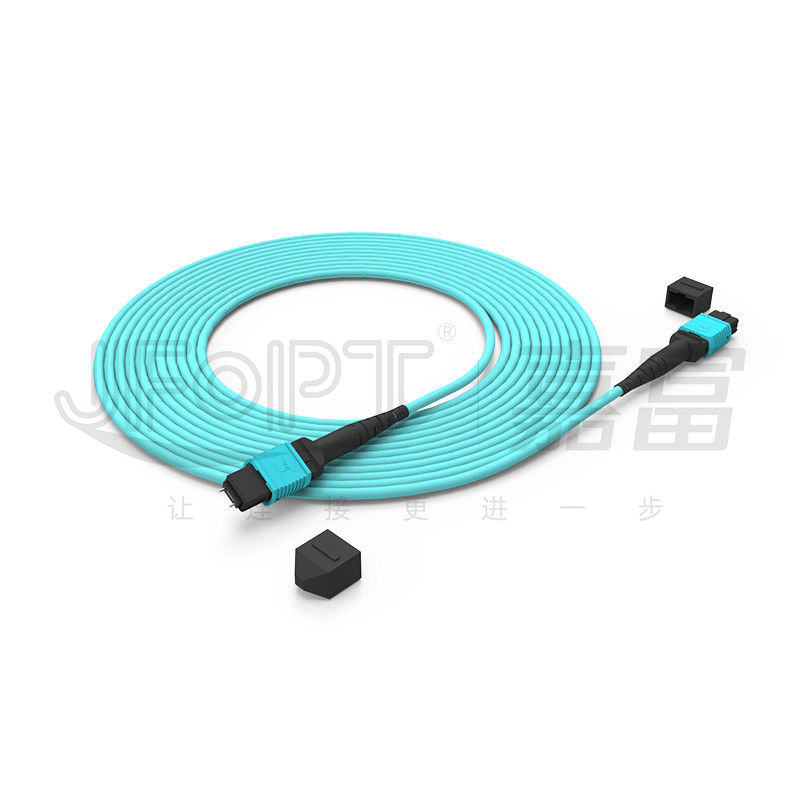

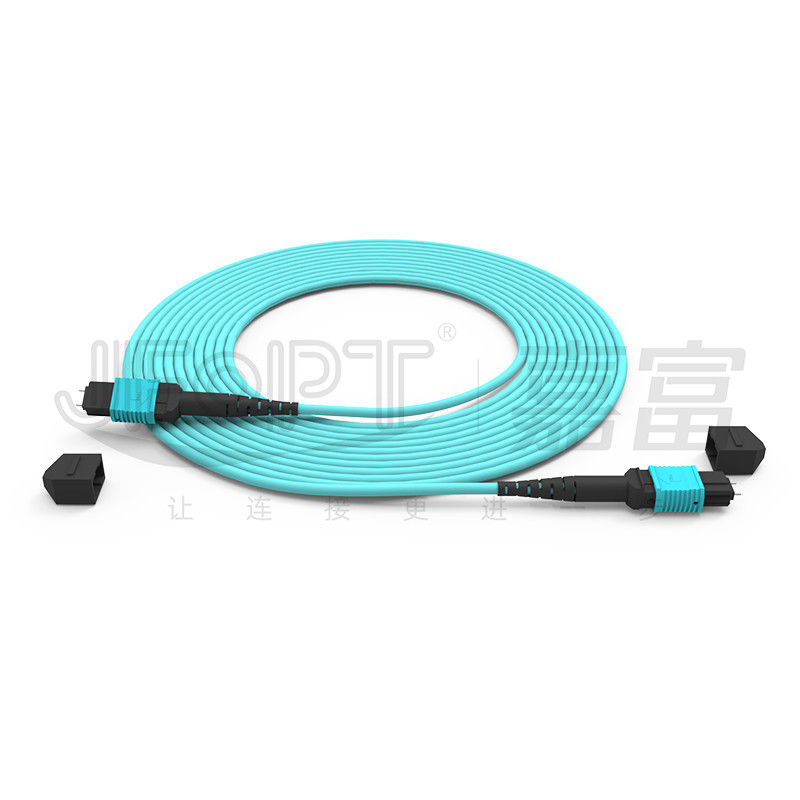

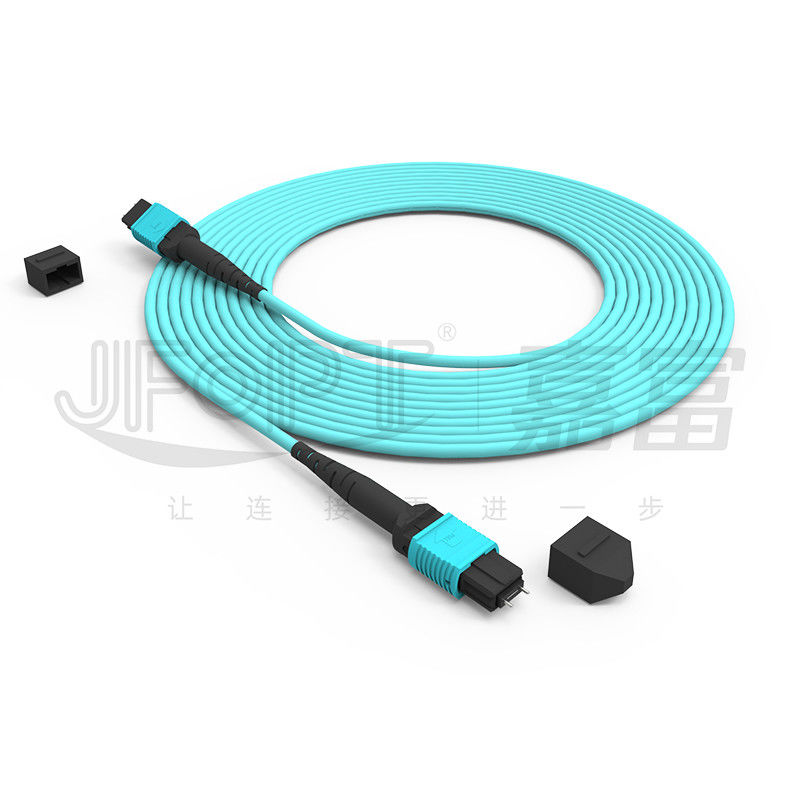

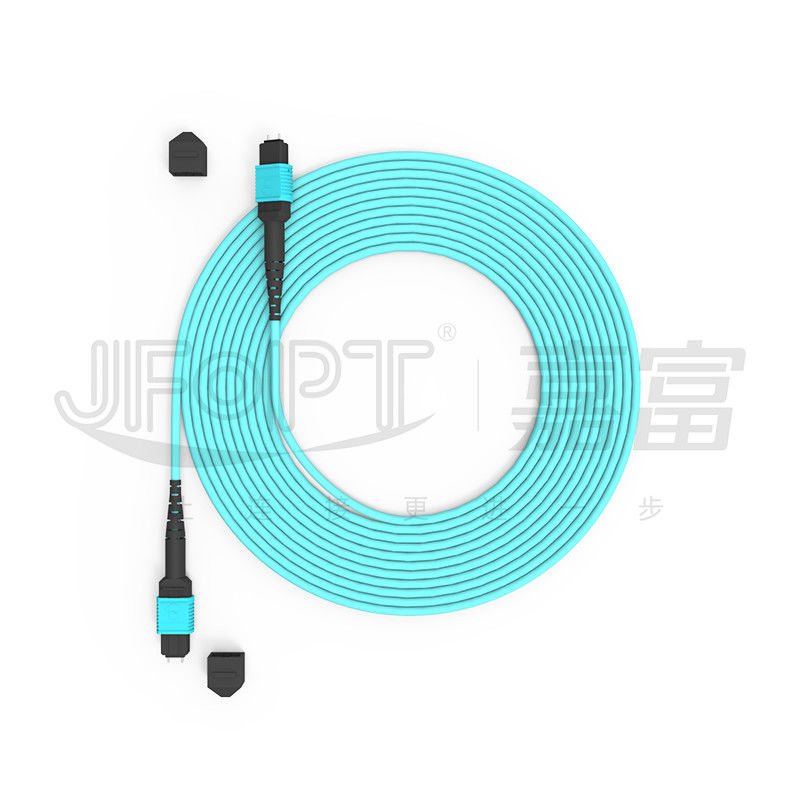

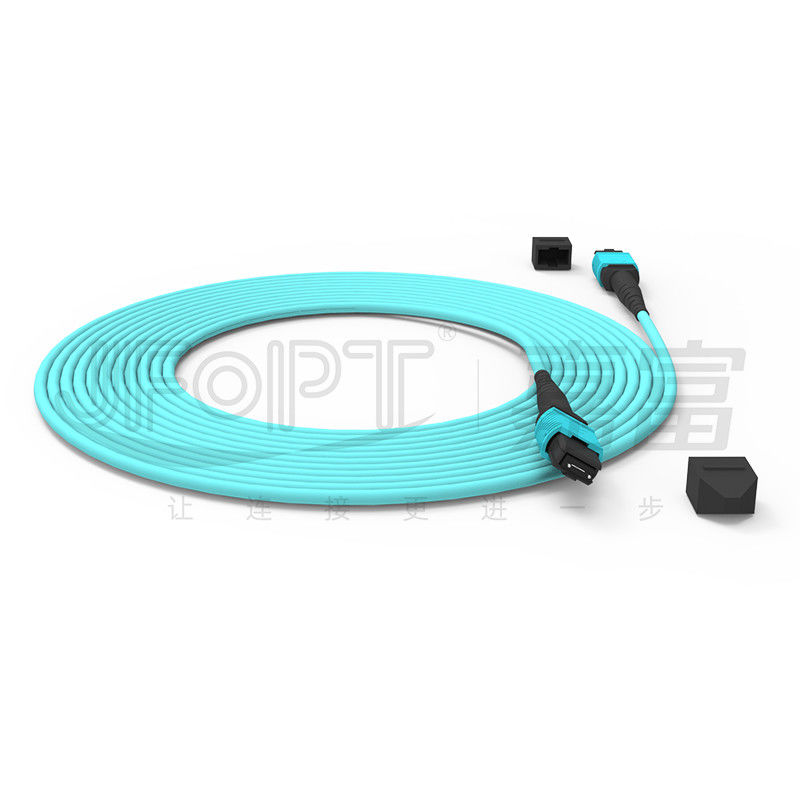

The MPO-MPO 10 Gigabit OM3 multi-mode optical fiber patch cord, manufactured by JFOPT, offers a strong assurance for your network connection with its exceptional stability and carrier-grade pigtail quality.
This patch cord utilizes advanced OM3 multi-mode optical fiber technology to support 10 Gigabit high-speed transmission, ensuring rapid and stable data transfer. Its unique structural design allows the jumper to maintain optimal performance during long-term usage, meeting your demanding requirements for network stability.
JFOPT has always adhered to strict production techniques and quality control to ensure that every fiber pigtail meets telecommunications-grade standards. From material selection to production techniques and quality testing, we strive for excellence in all aspects to provide you with the highest-quality products.
By choosing JFOPT's MPO-MPO 10 Gigabit OM3 multi-mode optical fiber jumper, you are selecting a dependable, efficient, and reliable solution for your network connection needs. We are confident that this product will provide you with an unparalleled experience and secure communication for your network.
Our fiber optic cables are designed with a high quality fiber core, ensuring reliable and efficient data transmission.
Our cables are capable of transmitting up to 40G of data, ensuring a stable and fast connection while minimizing interference. This enables high resolution data transfer.
To protect the connectors from dust and dirt, our cables come equipped with dust caps. The connectors themselves are made of protective ceramic material.
We care about the environment, which is why our cables are made of new LSZH (Low Smoke Zero Halogen) material. This material is not only environmentally friendly, but also has a strong tensile strength and is low in carbon.
|
Attribute |
Value |
|---|---|
|
MPO Patch Cord |
Trunk Cable |
|
Jacket Material |
LSZH, PVC, TPU |
|
Cable Sheath Material |
PVC, LSZH, OFN, ONFR, OFNP |
|
Cable Length |
1M |
|
Loss |
Standard Loss, Low Loss |
|
Boot Type |
Round Boot |
|
Connector Polish |
PC, UPC, APC |
|
Connector |
MPO-MPO |
|
Core Model |
MPO-Multimode OM3 |
|
Connector Gender |
Male, Female |
|
Polarity Selection |
Type A, Type B, Type C |
| Ferrule type | Insertion loss | Return loss | |||||
| Typical | Maximum | ||||||
| SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB (APC 8°) | ||||
| SM low loss | 0.10dB | ≤0.35dB | |||||
| MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB | ||||
| MM low loss | 0.10dB | ≤0.35dB | |||||
| MT Ferrule Options | ||||||
| Fiber mode | Performance | Fiber count | ||||
| Single mode | Standard loss | 12 (1x12) | ||||
| 24 (2x12) | ||||||
| Low loss | 12 (1x12) | |||||
| Multimode | Standard loss | 12 (1x12) | ||||
| 16 (1x16) | ||||||
| 24 (2x12) | ||||||
| 32 (2x16) | ||||||
| Low loss | 12 (1x12) | |||||
| 24 (2x12) | ||||||
| Mechanical performance | ||||||||
| Items | Specifications | |||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 | ||
| Tensile Strength (Long Term) / N | 80 | |||||||
| Tensile Strength (Short Term)/ N | 150 | |||||||
| Crush Resistance (Long Term) / N/10cm | 150 | 100 | ||||||
| Crush Resistance (Long Term) / N/10cm | 500 | |||||||
| Min. Bend Radius (Dynamic) / mm | 20D | |||||||
| Min. Bend Radius (Static)/ mm | 10D | |||||||
| Operating Temperature/℃ | -20～+60 | |||||||
| Storage Temperature/℃ | -20～+60 | |||||||
| Fiber Parameter | ||||||||
| SM: | ||||||||
| Items | Unit | G.652D | G.657A1 | G.657A2 | ||||
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 | ||||
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 | ||||
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ||||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ||||
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 | ||||
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 | |||
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 | ||||
| MM: | ||||||||
| Items | unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||
| Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||
| Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||
| Core Non-Circularity | % | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||
| Cladding Non-Circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Core-Cladding Concentricity Error | μm | ≤1.5 | ≤1.5 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| OFL Bandwidth | 850nm | MHz·km | ≥160 | ≥500 | ≥700 | ≥1500 | ≥3500 | |
| 1300nm | MHz·km | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | ||
| Cable Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | |
| 1300nm | dB/km | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
The MPO Trunk Cable is a type of patch cord that is used to connect multiple network devices, such as switches, routers, and servers, in a data center or telecommunication network. It is made with high-quality OM3 fiber, which is a multi-mode fiber that allows for high-speed data transmission over short distances. This makes it ideal for use in high-density data centers and telecommunication networks where large amounts of data need to be transferred quickly and efficiently.
At JFOPT, we understand that every customer has unique needs and requirements. That's why we offer a customized service for our MPO Trunk Cable, designed specifically to meet your individual needs.
Our MPO Fiber Optic Jumper, also known as Fibre Patch Cord, is a reliable and high-performance solution for your fiber optic connectivity needs. With our MPO connectors, you can achieve fast and efficient data transmission for your network.
With our customized service, you can choose the length of your MPO Trunk Cable, with options ranging from 1M to your desired length. You can also select the polarity type, whether it's Type A, B, or C, to ensure compatibility with your existing network infrastructure.
Our MPO Trunk Cable also offers a choice between Standard Loss or Low Loss, depending on your network requirements. And with our Single-Tube Mini Cable, you can enjoy a more compact and space-saving solution for your fiber optic connections.
Rest assured that our MPO Trunk Cable is of high quality, certified with CE and ISO9001, and manufactured in CHINA. We have a minimum order quantity of only 1 piece, making it convenient for you to purchase the exact quantity you need.
With a fast delivery time of 5-8 working days and multiple payment options such as T/T, AliPay, and PayPal, we strive to provide a hassle-free and efficient service for our customers. Our supply ability of 1000 pieces per day ensures that we can meet your demands in a timely manner.
Choose JFOPT for your MPO Trunk Cable needs and experience our superior customized service. Contact us now to request a quote or for any inquiries. We are dedicated to providing the best solutions for your fiber optic connectivity needs.
The MPO Trunk Cable is carefully packaged and shipped to ensure its safe delivery to our customers. The following steps are taken to ensure the product arrives in perfect condition:
By carefully packaging and shipping our MPO Trunk Cable, we aim to provide our customers with a hassle-free and efficient shopping experience. If you have any questions or concerns about our packaging and shipping process, please do not hesitate to contact us.
