Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
CE, ISO9001
Model Number:
1U SC/LC/FC/ST Fixed Patch Panel
Contact Us

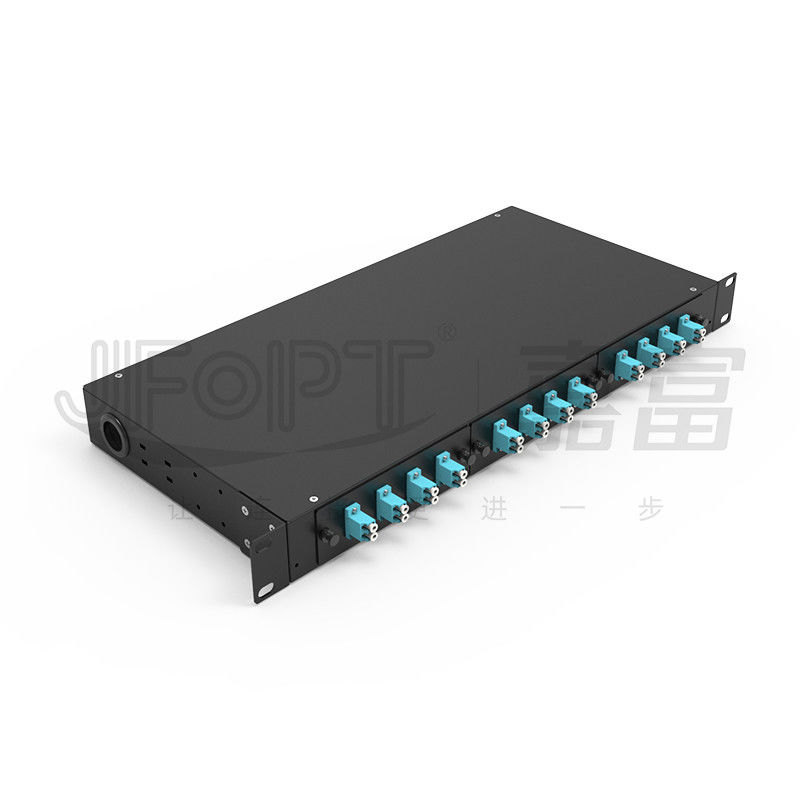

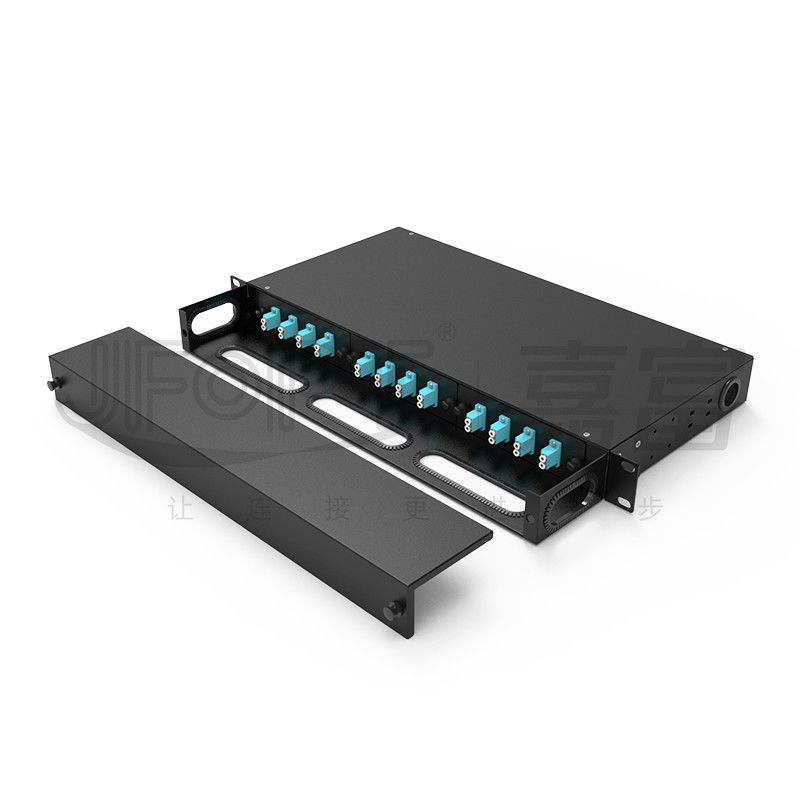

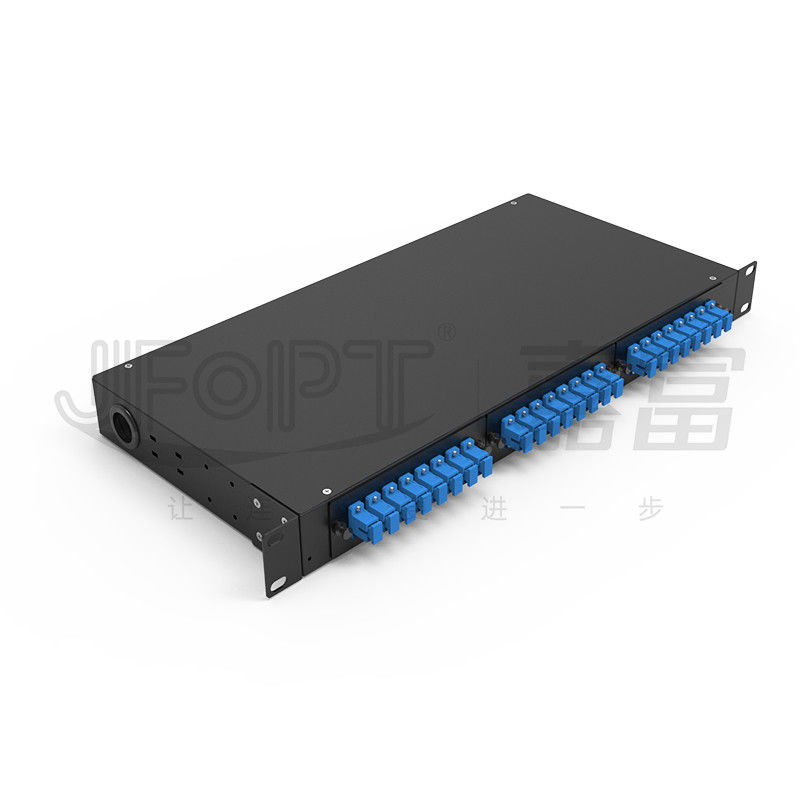

The cold-rolled steel optical fiber distribution frame produced by JFOPT is an efficient and stable wiring equipment specially designed for optical fiber communication networks. The patch panel is made of high-quality cold-rolled steel material. The outer shell is strong and durable, and can effectively resist the impact and vibration of the external environment, ensuring the stability and safety of the optical fiber connection.
This patch panel has a capacity of 24 cores and can meet the needs of small and medium-sized network cabling. Its 19-inch rack-mounting design allows the patch panel to be easily installed in a standard rack, saving space and making management easier. At the same time, the patch panel is also equipped with a 12/24-slot tray, which makes the layout of fiber optic cables more orderly and improves the efficiency and aesthetics of wiring.
In terms of connection, this patch panel supports various types of optical fiber connectors such as SC/LC/FC/ST, which can meet the connection needs in different application scenarios. The design of fixed ODF makes fiber splicing and fixing more stable and reliable, effectively reducing data transmission problems caused by loose or falling connections.
1.24-core capacity design can fully meet the needs of small and medium-sized network cabling, whether it is an enterprise network, a school network or a small data center, it can easily cope with it.
2. Adopting 19-inch rack installation standard, it can be easily integrated into the existing rack system, which not only saves valuable space, but also makes the overall wiring more tidy and orderly.
3. The equipped 12-slot tray design further improves the flexibility and convenience of cable management. Users can freely adjust the number and position of trays according to actual needs to achieve efficient layout and fixation of fiber optic cables.
4. Supports multiple fiber interface types such as SC/LC/FC/ST, which means it can seamlessly connect with a variety of fiber optic devices to meet the connection needs in different application scenarios.
Data center and cloud computing environment: 1U fixed fusion spliced optical fiber distribution box provides a high-density optical fiber connection solution to meet the high-speed communication needs between devices in the data center and ensure rapid transmission and processing of data.
Communication base stations and transmission networks: Communication base stations and transmission networks are important infrastructure for information communications and require stable and reliable optical fiber connections.
Enterprise networks and offices: For enterprise networks and offices, fiber optic distribution boxes are important equipment for completing tasks such as optical fiber connections for LAN backbones and data center equipment connections.
Security monitoring system: In the field of security, fiber optic distribution boxes can be used as video signal transmission and connection equipment to provide stable and high-quality video signal transmission for the monitoring system to ensure the clarity and real-time nature of the monitoring screen.
JFOPT factory is committed to providing customers with high-quality 1U fixed fusion spliced 24 core optical fiber distribution boxes, and pays special attention to meeting customers' individual needs. Therefore, we provide a full range of customized services to ensure that every customer can get the solution that best meets their actual needs.
Core number customization: Whether it is a 24-core optical fiber distribution box, we can customize it according to the actual needs of customers. The selection of different core numbers can meet the needs of network cabling of different sizes and ensure the stability and transmission efficiency of optical fiber connections.
Modular panel configuration: Our wiring box adopts a three-modular panel design. Customers can choose modules with different configurations according to specific application scenarios and needs. Whether it is a fusion module, a port connection module or a management and maintenance module, we can customize and adjust it according to the specific requirements of our customers.
Size and appearance customization: In addition to the basic core number and module configuration, we can also customize the size, color, logo, etc. of the wiring box according to the special requirements of customers. This ensures that the wiring box integrates perfectly with the customer's existing equipment or environment, improving overall aesthetics and practicality.
Special function customization: According to the special needs of customers, we can also add some special functions to the wiring box, such as intelligent management, temperature control, safety protection, etc. These functions can further improve the performance and safety of the wiring box and meet the needs of customers in specific scenarios.
The Rack Mount Fiber Patch Panel is designed to provide a comprehensive solution for the organization and management of fiber optic cables within a network rack. Our product offers high-density configurations, effortless fiber cable management, and superior protection for your fiber optic connections.
Our technical support and services for the Rack Mount Fiber Patch Panel include:
Installation Assistance: Detailed installation guides are provided with the product. Our technical team is also available to assist with any installation queries to ensure a smooth setup process.
Configuration Support: We provide step-by-step assistance with the configuration of your patch panel to match your specific network requirements. This includes guidance on cable routing, port assignments, and panel labeling.
Maintenance Tips: To maintain the optimal performance of your Rack Mount Fiber Patch Panel, we offer maintenance tips and best practices. This includes cleaning procedures for fiber connectors and periodic checks to ensure the integrity of the connections.
Troubleshooting Guide: In the event of any performance issues, our troubleshooting guide helps you to quickly identify and resolve common problems. For more complex issues, our support team is ready to assist with in-depth technical advice.
Firmware Updates: We provide regular firmware updates to enhance the functionality and security of your fiber patch panel. Instructions for updating your device can be found on our website or obtained from our technical support team.
Replacement Parts: In case of any damaged components, we offer a selection of replacement parts to ensure your patch panel continues to operate efficiently. Our support team can help you identify the necessary parts and guide you through the replacement process.
Product Warranty: The Rack Mount Fiber Patch Panel comes with a comprehensive warranty that covers any manufacturing defects. Terms and conditions of the warranty are included with the product and can also be discussed with our support team.
Our commitment to customer satisfaction ensures that you receive the highest level of support for your Rack Mount Fiber Patch Panel. For any other inquiries or support needs, please reach out to our customer service team for professional and timely assistance.
The Rack Mount Fiber Patch Panel is carefully packaged to ensure it reaches you in perfect condition. It is encased in a protective foam lining that snugly fits the contours of the panel, providing shock absorption during transit. The panel is then placed inside a sturdy cardboard box designed to withstand the rigors of shipping. We seal the box with heavy-duty packing tape and mark it with fragile handling stickers to alert carriers of the delicate contents.
Before dispatch, the package is weighed and measured to ensure compliance with carrier regulations. It is then logged in our tracking system, providing you with a unique tracking number to monitor its journey. All packages are shipped via reputable carriers with options for expedited delivery upon request. We take every precaution to ensure that your Rack Mount Fiber Patch Panel arrives on time and ready for installation.
Q1: What brand is the 1U Fixed Patch Panel from, and where is it manufactured?
A1: The 1U Fixed Patch Panel is by the brand JFOPT, and it is manufactured in CHINA.
Q2: What certifications does the JFOPT 1U Fixed Patch Panel have?
A2: The JFOPT 1U Fixed Patch Panel comes with CE and ISO9001 certifications, ensuring compliance with European standards and quality management systems respectively.
Q3: What is the minimum order quantity for the JFOPT 1U Fixed Patch Panel?
A3: The minimum order quantity for the JFOPT 1U Fixed Patch Panel is 1 unit, allowing for both small-scale and large-scale orders.
Q4: How are the JFOPT 1U Fixed Patch Panels packaged and how long does delivery take?
A4: The JFOPT 1U Fixed Patch Panels are packaged in carton boxes to ensure safe transportation. The delivery time is usually between 5-8 working days, depending on your location and order specifics.
Q5: What payment methods are accepted for the JFOPT 1U Fixed Patch Panel, and what is the supply ability?
A5: Payment for the JFOPT 1U Fixed Patch Panel can be made through T/T (Telegraphic Transfer), AliPay, or PayPal. JFOPT has a supply ability of 1000 pcs/day, catering to both individual and bulk orders.
