Place of Origin:
CHINA
Brand Name:
JFOPT
Model Number:
JFOPP-MPO10-A-002
Contact Us

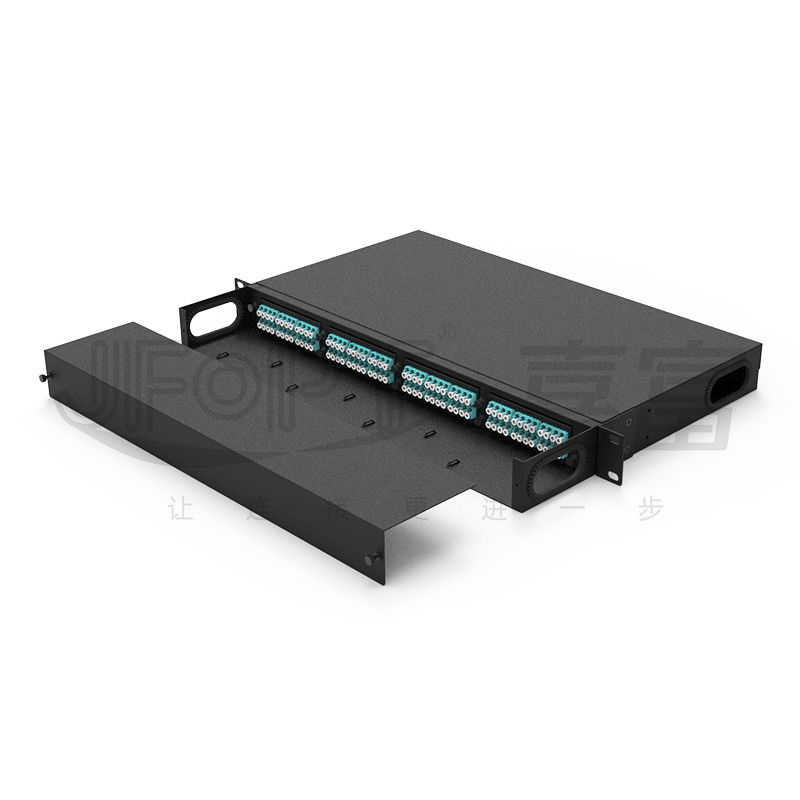

19 - Inch MPO / MTP 1U 96F MPO Fiber Patch Panel
JFOPP-MPO10-A-002 MPO/MTP 1U Fixed Patch Panel is designed with 4 modules for centralized management, providing high-density fiber optic connectivity. It offers excellent flexibility and scalability, allowing for the addition or removal of ports as per your requirements. The patch panel is manufactured with high-precision metal sheet equipment and high-quality cold-rolled steel material with electrostatic spray surface treatment, ensuring exceptional pressure resistance and impact resistance. The main application of the patch panel is to connect the backbone optical cable with equipment by jumpers, enabling modular and plug-and-play functionality, significantly improving convenience and efficiency compared to traditional fusion splicing.
♦ Product Features
① Standard 1U 19-inch rack-mount design |

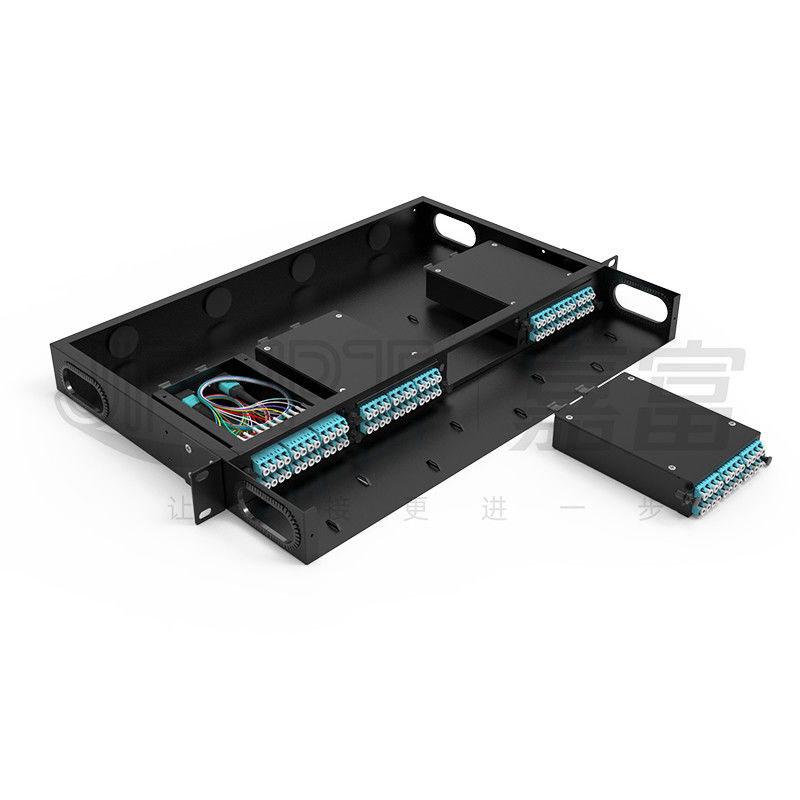

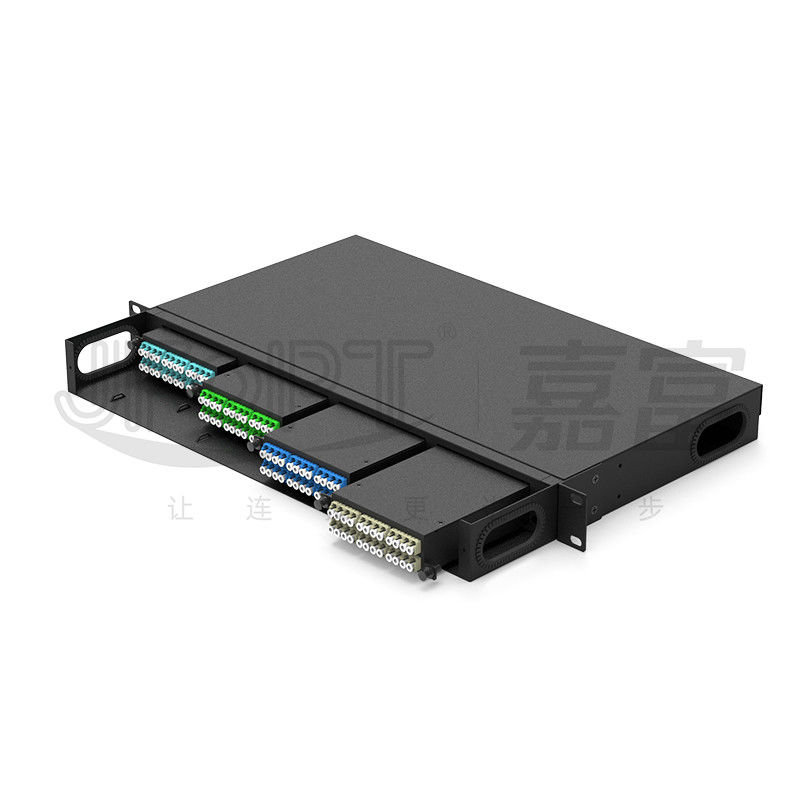

②Four removable MPO module boxes, with a maximum core count of up to 96 cores |
|
|
③Made of high-quality cold-rolled steel plate with electrostatic spray surface treatment, providing resistance to pressure, impact and good appearance |

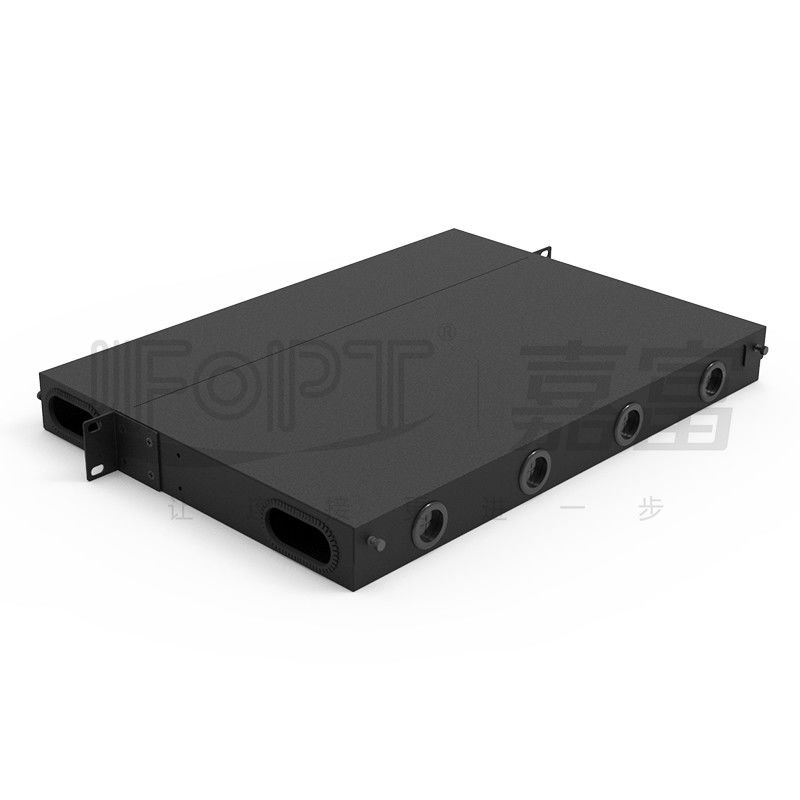

④ Elliptical main cable ports on both sides of the patch panel, along with four circular cable entry ports at the back, to accommodate different cable entry requirements |
|
|

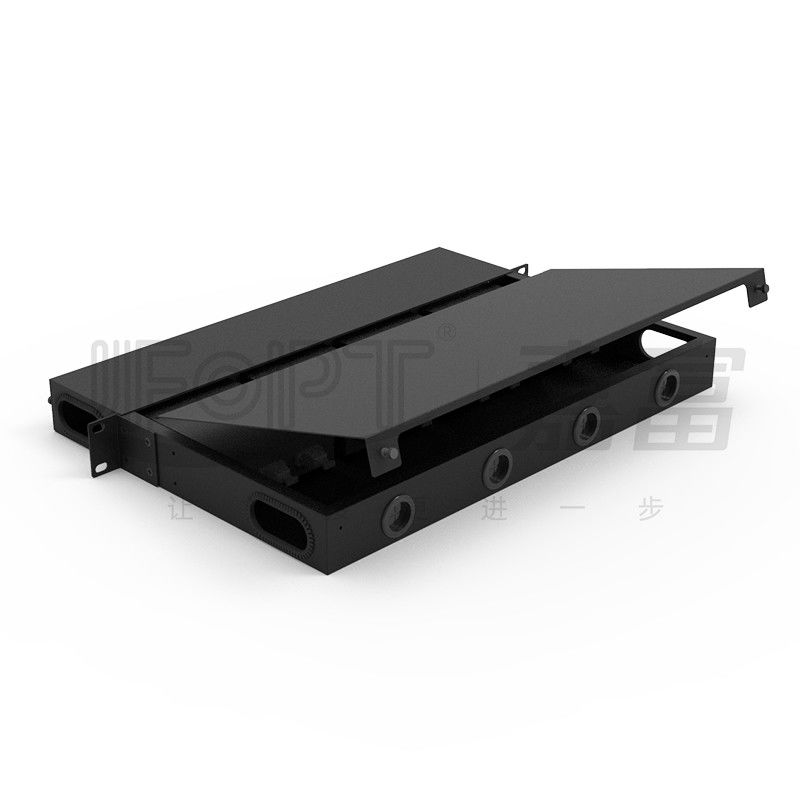

⑤The top cover and front cover of the patch panel are secured with hand screws for easy removal without the need for tools |

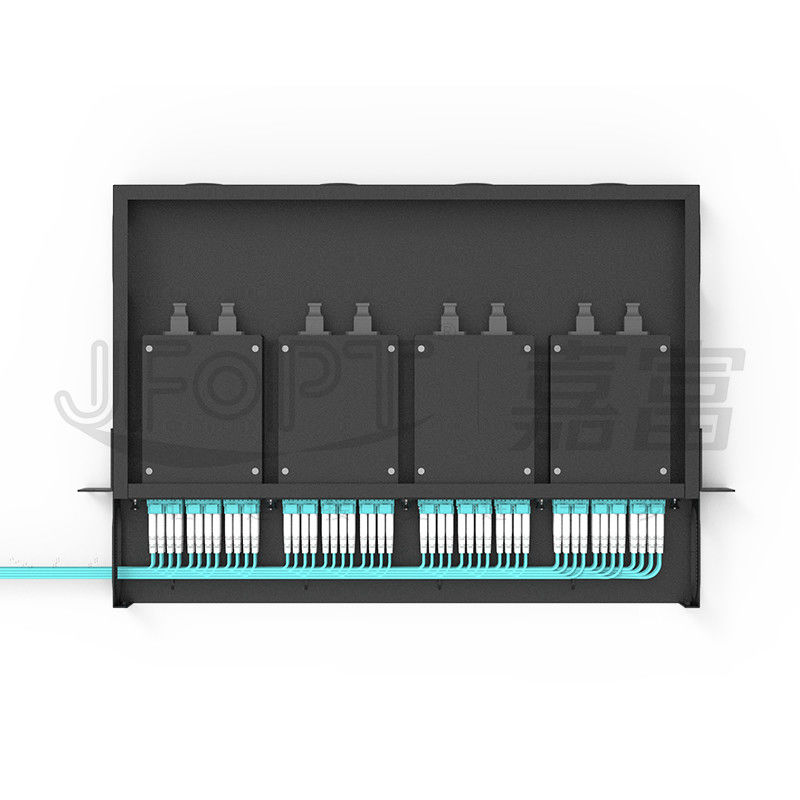

⑥ The front section of the patch panel includes cable management for convenient organization of cables |
|
|
⑦ Suitable for high-density wiring |
- |
|
- |
♦ Applications
1.Data centers.
2.High-density fiber optic cabling systems.
3.Backbone networks.
4.FTTZ and FTTB cabling systems.
♦ Dimension of Module Box
♦ Dimension of Distribution Box
♦ Accessory
|
|
3*100mm cable ties * 8 pieces |
Cage screws and nuts * 4 sets |
♦ Product Packaging
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Multiple inner boxes packed into an outer box and sealing it |
Outer carton box has corner protector |
♦ Factory Strength
Expertise: JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment. |
|
||||
Manufacturing Capacity: JFOPT utilizes precise laser cutting equipment, metal stamping equipment and CNC bending equipment for manufacturing. |
|
||||
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections at every stage, from sheet metal material to stamping, bending, and coating processes. |
|
||||
Standardization: JFOPT can customize and strictly adhere to production standards for patch panels based on customer requirements, ensuring product consistency and performance stability. |
|
||||
Technological innovation: JFOPT emphasizes technological innovation and has a professional team dedicated to the research and development of fiber optic patch panels, continuously developing more advanced and user-friendly products. |
|
||||
Service support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when purchasing a distribution box?
Firstly, ensure that it meets your wiring installation requirements. Pay attention to the thickness of the sheet metal and structural strength to ensure the product has an attractive appearance without any damage. Typically, you can contact us to customize the production based on your samples or technical drawings, or you can inform us of your requirements for us to design it for you.
2.Can our patch panel match with the module boxes from other manufacturers?
Compatibility depends on the installation dimensions. If the dimensions are consistent, they can be compatible; otherwise, they may not be suitable for use together.
3.Can our patch panel be purchased with jumpers for matching?
We can provide jumpers and pigtails to match your different requirements and meet various wiring needs.
4.What is our delivery lead time?
For regular products, the delivery lead time is within 2 working days. For customized products, the delivery lead time is within 15 working days.
