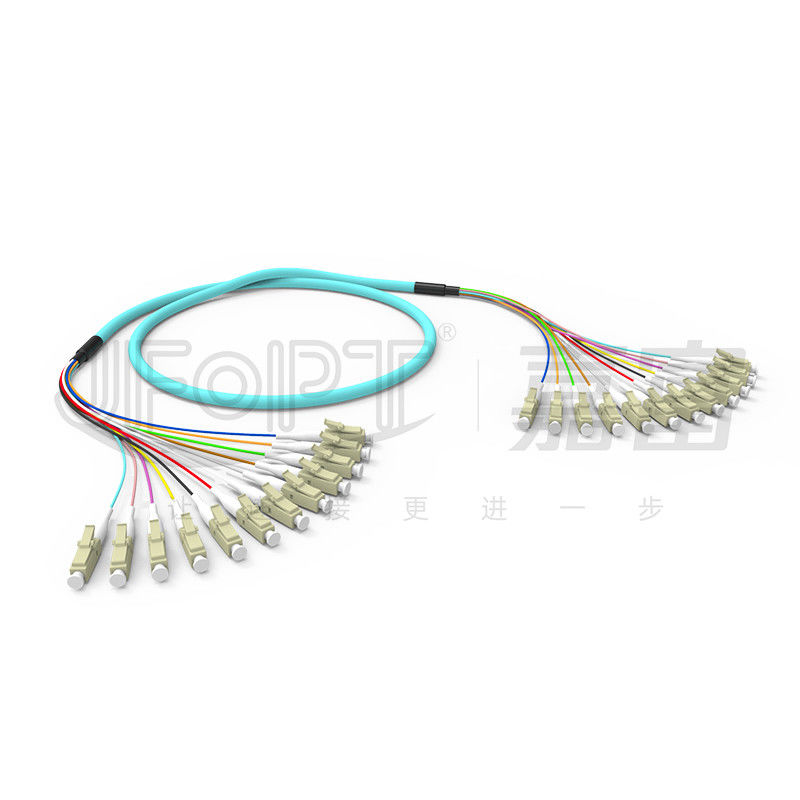

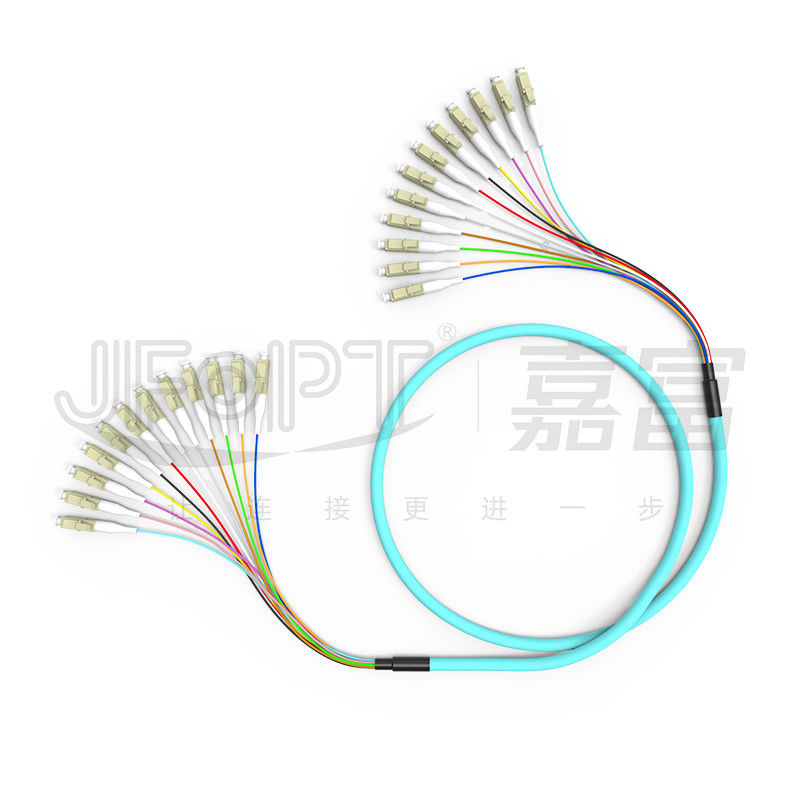

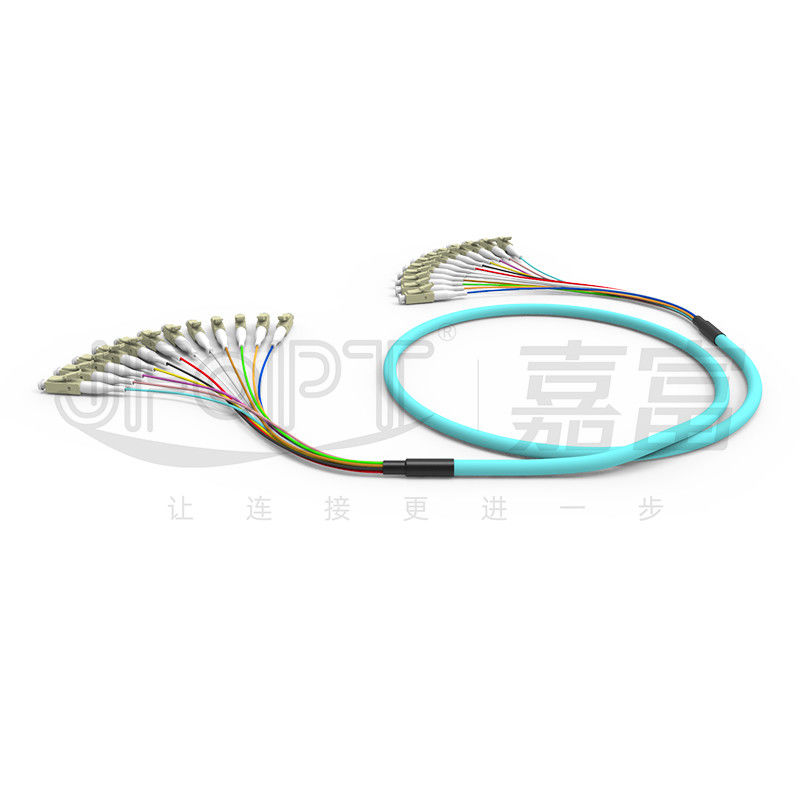

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua

Bundle Branch Fiber Optic Patch Cord

6.2mm LSZH Fiber Optic Patch Cord

LC - LC Multimode Fiber Patch Cord

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

LC/U-LC/U-12F-OM3-6.2-LSZH-1M

Contact Us

Request A Quote
Product Details
Fiber Count:
4/6/8/12/24/48 Cores
Fiber Mode:
OS2(G657A1/A2)/OM1/OM2/OM3/OM4
Cable OD:
4.8/5.0/5.2/5.6/7.8/10.5
Cable Sheath Material:
PVC/LSZH/OFN/ONFR/OFNP
Fan-out Cable Diameter:
0.9/2.0/3.0
Cable Color:
Aqua Green/Customized
Connector Polish:
UPC
Connector Type:
LC
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quotation will be provided based on customer requirements
Delivery Time
1-5 days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
20000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

LC - LC 12 - Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua



LC-LC bundle branch jumper is a pre-terminated fiber optic jumper that uses ceramic LC connectors, ensuring over 500 times insertion and removal with excellent stability and reliability. JFOPT LC-LC bundle branch jumpers are made with high-tensile aramid yarn, which can withstand greater pulling tension in long-distance cabling. JFOPT jumpers undergo multiple rigorous quality testing procedures to ensure the jumpers meet the highest quality standards. JFOPT can provide customized services for length, branch length, branch material and diameter, branch core count, and branch polarity to meet your specific requirements.



♦ Features

① 12-core trunk cable branch connection

②Made with bend-insensitive OM3 fiber to improve transmission stability

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 0

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 1

③High-quality low-loss ceramic ferrule, available in 2.0mm, 3.0mm tight-buffered, armor-tight-buffered options

④100% factory terminated and tested to ensure  transmission performance

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 2

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 3

⑤Each cable is matched with a branch distributor  based on the reference dimensions of the main cable and branch, ensuring a sturdy and stable branch structure



LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 4

-



Applications

1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunication networks
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ SC/LC/FC/ST Connector Parameters

Connector Type

Insertion Loss

Return Loss

SC/LC/FC/ST
Connector

SM

≤0.3dB

APC≥60dB
UPC≥50dB

MM

≤0.3dB

UPC≥25dB



♦ SC/LC/FC/ST 3D Geometry Parameters (optional)

Items

UPC

APC

SC/FC/ST

LC

SC/FC

LC

SM

MM

SM

MM

SM

SM

Radius of curvature (mm)

10-25

7-25

5-12

Apex offset (μm)

≤50

≤30

Fiber Depressed (nm)

±100

Angle deviation (°)

0

8±0.3

Bond angle deviation (°)

0

±0.5

Fiber diameter (μm)

123-135



♦ Connector Color Options

LC connector

Single mode

Blue

Green

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 5

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 6

Multimode

Beige

Aqua

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 7

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 8

Heather Violet

Lime Green

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 9

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 10



♦ Optical Cable Parameters

Item

Parameter

Fiber type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber count

12

Reinforcement element

Aramid yarn

Outer sheath material

Optional LSZH/PVC/TPU

Outer sheath diameter

6.8mm

Outer sheath color

Green/Customized

Max. Tensile Strength (long term)

300N

Max. Tensile Strength (short term)

600N

Max. crush resistance (long term)

200N/cm

Max. crush resistance (short term)

1000N/cm

Minimum bending radius (dynamic)

20D

Minimum bending radius (static)

10D

Operating temperature

-20~60℃

Storage temperature

-20~60℃

Flame retardance

Optional OFN/OFNR/OFNP



♦ Connector Options

Duplex product selection

Cable diameter

Boot type


Drawings

2.0mm
Duplex

Standard

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 11

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 12

3.0mm
Duplex

Standard

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 13

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 14



Single product selection

Cable diameter

Boot type


Drawings

0.9mm
Simplex

Standard

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 15

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 16

2.0mm
Simplex

Standard

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 17

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 18

3.0mm
Simplex

Standard

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 19

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 20



♦ Branching Options

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 21

Main Cable Stripping Structure

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 22

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 23

Fanout with equal length

Fanout with unequal length

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 24

Own sub-unit

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 25

Each branch 2.0/3.0mm

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 26

Each branch 3.0mm with spiral armored tube

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 27

Each branch 3.0mm covered by spiral armor tube



♦Product Packaging

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 28

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 29

Thickened self-sealing bag packaging

Thickened carton packaging



 Factory Strength

Specialization:


JFOPT has accumulated years of experience in the production of large-core count jumpers, ensuring extremely low loss and long lifespan in complex environments.

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 30

Manufacturing Capacity:


With 5 production lines and equipment, JFOPT is equipped with professional large-diameter multi-core cable cutting machines to quickly, efficiently, and neatly wind various large-core count cables, ensuring fast delivery.

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 31

Quality Control:


JFOPT implements strict quality control. From raw material procurement to all links in the production process, there are professional quality inspections and monitoring, insertion loss test/end face inspection to ensure product quality.

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 32

Customization Standards:


JFOPT can customize the cable color, outer diameter, fiber type and quantity, and jacket structure according to customer requirements. Through sample sealing and engineering drawings, we ensure the technical parameters of the product and maintain consistency across different batch orders.

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 33

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team constantly developing more advanced and higher-performance fiber optic jumpers.

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 34

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

LC - LC 12 Core Bundle Branch Fiber Optic Patch Cord Multimode 50/125 6.2mm LSZH Aqua 35



♦ Frequent Q&A

1.What issues should be considered when customizing standard fiber optic jumpers?
Customization requirements for fiber optic jumpers include total length of the jumper, length of the branches, diameter of the branch cables, cable material, fiber type and core count, color, and labeling.



2.How do we ensure the stability of our standard fiber optic jumpers?
JFOPT ensures the stability of our fiber optic jumpers through meticulous process design. All connectors undergo 100% insertion loss testing and end-face inspection, ensuring stable and reliable performance.



3.What is our delivery lead time?
For standard products, our delivery lead time is controlled within 5 working days, ensuring prompt shipment and satisfying your urgent needs.
